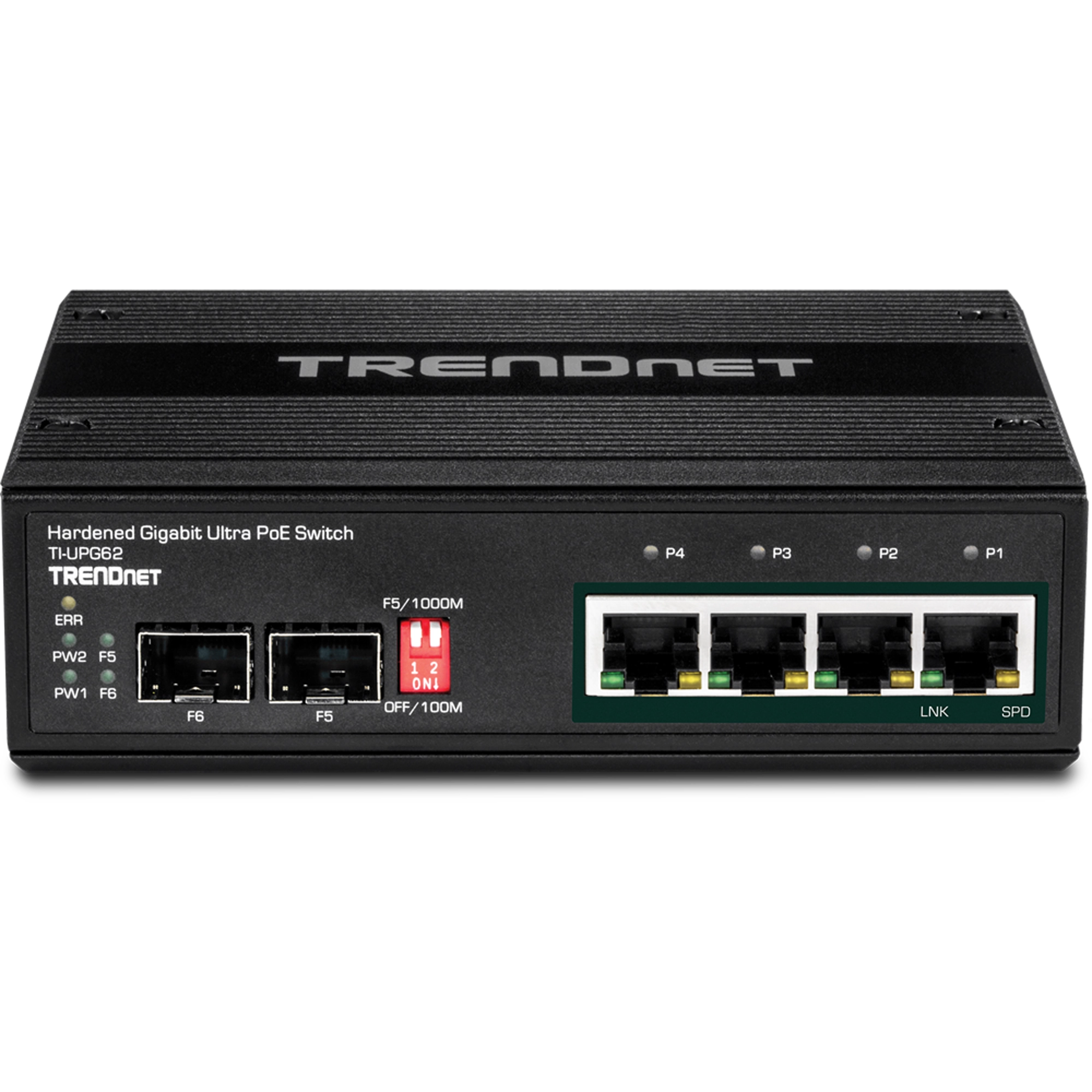

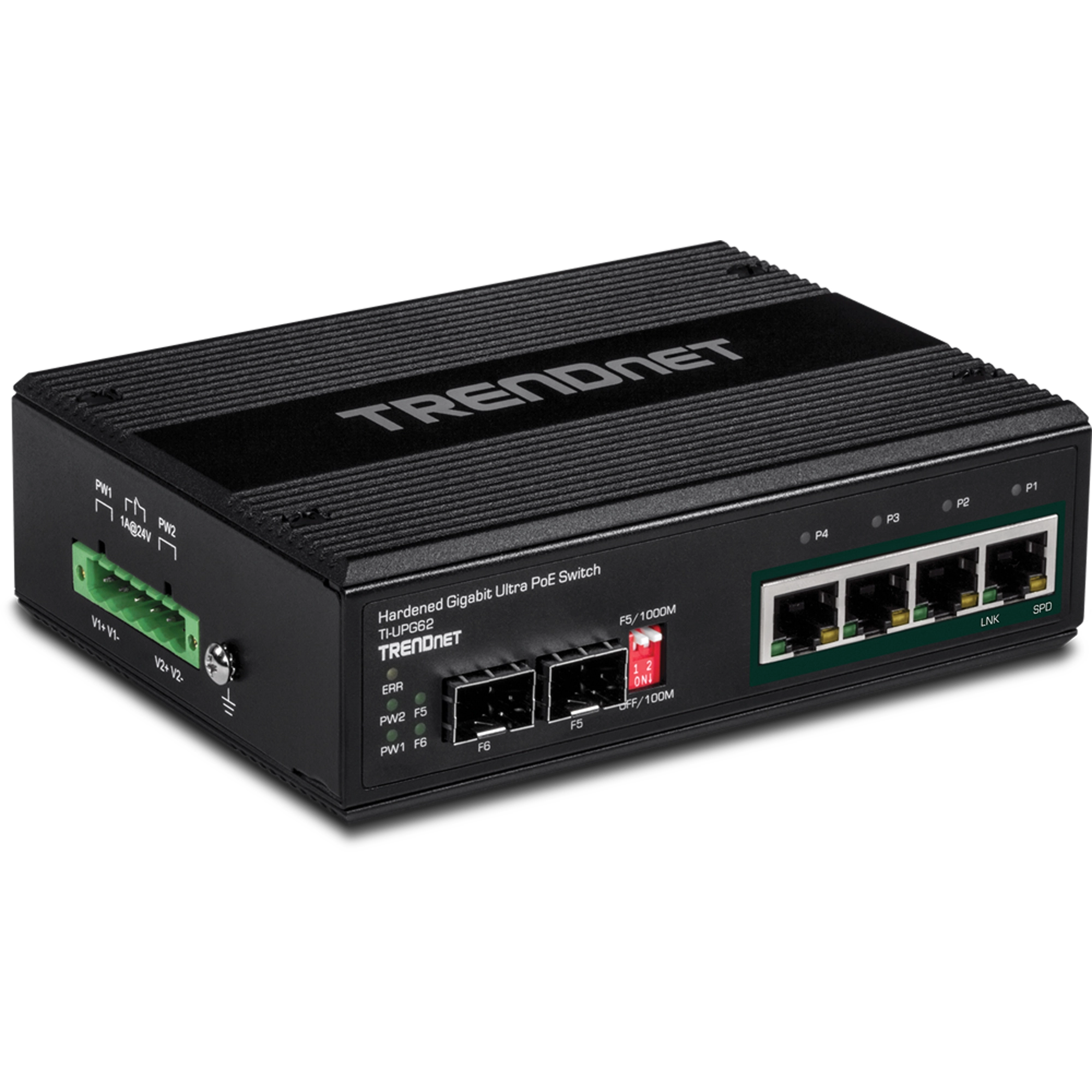

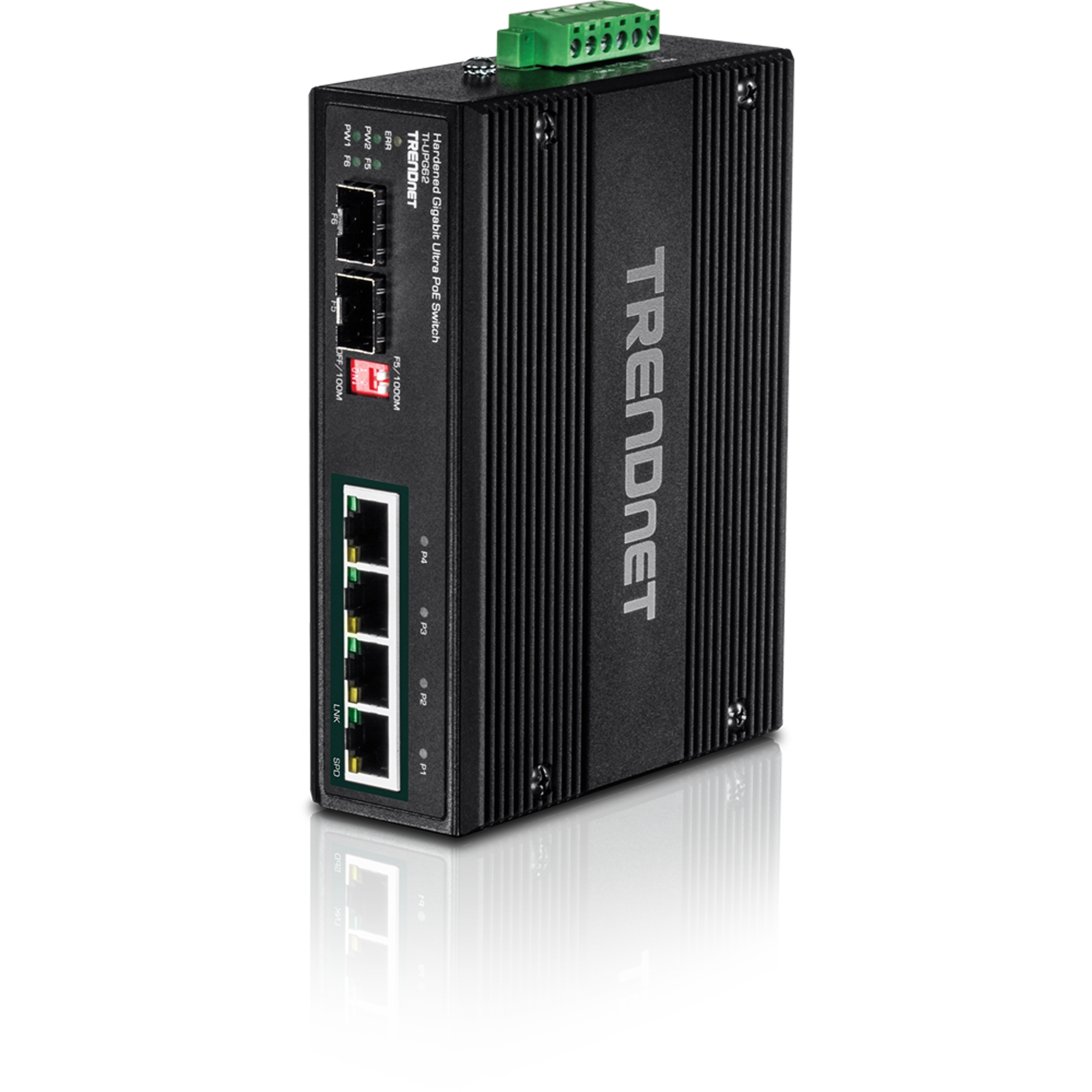

6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch

TI-UPG62 (Version v1.0R)

  • 4 x Gigabit Ultra PoE ports
  • 2 x dedicated SFP slots
  • 240 watt power budget
  • 12 Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-rail and wall mounts
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (TI-S24048)
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TI-UPG62 (Version v1.0R) has been discontinued. It has been replaced by the TI-UPG62 (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-rail Ultra PoE switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit Ultra PoE ports, 240 W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.

Line art image of TI-UPG62 6-Port Hardened Industrial Gigabit PoE++ DIN-Rail Switch connected to two cameras and an access point using 240 watt PoE power budget that supplies up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (90W) of power

Ultra PoE

A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power.

Line art image of TI-UPG62 6-Port Hardened Industrial Gigabit PoE++ DIN-Rail Switch depicting multiple redundant power inputs by two external power sources and an output alarm relay in the event of input power failure.

Fault Tolerance

Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Line art image of TI-UPG62 6-Port Hardened Industrial Gigabit PoE++ DIN-Rail Switch depicting IP30 rated with icons representing resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and a wide operating temperature range

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

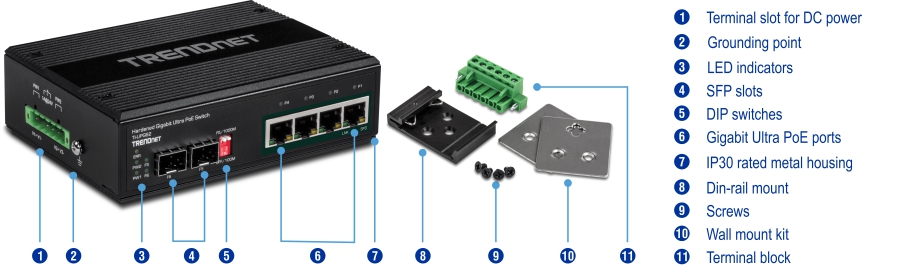

The TRENDnet hardened Gigabit Ultra PoE switch is shown with various components labeled. The switch features a terminal slot for DC power, a grounding point, LED indicators, SFP slots, DIP switches, and Gigabit Ultra PoE ports, all housed in an IP30 rated metal enclosure. The diagram also highlights a din-rail mount, screws, a wall mount kit, and a terminal block, with each component clearly numbered and labeled for easy identification.

PoE Power Budget

A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power.

Network Ports

4 x Gigabit Ultra PoE ports and 2 x dedicated SFP slots

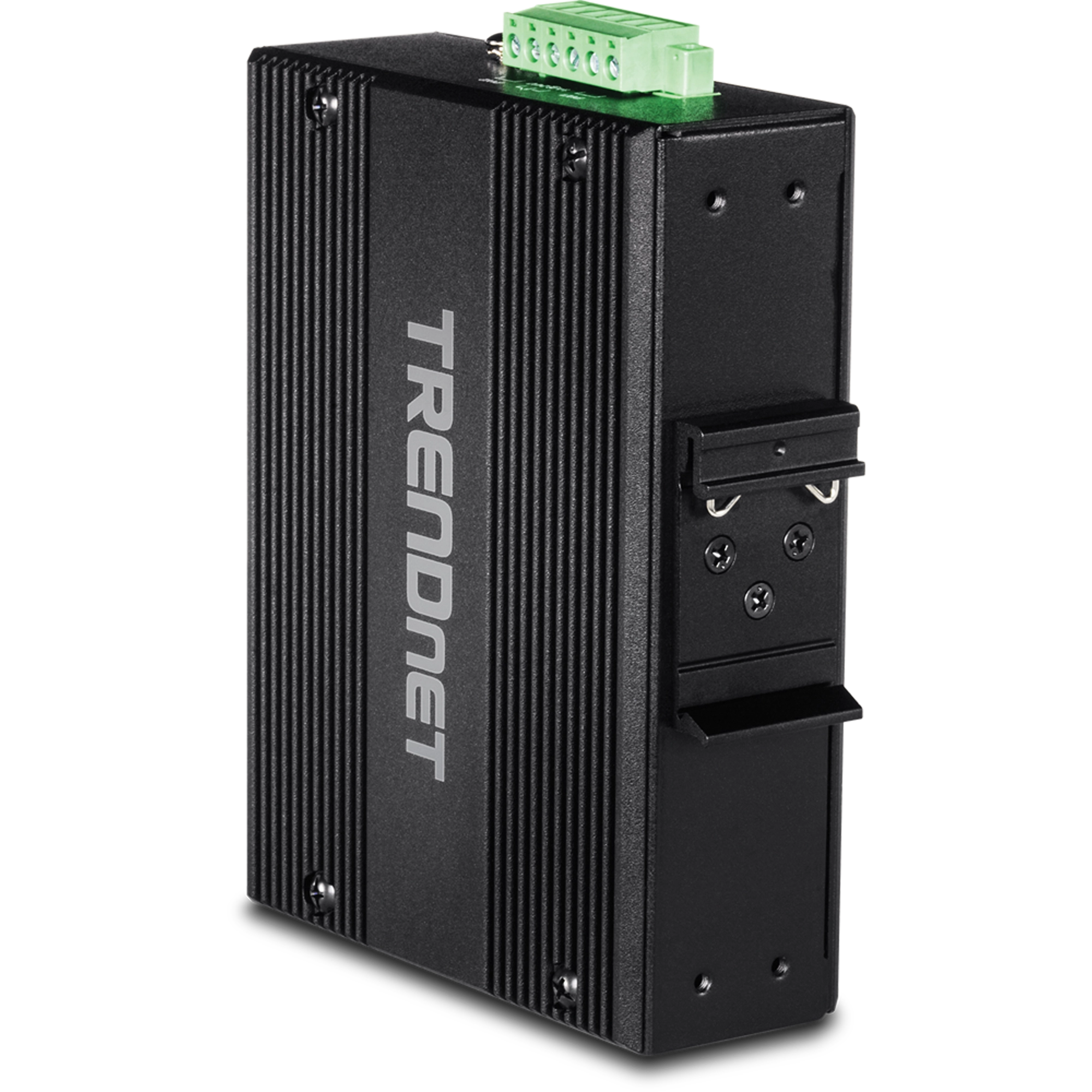

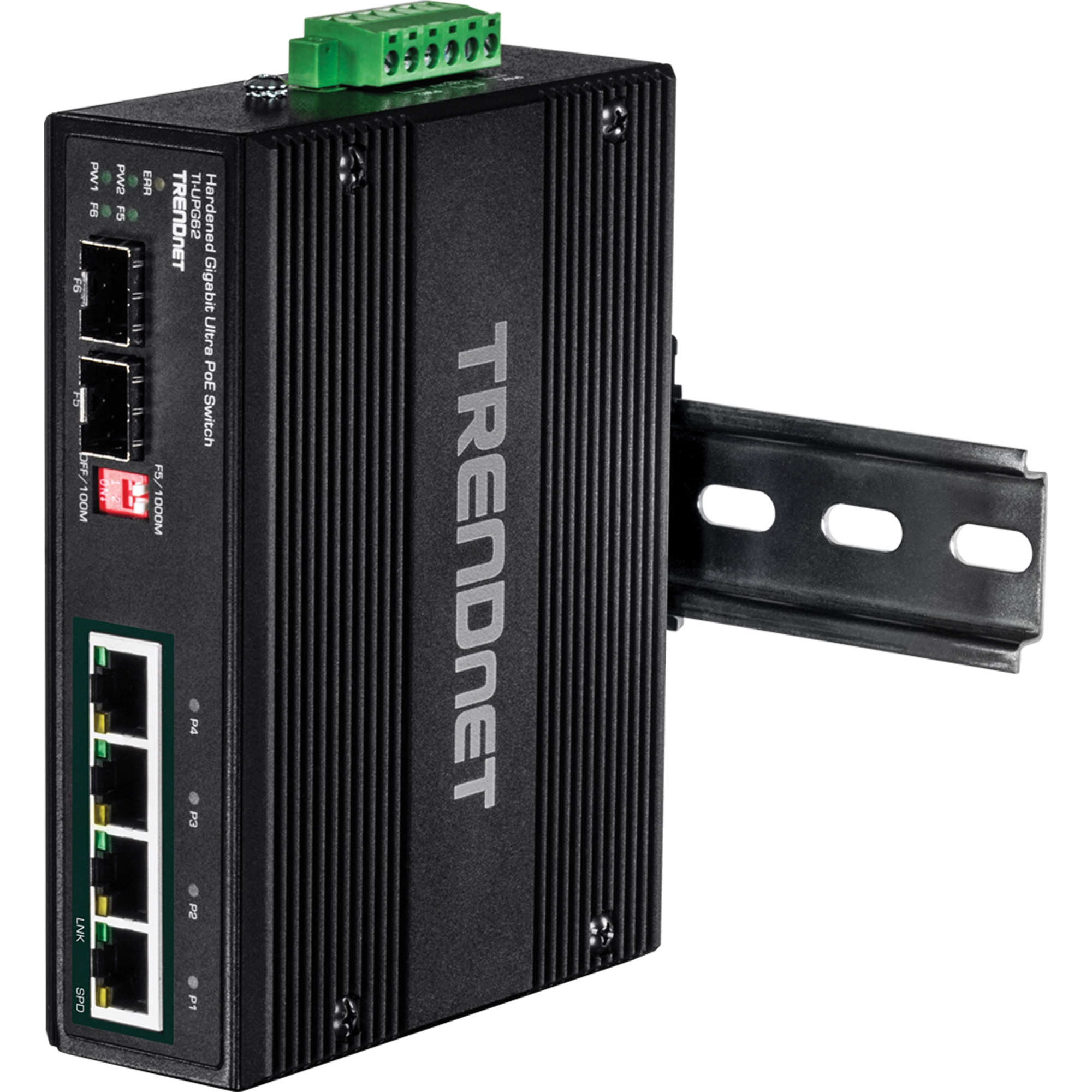

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

12 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supplies sold separately, model TI-S24048)

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Rated for Extreme Environments

Rugged IP30 rated enclosure designed to withstand a high degree of vibration, shock, and operate within a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24); industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit Ultra PoE ports
  • 2 x Gigabit SFP slots
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet
  • Gigabit
Performance
  • Data RAM Buffer: 1024 KB
  • Switching Fabric: 12 Gbps
  • MAC Address Table: 1 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8KV protection
DC Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Consumption: Max. 5.76 watts (no PD)
PoE
  • PoE: up to 15.4 watts per port
  • PoE+
  • Ultra PoE
  • Total PoE budget

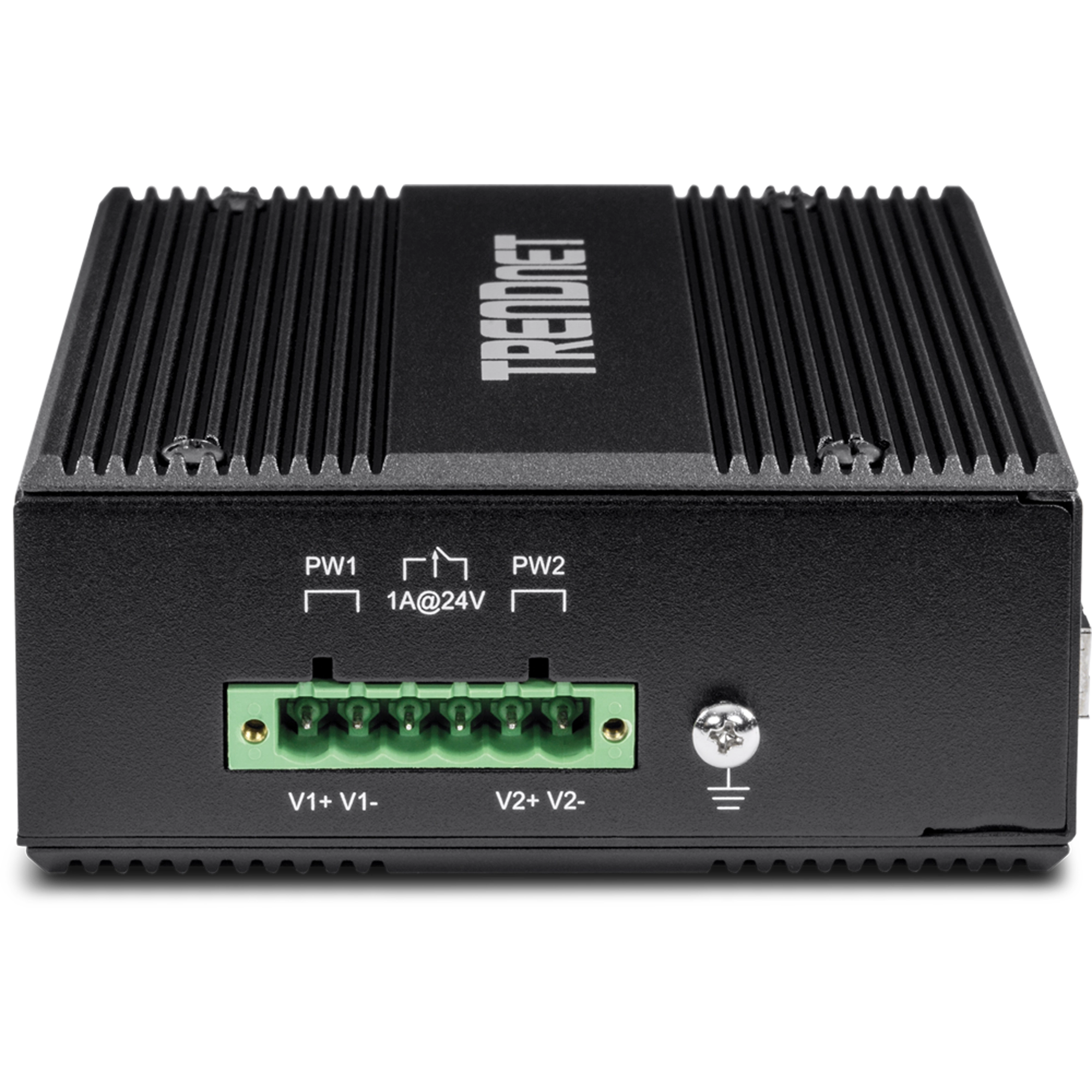

Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG)
  • Stranded wire (AWG)
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
DIP Switch
  • 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
  • 2: OFF (SFP 1000M, default), ON (SFP 100M)
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Short circuit mode when two power sources are connected
  • Open circuit mode when only one power source is connected
  • 304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight
  • 514 g (1.1 lb)
Certifications
  • CE
  • FCC
  • Shock
  • Freefall
  • Vibration (IEC 60068-2-6)
Warranty

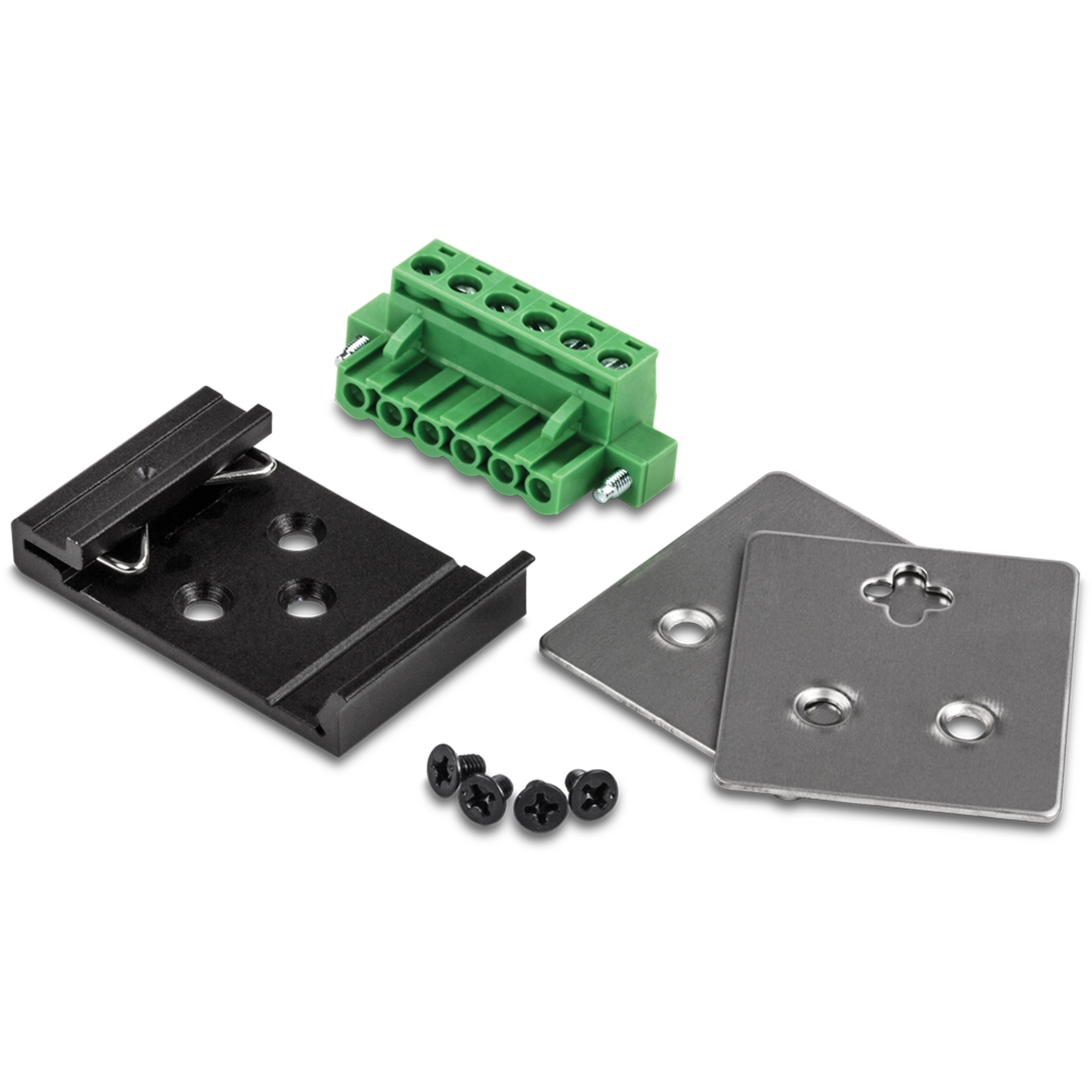

PACKAGE CONTENTS
  • TI-UPG62
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
