Hardened Industrial 100/1000
Base-T to SFP Media Converter

TI-F11SFP (Version v1.0R)

  • Hardened IP30 rated 100/1000 Base-T Ethernet to SFP converter
  • SFP port accommodates Multi or Single Mode fiber
  • Up to 80 km fiber networking distances with the TEG-MGBS80 SFP module
  • Includes DIN-rail and wall mounts
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Powers supply sold separately (model TI-M6024)
DISCONTINUED PRODUCT
The TI-F11SFP (Version v1.0R) has been discontinued. It has been replaced by the TI-F11SFP (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's TI-F11SFP is a reliable IP30 rated 100/1000 Base-T to SFP media converter with hardened components rated for extreme industrial environments. Set 100 or 1000 Mbps throughput speeds, Auto Negotiation, and Link Fault Pass Through (LFP) using the front panel dip switches. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support zero downtime applications.

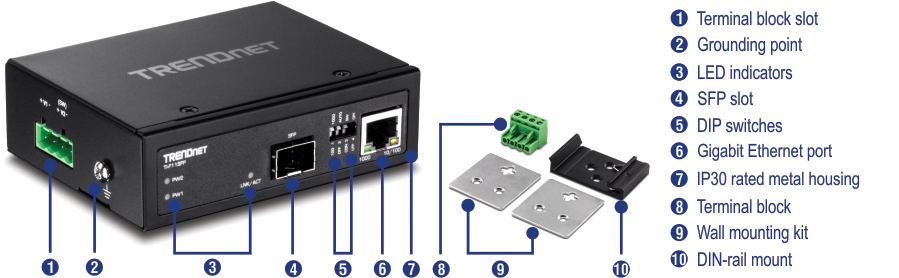

A TRENDnet device with various components including a terminal block slot, grounding point, LED indicators, SFP slot, DIP switches, Gigabit Ethernet port, IP30 rated metal housing, terminal block, wall mounting kit, and DIN-rail mount. The terminal block, wall mounting kit, and DIN-rail mount are shown separately next to the device.

Network Ports

Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget

Dip Switches

  • Dip Switch 1: 100 or 1,000 Mbps throughput speeds
  • Dip Switch 2: Enable/disable port Auto-Negotiation
  • Dip Switch 3: Converter or Switch mode
  • Dip Switch 4: Enable/disable Link Fault PassThrough (LFP) support

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

2 Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures

Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
Device Interface
  • 1 x Gigabit port
  • 1 x Gigabit SFP slot
  • 4-pin removable terminal block
  • LED indicators
  • DIP Switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 1024 KB
  • Jumbo Frame: 9 KB
Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection
Power
  • Input: 12 - 56 V DC or 18 - 36 V AC
  • Compatible power supply: TI-M6024 (sold separately)
  • Consumption: Max. 3 Watts
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
DIP Switch
  • 1: Set SFP speed to 100 Mbps or 1000 Mbps
  • 2: Enable or disable auto-negotiation on SFP port
  • 3: Set to switch or pass through mode
  • 4: Turns LFP (Link Fault Pass Through) on or off
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in.)
Weight
  • 152 g (5.4 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TI-F11SFP
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
