16-Port Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG162 (Version V2)

  • 14 x Gigabit PoE+ ports
  • 2 x Gigabit SFP ports
  • Up to 300W PoE power budget
  • 32Gbps switching capacity
  • Hardened IP50 rated metal switch
  • Includes DIN-Rail mount and wall-mount brackets
  • Wide operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (model: TI-S48048)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG162, provides network connectivity in rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The Industrial Gigabit PoE+ DIN-Rail Switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE+ switch features 14 RJ45 gigabit PoE+ ports for high-speed device connections, and two SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with the Industrial Gigabit PoE+ DIN-Rail Switch by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE+ switch, users will only need a single Ethernet cable to deliver both data and power. Network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

TRENDnet TI-PG162 industrial PoE plus switch with fourteen gigabit PoE plus ports and two gigabit SFP ports, mounted inside an enclosure. Three network devices—a dome camera, wireless access point, and bullet camera—are connected via Ethernet cables, with yellow lightning bolt icons indicating active PoE power delivery. Port labels include numbers one through fourteen and fiber ports F15 and F16.

PoE+ Power

This hardened industrial PoE+ switch features up to a 300W PoE power budget that supplies Power over Ethernet devices with 30W of PoE+ power per port.

Wiring diagram showing a TRENDnet industrial device with a terminal block labeled with four terminals including plus P2 minus, plus P1 minus, RLY, and ground symbol. Two power sources labeled PWR2 and PWR1 connect to the terminal block alongside an alarm system. Clean layout with directional lines illustrating power and alarm connections on a white background.

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Four quadrants display device features with icons for vibration resistance, temperature tolerance, electrical protection, and IP50 dust protection, each marked with a check to indicate compliance.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

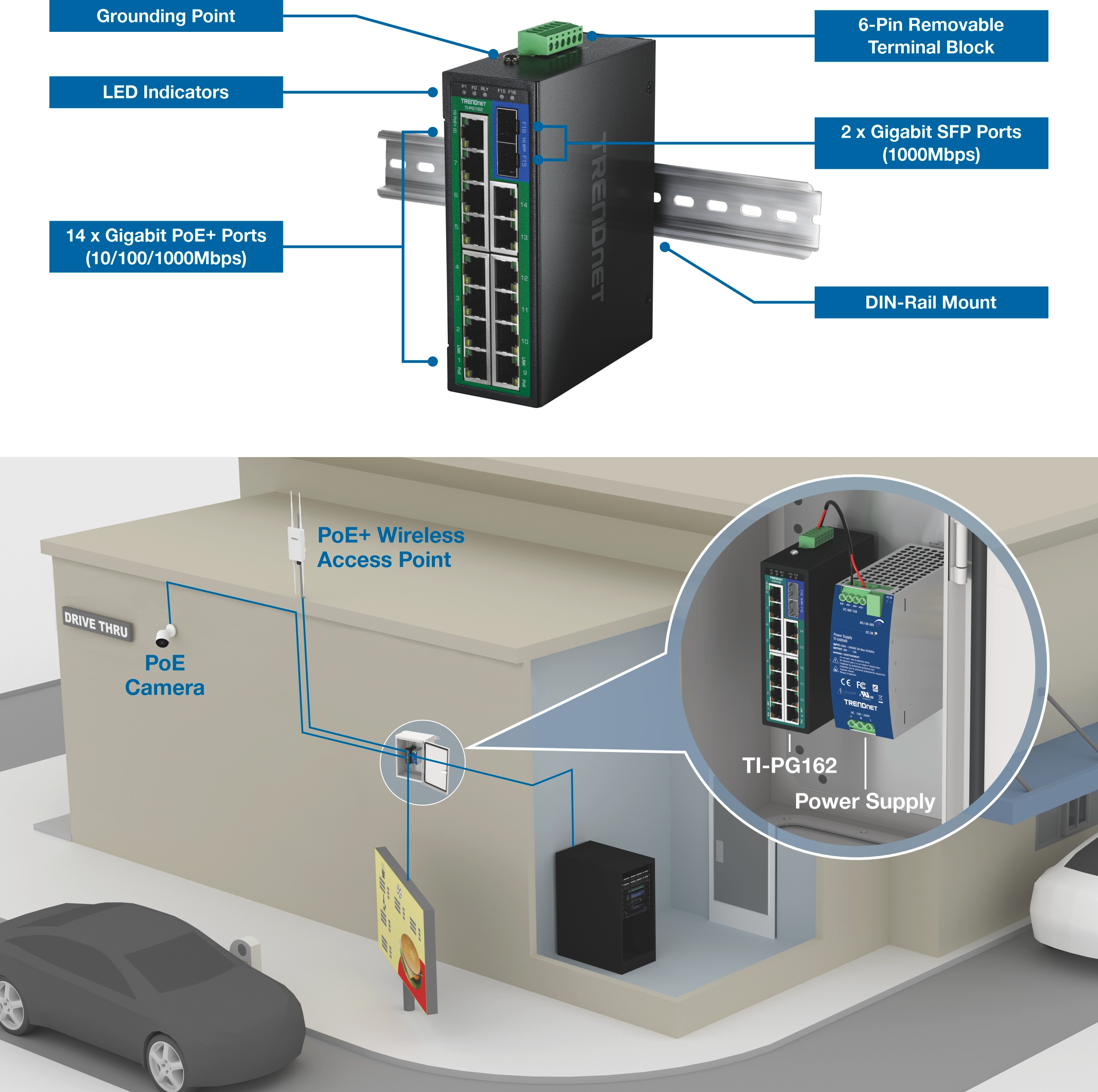

TRENDnet TI-PG162 industrial PoE plus switch mounted on a DIN rail inside an enclosure, featuring grounding point, LED indicators, fourteen gigabit PoE plus ports, two gigabit SFP ports, six-pin removable terminal block, and DIN-rail mount. Below, a drive-thru building setup shows the switch connected to a power supply and powering a PoE plus wireless access point on the roof and a PoE camera on the wall.

PoE Power Budget

Up to 30W of power per port and data over a single Ethernet cable to PoE devices with a maximum 300W PoE budget

Gigabit Ports

Gigabit PoE+ ports for high-speed device connections and 1000Base-FX SFP ports

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-S48048)

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

DIN-Rail / Wall Mounts

The rugged switch includes DIN-Rail mount and wall-mount hardware

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

Grounding Point

This industrial PoE+ switch features a grounding point for protection against external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 14 x Gigabit PoE+ ports (10/100/1000Mbps)
  • 2 x Gigabit SFP ports (1000Mbps)
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 512KB
  • Switching Fabric: 32Gbps
  • MAC Address Table: 8K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 23.8Mpps (64-byte packet size)
DC Power
  • Input: 48 – 56V DC
  • Recommended power supply: TI-S48048 (sold separately)
  • Max. consumption: 9W (no PoE)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • Power budget: 240W@48V, 300W@56V
  • Mode A: Pins 1, 2 for power + , 3, 6 for power -
Terminal Block
  • 6-pin terminal block
  • Alarm Relay: 1A@24V DC
  • Wire range: 0.34mm² to 2.5mm²
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm / 0.56Nm
  • Wire strip length: 7-8mm
MTBF
  • 1,261,145 hours @ 25° C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 8kV Air protection
  • 2kV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 142 x 105 x 45.5mm (5.6 x 4.1 x 1.8 in.)
Weight
  • 457g (16.13 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG162
  • Removable terminal block
  • DIN-Rail and wall-mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
