Hardened Industrial 90W Gigabit PoE++ Injector

TI-IG90 (Version v1.0R)

  • Hardened IP30 rated Gigabit PoE++ Injector
  • PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
  • Network a PoE device located up to 100m (328 ft.) away
  • Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
  • Redundant power inputs with overload current protection
  • Includes DIN-rail mount and wall mount
  • Power supply sold separately (model TI-S15052, TI-S12048)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TI-IG90 (Version v1.0R) has been discontinued. It has been replaced by the TI-IG90 (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's TI-IG90 is a reliable IP30 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or PoE++ (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.

Network diagram illustrating a PoE++ injector connected to a camera, delivering up to 90W of power via Power over Ethernet (PoE).

4-Pair PoE

Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 90W) device.

Illustration of a network cable labeled Full Duplex Gigabit with icons representing music, video, gaming, data transfer moving through the network.

Gigabit Ports

The industrial PoE injector features 1 x gigabit port and 1 x gigabit PoE++ port.

Graphic with four icons: vibration, temperature, shock, and IP30 rating.

Installation Flexibility

A rugged IP30 rated metal enclosure with DIN-rail and wall mount brackets accommodate most installations scenarios.

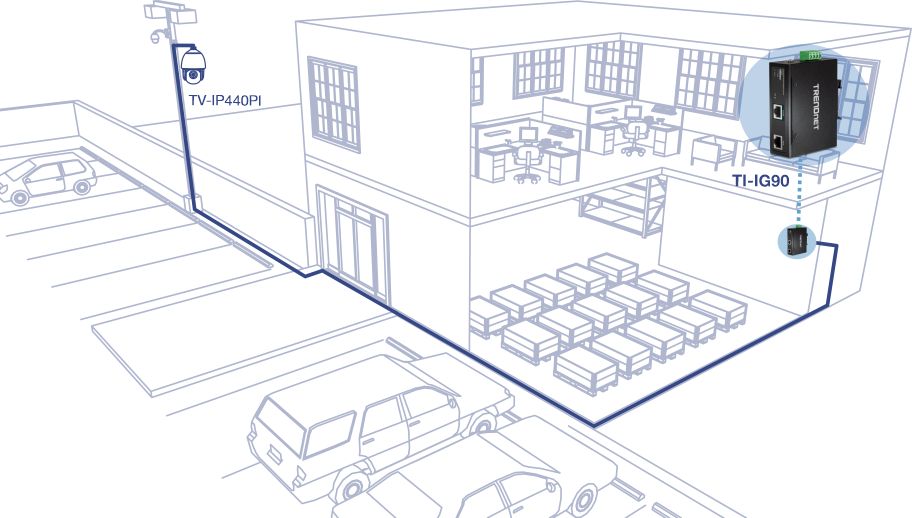

Illustration of a cutout view of a two-floor warehouse and outdoor parking. A zoomed view highlights the TI-IG90 placed inside the storage room, with a line going outside the building connecting to a PoE camera on a light pole in the parking lot.

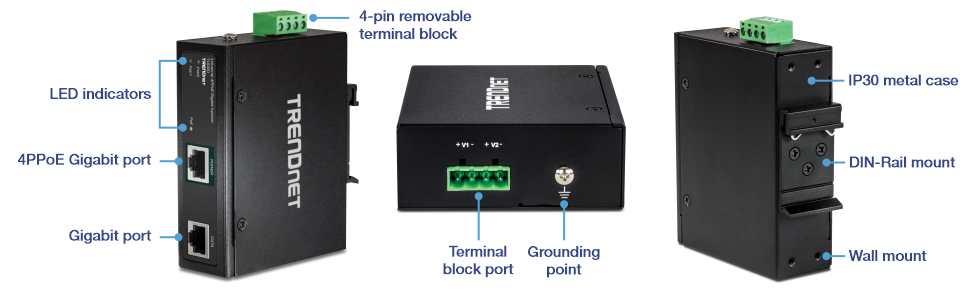

The illustration shows multiple views of the TI-IG90. On the left, a front angle view is labeled with a 4-pin removable terminal block, LED indicators, 4PPoE Gigabit port, and a Gigabit port. In the middle, a top view is labeled with terminal block port and grounding point. The final image is a back angle view labeled with IP30, DIN-Rail mount, and wall mount.

4-Pair PoE (PoE++)

Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 90W) device

Easy Installation

No configuration needed, simply connect a PoE network device to the industrial PoE injector

Gigabit Ports

1 x Gigabit port and 1 x Gigabit PoE++ port

PoE Distance

Provides a 4-Pair PoE network connection up to 100m (328 ft.) away from the industrial PoE injector

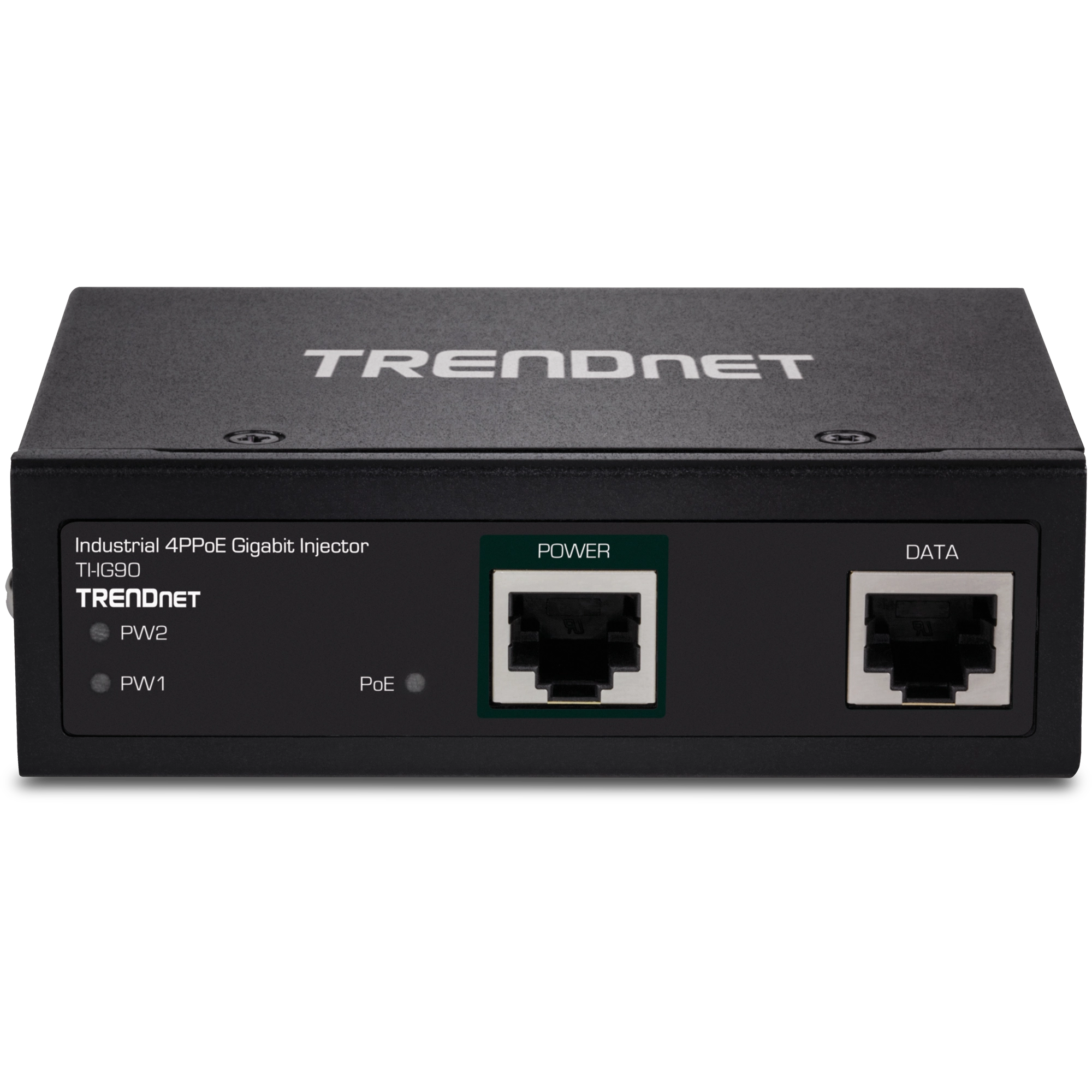

LED Indicators

LED indicators on the industrial PoE injector confirm PoE connectivity

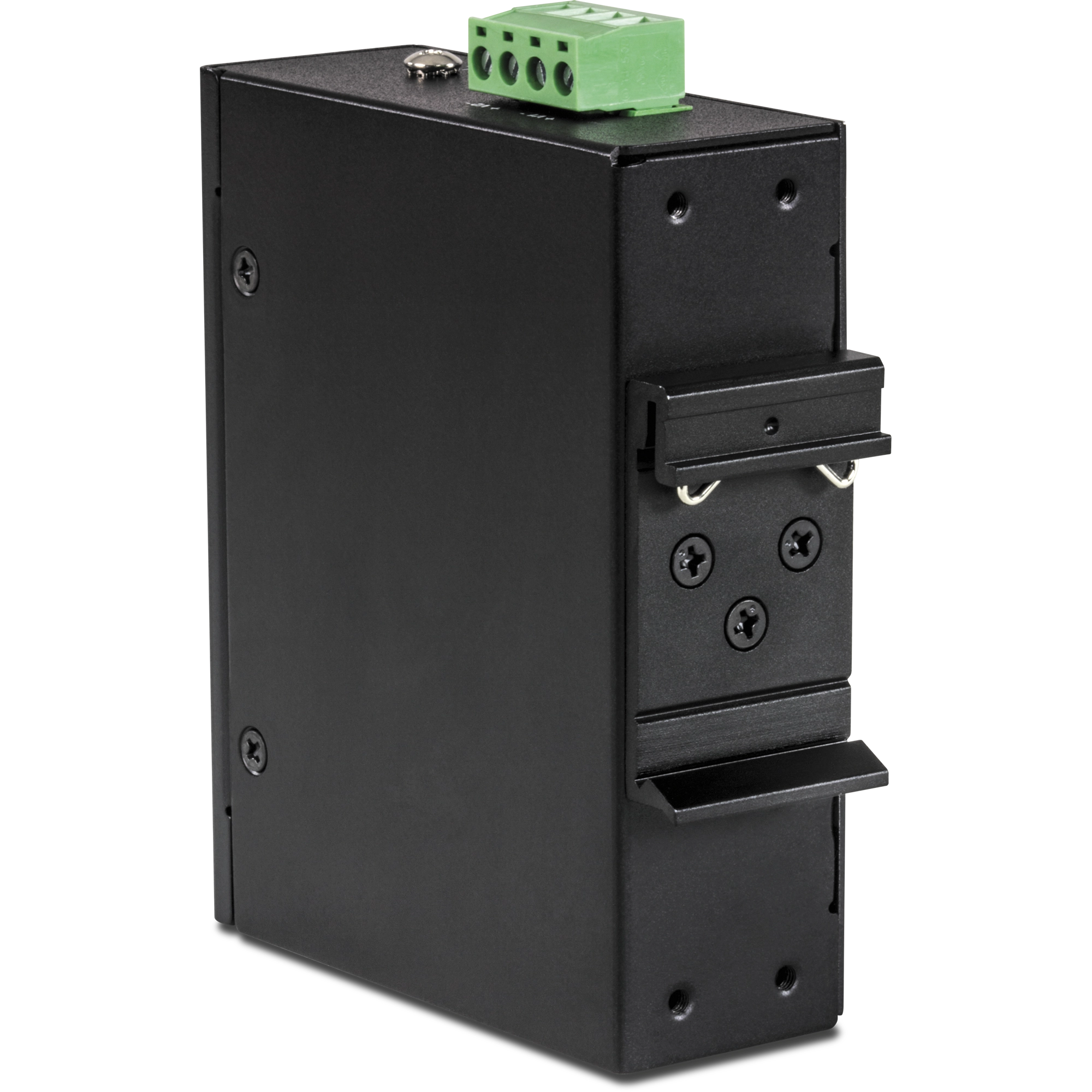

DIN-Rail Mount

IP30 rated metal enclosure, includes DIN-rail mount and wall mount brackets

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, model: TI-S15052, TI-S12048)

Alarm Relay

Alarm relay output triggered by power failure of primary and / or redundant power

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

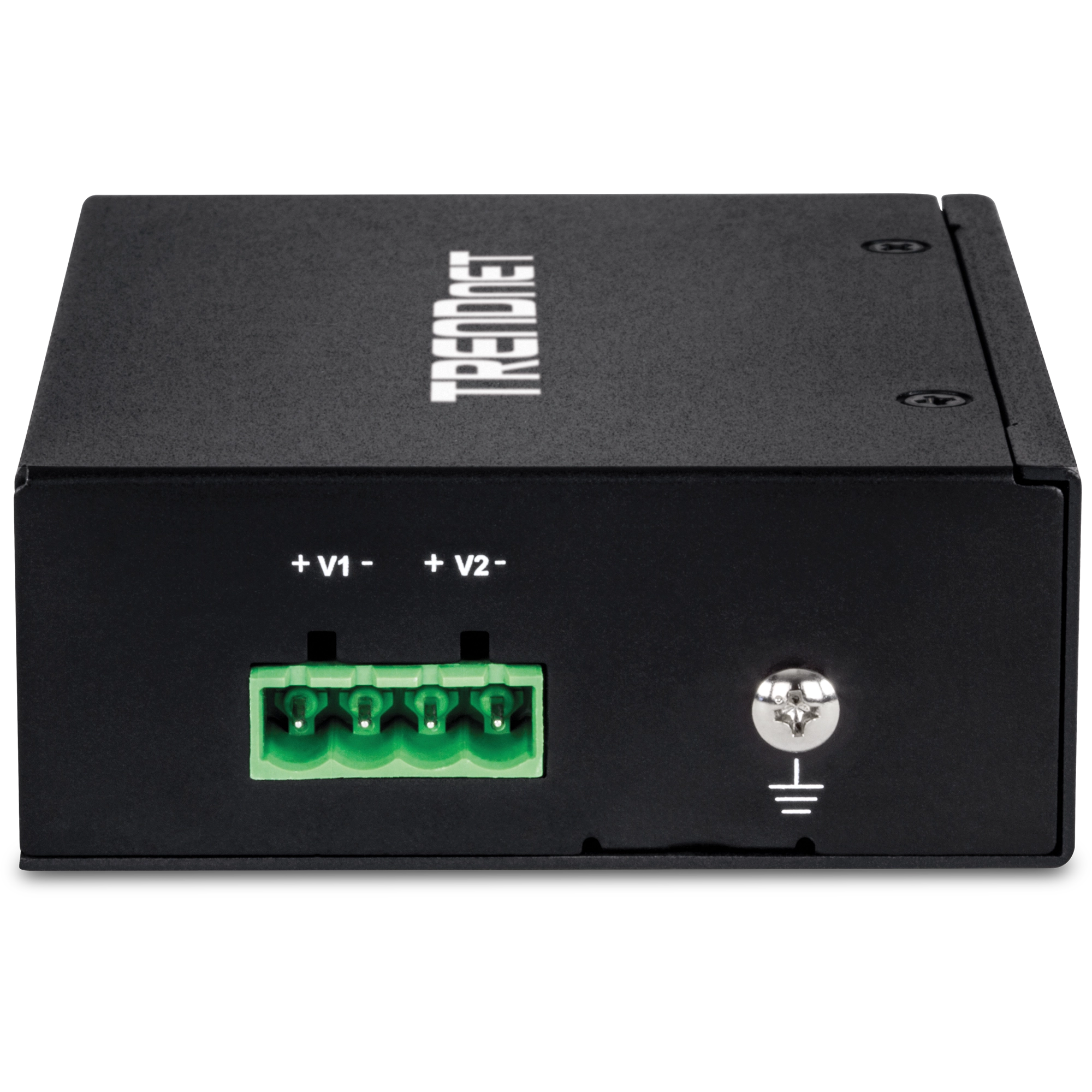

Grounding Point

Industrial PoE injector features grounding point to protect equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 1 x Gigabit port
  • 1 x PoE++ Gigabit port
  • 4-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Special Features
  • 90W 4-Pair PoE port
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • ESD contact 6kV, air 8kV, and surge 2kV protection
Power
  • Input: 52 – 56 V DC
  • Compatible power supply: TI-S15052, TI-S12048 (sold separately)
  • Max. consumption (PoE): 95W
PoE
  • PoE budget: 90W
  • Pin 3,6 for power+ and pin 1,2 for power-
  • Pin 4,5 for power+ and pin 7,8 for power-
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
MTBF
  • >716,685 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 6kV contact, 8kV air ESD protection
  • 2kV surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions (L x W x H)
  • 104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.)
Weight
  • 154g (5.4 oz.)
Certifications
  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-IG90
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
