95W 2-Port Industrial 2.5G PoE++ Injector

TI-IG290 (Version v1.0R)

  • 2 x 2.5G PoE++ ports (Data + PoE out)
  • 2 x 2.5G ports (Data in)
  • 180W PoE power budget
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
  • Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
  • Network a PoE device located up to 100m (328 ft.) away
  • Fanless design eliminates operating noise and lowers energy consumption
  • Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
  • Redundant power inputs with overload current protection
  • Includes DIN-Rail mount and wall mount
  • Power supply sold separately (model TI-S24052, TI-S24048)
  • NDAA / TAA compliant
NDAA/TAA Compliant

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

2-Port PoE

This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

2.5G Ports

Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).

Industrial Design

IP30 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 75° C (-40° – 167° F).

2-Port PoE++

The 2-port industrial 802.3 bt PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

2.5G Ports

2 x 2.5G ports (data in) and 2 x 2.5G PoE++ ports (data + PoE out)

PoE Distance

Provides two PoE network connections up to 100m (328 ft.) away from the 2-port industrial 802.3bt PoE++ adapter

LED Indicators

LEDs indicate PoE connectivity and power status

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz

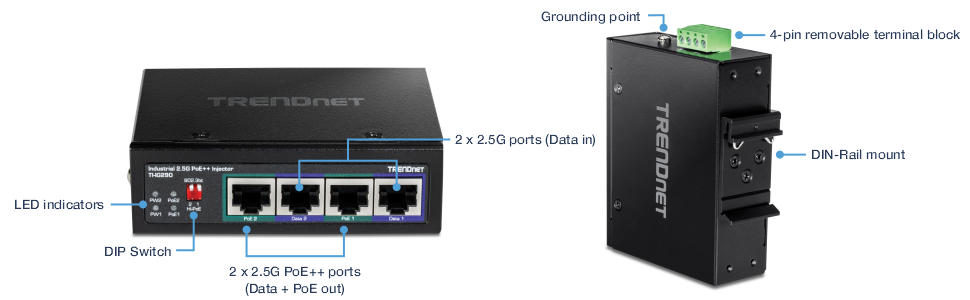

Device Interface
  • 2 x 2.5GBASE-T ports
  • 2 x 2.5GBASE-T PoE++ ports
  • 4-pin removable terminal block
  • LED indicators
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5000Mbps (full duplex)
Special Features
  • 90W 4-Pair PoE ports
  • 2.5Gbps speed
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
Power
  • Input: 52 – 56 V DC
  • Compatible power supply: TI-S24052, TI-S24048 (sold separately)
  • Max. consumption 186W (full PoE load)
  • Max. consumption 1W (no PoE load)
PoE
  • PoE budget: 180W
  • Pin 3,6 for power+ and pin 1,2 for power-
  • Pin 4,5 for power+ and pin 7,8 for power-
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
MTBF
  • 716,685 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • Contact 6KV/Air 8 KV ESD protection
  • 2 KV surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 103 x 81 x 30mm (4 x 3.2 x 1.2 in.)
Weight
  • 170g (6 oz.)
Certifications
  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TI-IG290
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit
