7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 – 57V

TI-PG743Bi (Version V1)

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 2 x SFP ports
  • Supports 100/1000Base-FX fiber SFP modules
  • PoE power budget: 120W@48V DC or 120W@24V DC
  • PoE alive check restarts unresponsive PoE powered devices
  • 14Gbps switching capacity
  • Hardened IP40 rated metal housing
  • Includes DIN-Rail mounting bracket
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port
  • Remote cloud management with TRENDnet Hive™ (Additional fee applies)
  • Single power input with overload current protection
  • Supports Ethernet Ring Protection Switching (ERPSv2)
  • Power supply sold separately (models: TI-S24048, TI-S24052, TI-S15052)
  • Power adapter sold separately: 48VDC3000
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG743Bi, features four Gigabit PoE+ ports with a 120W PoE budget, one gigabit port, and two SFP ports that support both 100Base-FX and 1000Base-FX modules for long-distance fiber applications. The hardened network switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this managed PoE+ switch a powerful solution for SMB networks.

Easily manage and configure TRENDnet’s 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service

Four icons arranged in a two by two grid on a blue gradient background. The top left depicts a network switch flanked by zigzag lines representing vibration protection. The top right shows a thermometer symbol for temperature monitoring. The bottom left features a lightning bolt indicating electrical protection. The bottom right reads IP40 to denote the device’s ingress protection rating.

Integration Flexibility

Managed features include PoE control, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

White TRENDnet security camera connected to black TRENDnet industrial gigabit layer two managed PoE plus switch with multiple Ethernet and SFP ports LED indicators for speed link activity and yellow lightning bolt highlighting power over Ethernet connection

PoE Power

A 120W PoE power budget supplies up to four Power over Ethernet devices, and includes advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

TRENDnet industrial gigabit layer two managed PoE plus switch on a blue gradient background showing four Ethernet ports two SFP ports LED indicators and a cloud icon connected to VLAN QoS IGMP and PoE labels

Industrial Design

Equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

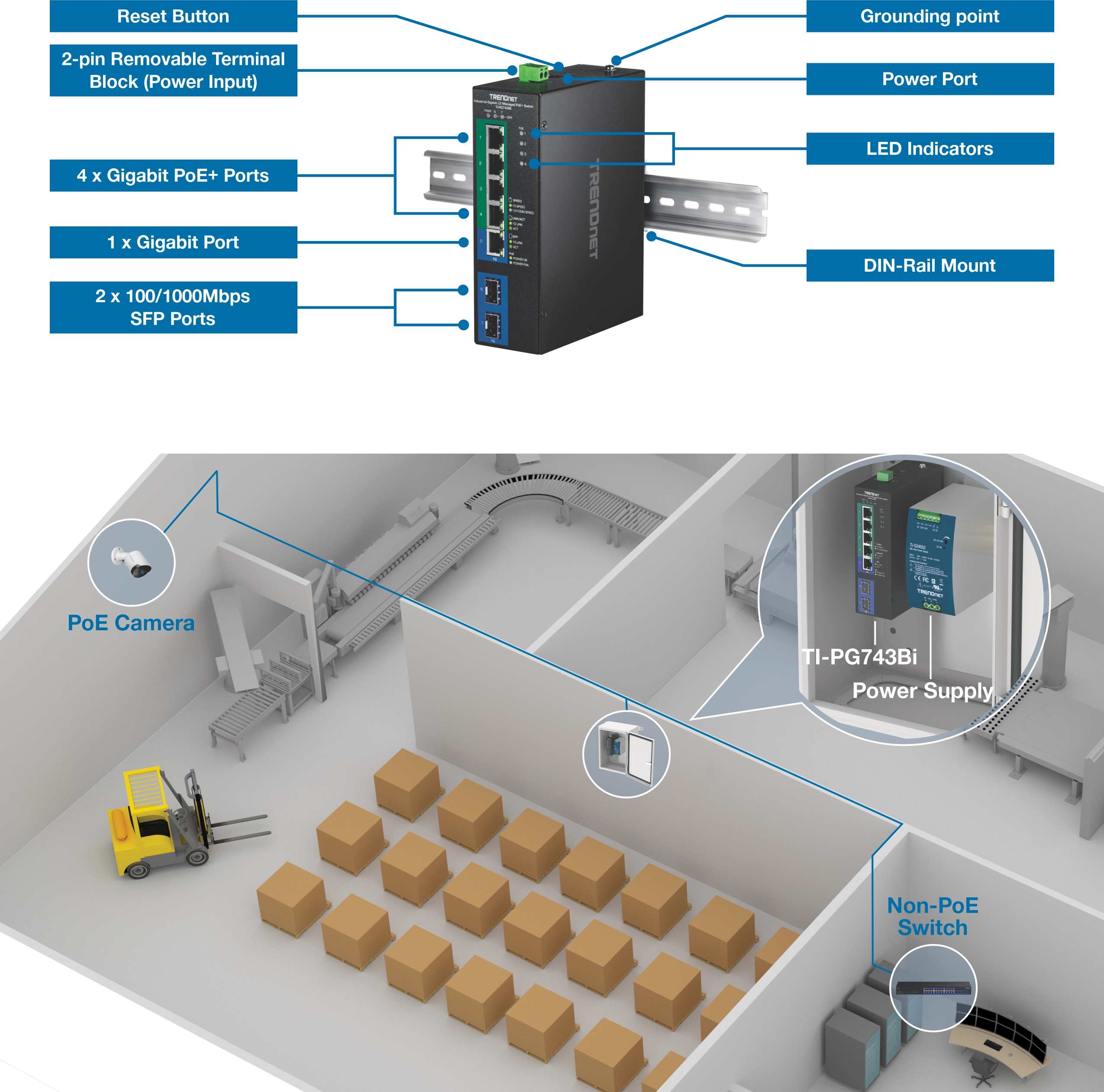

TRENDnet TI-PG743Bi industrial switch mounted on a DIN rail, labeled with reset button, grounding point, power port, LED indicators, two-pin terminal block, four Gigabit PoE+ ports, one Gigabit port, and two SFP ports; below is a warehouse layout showing a PoE camera, forklift, boxes, conveyor belt, non-PoE switch, and the TI-PG743Bi connected to a power supply inside a highlighted enclosure.

Network Ports

4 x Gigabit PoE+ ports, 1 x Gigabit port, 2 x Gigabit SFP ports

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Full PoE Control Per Port

Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Hive Enabled

Remotely manage, configure, and diagnose this L2 switch via TRENDnet’s cloud service (Additional fee applies)

Traffic Management

Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP, and link aggregation for flexible network integration

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

DIN-Rail Mount

IP40 rated metal enclosure includes DIN-Rail mounting bracket

Switching Capacity

14Gbps switching capacity

Single Power Input

Single power input (terminal or power adapter) with overload current protection (power supply sold separately: TI-S24048, TI-S24052, TI-S15052) (power adapter sold separately: 48VDC3000)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.1ax
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 2 x 100/1000Mbps SFP ports
  • 2-pin removable terminal block (power input)
  • 4-pin DIN (power adapter input)
  • LED indicators
  • Reset button
  • Ground terminal
Performance
  • Switch fabric: 14Gbps
  • RAM buffer: 512KB
  • MAC address table: 8K entries
  • Jumbo frames: 10KB
  • Forwarding rate: 10.42Mpps (64-byte packet size)
Management
  • HTTP web-based GUI
  • CLI: Telnet / SSHv2
  • SNMP v1, v2c, v3
  • SNMP trap (up to 5 receivers)
  • RMON groups 1/2/3/9
  • Modbus TCP/IP
  • Device configuration backup & restore, upgrade firmware, reboot, and reset to default
  • Multiple administrative or read-only user accounts
  • Enable or disable power saving mode per port
  • Static MAC entries
  • LLDP (Link layer discovery protocol)
  • Topology Map
  • ONVIF device discovery
  • SNTP
  • SMTP alert
  • Syslog
  • Port statistics/utilization
  • Traffic monitor
  • Port mirror: one to one, many to one
  • Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
  • Loopback detection
  • DHCP relay/option 82
  • SFP DDMI (Digital Diagnostic Monitoring Interface)
  • ERPS (Ethernet Ring Protection Switching) G8032v2
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser
  • Multi-device management
  • Provisioning through scheduled batch or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree
  • STP (spanning tree protocol)
  • RSTP (rapid spanning tree protocol)
  • BPDU filter, guard, and root guard
Link Aggregation
  • Static link aggregation and dynamic LACP (Up to 3 groups)
Quality of Service (QoS)
  • 802.1p Class of service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth control per port
  • Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN
  • 802.1Q tagged VLAN
  • MAC-based VLAN
  • Protocol VLAN
  • Port isolation
  • Up to 256 VLAN groups, ID range 1-4094
Multicast
  • IGMP snooping v1, v2, v3
  • IGMP querier
  • IGMP fast leave
  • Up to 256 multicast groups
  • Static multicast entries
Access Control
  • 802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
  • DHCP snooping/screening
  • Trusted host/IP access list for management access
  • Port Security/MAC address learning restriction (Up to 100 entries per port)
  • Static/dynamic ARP inspection
ACL
  • Source/Destination MAC address
  • Source/Destination IP address
  • Source Interface
  • VLAN ID
  • EtherType
  • TCP/UDP port 1-65535
Power
  • PWR (Primary) terminal input (2-pin): 24 – 57V DC
  • Power adapter input (4-pin DIN): 24 – 57V DC
    Note: Power inputs are not redundant, only one power source can be used for operation.
  • Compatible power supply: TI-S12048 (120W), TI-S15052 (150W), TI-S24052 (240W) sold separately
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Max. Consumption: 14W (no PoE load), 134W (full PoE load)
PoE
  • PoE budget: 120W@48V DC input, 120W@24V DC input
  • 802.3at: Up to 30W per port
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • PoE auto classification
  • PoE port priority/power scheduling/PD alive check
  • Over current/short circuit protection
Terminal Block
  • Power input, 2 pin
  • Wire range: 0.5 mm2 to 2.5 mm2
  • Solid wire (AWG): 18-20
  • Stranded wire (AWG): 18-20
  • Wire strip length: 10-11mm
Enclosure
  • IP40 rated metal enclosure
  • Fanless passive cooling
  • DIN-Rail mount
  • Grounding point
  • ESD (Ethernet) Protection: 8kV DC
  • Surge (Data) Protection: 1kV DC
  • Surge (Power) Protection: 0.5kV DC
MTBF
  • 754,136 hours @ 25° C
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight
  • 844g (1.86 lbs.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS

  • TI-PG743Bi
  • Removable terminal block
  • DIN-Rail mounting bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
