Industrial 10G PoE++ Splitter

TI-SG704 (Version V1)

Power a non-PoE device up to 100m (328 ft.) away from PSE
Splits a 10G 90W PoE++ signal into separate power and data sources
Adjustable voltage output supports 12V, 16V, 24V, or 48V devices
Extreme operating temperature range -40 to 75° C (-40 to 167° F)
IEEE 802.3bt compliant
For best performance pair with TRENDnet PoE++ switches or injectors
NDAA / TAA compliant (U.S. and Canada only)

Coming Soon

TRENDnet’s Industrial 10G PoE++ Splitter, model TI-SG704, networks a non-PoE device by using a 10G PoE++ connection and splitting it into separate DC power and data sources. The industrial 10G PoE++ splitter can power up to two devices from a single PoE source. A convenient DIP switch on the industrial PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The industrial 10G PoE++ splitter’s multiple power outputs provide greater device compatibility.

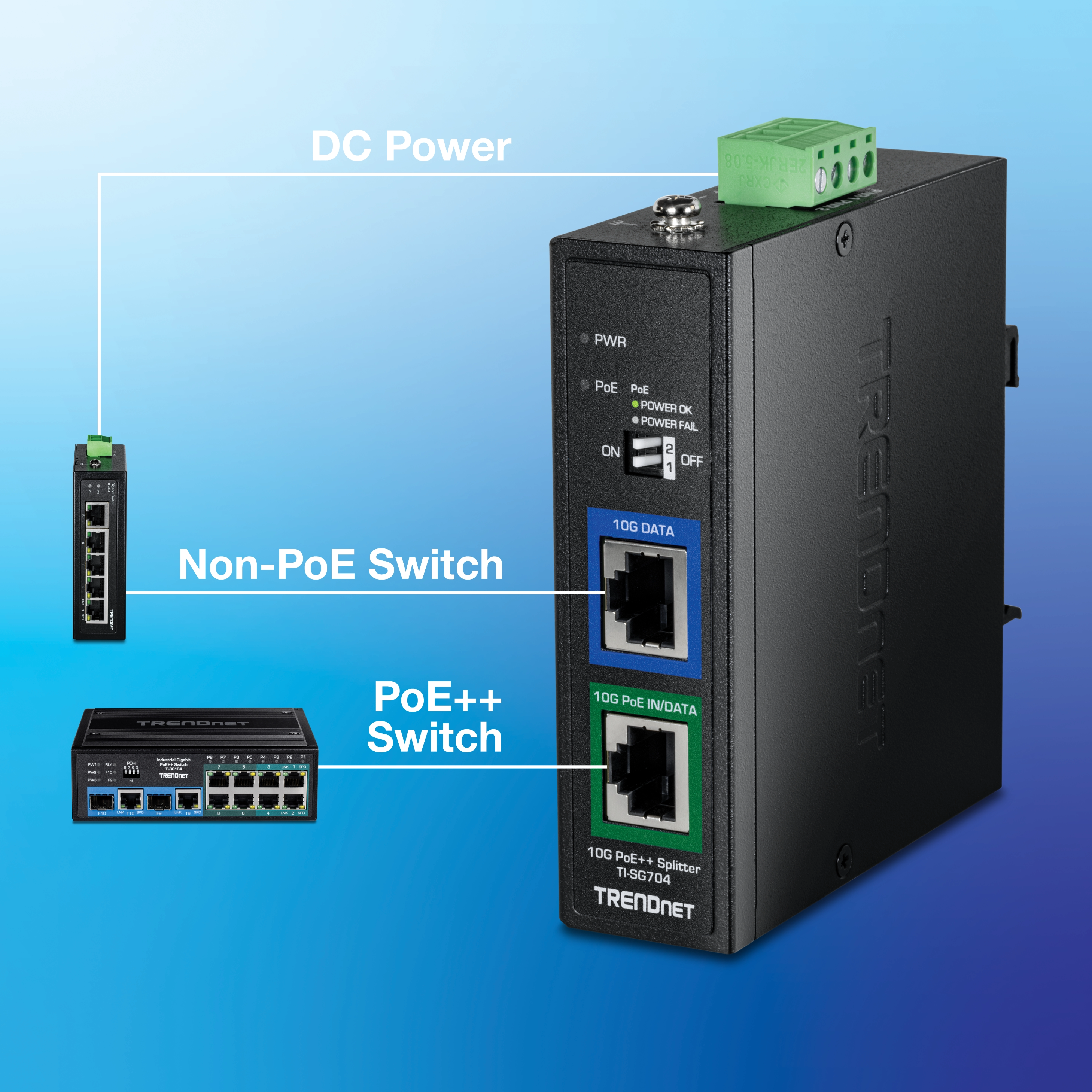

TRENDnet 10G PoE++ Splitter with labeled DC power input at the top, 10G DATA port in the middle, and 10G PoE IN/DATA port at the bottom. Non-PoE Switch connects to the DATA port and PoE++ Switch connects to the PoE IN/DATA port.

PoE++ Powered

No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.) away.

TRENDnet 10G PoE++ Splitter model TI-SG704 with green terminal block connector at the top, LED indicators labeled PWR and PoE, switch with positions ON, 2, 1, and OFF, and two Ethernet ports labeled 10G DATA and 10G PoE IN/DATA. Close-up inset highlights the switch positions.

Adjustable Voltage Output

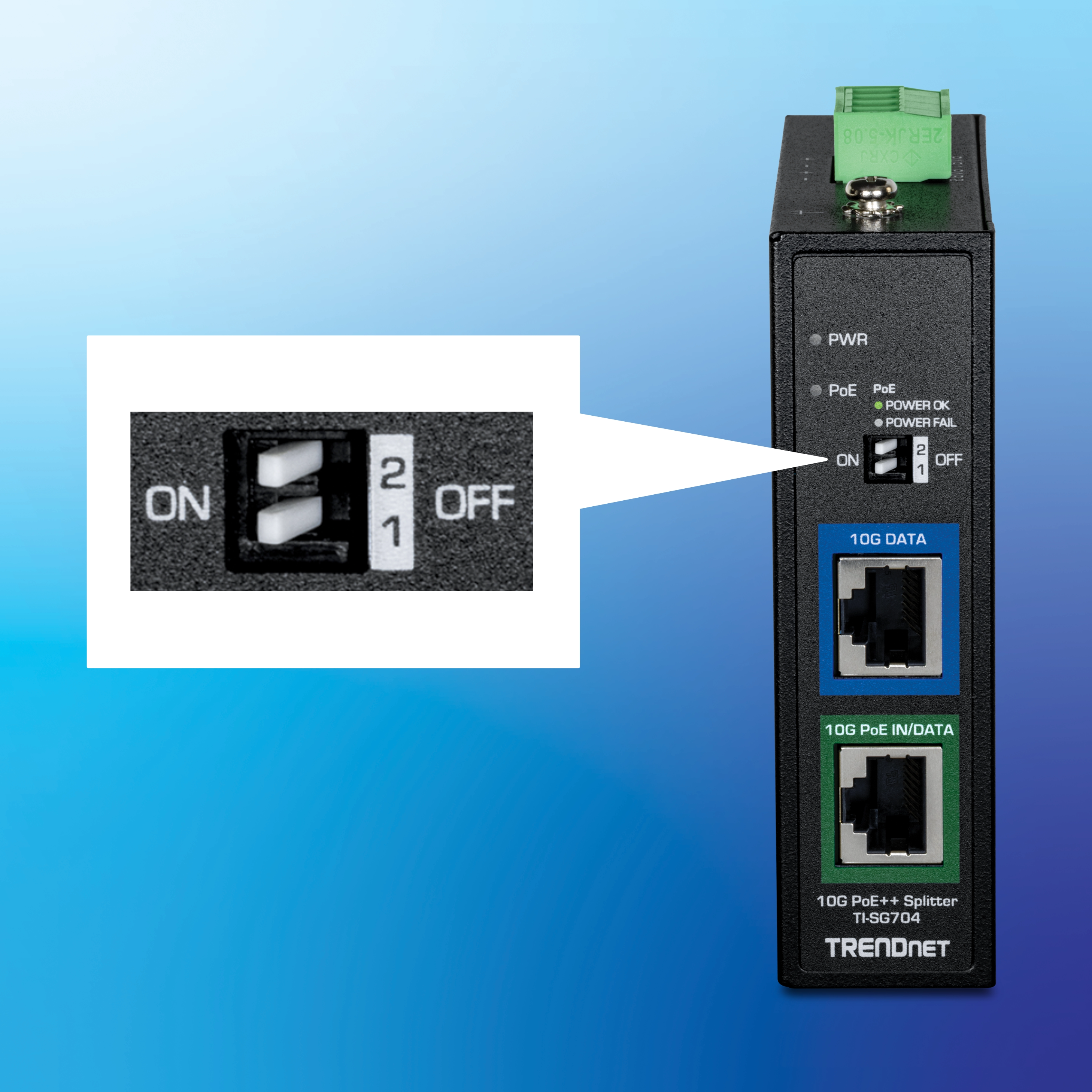

Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.25A) to accommodate varying non-PoE device power requirements.

Flexible Mounting Options

The industrial 10G PoE++ splitter’s wall and DIN-Rail mounting options provide better setup flexibility and accommodate most installation scenarios.

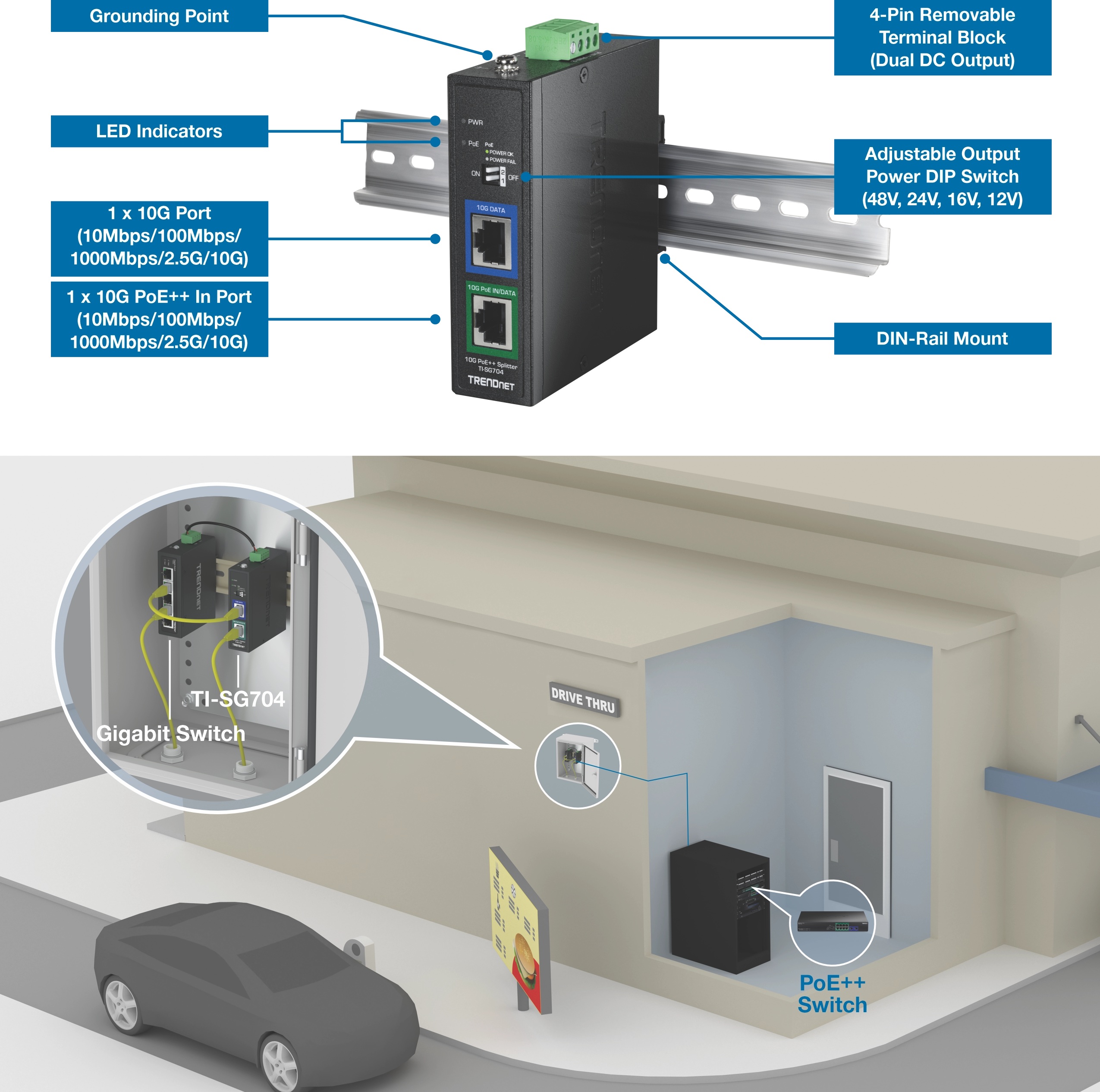

TRENDnet TI-SG704 Gigabit Switch mounted on a DIN rail with labeled components including grounding point, LED indicators, 10G port, 10G PoE++ in port, 4-pin removable terminal block, adjustable output power DIP switch, and DIN-rail mount. Lower section shows the switch installed in a drive-thru cabinet connected to a PoE++ switch inside a building.

10G Ethernet

1 x 10G PoE++ in port, 1 x 10G out port

PoE++ Powered

No power adapter necessary; the industrial 10G PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.) away

Adjustable Voltage Output

Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.25A) to match non-PoE device power requirements

Dual DC Power Output Terminal Block

The PoE++ splitter includes a dual DC power output terminal block, powering up to two devices

Industrial Design

Equipped with an IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° to 75° C (-40° to 167° F) for industrial environments

Wall Mountable

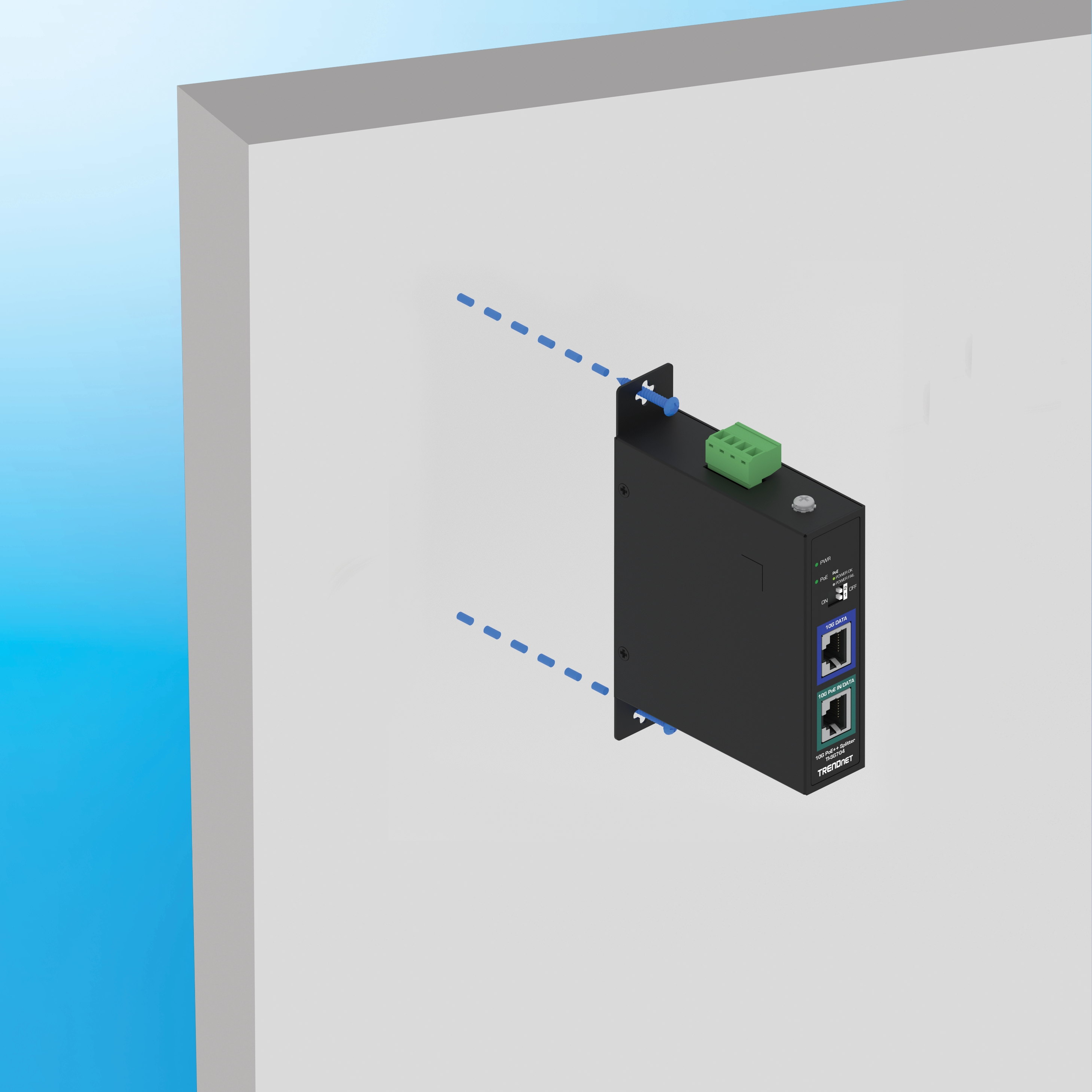

Wall mountable design of the industrial 10G splitter accommodates most installation scenarios

DIN-Rail Mountable

DIN-Rail mountable design of the industrial 10G PoE++ splitter fits a standard TS35 DIN-Rail

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3bz
IEEE 802.3an
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Device Interface

1 x 10G port (10Mbps/100Mbps/1000Mbps/2.5G/10G)
1 x 10G PoE++ in port (10Mbps/100Mbps/1000Mbps/2.5G/10G)
4-pin removable terminal block (dual DC output)
Adjustable output power DIP switch (48V, 24V, 16V, 12V)
LED indicator

Power

Input: 15.4W/30W/60W/90W PoE power
Max. consumption: 1.13W (splitter only)
Max. combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)

PoE Input	Max. DC Output (split between two devices)
90W	48V (1.25A) DC Output: 60W 24V (2.3A) DC Output: 55W 16V (2.3A) DC Output: 36.8W 12V (2.3A) DC Output: 27.6W


60W	48V (1.05A) DC Output: 50W 24V (2.04A) DC Output: 49W 16V (2.18A) DC Output: 35W 12V (2.16A) DC Output: 26W


30W	48V (0.52A) DC Output: 25W 24V (0.95A) DC Output: 23W 16V (1.37A) DC Output: 22W 12V (1.83A) DC Output: 22W


15.4W	48V (0.22A) DC Output: 10.6W 24V (0.44A) DC Output: 10.7W 16V (0.63A) DC Output: 10.2W 12V (0.85A) DC Output: 10.2W

Terminal Block

Dual DC power outputs, 4 pin
Wire range: 0.75mm2 to 2.5mm2
Solid wire (AWG): 12-18
Stranded wire (AWG): 12-18
Torque: 3 lb. – In / 0.2Nm / 0.56Nm
Wire strip length: 6-7mm

DIP Switch*

DIP 1	DIP 2	Function
On	On	48V DC (default)
On	Off	24V DC
Off	On	16V DC
Off	Off	12V DC

MTBF

812,314 hours @ 25° C

Housing

IP50 metal housing
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
6kV surge protection
6kV RJ45 protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

99 x 90 x 28mm (3.9 x 3.54 x 1.1 in.)

Weight

432g (15.2 oz.)

Certifications

CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-31)
Vibration (IEC 60068-2-6)

Warranty

3 year

PACKAGE CONTENTS

TI-SG704
Removable terminal block
DIN-Rail and wall-mount kit

*Disclaimer: DIP switches will set the same voltage for both DC outputs

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
