TRENDnet’s Unmanaged Gigabit PoE++ Switches provide high bandwidth performance, ease of use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19” rack mountable metal housing with mounting brackets included. These high power PoE++ switches also offer SFP slots for long distance fiber network applications.

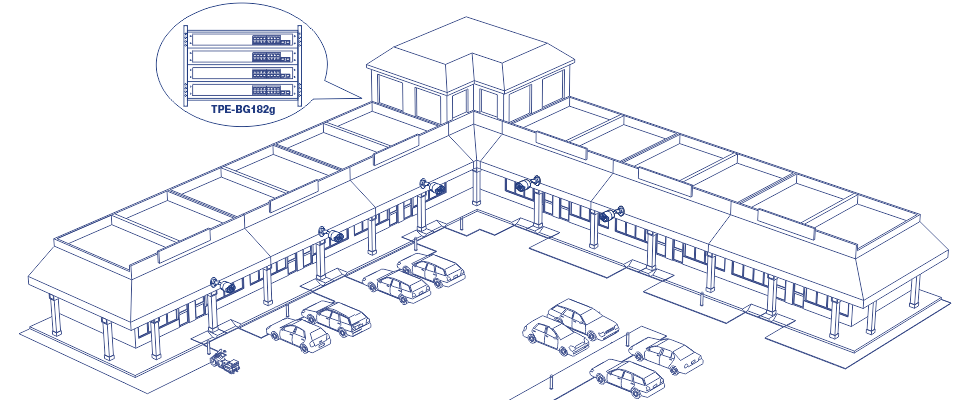

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged high power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Easily network PoE devices such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these high power PoE++ switches.

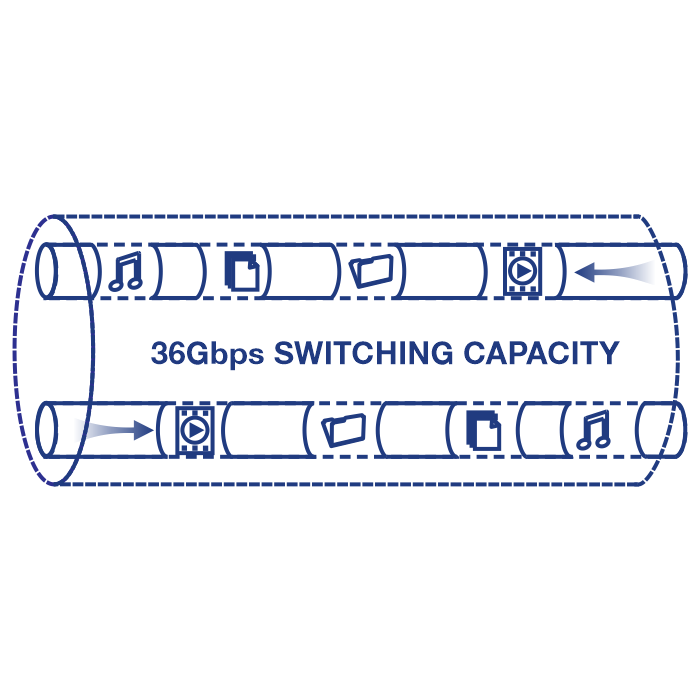

Gigabit Ports
Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP slots for long distance fiber applications.

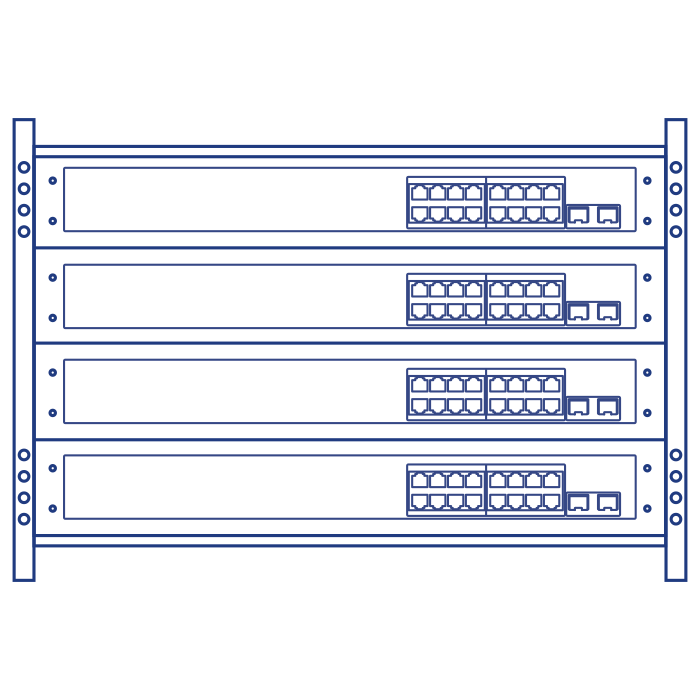

Hardware Design
With a sturdy metal housing and rackmount brackets included, this high power PoE++ switch is well-suited for 19” 1U rack installations.

PoE Power
A 440W total PoE power budget on this high power PoE++ switch supplies eight PoE++ devices with up to 95W per port, and eight PoE+ devices with up to 30W per port.
Standards | - IEEE 802.1p
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
|

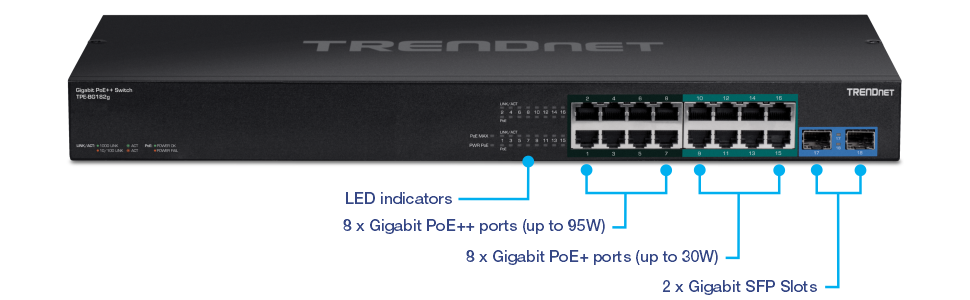

Device Interface | - 8 x Gigabit PoE++ ports
- 8 x Gigabit PoE+ ports
- 2 x SFP Slot
- LED indicators
|
Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Fiber: 2000Mbps (full duplex)
|
Performance | - Switch Fabric: 36Gbps
- RAM Buffer: 512KB
- MAC Address Table: 8K entries
- Forwarding Rate: 17.8Mpps (64-byte packet size)
- Jumbo Frames: 9KB
|
Power | - Input: 100-240V AC, 50/60Hz, internal power supply
- Max. Consumption: 470W
|
PoE | - PoE budget: 440W
- Port 1~8: up to 95W
- Port 9~16: up to 30W
|
MTBF | |
Operating Temperature | - 0° – 40° C (32° – 104° F)
|
Operating Humidity | |
Dimensions | - 440 x 200 x 44mm (17.3 x 7.9 x 1.7 in.)
|
Weight | |
Certifications | |
Warranty | |
PACKAGE CONTENTS |
- TPE-BG182g
- Quick Installation Guide
- Rackmount kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
