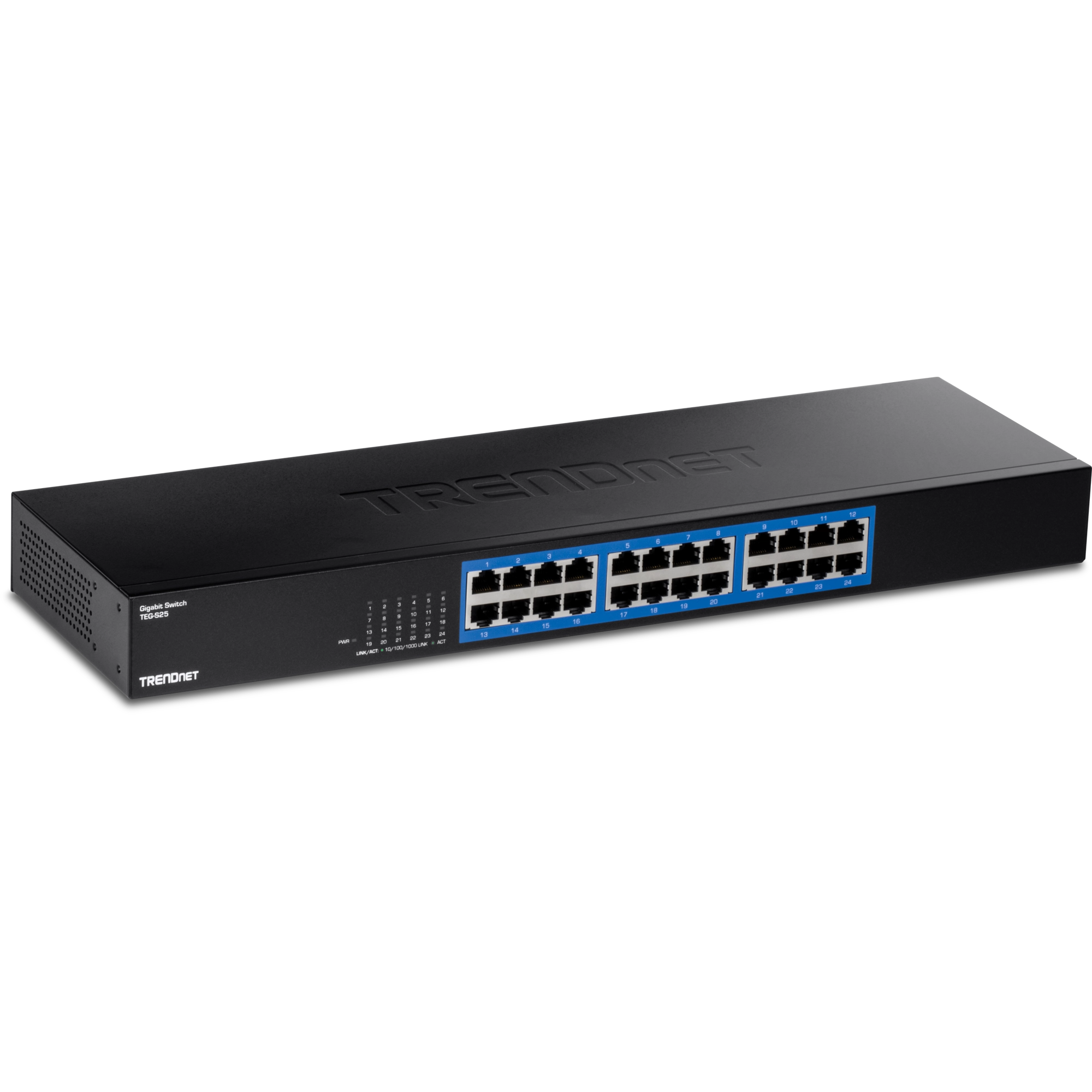

The 24-Port Gigabit Switch, model TEG-S25, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

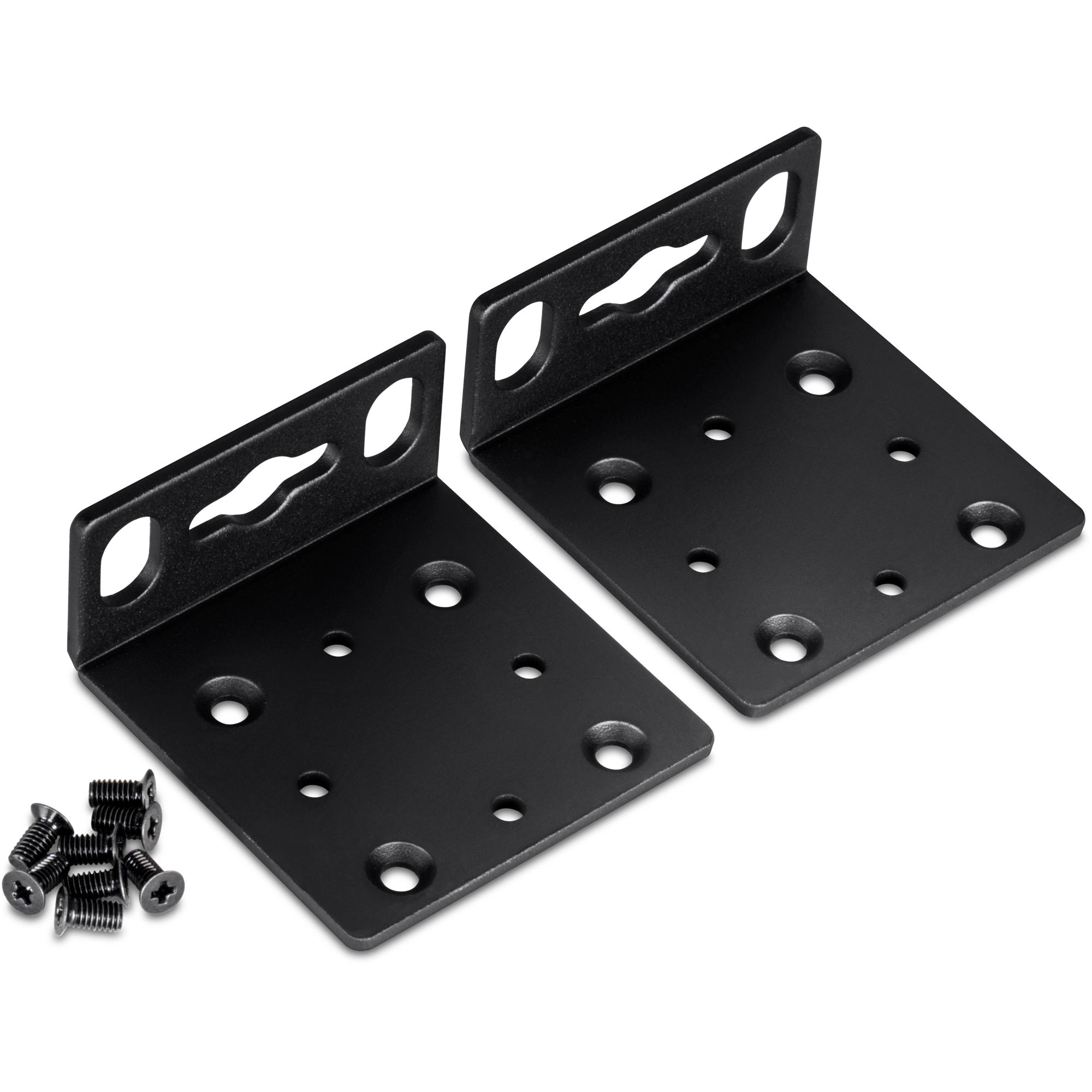

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.
Fanless design lowers energy consumption and reduces distracting operating noise.
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab

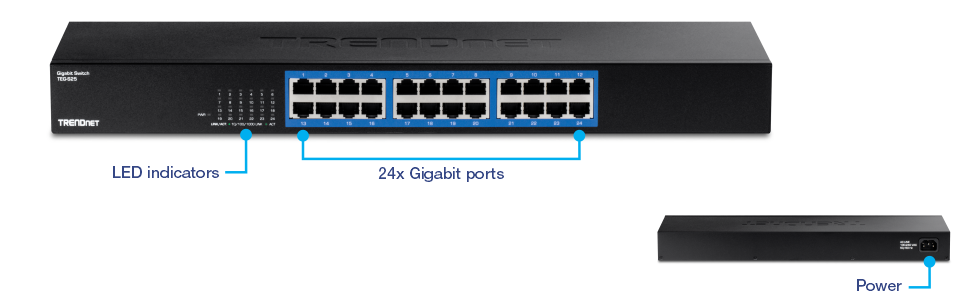

- 24x Gigabit ports
- LED indicators
|Data Transfer Rate|
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
- Switching Capacity: 48Gbps
- RAM Buffer: 512KB
- MAC Address Table: 8K entries
- Forwarding Rate: 35.71Mpps (64-byte packet size)
- Jumbo Frames: 9KB

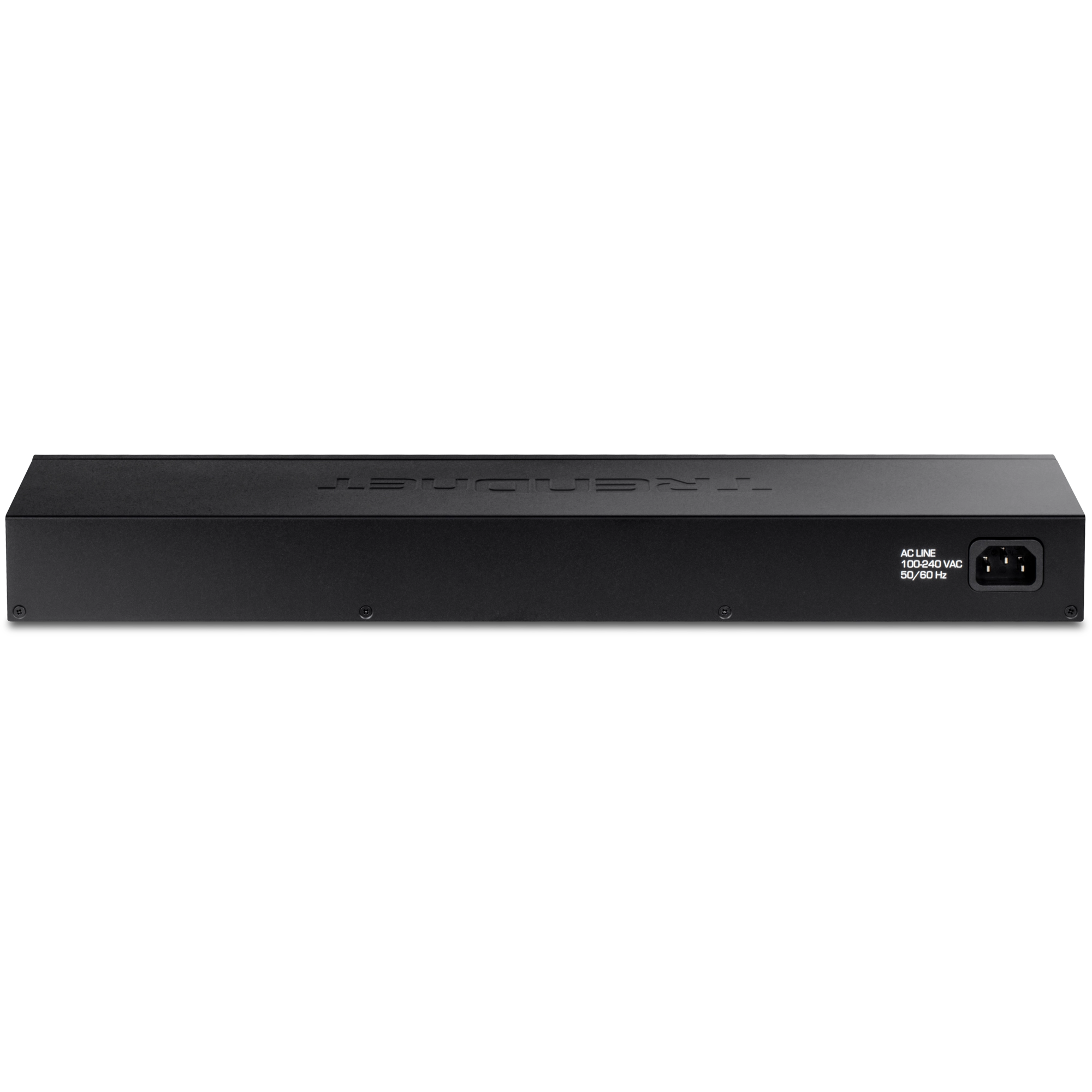

- Internal power supply: 100 – 240V AC, 50/60 Hz, 1A
- Max. Consumption: 14.24W
- 0° – 40° C (32° – 104° F)
|Dimensions (L x W x H)|
- 440 x 130 x 44mm (17.32 x 5.12 x 1.73 in.)
- Quick Installation Guide
- Rack Mount Kit
- Power Cord (1.5m / 4.9 ft.)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
