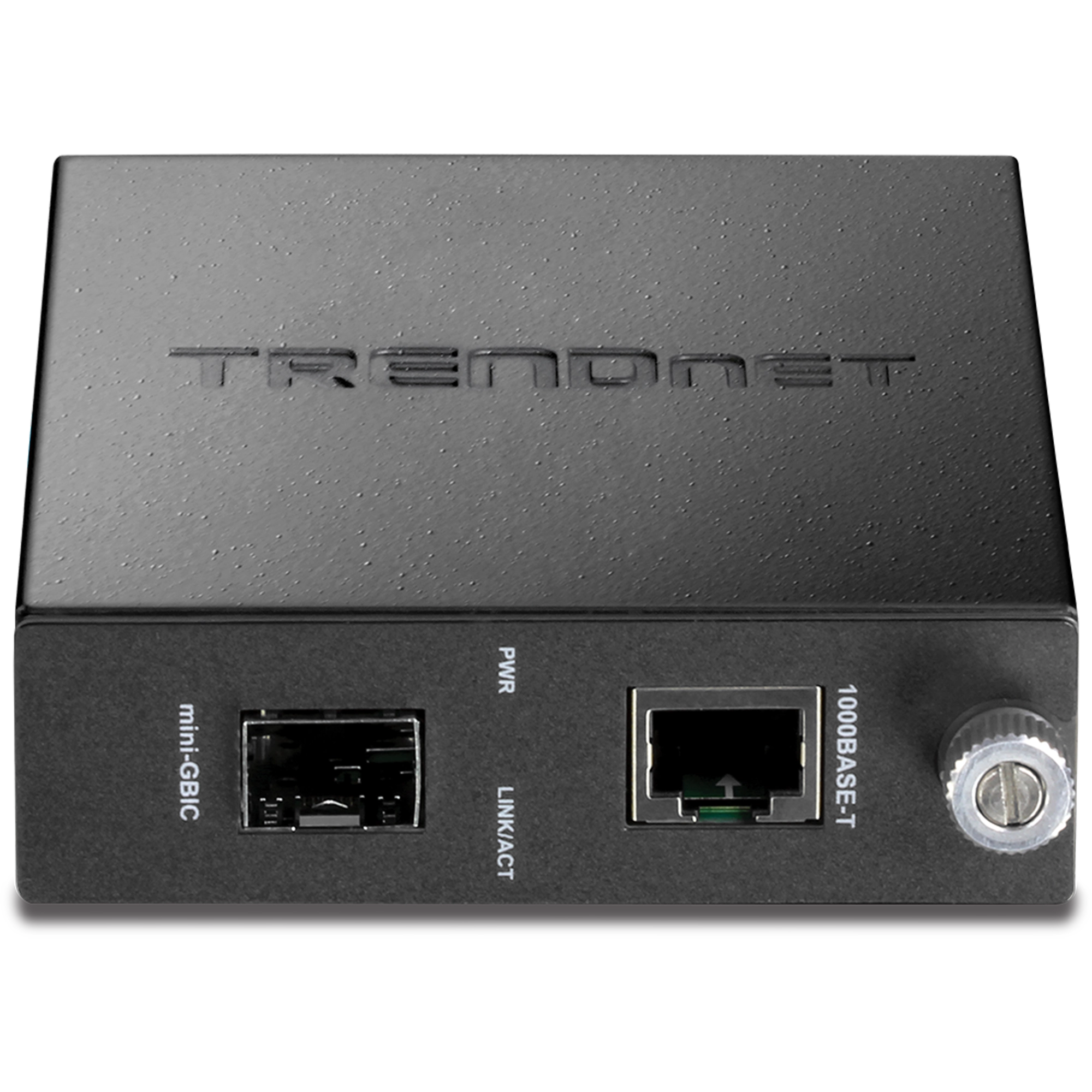

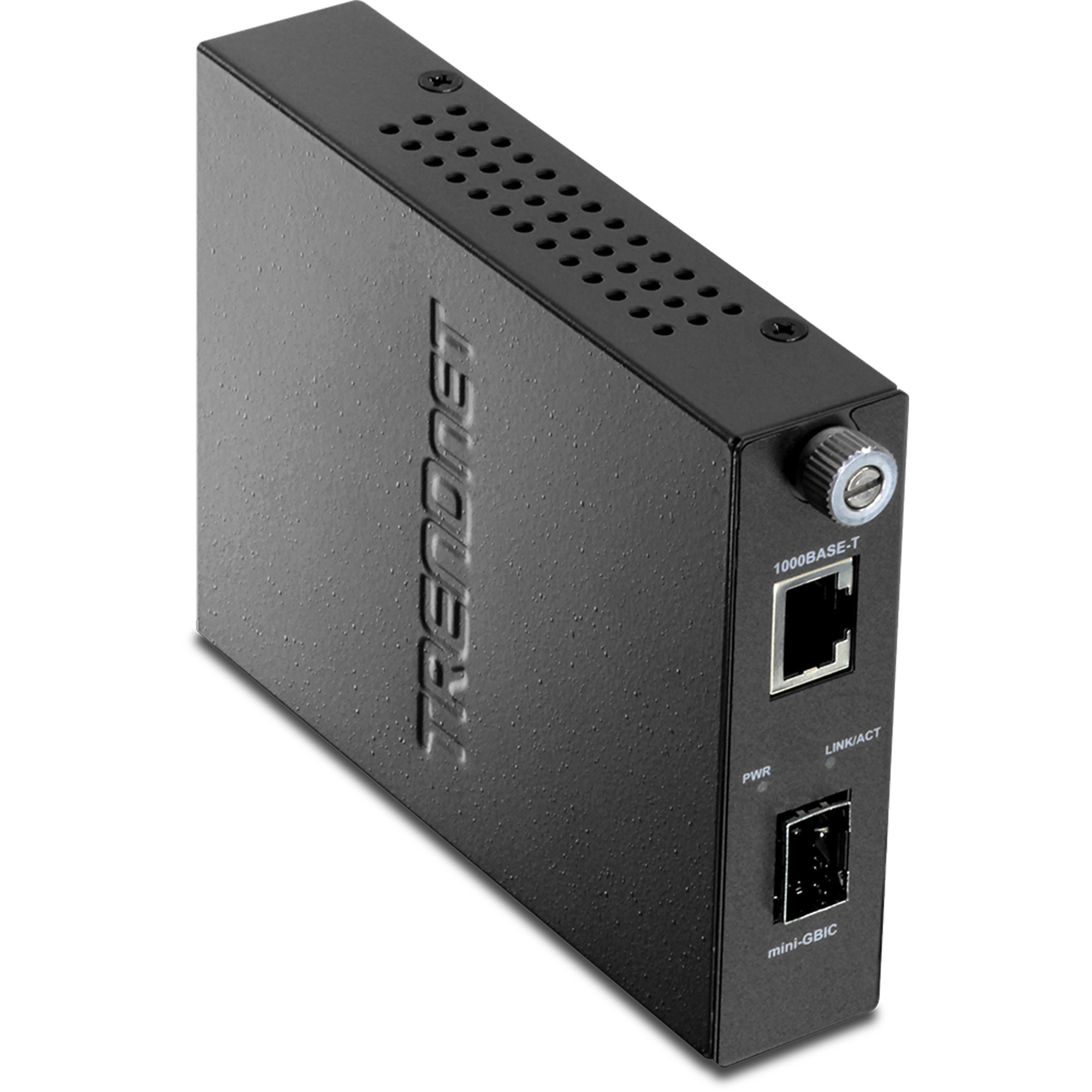

Intelligent 1000Base-T to SFP Media Converter

TFC-1000MGB (Version A3.3R)

  • Mini-GBIC port accommodates Multi or Single modes and up to 80km distances with TEG-MGBS80 at Gigabit speed
  • 1000Base-T Gigabit copper port supports Full-Duplex mode
  • Supports port level SNMP management
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
DISCONTINUED PRODUCT
The TFC-1000MGB (Version A3.3R) has been discontinued. It has been replaced by the TFC-1000MGA (Version v1.0R). For a list of discontinued products, click here.

TFC-1000 series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Mini- GBIC) media and vice versa. The 1000Base-T port supports full duplex Gigabit connection at wire speed with RJ45 connector. The Mini-GBIC connection supports shortwave (SX) or longwave (LX) laser optic with multi-mode or single-mode Mini-GBIC module. This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a great distance.

  • Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
  • 1 x 1000Base-T RJ-45 port
  • 1x1000Base-SX/LX Mini-GBIC Slot
  • Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
  • Support LLCF (Link Loss Carry Forward, Link Pass Through)
  • Support LLR (link Loss Return) for FX port
  • Monitor and configure Ethernet or Fiber's duplex mode, LLR and receive link down information via management module TFC-1600MM and chassis TFC-1600
  • Status LED indicators for Power and Link/Activity
  • Wall mountable
  • Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
  • 3-year limited warranty
Hardware
Standard
  • IEEE802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX
Supported Frame Size
  • Standard Ethernet up to 10 Kbytes
Network Media
  • 1000Base-TX: Cat. 6 EIA/TIA-568 100-ohm UPT/STP, up to 100m
  • 1000Base-SX: Multi-mode fiber optic cable 50/125 µm, up to 550m
  • Multi-mode fiber optic cable 62.5/125 µm, up to 220m
  • 1000Base-LX: Single-mode fiber optic cable 9/125 µm, up to 80km (TEG-MGBS80)
Protocol
  • CSMA/CD
Ports
  • 1 x 1000Base-T
  • 1 x 1000Base-SX/LX Mini-GBIC slot for optional Mini-GBIC modules
Dip Switch
  • Fiber (forced/auto-negotiation), LLR (enable/disable)
Transfer Rate
  • 2000Mbps (full-duplex)
  • Per Unit: power
  • Per Port: link/activity
Power Adapter
  • 7.5V DC, 1A external power adapter
Power Consumption
  • 2.8 Watts (max)
Dimensions
  • 120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354g (12.5oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TFC-1000MGB
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
