100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles)

TFC-110S15 (Version D3.4R)

  • SC type single-mode fiber port connects over distances of up to 15km (9.3 miles)
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

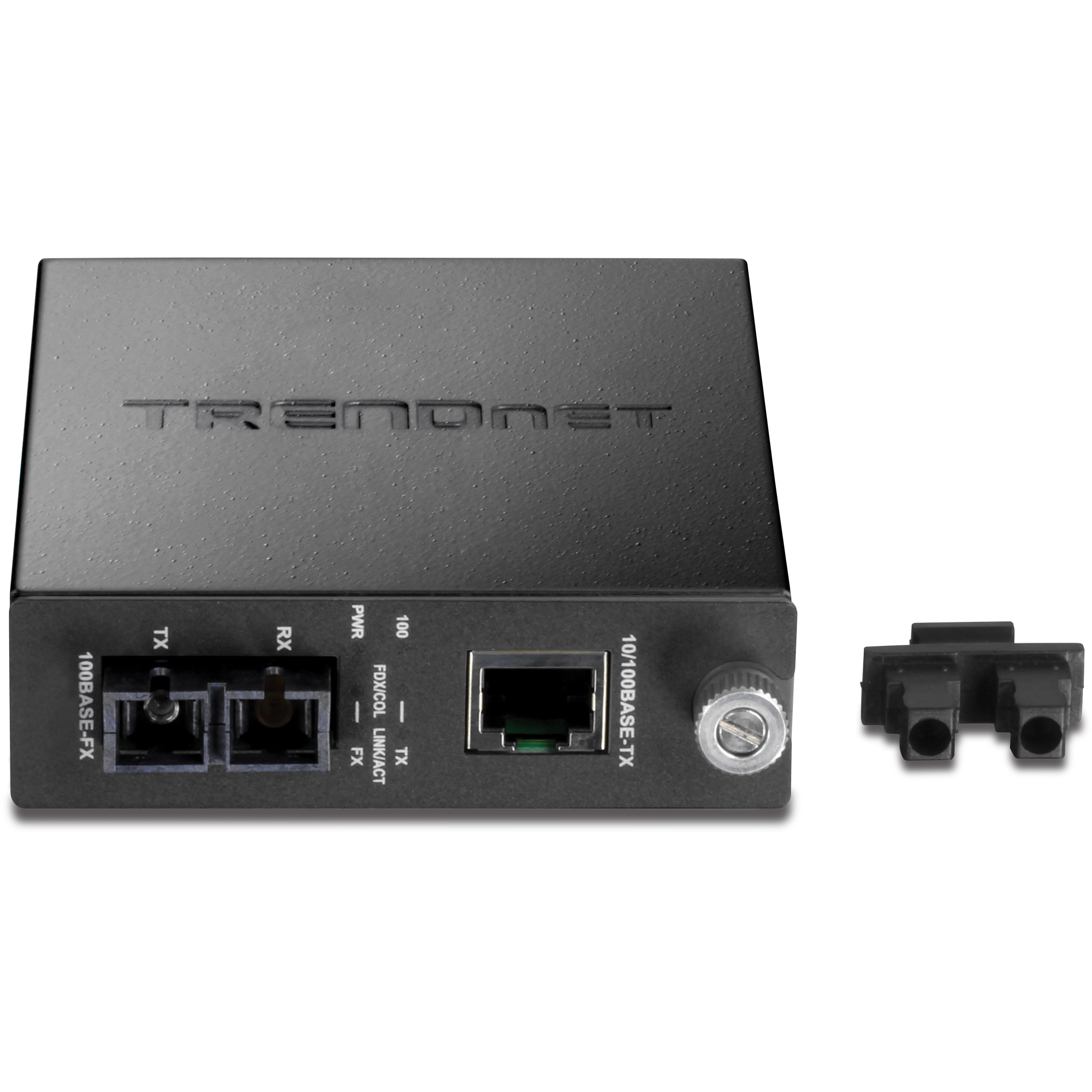

The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Wall mountable
  • Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
  • 3-year limited warranty
Hardware
Standard
  • IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
  • Standard Ethernet up to 1518bytes
Network Media
  • 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
  • 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
Protocol
  • CSMA/CD
Ports
  • 1 x 10/100Base-TX
  • 1 x 100Base-FX (SC-type)
Dip Switch
  • TX: duplex mode, auto negotiation or manual, speed, LLCF (enable/disable)
  • FX: duplex mode, LLR (enable/disable), LLCF
Transfer Rate
  • 100Mbps (half-duplex)
  • 200Mbps (full-duplex)
Diagnostic LEDs
  • Per Unit: power
  • Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
  • 5V DC, 1A external power adapter
Power Consumption
  • 1.8 Watts (max)
Dimensions
  • 120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354g (12.5oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certification
  • FCC,CE
Media
  • SMF
Wavelength
  • 1310nm
Pout (dBm)
  • -20 ~ 0
Sensitivity
  • -32 ~ 0
Power
  • 12
Distance
  • 15km
PACKAGE CONTENTS
  • TFC-110S15
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
