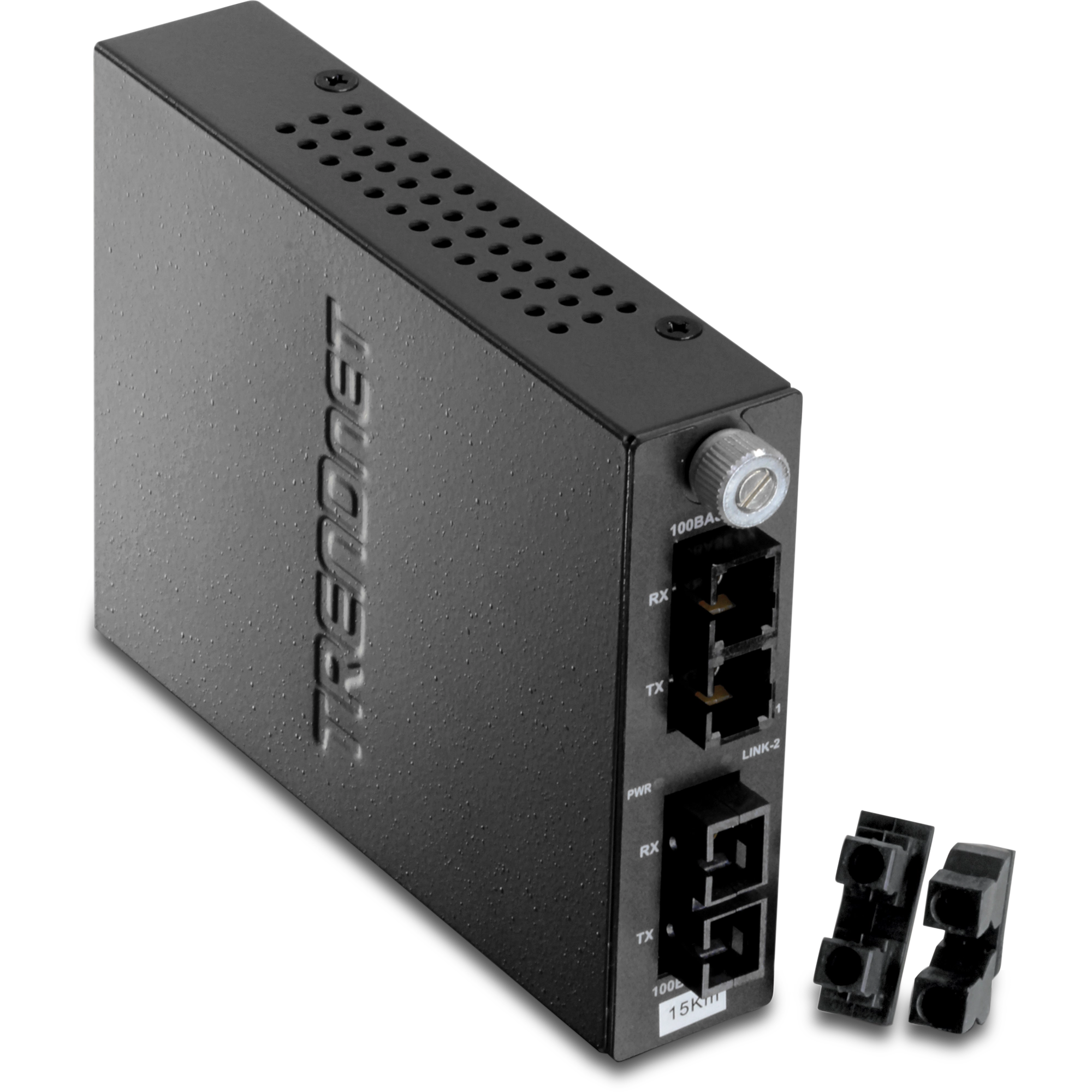

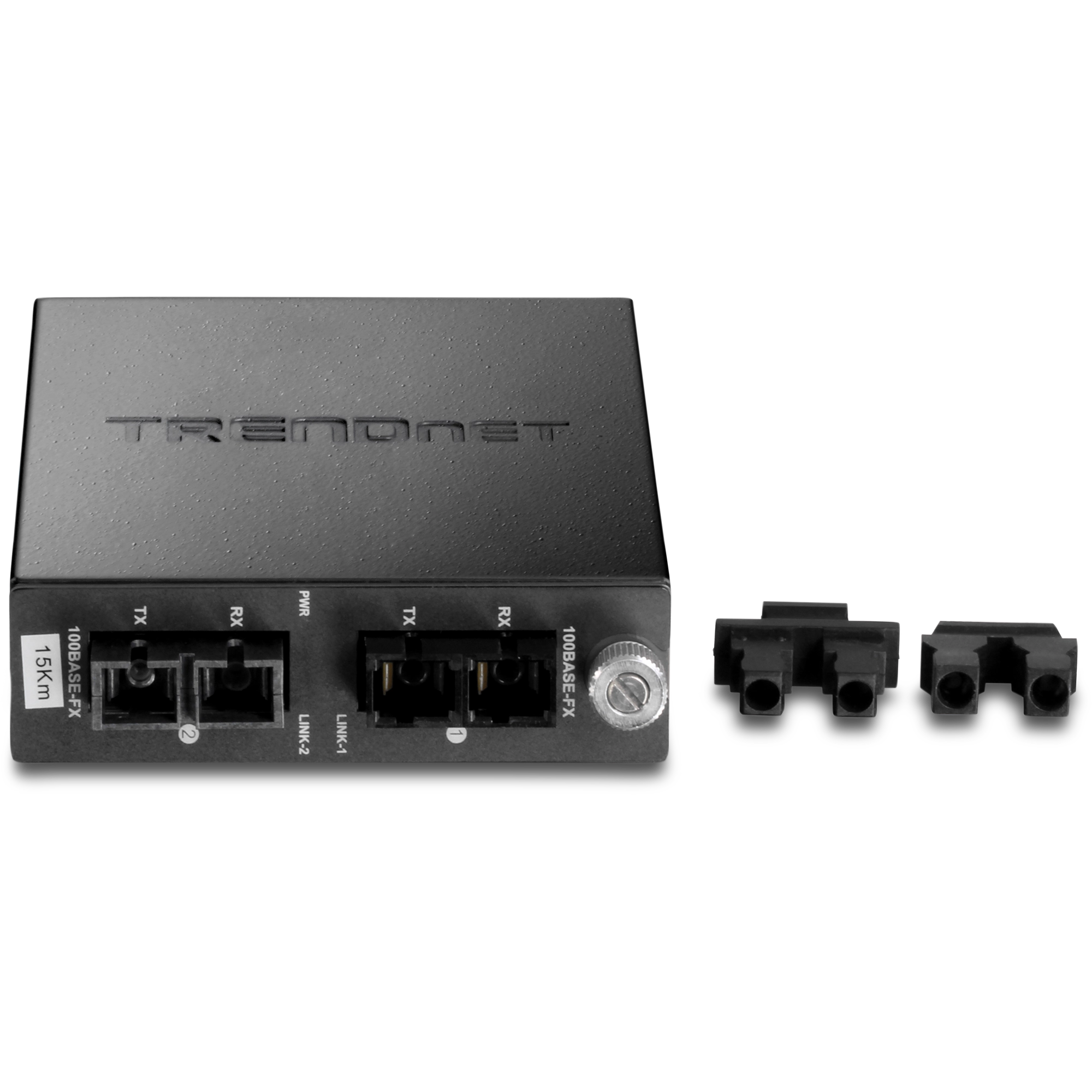

100Base-FX Multi-Mode to Single Mode SC-Type Fiber Converter

TFC-15MS100 (Version A1.1R)

  • SC-type Multi-mode to single-mode converter
  • Functions as a stand alone coverter
  • Compatible with TFC-1600 fiber chassis for distances up to 15km (9.3miles)
DISCONTINUED PRODUCT
The TFC-15MS100 (Version A1.1R) has been discontinued. For a list of discontinued products, click here.

The TFC-15MS100 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This Multi Mode to Single Mode SC-Type converter spans distances up to 15km (9.3 miles). Ports include 2 x 100Base-FX (SC-Type) ports. Network 100Base-FX Multi-Mode to 100Base-FX Single Mode media.

  • Compliant with IEEE 100Base-FX standards
  • 1 x 100Mbps fiber port with multi-mode SC-type connector
  • 1 x 100Mbps fiber port with single-mode SC-type connector
  • Status LED indicators for Power, Link/Activity, and Full-Duplex
  • Wall mountable
  • Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
  • 3-year limited warranty
Hardware
Standard
  • IEEE802.3u 100Base-FX
Supported Frame Size
  • Standard Ethernet up to 1522byte
Network Media
  • 100Base-FX: Multi-mode fiber optic cable 50/125 µm or 62.5/125 µm, up to 2km
  • 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
Protocol
  • CSMA/CD
Ports
  • 1 x 100Base-FX multi-mode (SC-type)
  • 1 x 100Base-FX single-mode (SC-type)
Transfer Rate
  • 100 Mbps (Half-Duplex)
  • 200 Mbps (Full Duplex)
Diagnostic LED
  • Per unit: Power
  • Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
  • 7.5V DC, 1A external power adapter
Power Consumption
  • 1.8 Watts (max)
Dimensions
  • 120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354g (12.5oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certification
  • FCC,CE
Media
  • MMF
Wavelength
  • 1300nm/1310nm
Optical Output Power (dBm)
  • Min: -23.5 / -20
  • Max.: -14 / 0
Optical Input Power (dBm)
  • Min (Sensitivity): -31/-32
  • Max.: 0/0
Power Budget
  • 7.5 / 12
Distance
  • 2km/15km

PACKAGE CONTENTS
  • TFC-15MS100
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
