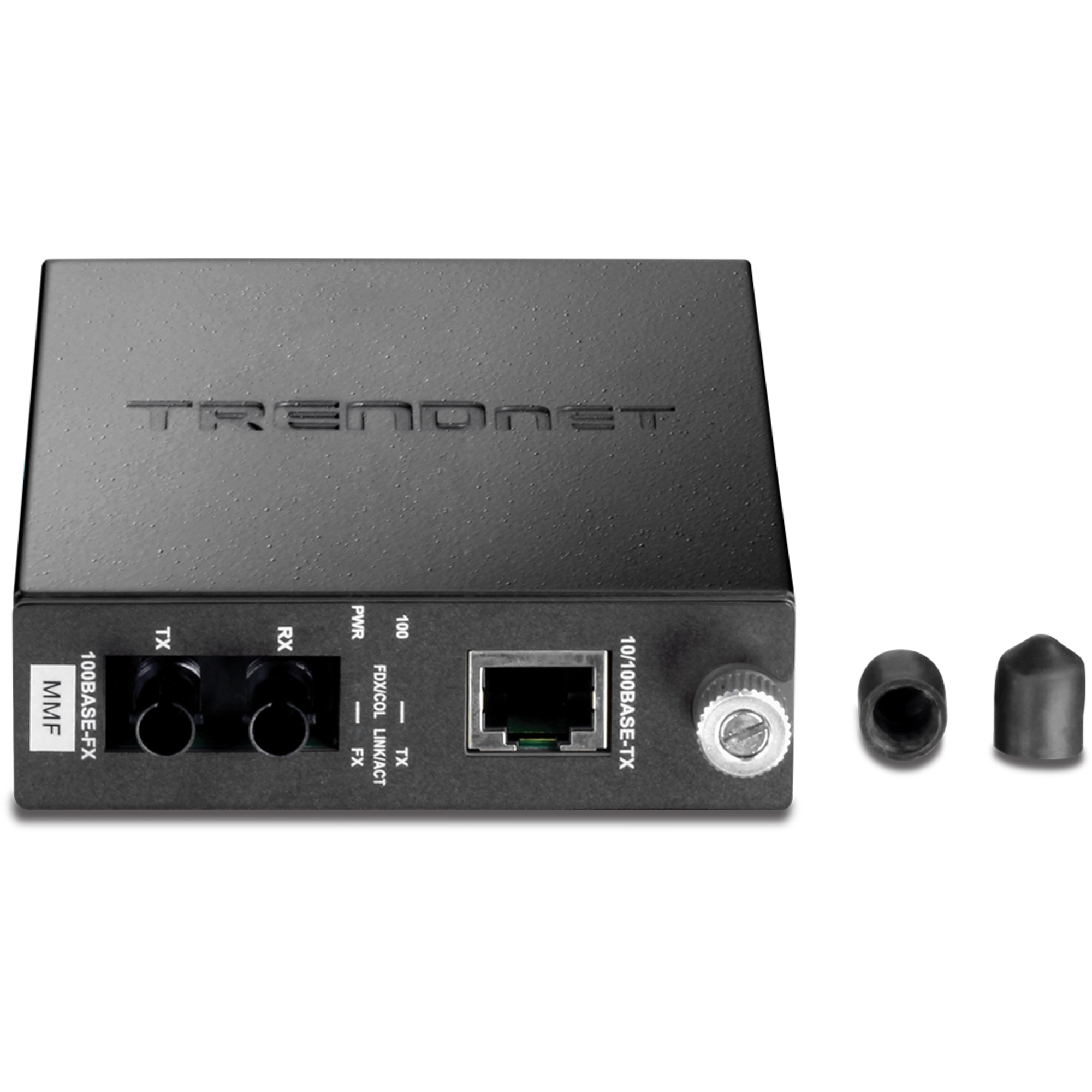

100Base-TX to 100Base-FX Multi Mode ST Fiber Converter

TFC-110MST (Version E1.0R)

  • ST-type multi-mode fiber port connects over distances of up to 2km (1.2 miles)
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
  • 1 x 10/100Base-TX auto-negotiation RJ-45 port
  • Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
  • Auto MDIX for 10/100Base-TX port
  • 1 x 100Mbps fiber port with Multi-mode ST-Type Connector
  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Dip-switch for full and half duplex selection on fiber port
  • Wall-Mountable
  • Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
  • Lifetime Warranty*
Hardware
Standards
  • IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
  • Standard Ethernet up to 1518bytes
Network Media
  • 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters
  • 100Base-FX: Multi-Mode fiber optic cable 50/125µm or 62.5/125 µm, up to 2 Km
Protocol
  • CSMA/CD
Ports
  • 1 x 10/100Base-TX
  • 1 x 100Base-FX(ST-type)
Dip Switch
  • FX: duplex mode (half/full)
Data Transfer Rate
  • 100Mbps (Half-Duplex)
  • 200Mbps (Full-Duplex)
  • Per Unit: power
  • Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
  • 5VDC, 1A external power adapter
Power Consumption
  • 1.8 Watts (max.)
Dimensions
  • 120 x 88 x 25 mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354g (12.5 oz)
Temperature
  • Operating: 0°~ 40°C (32°~ 104°F)
  • Storage: -25°~ 70°C (-13°~ 158°F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • FCC, CE

PACKAGE CONTENTS
  • TFC-110MST
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
