4-Port DisplayPort KVM Switch

TK-441DP (Version v1.0R)

  • DisplayPort™ 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with DisplayPort systems
  • Resolutions & refresh rates
    • Up to 1920 x 1080 @ 144Hz
    • Up to 1920 x 1200 @ 144Hz
    • Up to 1920 x 1440 @ 144Hz
    • Up to 2560 x 1440 @ 144Hz
    • Up to 3440 x 1440 @ 60Hz
    • Up to 3840 x 2160 @ 60Hz
    • NDAA / TAA compliant (U.S. and Canada only)
  • 2-Port USB 2.0 hub for storage devices and printers
  • Required cabling sold separately (4x TK-CP06)
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TK-441DP (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet’s 4-Port DisplayPort KVM Switch, model TK-441DP, allows you to control four computers with one set of console controls. Experience up to 4K UHD resolution with this DisplayPort KVM switch, no driver installation required. The TK-441DP DisplayPort KVM switch is designed for systems with DisplayPort, USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

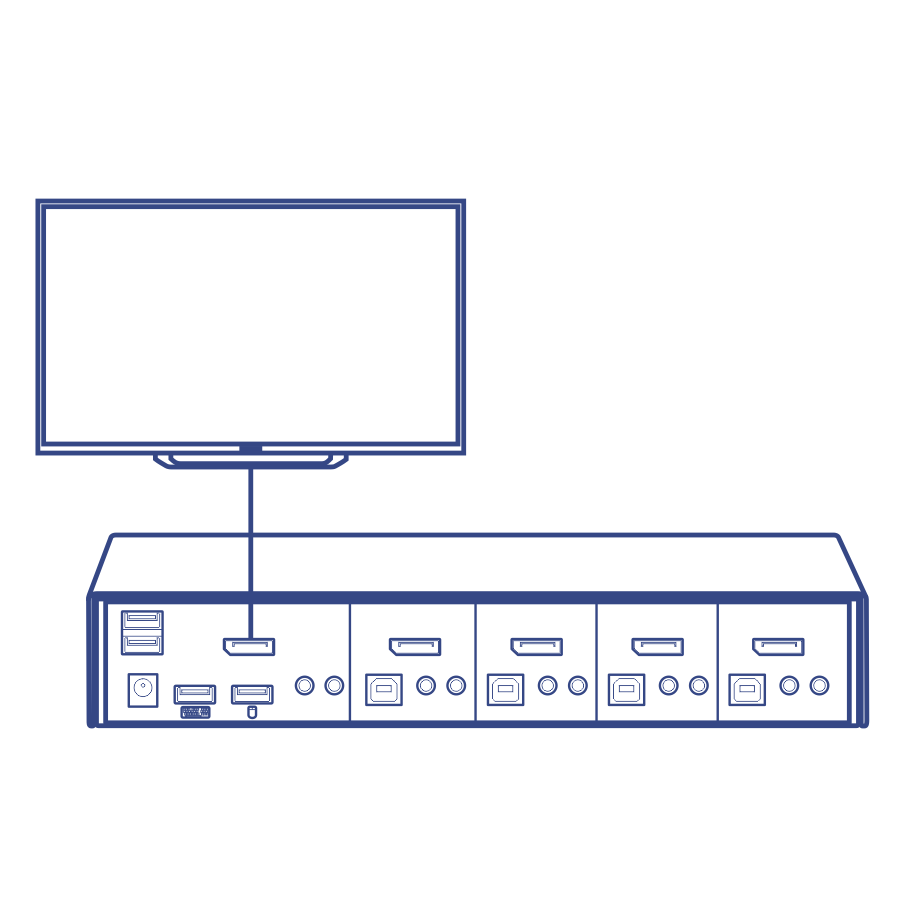

Line art diagram showing a single monitor connected to a 4-Port DisplayPort KVM Switch (Keyboard, Video, Mouse) switch.

DisplayPort 1.2

Designed to connect to four DisplayPort computers.

4K UHD logo on monitor.

4K UHD Resolution

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

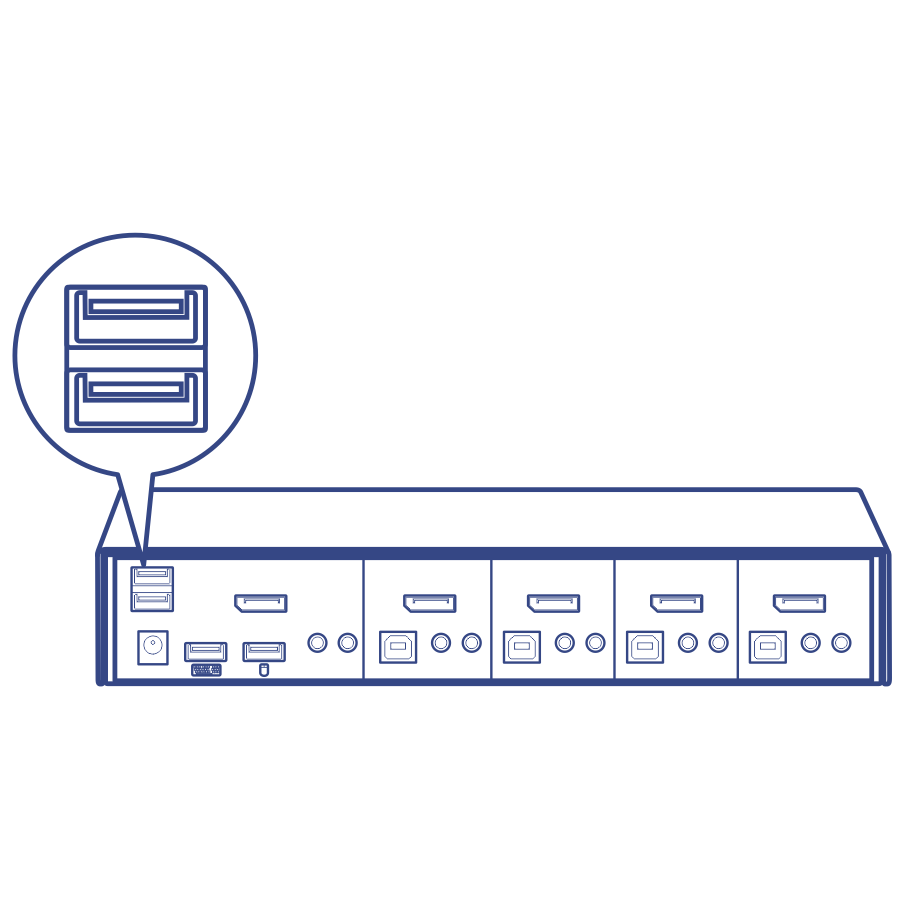

An illustration of the back of a KVM Switch with a USB port, showing in a speech bubble.

USB 2.0 Hub

Two additional USB ports to connect storage drives and printers.

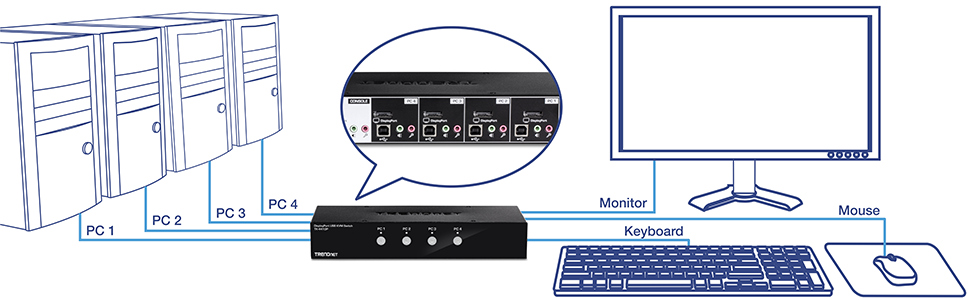

The diagram illustrates a setup involving four personal computers labeled PC 1, PC 2, PC 3, and PC 4, all connected to a KVM switch. The KVM switch is shown in detail, highlighting its ports for connecting the computers. The KVM switch is also connected to a monitor, keyboard, and mouse, allowing a single set of peripherals to control all four computers. The image emphasizes the central role of the KVM switch in managing multiple computers with one set of input and output devices.

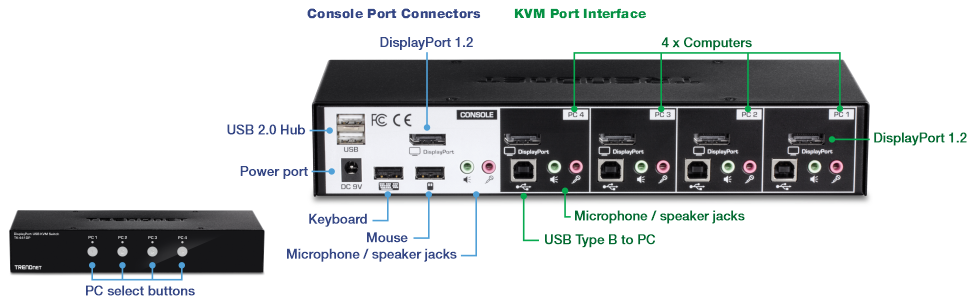

The diagram shows a KVM switch with various labeled ports and connectors. The front view displays four PC select buttons labeled PC 1 to PC 4. The rear view highlights the console port connectors including a DisplayPort 1.2, USB 2.0 hub, power port, keyboard, mouse, and microphone/speaker jacks. The KVM port interface section indicates connections for four computers, each with a DisplayPort 1.2, microphone/speaker jacks, and USB Type B to PC ports.

4-Port Monitor KVM

Control up to four separate computers with up to 4K resolution

DisplayPort Monitor

Designed to connect to four DisplayPort computers

4K UHD

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

Housing

DisplayPort KVM switch with rugged metal enclosure

USB 2.0 Hub

Two additional USB ports to connect storage drives and printers

Hot Keys

Hot Key command shortcuts

Easy Installation

DisplayPort KVM switch features simple setup with driverless installation

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 4)
  • Keyboard/Mouse: USB Type B
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 4)
  • Keyboard/Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 253 x 101 x 44mm (9.9 x 3.9 x 1.7 in.)
Weight
  • 920g (2.02 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-441DP
  • Quick Installation Guide
  • Power adapter (9V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
