10-Port USB Hub

TU2-H10 (Version V1.0R)

Add 10 USB 2.0 ports to a workstation*
No CD installation – just plug in
Long USB cable connection to computer
Power adapter for power hungry connected devices
Windows® and Mac® compatible

DISCONTINUED PRODUCT

The TU2-H10 (Version V1.0R) has been discontinued. It has been replaced by the TU2-700 (Version v2.1R). For a list of discontinued products, click here.

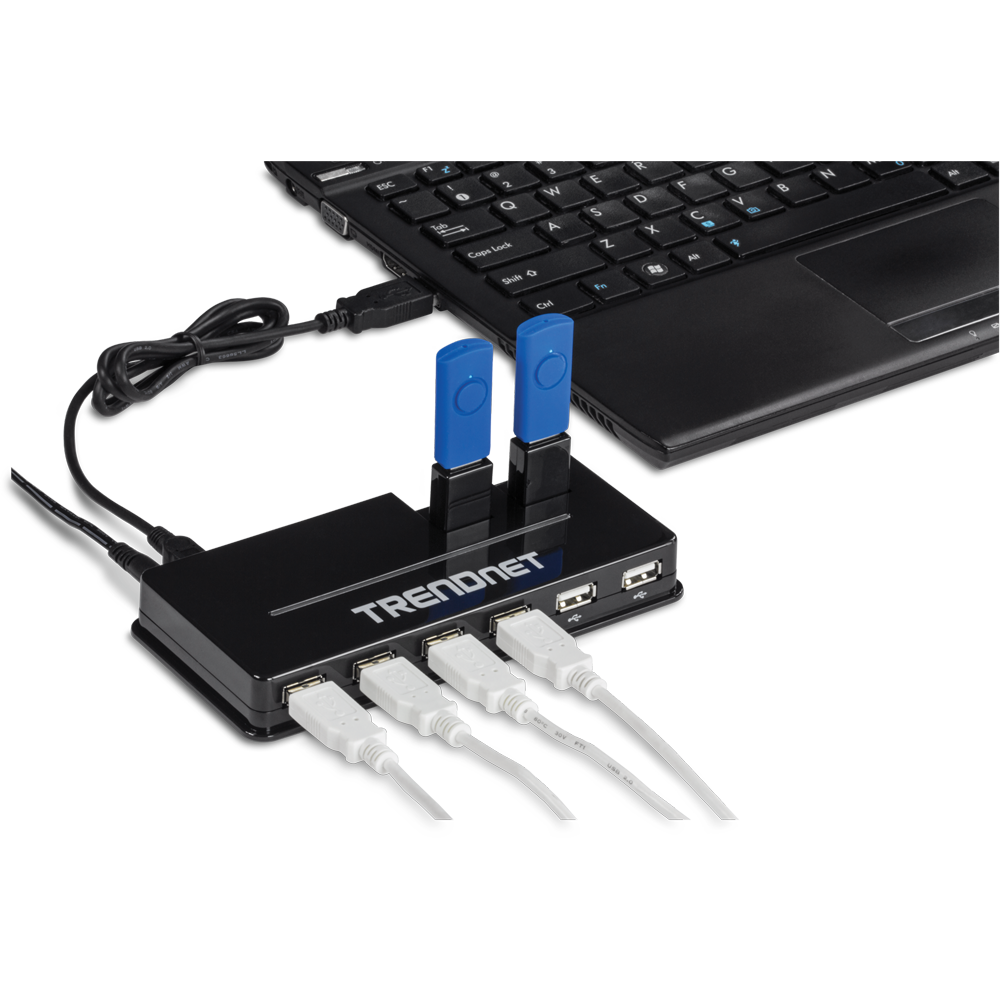

TRENDnet's 10-Port USB Hub, model TU2-H10, adds 10 USB 2.0 ports to a workstation. No CD installation required–simply plug in flash drives, storage enclosures, and other USB devices. The TU2-H10 works with Windows® and Mac® devices and is compatible with older USB 1.1 and 1.0 devices.

Ease of Use

Easy Setup

No CD installation – just plug in

Computer Connection

Includes a long 90 cm (35 in.) USB cable to connect to computer

Operating Systems

Compatible with Windows® and Mac® operating systems

LED Indicators

LED indicators confirm USB connectivity

Power Adapter

Provides up to 12.5 Watts of total power

*Not for charging iPad® tablets or other non-standard USB 2.0 chargers** Maximum power output for a bus powered hub is up to 500 mA. Power adapter required when total power consumption exceeds 500 mA.

Standards	USB 2.0 USB 1.1

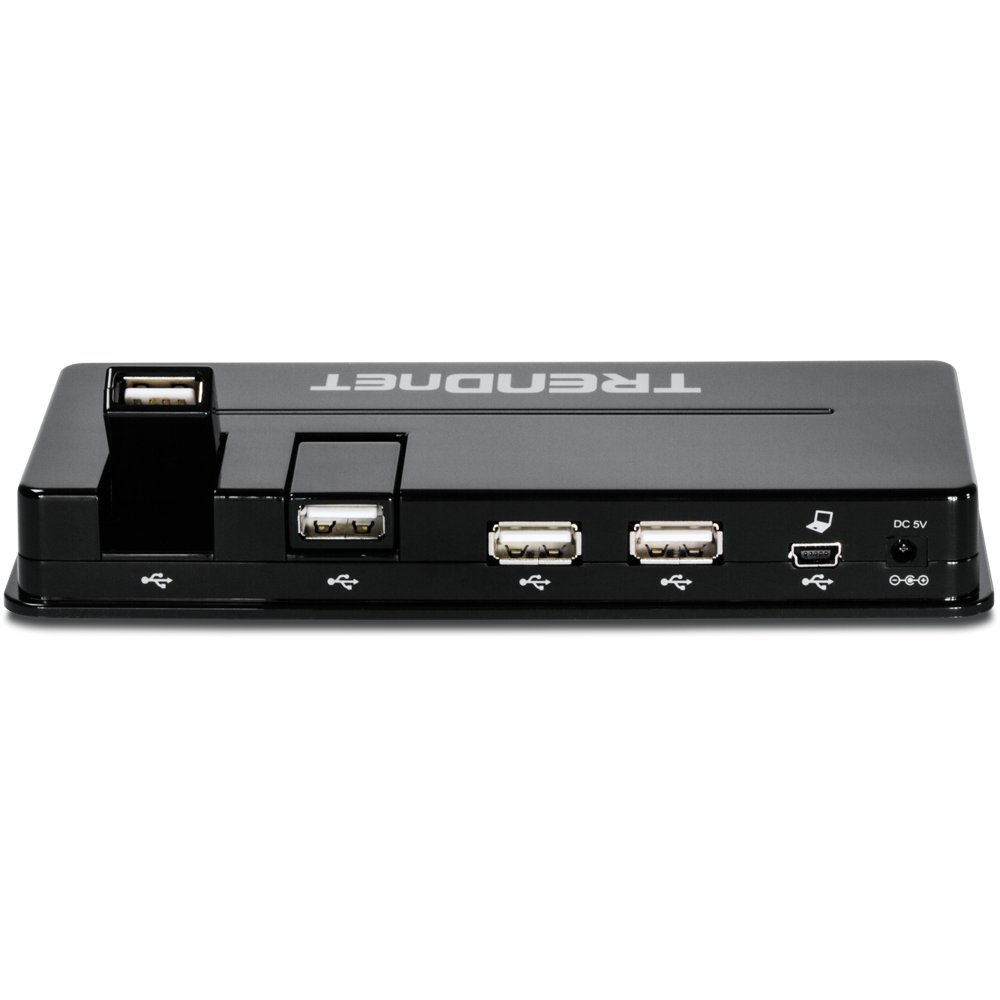

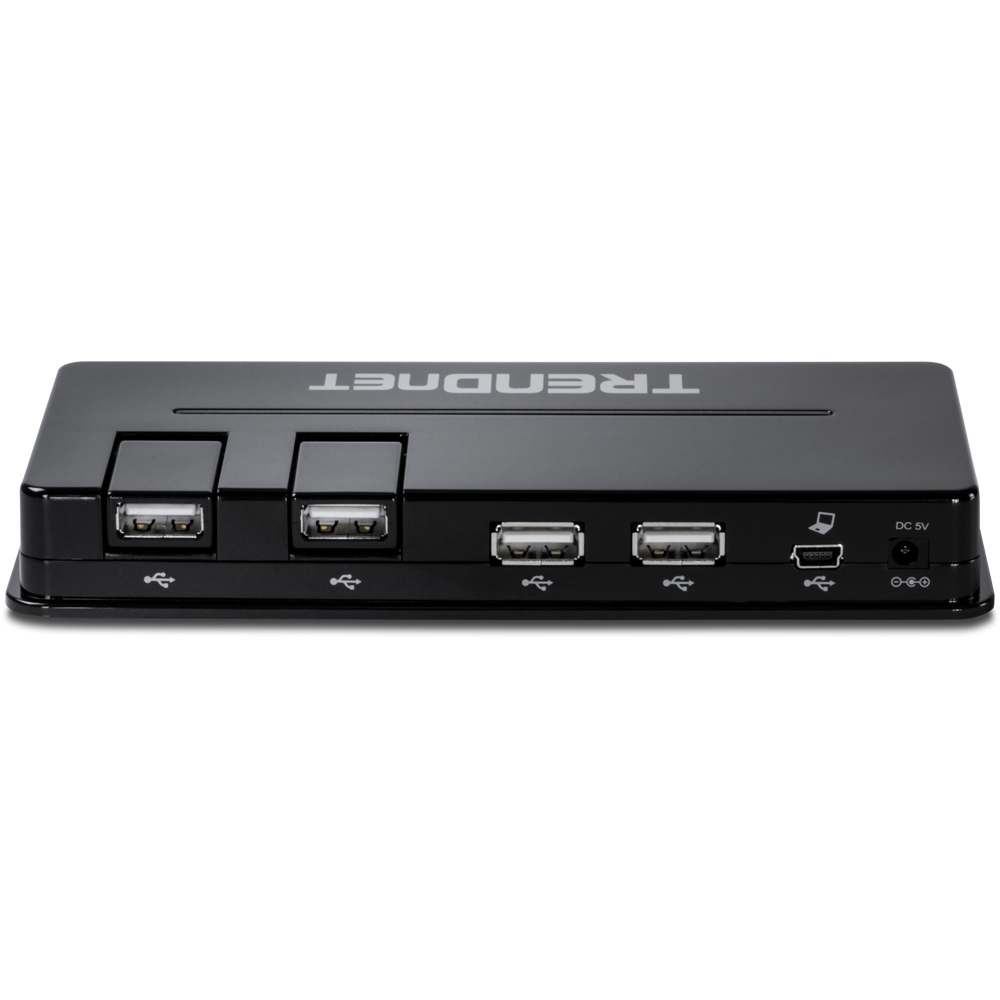

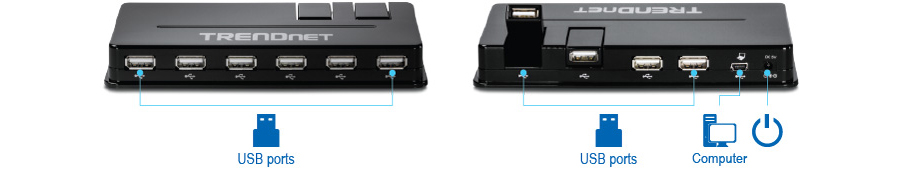

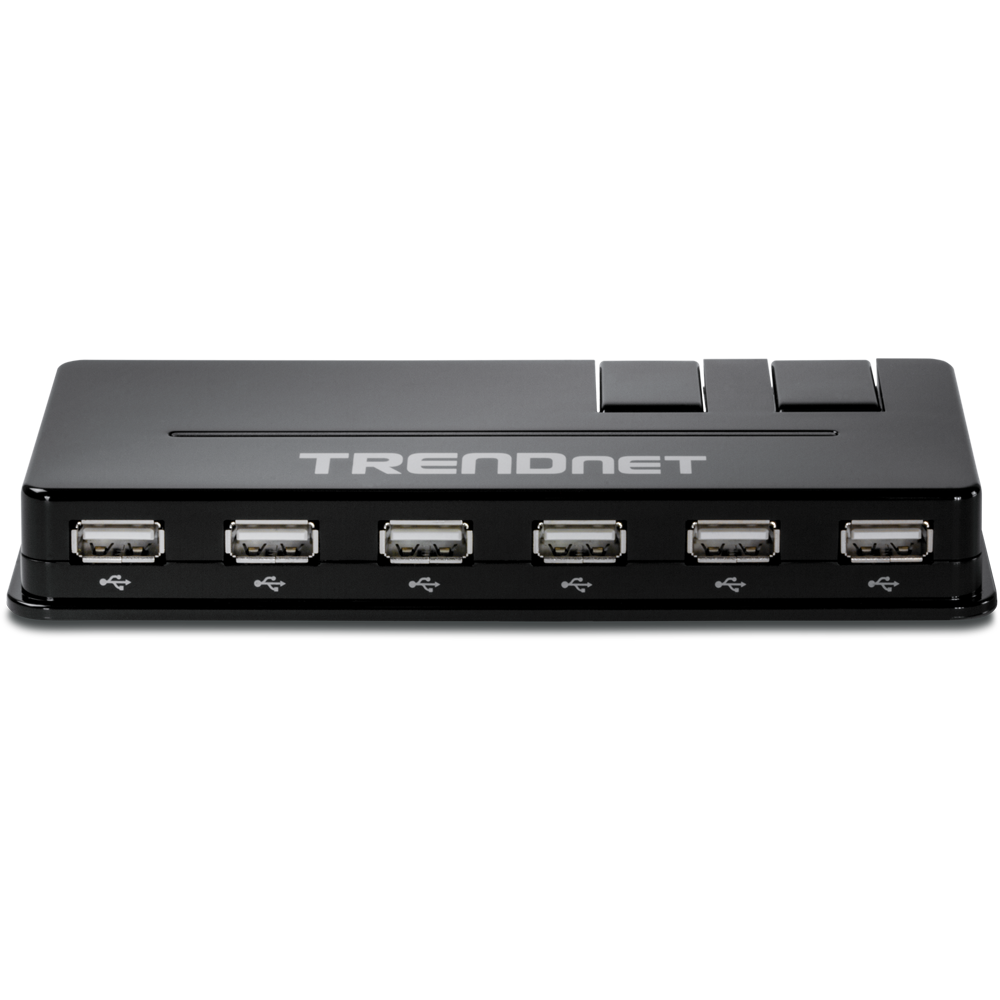

Device Interface	10 x Type A USB 2.0 ports** 1 x Type Mini-B USB 2.0 port (computer connection) LED Indicators Power port
Maximum Data Rate	Up to 480 Mbps
Operating Temperature	0 – 50 °C (32 – 122 °F)
Humidity	Max. 90% non-condensing
Power	Input: 100-240 V, 50/60 Hz, 0.5 A Output: 5 V DC 2.5 A external power adapter Consumption: 10 Watts (Max.)
Dimensions	156 x 74 x 20 mm (6.1 x 2.9 x 0.8 in.)
Weight	134 g (4.7 oz.)
Warranty	2 year limited
Certifications	CE FCC

PACKAGE CONTENTS

TU2-H10
Quick Installation Guide
Power adapter (5 V DC, 2.5 A)
USB cable (90 cm/35 in.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
