2-Port DVI / PS/2 KVM Switch Kit

TK-204K (Version 1.0R)

  • 2-port KVM switch with DVI and PS/2 connection to computers
  • Advanced Digital Video Interface (DVI) for sparkling video clarity
  • Listen to music from one computer while working on the other
  • All required cabling included
DISCONTINUED PRODUCT
The TK-204K (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's TK-204K 2-port DVI-KVM encompasses all your multimedia and multi-tasking needs into one cost effective solution. Manage multiple PC's effectively while enjoy audio-rich features with one set of LCD monitor, keyboard, mouse, microphone, and speakers.

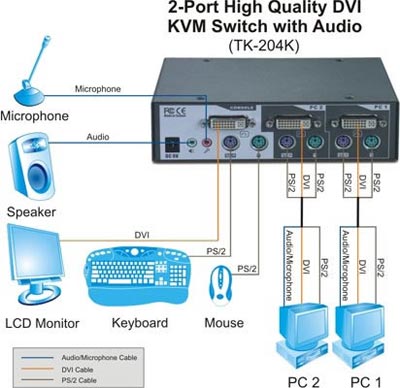

The diagram illustrates a 2-Port High Quality DVI KVM Switch with Audio model TK-204K. It shows the connections for a microphone, speaker, LCD monitor, keyboard, and mouse to the KVM switch. The KVM switch has ports for two PCs labeled PC 1 and PC 2. Each PC connects to the switch using audio/microphone cables, DVI cables, and PS/2 cables. The microphone and speaker are connected to the audio ports on the switch, while the LCD monitor, keyboard, and mouse are connected to the respective DVI and PS/2 ports. The diagram uses color-coded lines to indicate the different types of cables: orange for audio/microphone cables, blue for DVI cables, and green for PS/2 cables.
  • 2-Port DVI, PS/2 Audio KVM Switch with Enhanced Digital Video Support
  • DVI-I Interface Technology Supports Pure Digital Video Signal Transmission
  • Compatible with DVI-D (Digital Only) Connector
  • Supports Microsoft IntelliMouse, InteiliMouse Explorer, Logitech NetMouse and more
  • Enhanced Digital Video Support up to 1600 x 1200 High VGA Resolution
  • Direct Channel Selection and Operation using Push Buttons or Hot-Key Commands
  • Auto-Scan Mode for monitoring PCs and Beeping Sound for Switching Confirmation
  • Numerical LED Display for Easy Monitoring ( One 7-Segment LED)
  • Share Audio and Microphone between Multimedia PCs
  • Supports DOS, Windows 95/98(SE)/ME/2000/XP, Linux and more
  • Plug & Play and Hot-Pluggable
  • 2-year limited warranty
Hardware
Interface:
  • DVI-I & DVI-D Compliant
PC Port Connector:
  • PS/2 Keyboard 6-pin Mini Din (Female)
  • 2 x PS/2 Mouse 6-pin Mini Din (Female)
  • 2 x DVI-I Single Link (Female)
Console Port Connector:
  • 1 x PS/2 Keyboard 6-pin Mini Din (Female)
  • 1 x PS/2 Mouse 6-pin Mini Din (Female)
  • 1 x DVI-I Single Link (Female)
  • 1 x 3.5mm Audio in/out jack
  • 1 x 3.5mm Microphone in/out jack

Cable
  • 2 sets of DVI-I Dual Link KVM Cable (1.2m/4ft):

  • To KVM
    • PS/2 Keyboard 6-pin Mini Din (Male)
    • PS/2 Mouse 6-pin Mini Din (Male)
    • DVI-I Dual Link (Male)

  • To PC
    • PS/2 Keyboard 6-pin Mini Din (Male)
    • PS/2 Mouse 6-pin Mini Din (Male)
    • DVI-I Dual Link (Male)
    • Audio connector (Male)
    • Microphone connector (Male)
PC Selection :
  • Push Buttons or Hot-Key Commands
Keyboard/Mouse Emulation:
  • PS/2
Digital Display Resolution:
  • 1600 x 1200
Power:
  • 9V DC, 1A External Power Adapter
Dimensions:
  • 140 x 86 x 45mm (5.5 x 3.4 x 1.8 inches)
Weight:
  • 520g (18.4 oz.)
Temperature:
  • Operating: 0 ° ~ 40 ° C (32 ° ~104 ° F)
  • Storage: -20 ° ~ 60 ° C (-4 ° ~ 140 ° F)
Humidity:
  • 0 ~ 90%RH, Non-Condensing
Certifications:
  • FCC, CE

PACKAGE CONTENTS
  • 2-Port DVI Audio KVM Switch
  • 2 sets of DVI-I Dual Link Cables
  • Multi-Language User's Guide
  • Power Adapter (9V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
