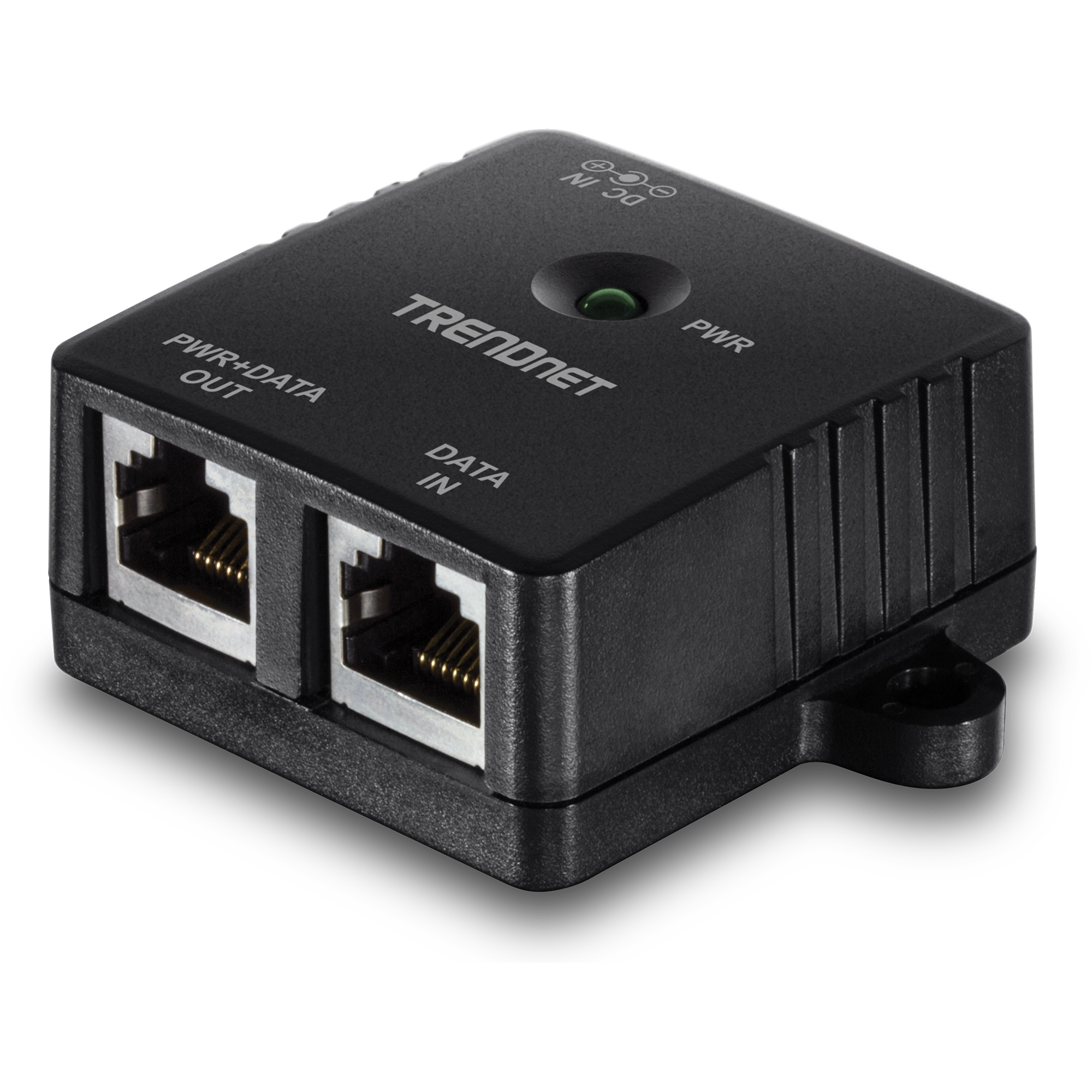

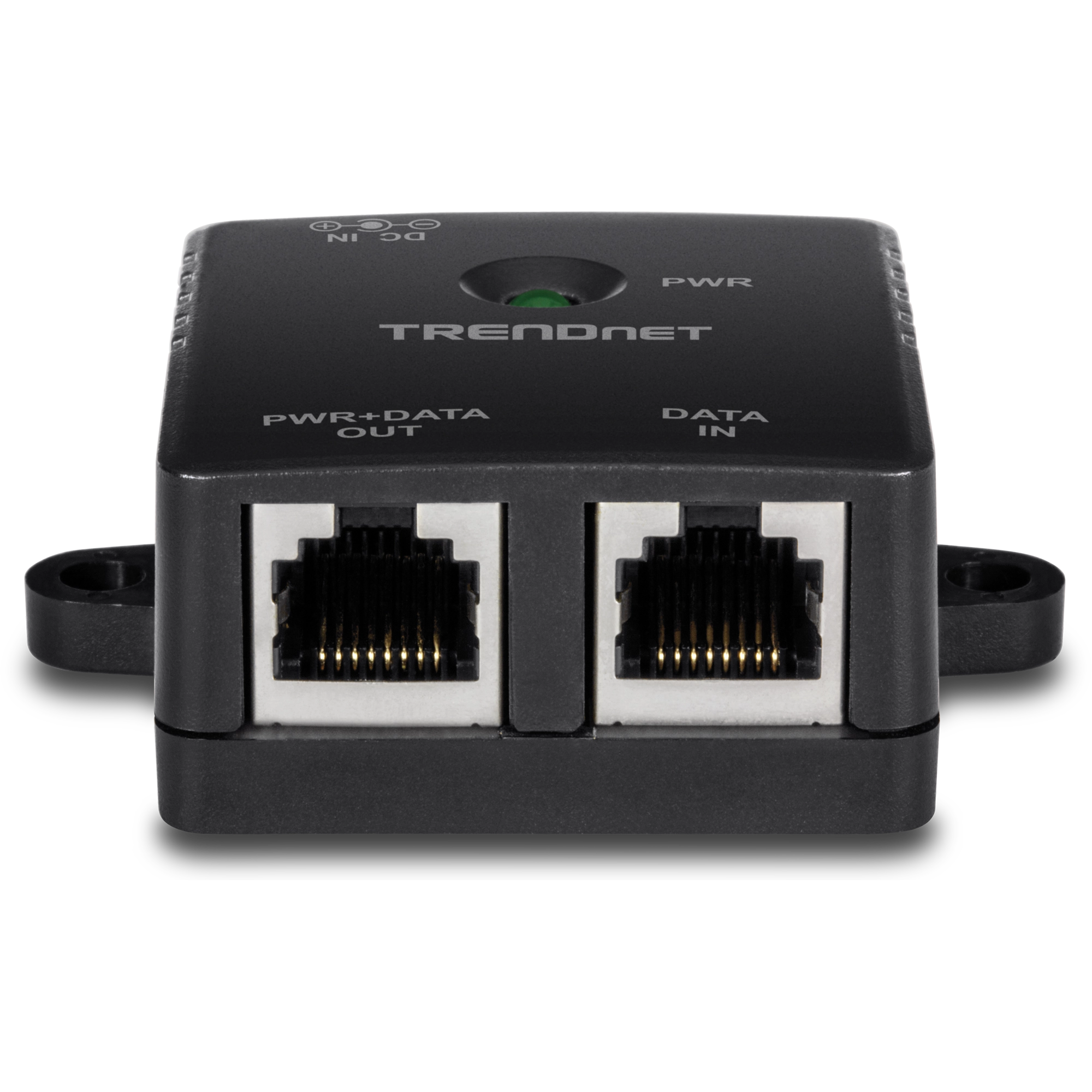

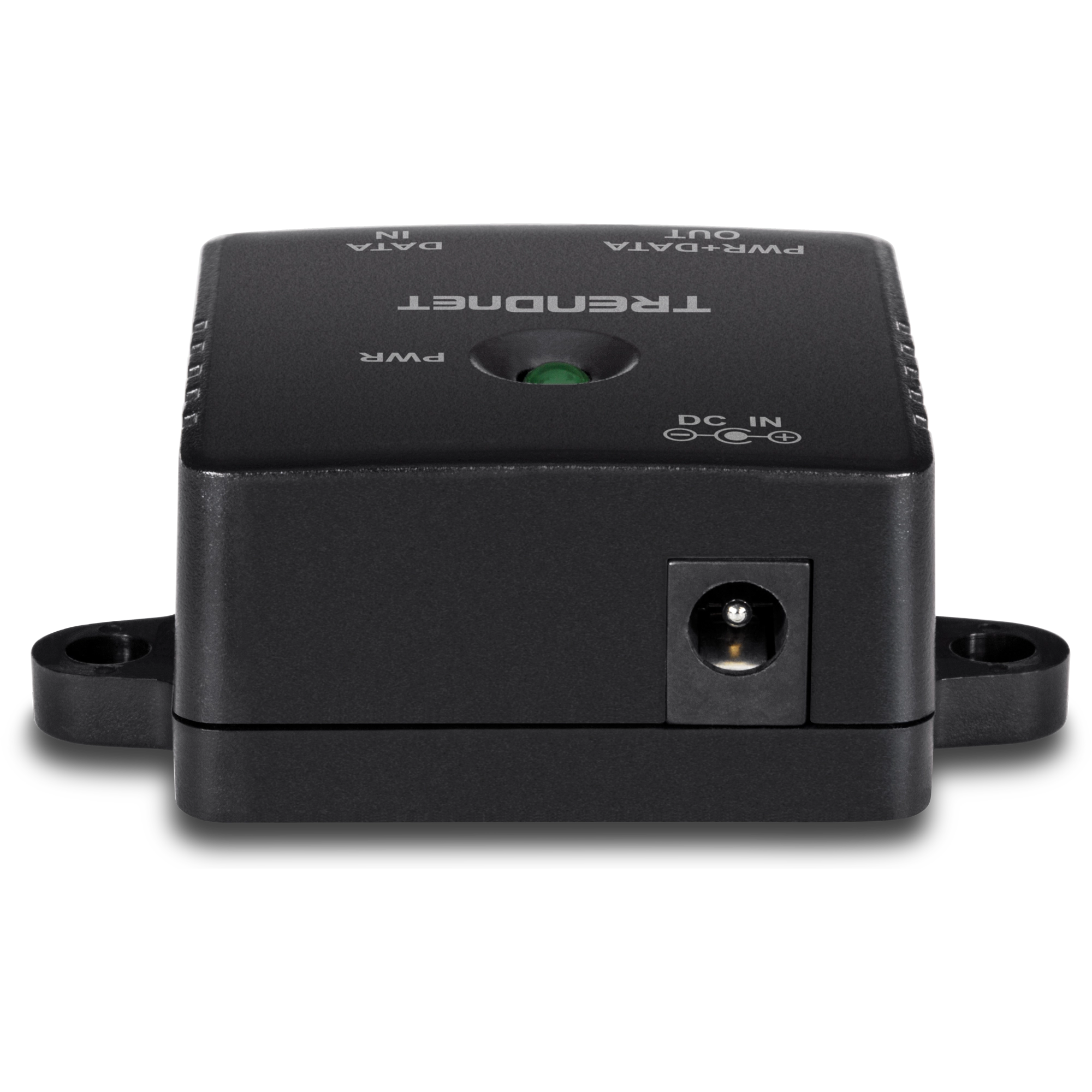

Gigabit PoE Injector

TPE-113GI (Version V3)

Full Duplex Gigabit speeds
Supplies PoE (15.4W)
Network a PoE device located up to 100 meters (328 ft.) away
Converts a non-PoE Gigabit port to a PoE Gigabit port
Save on installation and equipment costs
IEEE 802.3af compliant
NDAA compliant

TRENDnet's Gigabit PoE Injector, model TPE-113GI, combines electrical power with a Gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away.

Network Diagram of a PoE+ Injector connected into a Non-PoE Switch and Poe Camera with Up to 15.4W of power.

PoE

Supplies a PoE device with PoE (15.4W) power.

An illustration of a Injector with an arrow pointing toward a wall.

Installation Flexibility

Wall-mountable design accommodates most installation scenarios.

Illustration of a network cable labeled Full Duplex Gigabit with icons representing music, video, gaming, data transfer moving through the network.

Gigabit Speeds

Full Duplex 2Gbps Ethernet speeds with this PoE injector.

PoE

Supplies a PoE device with PoE (15.4W) power

Easy Installation

No configuration needed, simply connect a PoE network device

Installation Flexibility

Wall-mountable design accommodates most installation scenarios

Gigabit Ports

1 x Gigabit Ethernet port and 1 x PoE Gigabit Ethernet port

PoE Distance

Provides a PoE network connection up to 100 meters (328 ft.)

LED Indicator

LED indicator confirms PoE connectivity

Auto-Sensing Technology

Auto-sensing technology delivers up to 15.4W to an 802.3af PoE device

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af
Device Interface	1 x Gigabit Data In port 1 x Gigabit Data & Power out port 1 x Power Input LED indicator
Special Features	Wall-mountable
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
PoE Delivery	Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power	Input: 100 – 240V AC, 50/60Hz, 0.6A max.
Power Consumption	Max. 15.4W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	67 x 51 x 25mm (2.6 x 2 x 1 in.)
Weight	38g (1.34 oz.)
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

TPE-113GI
Quick Installation Guide
Power adapter (54V DC, 0.4A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
