8-Port Gigabit PoE+ Switch

TPE-TG82g (Version v1.0R)

8 x Gigabit PoE+ ports
61W PoE budget
16Gbps switching capacity
Sturdy metal switch
Plug and Play installation
Use with TRENDnet's PoE Splitter to network and power non-PoE devices
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

DISCONTINUED PRODUCT

The TPE-TG82g (Version v1.0R) has been discontinued. It has been replaced by the TPE-TG82g (Version v2.0R). For a list of discontinued products, click here.

The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.

A network diagram of 8-Port Network Switch, connected to PoE Camera and wireless access point device up to 61 Watt.

PoE Power

A 61W PoE power budget supports up to eight Power over Ethernet devices.

Illustration of a network cable with icons representing music, video, data transfer moving through the network.

Gigabit Ethernet

Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.

Line drawing of a modern workspace with a desk, office chair, router, and laptop.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

The image shows an 8-Port Gigabit PoE+ Switch (model TPE-TG82g) from TRENDnet, with eight Ethernet ports labeled 1 through 8, connected to the internet via a modem/router, security cameras, a laptop, and a gaming console, illustrating its ability to connect and power multiple devices through PoE technology.

PoE

Supplies up to 30W of PoE+ power per port with a total power budget of 61W. Supports both PoE (802.3af) and PoE+ (802.3at) devices.

Ports

Eight gigabit PoE+ ports

Switching Capacity

16Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption

Housing

Sturdy metal housing

LED Indicators

LED indicators convey port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az IEEE 802.1p
Device Interface	8 x Gigabit PoE/PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 128KB Switch Fabric: 16Gbps MAC Address Table: 8K entries Forwarding rate: 11.9Mpps (64-byte packet size) Jumbo Frame: 9K
Power	Input: 110-240V AC, 50/60 Hz 1.2A Output: 54 V DC, 1.67 A Consumption: 36 Watts (Max.)
PoE	PoE budget: 61W Pin 3,6 for power+ and pin 1,2 for power- (mode B)
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.)
Weight	400 g (14 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG82g
Quick Installation Guide

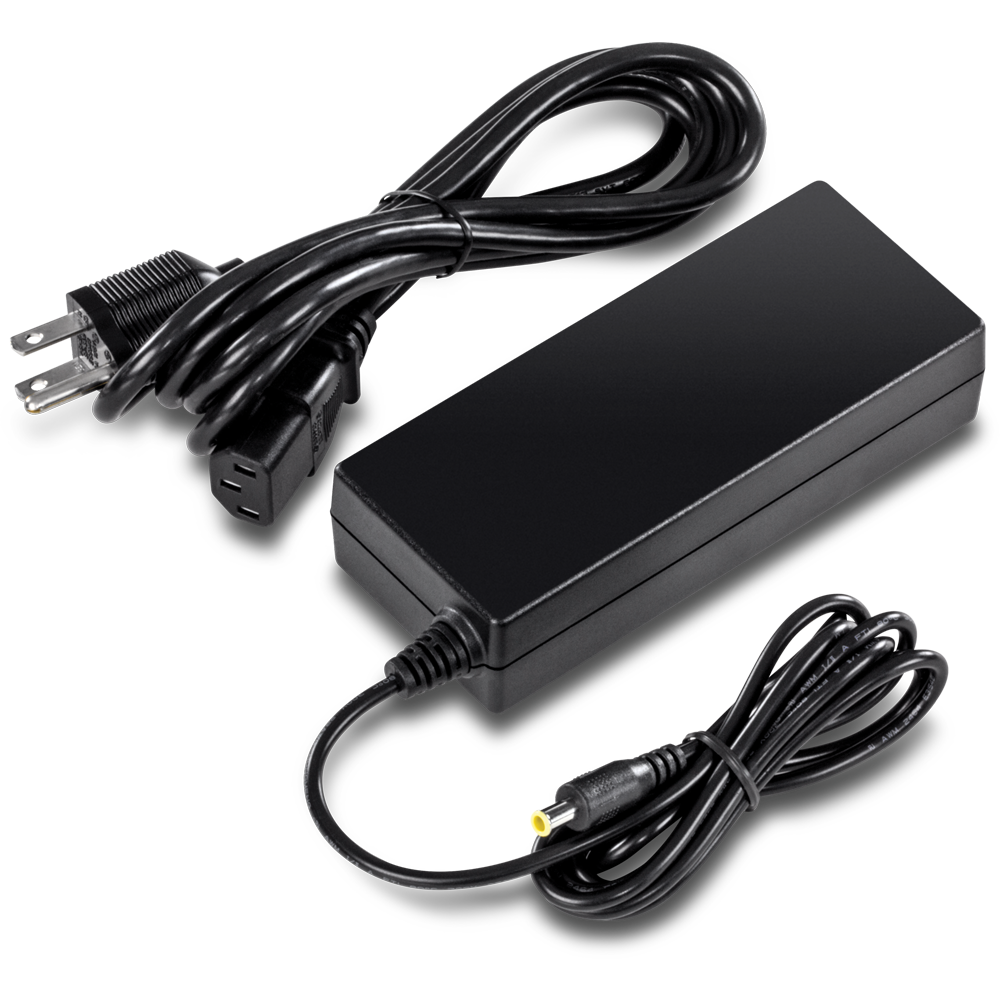

Power Brick (54V DC, 1.67A)
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
