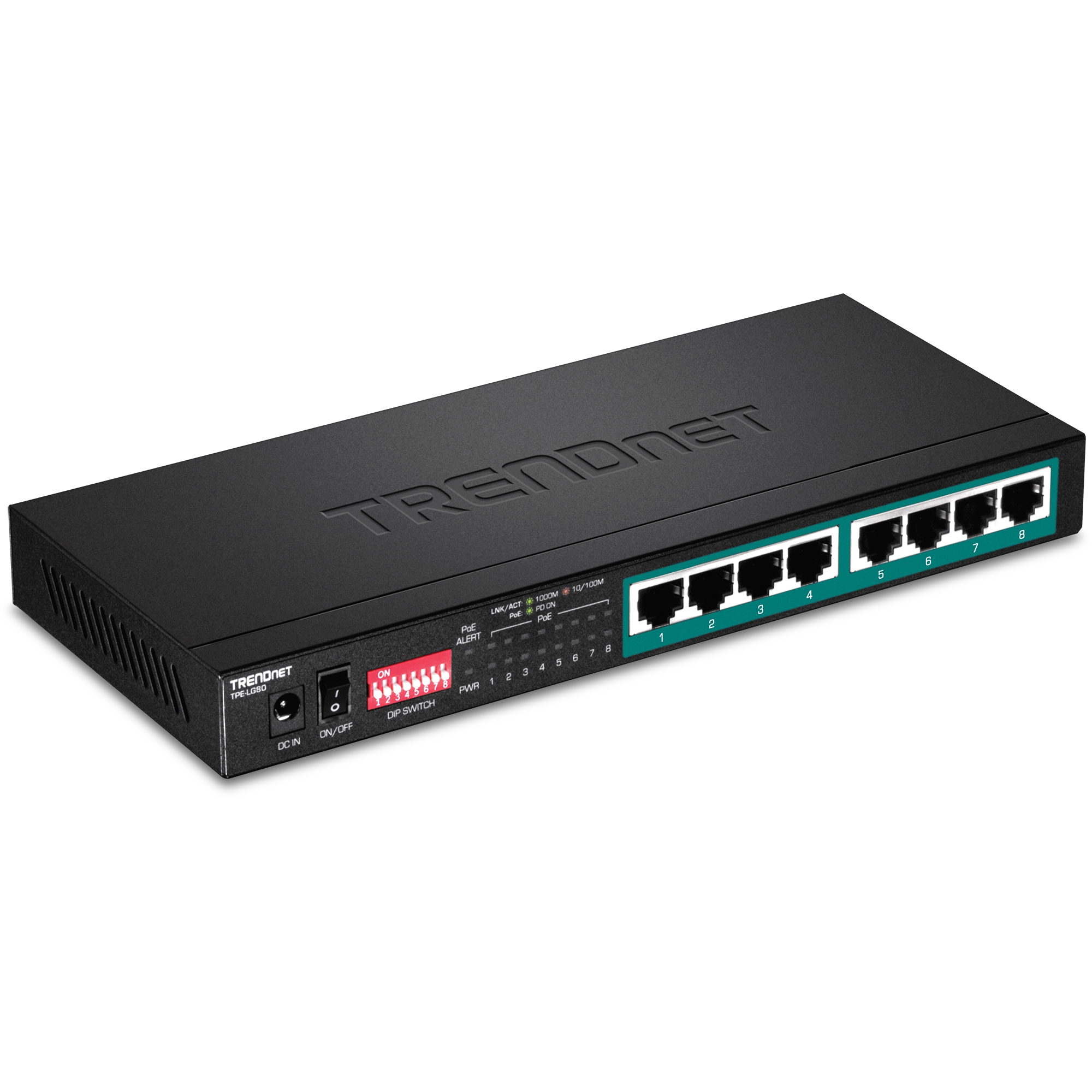

8-Port Gigabit Long Range PoE+ Switch

TPE-LG80 (Version v1.0R)

  • Easy installation
  • 8 x Gigabit PoE+ ports
  • Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 16Gbps switching capacity
  • 65W PoE budget
  • Wall mountable design
  • Sturdy metal switch
  • Use with TRENDnet's PoE splitter to network and power non-PoE devices

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.

PoE+ Power

A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit

Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.

Long Range PoE+ Switch

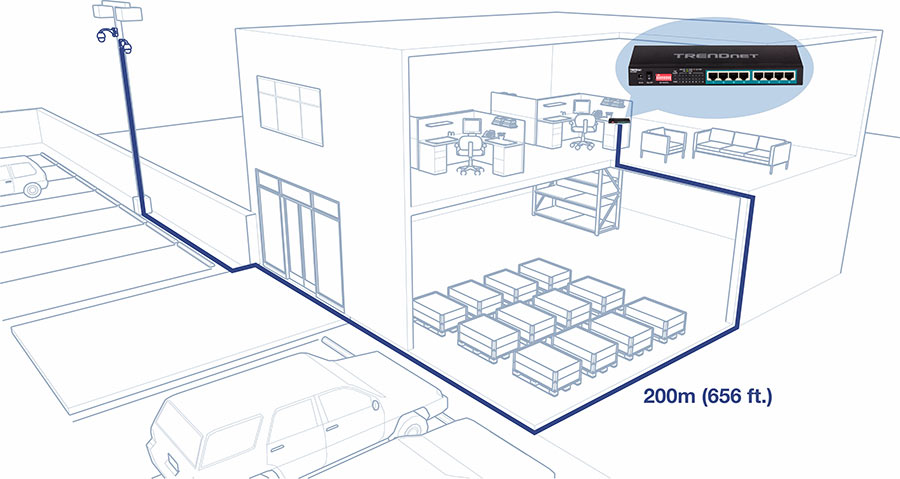

Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps.

PoE+

Supplies up to 30W of PoE+ power per PoE port with a 65W total power budget

Ports

Eight gigabit PoE+ ports

Long Range PoE+ Switch

Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) for long distance PoE installations

Port Isolation

Ideal for surveillance networking applications, the DIP switch also enables port isolation

Switching Capacity

16Gbps switching capacity

Housing

Wall mountable metal housing

LED Indicators

LED indicators convey PoE and port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az

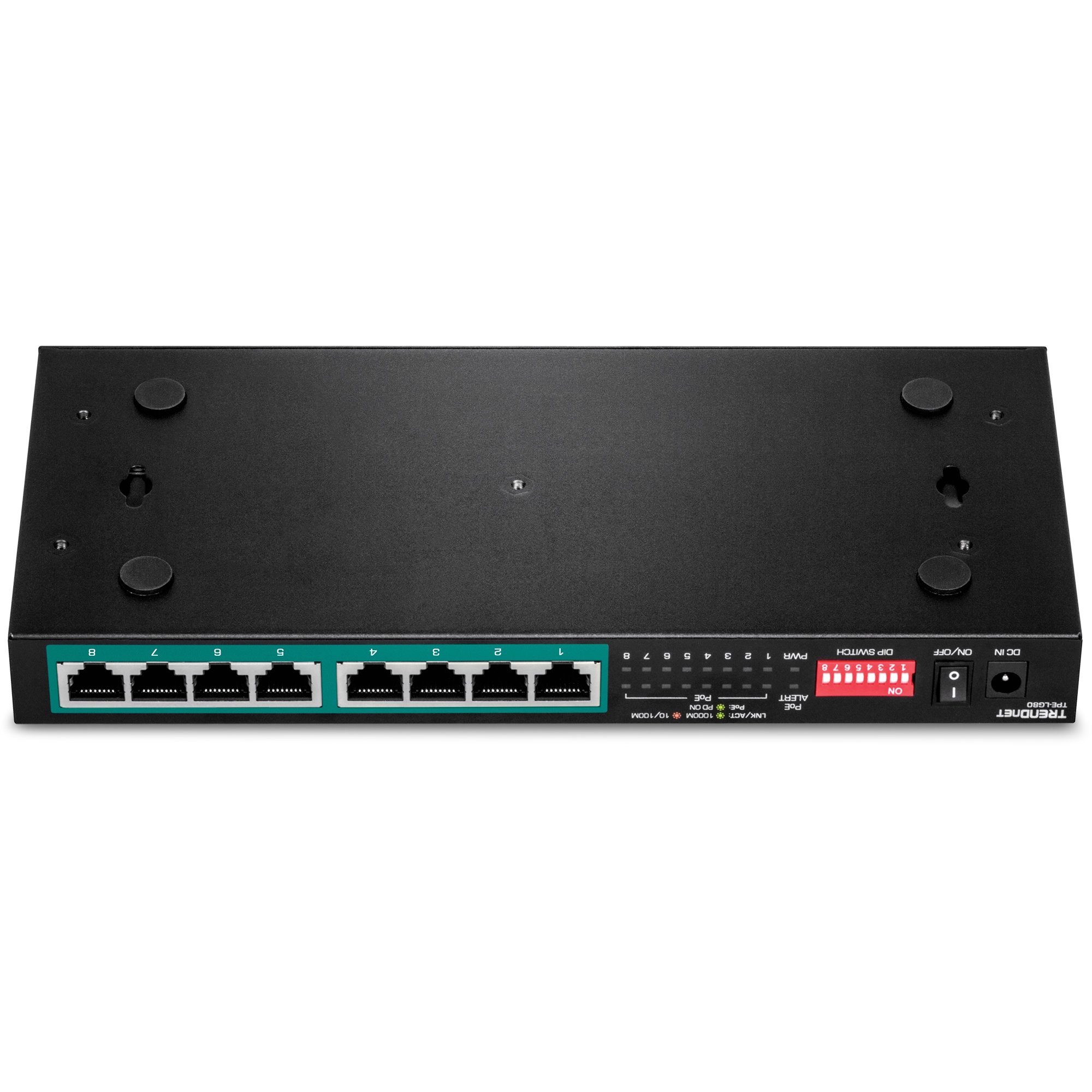

Device Interface
  • 8 x Gigabit PoE+ ports
  • LED indicators
  • DIP switch
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 16Gbps
  • RAM Buffer: 192KB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
DIP Switch
SwitchStatusFunction
1OFFPorts 1 & 2: Default gigabit PoE+
ONPorts 1 & 2: Long range PoE+ up to 200m at 10Mbps
2OFFPorts 3 & 4: Default gigabit PoE+
ONPorts 3 & 4: Long range PoE+ up to 200m at 10Mbps
3OFFVLAN port isolation disabled
ONVLAN port isolation on ports 1-4
4OFFQoS disabled
ONQoS Enabled: Video & Voice – High Priority
5OFFPort 5: Default gigabit PoE+
ONPort 5: Long range PoE+ up to 200m at 10Mbps
6OFFPort 6: Default gigabit PoE+
ONPort 6: Long range PoE+ up to 200m at 10Mbps
7OFFPort 7: Default gigabit PoE+
ONPort 7: Long range PoE+ up to 200m at 10Mbps
8OFFVLAN port isolation disabled
ONVLAN port isolation on ports 5-7
*DIP Switch 3 & 8 cannot be enabled at the same time
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 55V DC, 1.3A external power adapter
  • Max. consumption: 70.6W
PoE
  • PoE budget: 65 Watts
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40 °C (32° – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.13 x 1.1 in.)
Weight
  • 592g (20.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

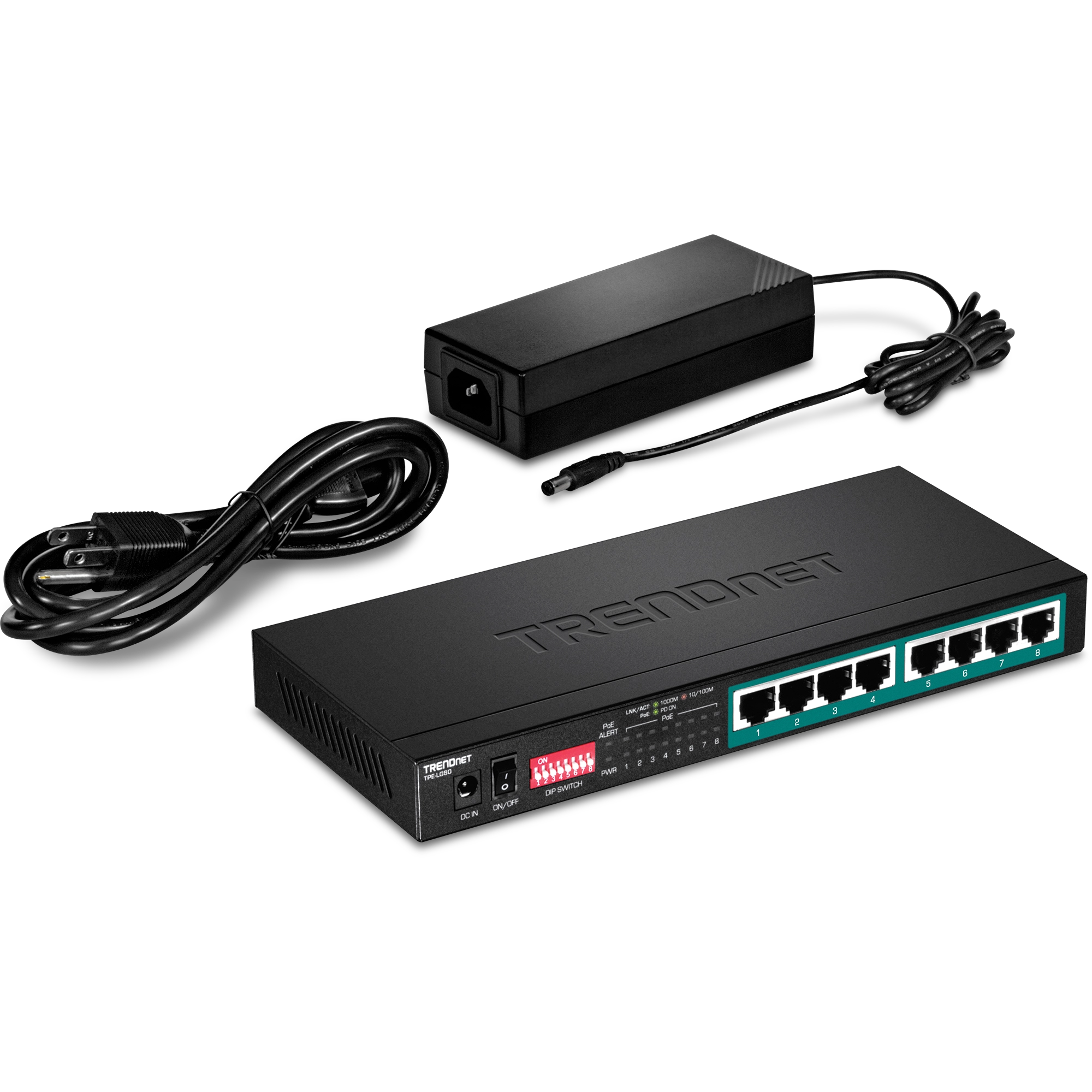

PACKAGE CONTENTS
  • TPE-LG80
  • Quick Installation Guide
  • Power brick (55V DC, 1.3A)
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
