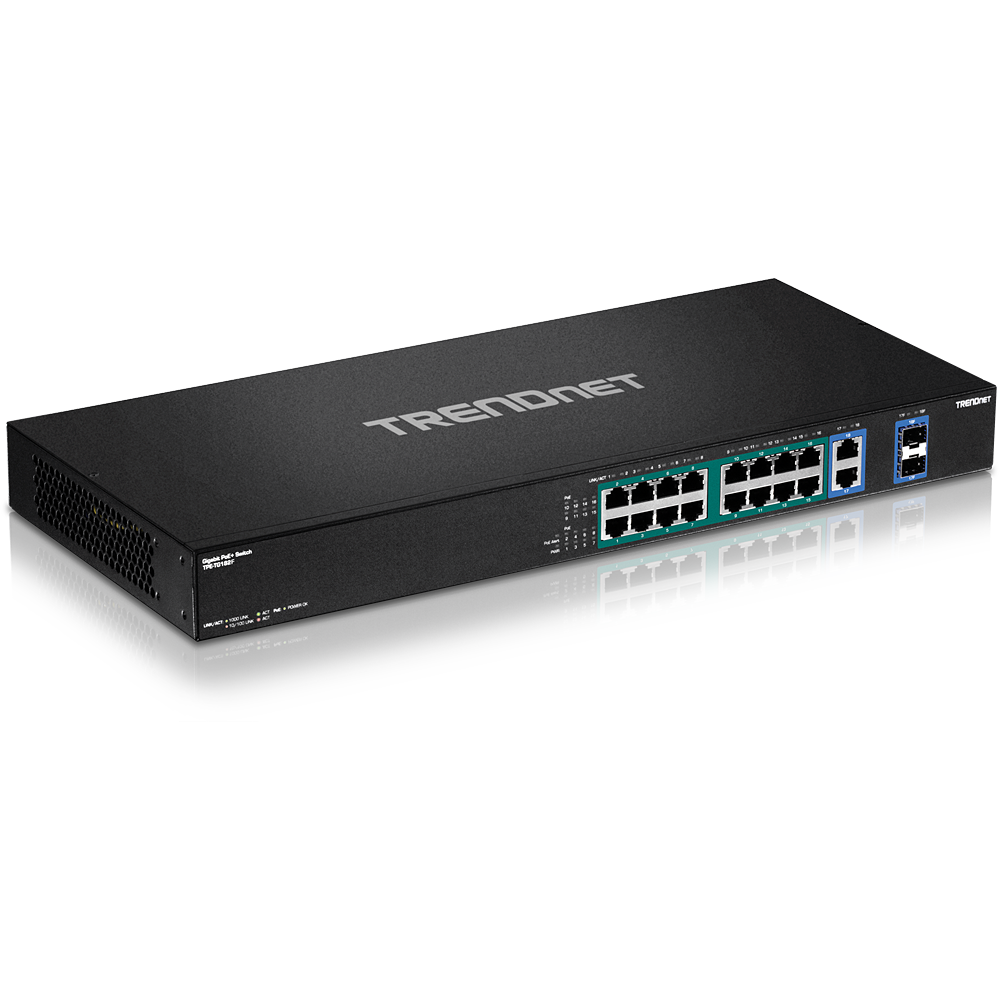

18-Port Gigabit High Power PoE+ Switch

TPE-TG182F (Version v1.0R)

16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP)
36Gbps switching capacity
Internal power supply
440W PoE power budget
Reduces equipment cost by delivering data and power over existing network cables
Sturdy rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

DISCONTINUED PRODUCT

The TPE-TG182F (Version v1.0R) has been discontinued. It has been replaced by the TPE-TG182F (Version v1.1R). For a list of discontinued products, click here.

TRENDnet's 18-Port Gigabit High Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable ,high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and VoIP phone systems.

A network diagram of a Network Switch, connected to PoE Camera and wireless access point device up to 440 Watt.

High Power PoE

The 440W total PoE power budget on this high-power PoE switch supplies 16 Power over Ethernet devices with up to 30W per port.

Illustration of a network cable labeled 36Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ports

Eighteen gigabit ports provide a 36Gbps switching capacity to support edge network installations.

An illustration of a rackmount with four switches installed.

Housing Design

Sturdy 19” rack mountable metal housing with included mounting brackets.

The illustration depicts a surveillance system setup in a building, showing the connection of multiple security cameras to a network switch labeled TPE-TG182F. The building is a two-story structure with various rooms, including office spaces, a server room, and storage areas. The diagram highlights the path of the cables connecting the cameras to the network switch, which is located in the server room.

Housing Design

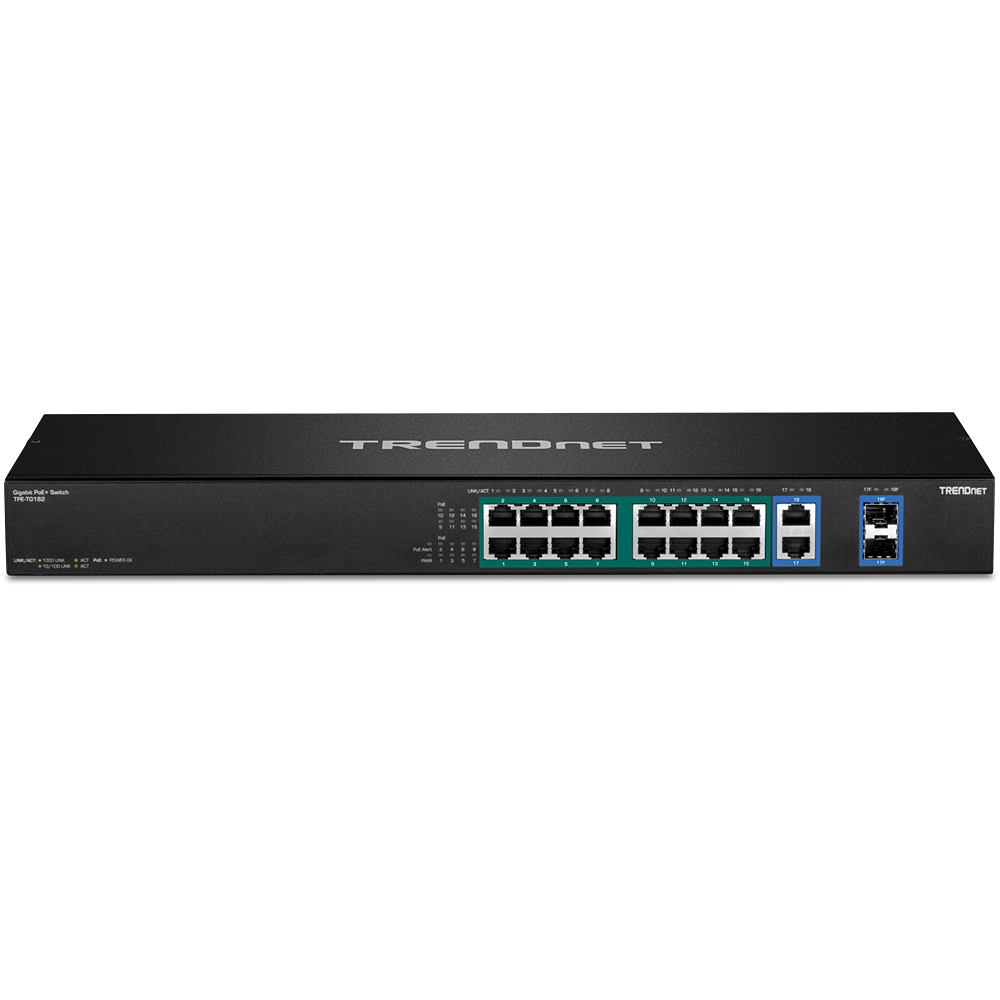

Provides 16 gigabit PoE+ ports, 2 shared gigabit ports (RJ-45 or SFP), a 36Gbps switching capacity, a built-in power supply, and rackmount brackets

High Power PoE Switch

Supplies up to 30W of PoE+ power per port with a total power budget of 440W

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LED indicators convey port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p IEEE 802.3af IEEE 802.3at
Device Interface	16 x Gigabit PoE+ ports 2 x Shared Gigabit ports (RJ-45 or SFP) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switch Fabric: 36Gbps RAM Buffer: 512KB MAC Address Table: 8K entries Forwarding Rate: 26.78Mpps (64-byte packet size) Jumbo Frames: 9KB
Power	Input: 110-240V AC, 50/60Hz, internal power supply Max. Consumption: 18W (Max. without PD)
PoE	PoE budget: 440W Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics	Quantity: 1 Noise Level: 56 dBA (max.)
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 196 x 44mm (17.4 x 7.7 x 1.7 in.)
Weight	3.05kg (6.72 lbs.)
Certifications	CE FCC ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG182F
Quick Installation Guide
Rackmount kit
Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
