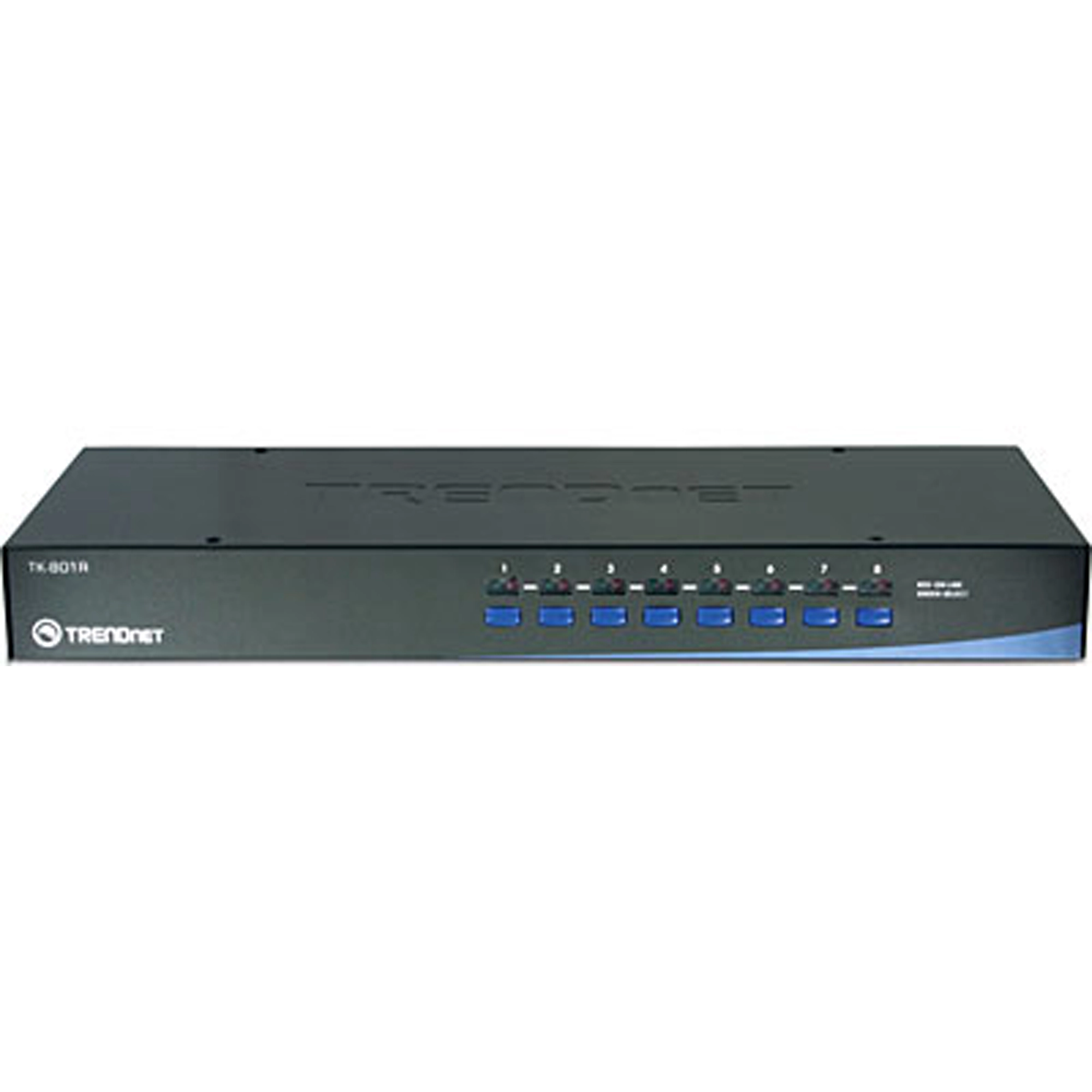

8-Port PS/2 Rack Mount KVM Switch
TK-801R (Version v1.1R)
- 8-port KVM switch with VGA and PS/2 connection to computers
- Device monitoring with Auto-Scan and audible feedback
- High quality 1920x1440 resolution for a crisp display
- Supports most operating systems
DISCONTINUED PRODUCT
The TK-801R (Version v1.1R) has been discontinued.
It has been replaced by the TK-803R (Version V2).
For a list of discontinued products, click here.
TK-801R 8-Port KVM Switch allows you to manage up to 8 PC's with just one keyboard, monitor, and mouse. Switch between PC's with a simple press of a button! Eliminate the hassle of cable swapping and save money and space with TK-801R.With its rack-mount kit and slim one unit height, it is perfect for mounting on EIA-19" rack in the Equipment Room and Computer Lab. With its Hot-Plug, Auto-Scan, Audible Feedback, and Hot-Key operations, the TK-801R is the perfect choice for managing multiple PCs.
- 8-Port PS/2 KVM Switch
- Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse and more
- Compliant with DOS, Windows 3.x/95/98/ME/2000/XP/2003 Server/Vista, Netware, Unix, Linux, and more
- High video quality, up to 1920 x 1440 VGA resolution
- Auto-Scan and LED display for monitored PCs
- Keyboard status restored when switching between PCs
- Beeping sound for port switching confirmation
- Hot-Key or push button switching
- Plug & Play and Hot-Pluggable
- Standard 19” (1U) rack mount design
- 2-year limited warranty
| Hardware | |
| Management | 8 Computers |

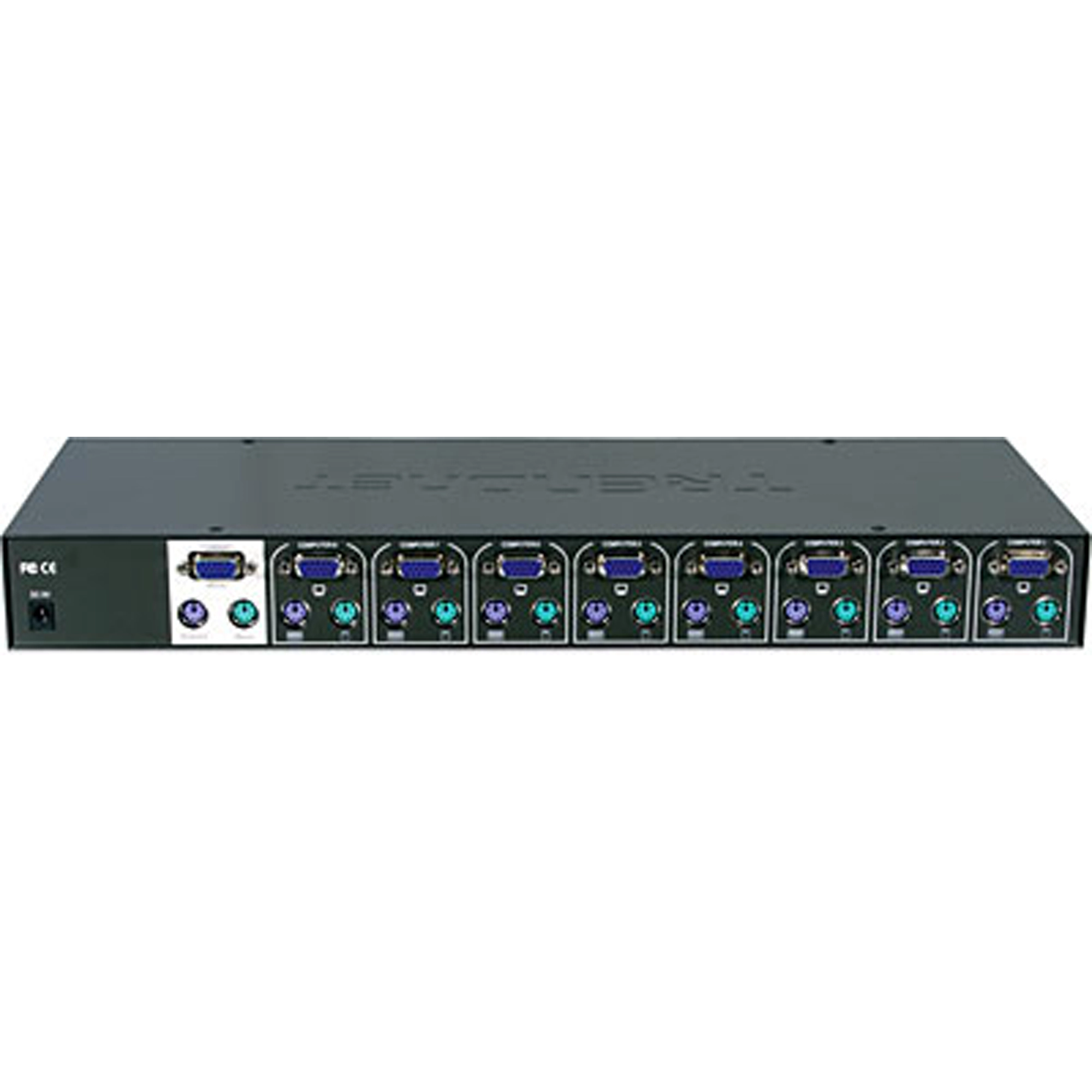

| PC Port (all female) | 8 x PS/2 Mouse 6-pin Mini Din 8 x PS/2 Keyboard 6-pin Mini Din 8 x VGA HDB 15-pin |
| Console Port (all female) | 1 x PS/2 Mouse 6-pin Mini Din 1 x PS/2 Keyboard 6-pin Mini Din 1 x VGA HDB 15-pin |
| Supported OS | DOS, Windows 3.x/95/98(SE)/ME/NT/2000/XP/2003 Server/Vista Netware, Unix, Linux and more |
| PC Selection | Hot-Key or Push Buttons |
| Auto-Scan Interval | 5-99 seconds |
| LED | On-line (Red), Select (Green) |
| Power Adapter | 9V DC 1A External Power Adapter |
| Dimensions | 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.) |
| Weight | 1905g (4.2lb) |
| Temperature | Operating: 0°C~40°C (32°F~104°F) Storage: -20°C~60°C (-4°F~140°F) |
| Humidity | 0%~80% (non-condensing) |
| Certification | CE, FCC |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
