USB VGA KVM Extension Kit

TK-EX4 (Version v2.0R)

  • Extend KVM controls for distances of up to 100m (328 ft.)
  • Supports resolutions up to 1920 x 1200
  • Connect to a TRENDnet KVM switch to manage multiple servers
  • Convenient OSD management controls
  • Features hot-key commands
  • NDAA compliant
NDAA Compliant

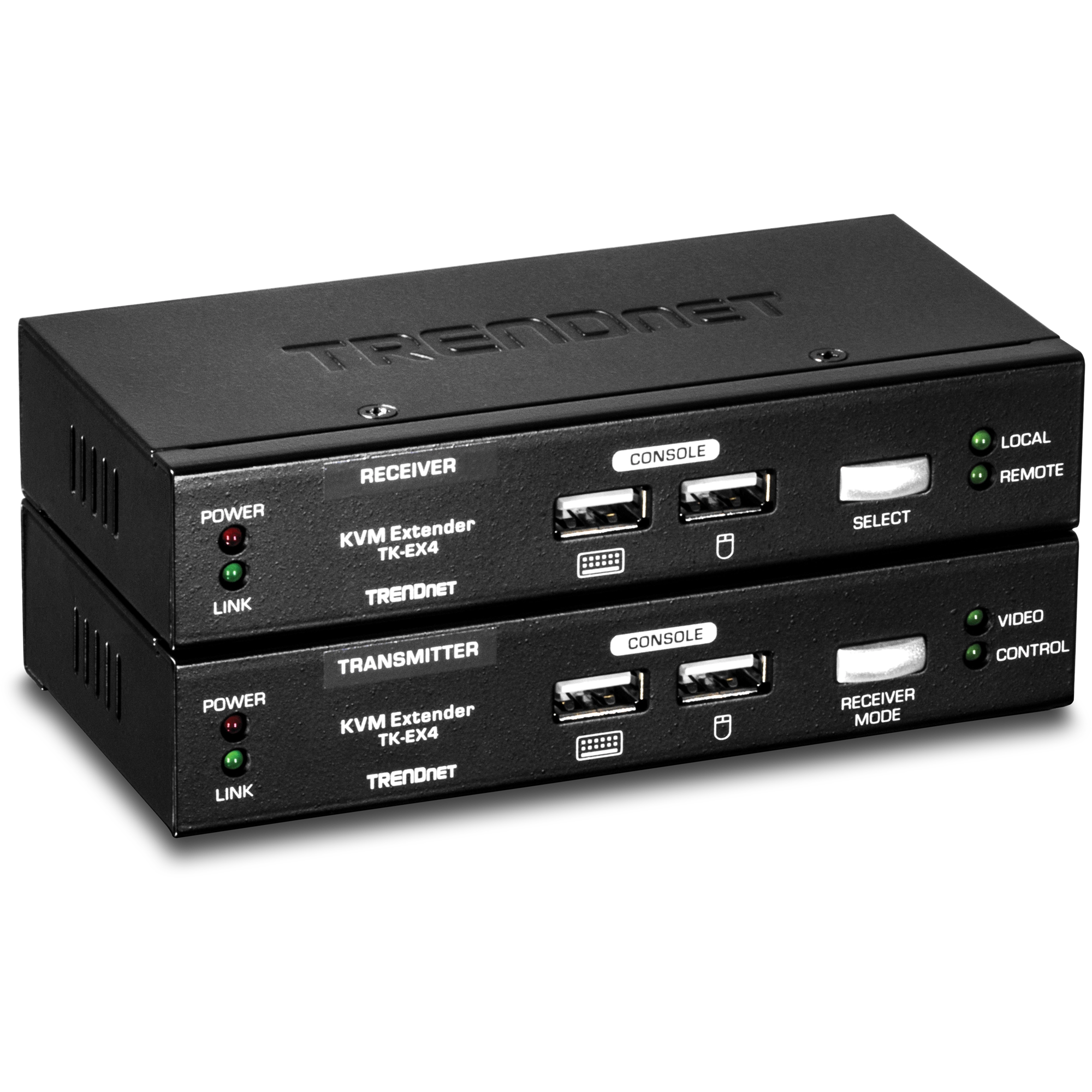

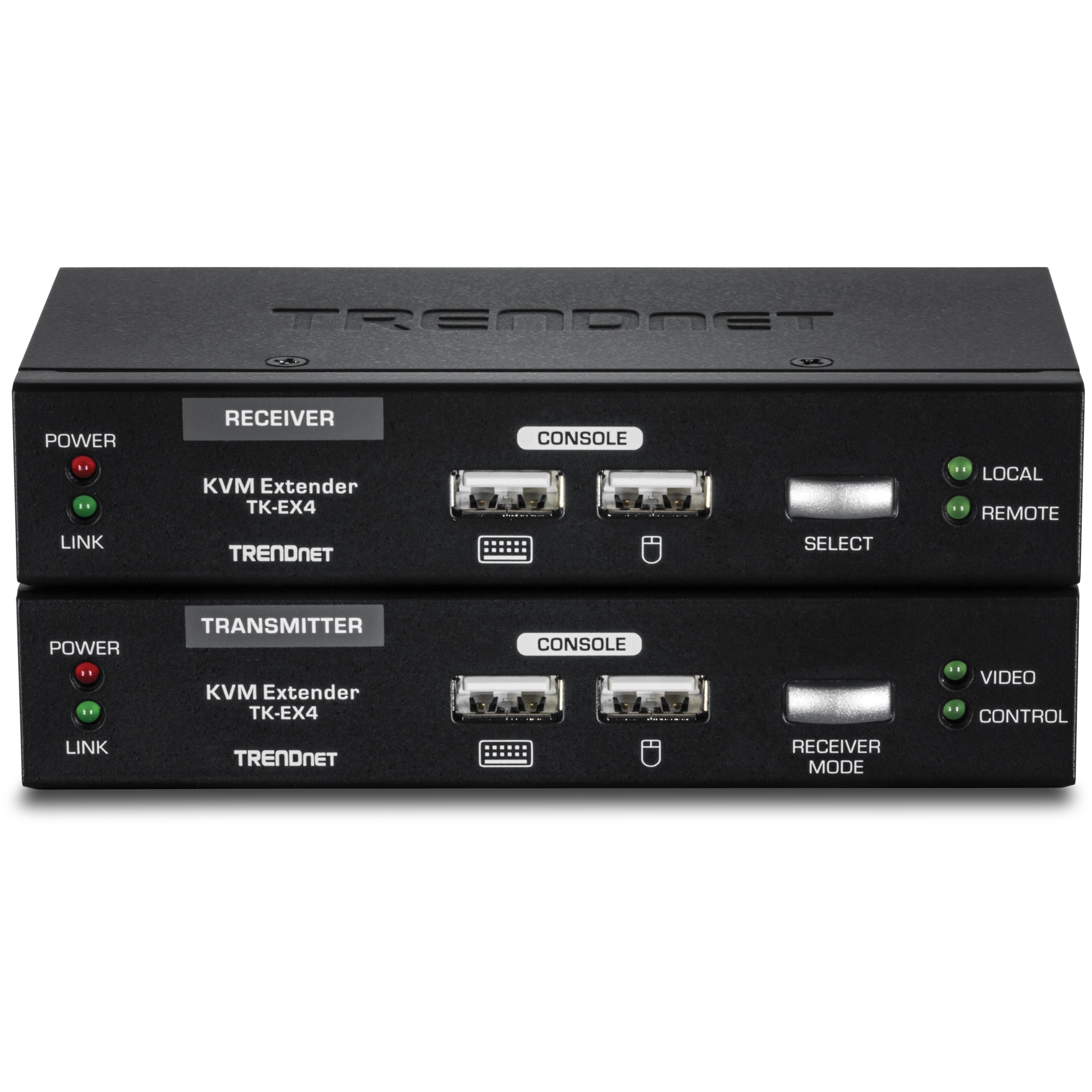

TRENDnet's USB VGA KVM Extension Kit, model TK-EX4, extends keyboard, video, and mouse controls for distances of up to 100m (328 ft.). Remotely access your server in the networking room by extending KVM controls to your office. Connect the KVM extender to a TRENDnet KVM switch to conveniently control multiple servers from a remote location.

No software installation is required. Simply connect devices to the KVM extender with the included cables for full KVM controls. Input hot-key commands on the KVM extender control local and remote console stations. The remote console unit (receiver unit) supports PS/2 keyboard and mouse devices, and monitors with a VGA port. The local console unit (transmitter unit) supports USB mouse and keyboard, and VGA connections.

OSD logo on monitor.

OSD

Manage KVM switch access with the convenient on-screen display.

Diagram of a USB VGA KVM Extension Kit with two devices linked by a 100-meter cable. Each device connects to a computer and a VGA monitor. A keyboard and mouse are attached to one of the devices for remote control.

KVM Extension

Extend Keyboard, Video, and Mouse controls for distances of up to 100m (328 ft.).

A laptop with a crossed-out CD icon, indicating no CD installation is needed.

No CD Installation

Simply connect the transmitter and receiver together over cat5e or better cabling for full KVM management.

No CD Installation

Simply connect the transmitter and receiver for full KVM management

Compact

The compact form factor of the KVM extender reduces desktop clutter

OSD

Manage KVM switch access with the convenient on-screen display

OSD Timeout

For your convenience, define a time for which the on-screen display will automatically disappear

Hotkeys

Access the remote server or the OSD with hotkey controls

Access

Create password protected OSD access

Auto-Logout

For additional protection, create an auto-logout OSD time limit

Console Override

Console override blocks KVM functionality at the other terminal when in use

Multiple Server Access

Connect the KVM extender to a KVM switch for multiple server access

EDID Emulation

Adopt monitor resolution settings from the local or remote monitor

View Only

The KVM extender allows remote monitoring, without controls, in View Only mode

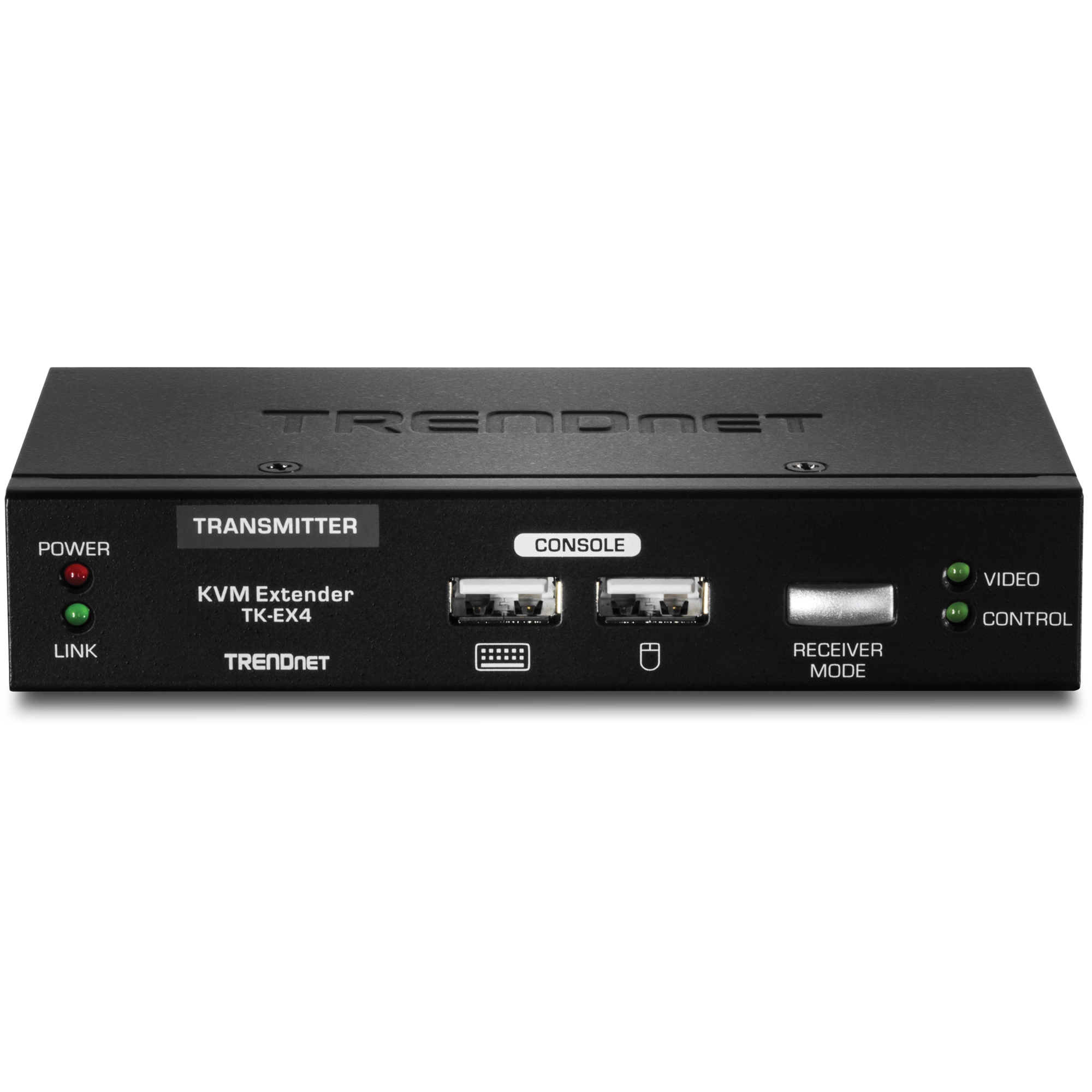

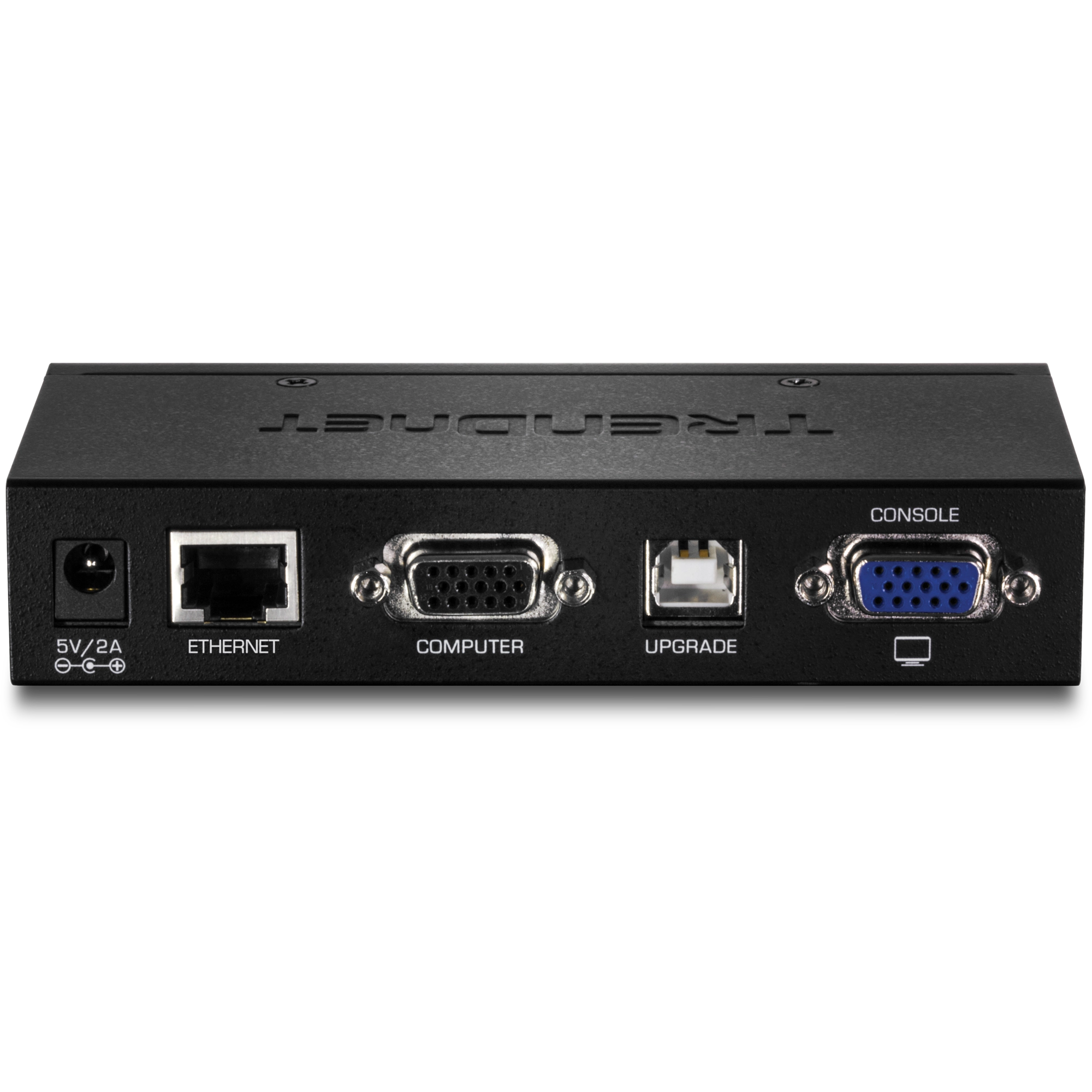

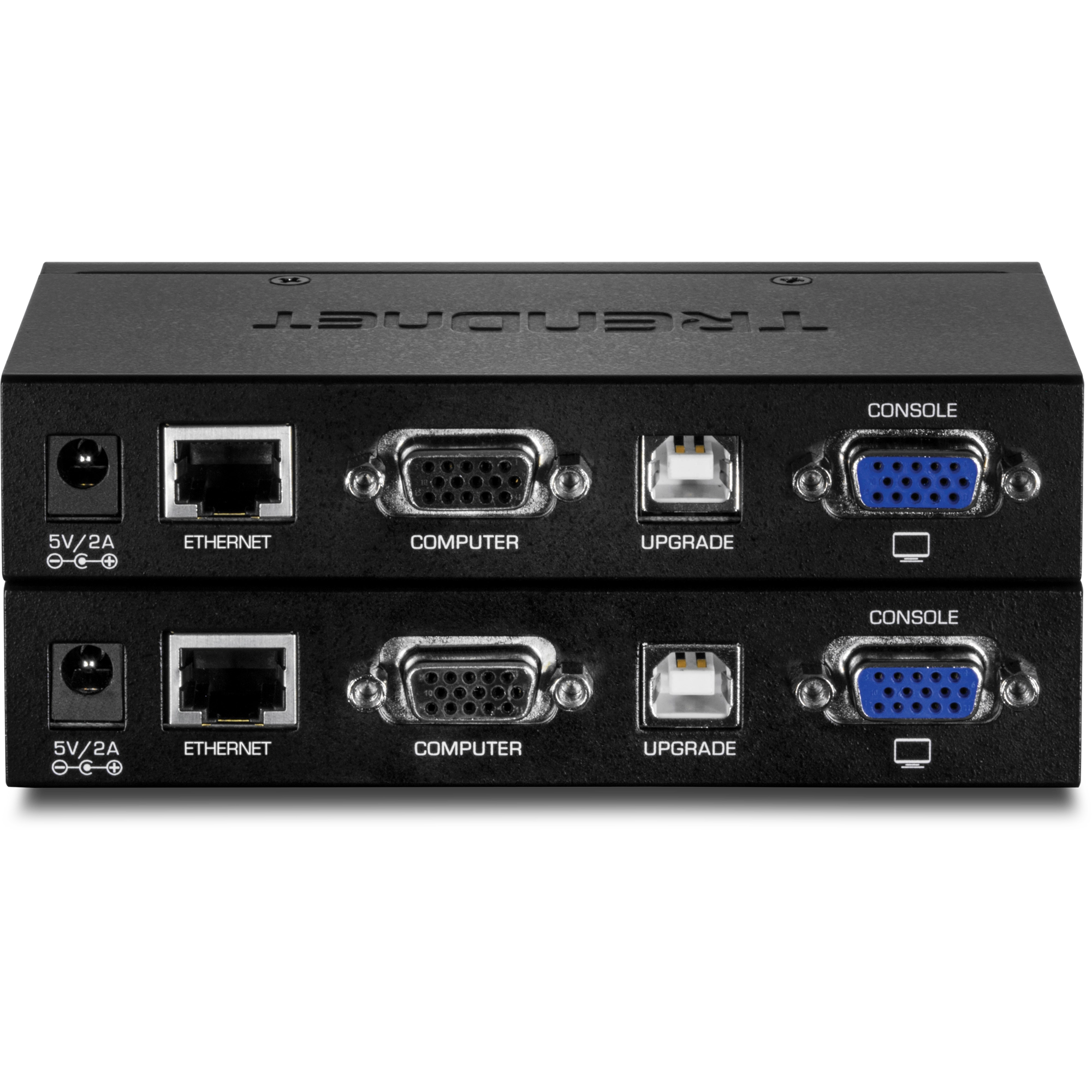

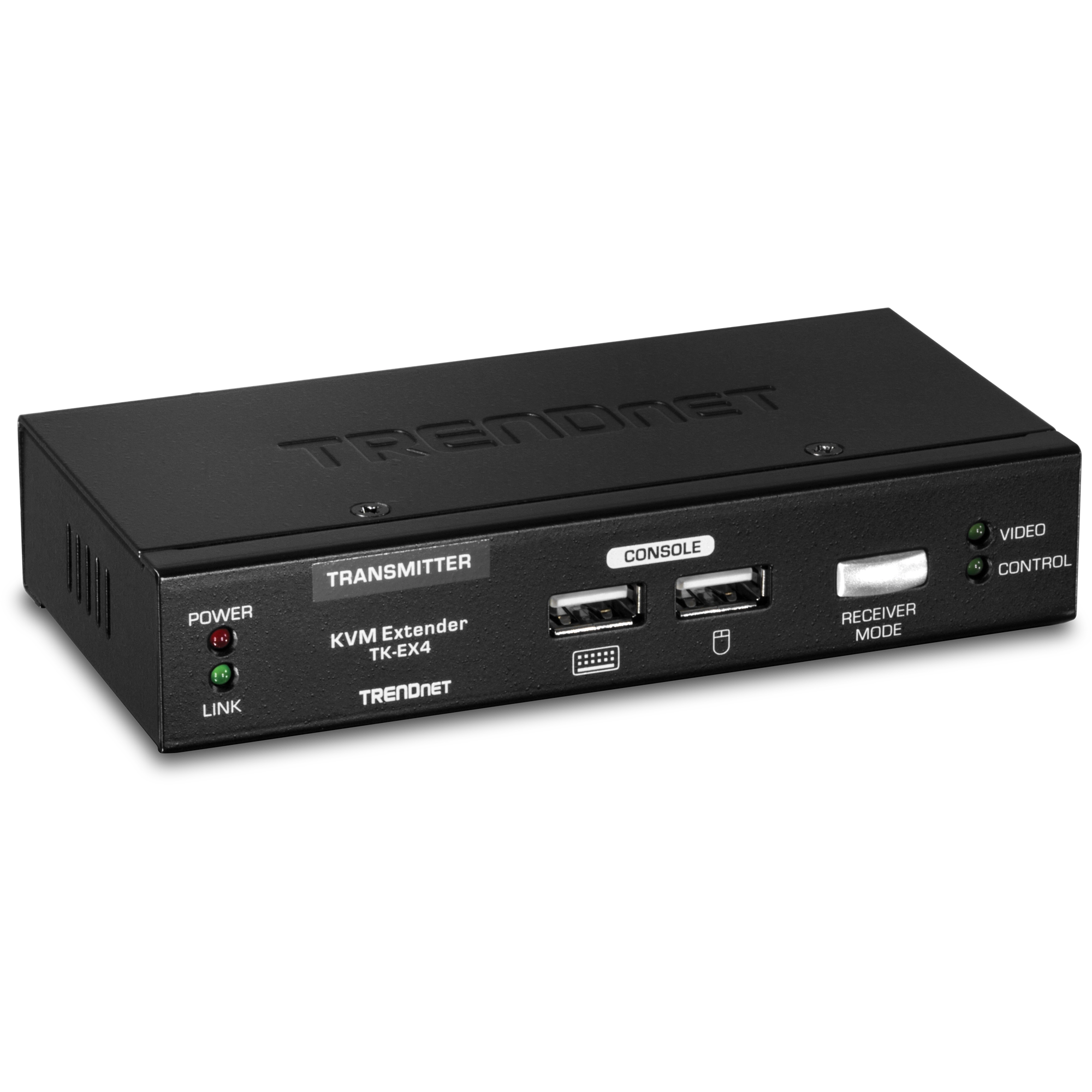

Transmitter Console interface
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitor: VGA
  • Firmware upgrade port: USB Type B
  • Extension: Ethernet port
  • LED indicators

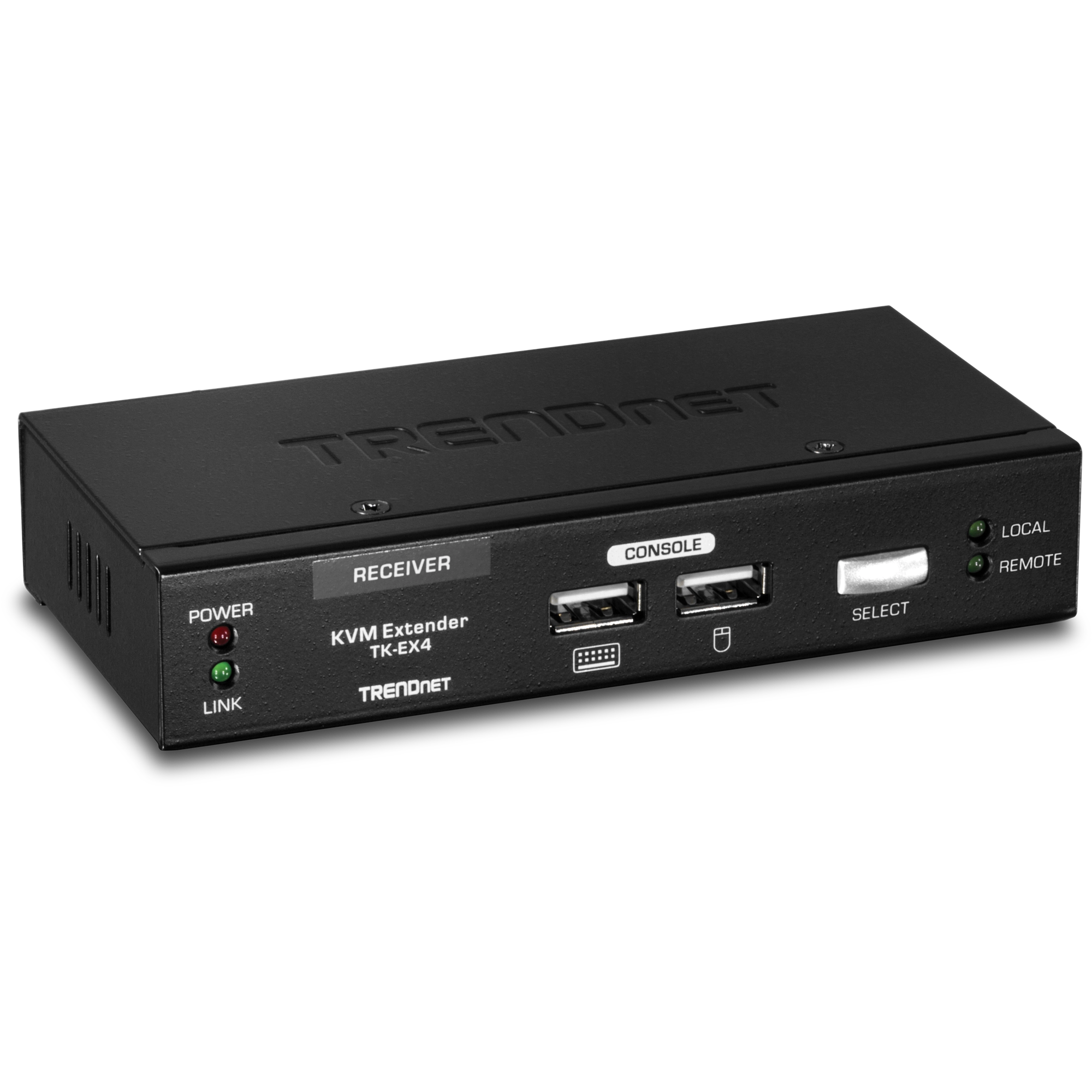

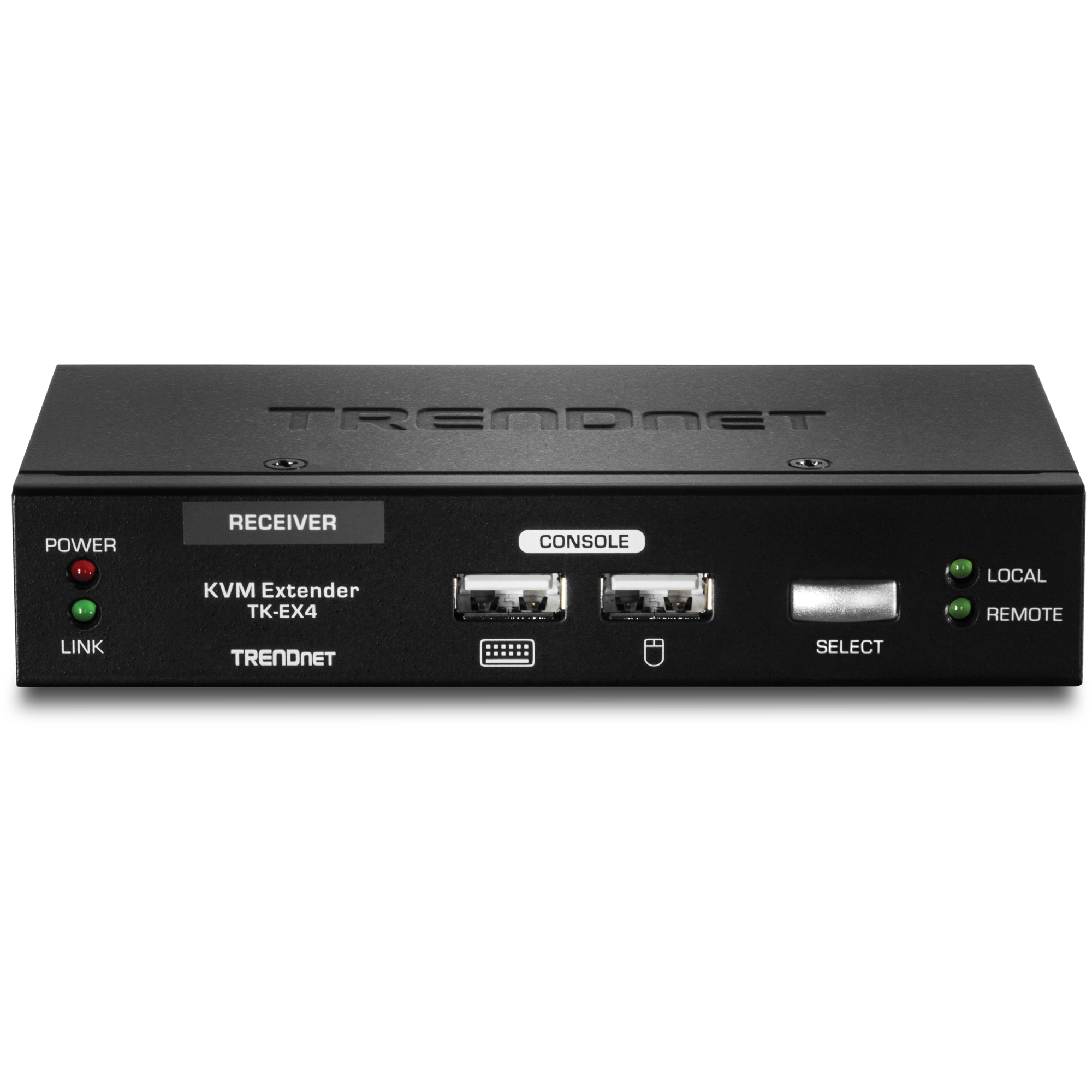

Receiver Console interface
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitor: VGA
  • Firmware upgrade port: USB Type B
  • Extension: Ethernet port
  • LED Indicators
Computer Connections
  • Transmitter: VGA and USB with PS/2
  • Receiver: VGA and USB with PS/2
Monitor Resolution
  • Up to 1920 x 1200
Switching Notification
  • Sound
Switching Controls
  • Transmitter: Block access, viewing access only and full control
  • Receiver: Local or remote view
  • OSD: Password protection, auto OSD logout, four hotkeys options, OSD timeout, console delay function and EDID emulation
Operating Temperature
  • 0°– 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60 Hz, 0.2A
  • Output: 5V DC, 2A
  • Max. consumption:
  • Transmitter: 2.7W
  • Receiver: 4.7W
Dimensions
  • Transmitter/ receiver: 130 x 65 x 25 mm (5.1 x 2.6 x 1.0 in.)
Weight
  • Transmitter: 285g (10.1 oz.)
  • Receiver: 290g (10.2 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2-year

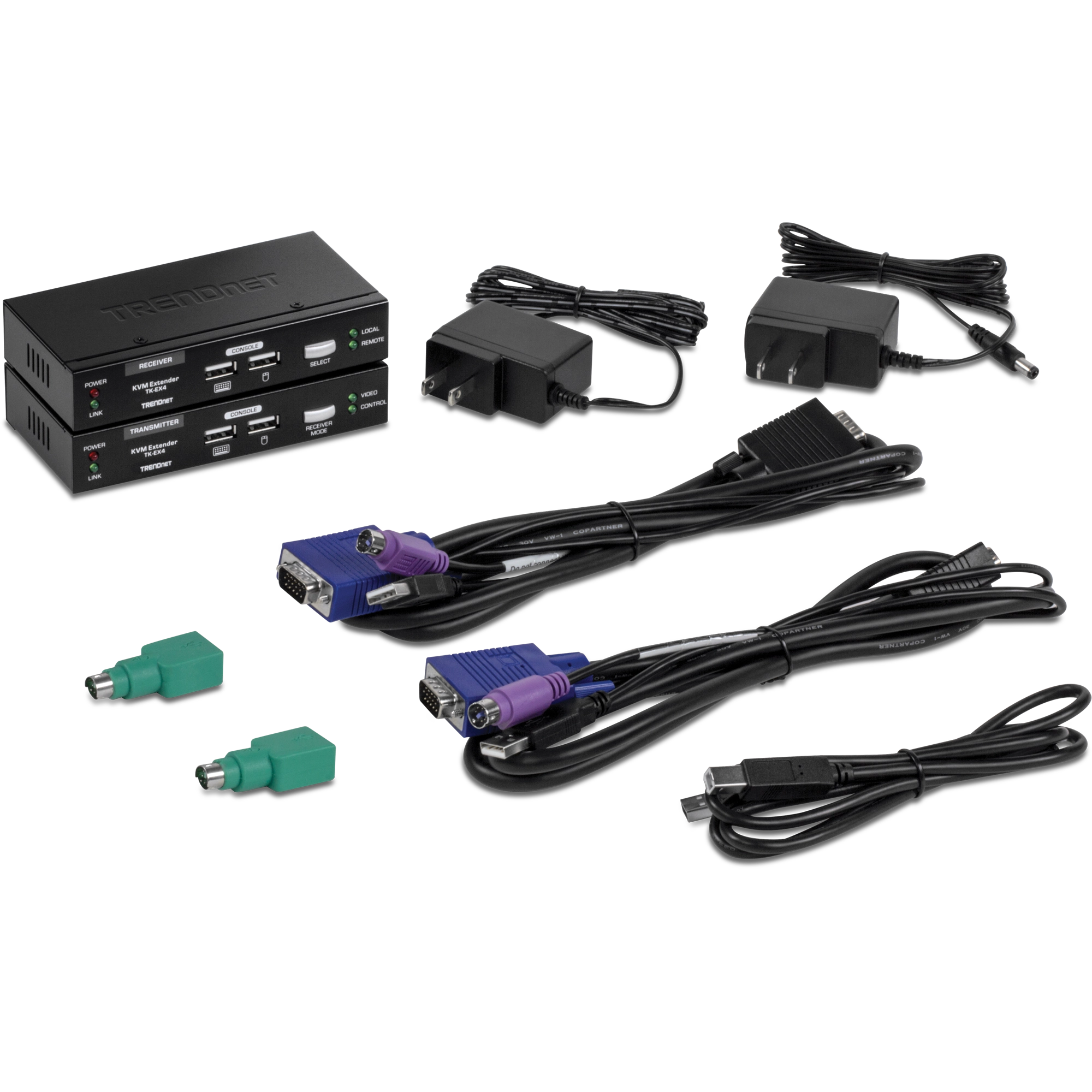

PACKAGE CONTENTS
  • Transmitter
  • Receiver
  • Quick Installation Guide
  • 2 sets of 1.2 m (4 ft.) 3-in-1 VGA cables
  • 1 set of 1.2 m (4 ft.) USB Type A to B cable
  • 2 Power Adapters (5V DC, 2A)
  • 2 USB to PS2 adapter

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
