4-Port PS/2 KVM Switch Kit with Audio

TK-408K (Version v1.3R)

4-Port KVM switch with VGA and PS/2 connections to computers and audio devices
Listen to music from one computer while working on the other
High quality 2048 x 1536 resolution for a crisp display
All required cabling included

The 4-Port PS/2 Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 4 PCs. With its Auto-Scan and Hot-Key operating features, the TK-408K is the perfect choice for managing 4 PCs. Separate KVM cables are included.

Manage up to 4 computers/servers with one set of console devices
PS/2 keyboard/mouse emulation with 4 sets of detachable KVM cables
Compliant with Windows and Linux
High video quality, up to 2048 x 1536 resolution
Listen to music from one computer while working on the other
Auto-Scan and LED display for easy status monitoring
Computer selection by front panel push buttons or keyboard hot key commands*
Keyboard status restored when switching between computers
Plug & Play
2-year limited warranty

Hardware
Connections	4 computers
Cables	2 sets of 1.2 m (4 ft.) PS/2 KVM cables 2 sets of 1.8 m (6 ft.) PS/2 KVM cables 2 sets of 1.2 m (4 ft.) audio cable 2 sets of 1.8 m (6 ft.) audio cable
Cable Interface (all male)	To KVM KVM cable 1 x VGA/SVGA HDB 15-pin Audio cable 1 x 3.5mm audio in/out jack 1 x 3.5mm microphone in/out jack To PC KVM cable 1 x PS/2 Keyboard 6-pin Mini Din 1 x PS/2 Mouse 6-pin Mini Din 1 X VGA/SVGA HDB 15-pin Audio cable 1 x 3.5mm audio in/out jack 1 x 3.5mm microphone in/out jack

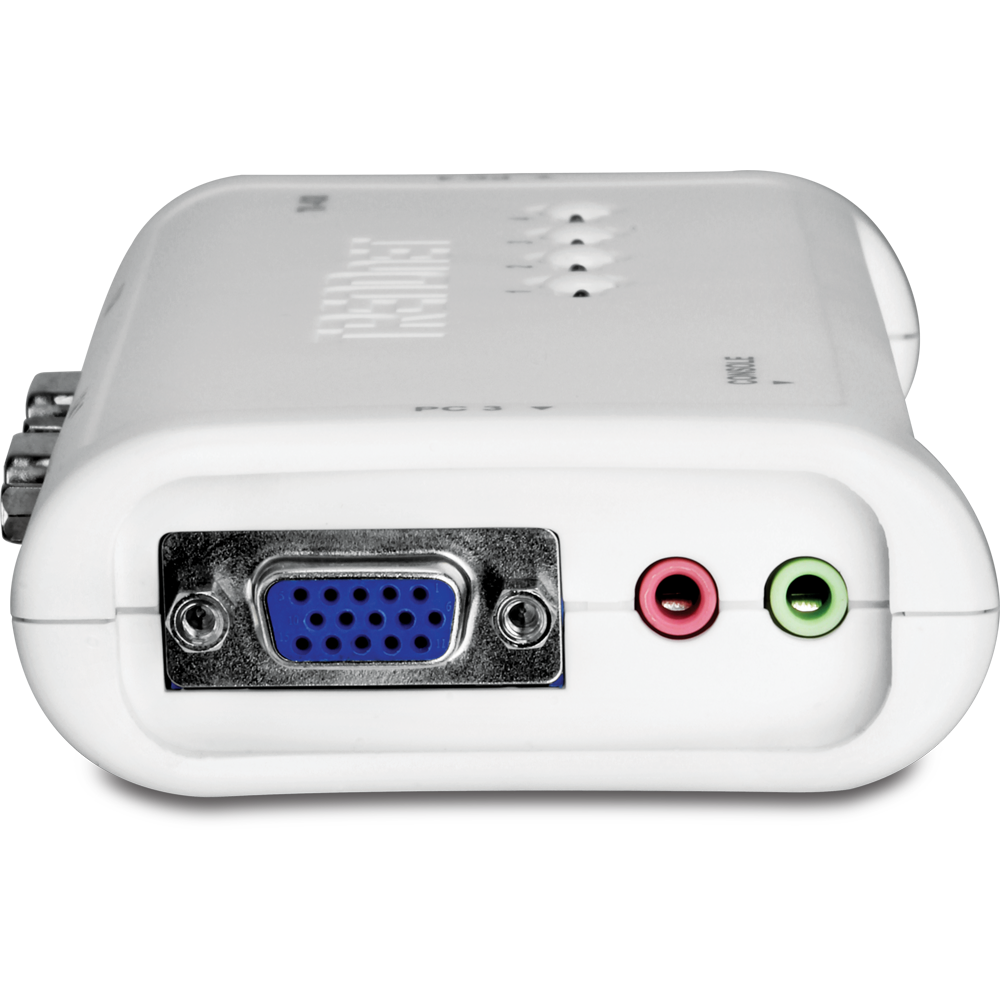

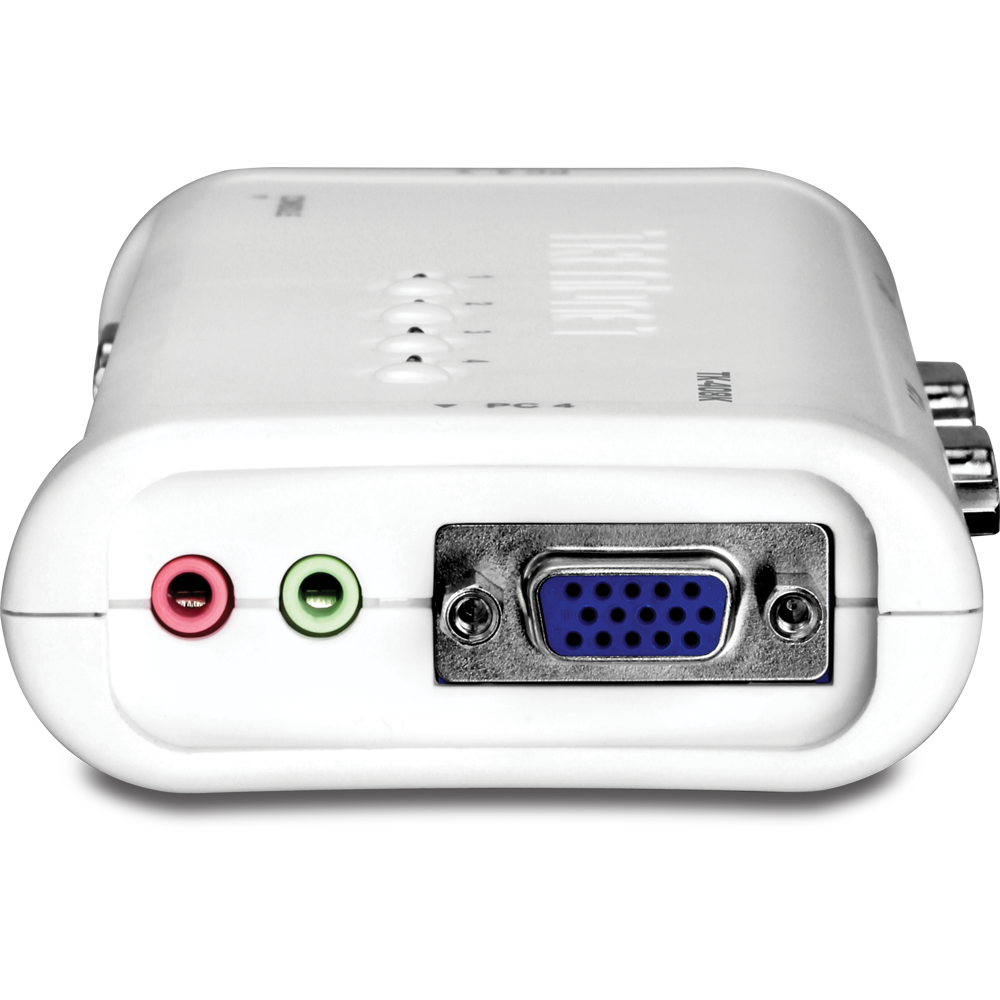

PC Port Connections (all female)	4 x VGA/SVGA HDB 15-pin 4 x 3.5 mm speaker jack 4 x 3.5 mm microphone jack

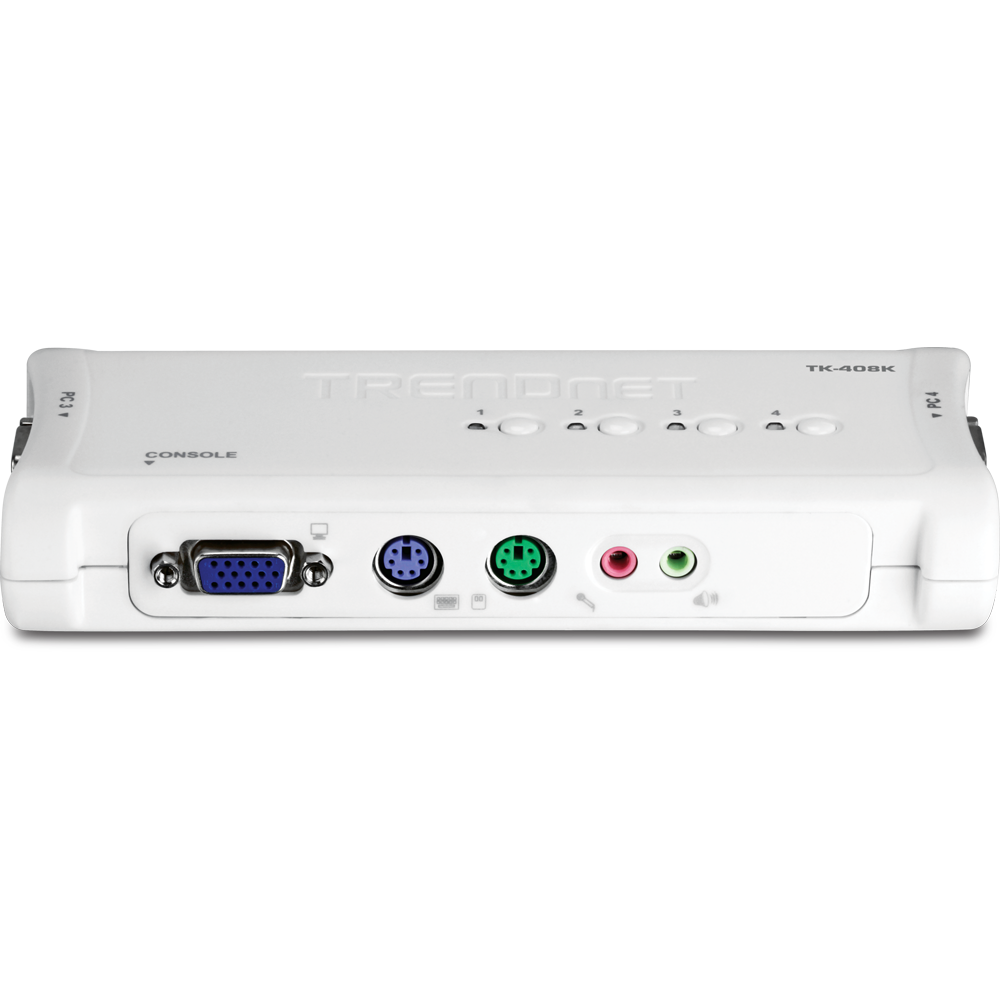

Console Port Connectors (all female)	1 x PS/2 keyboard 6-pin mini-DIN 1 x PS/2 mouse 6-pin mini-DIN 1 x VGA/SVGA HDB 15-pin 1 x 3.5 mm speaker jack 1 x 3.5 mm microphone jack
Supported OS	Windows and Linux
Computer Selection	Front panel push buttons or keyboard hot key commands
Auto-Scan Interval	5 seconds
Keyboard State	Save and restore
Power Type	PS/2 interface power
Dimensions	167 x 80 x 28 mm (6.6 x 3.2 x 1.1 in.)
Weight	178 g (6.3 oz.)
Temperature	Operating: 0°C ~ 40°C (32°F ~104°F) Storage: -20°C ~ 60°C (-4°F ~140°F)
Humidity	Max 90% (non-condensing)
Certifications	CE, FCC

PACKAGE CONTENTS

TK-408K
Quick Installation Guide
4 sets of PS/2 KVM cable (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)
4 sets of audio cable (2 x 1.2 m / 4 ft., 2 x 1.8 m / 6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
