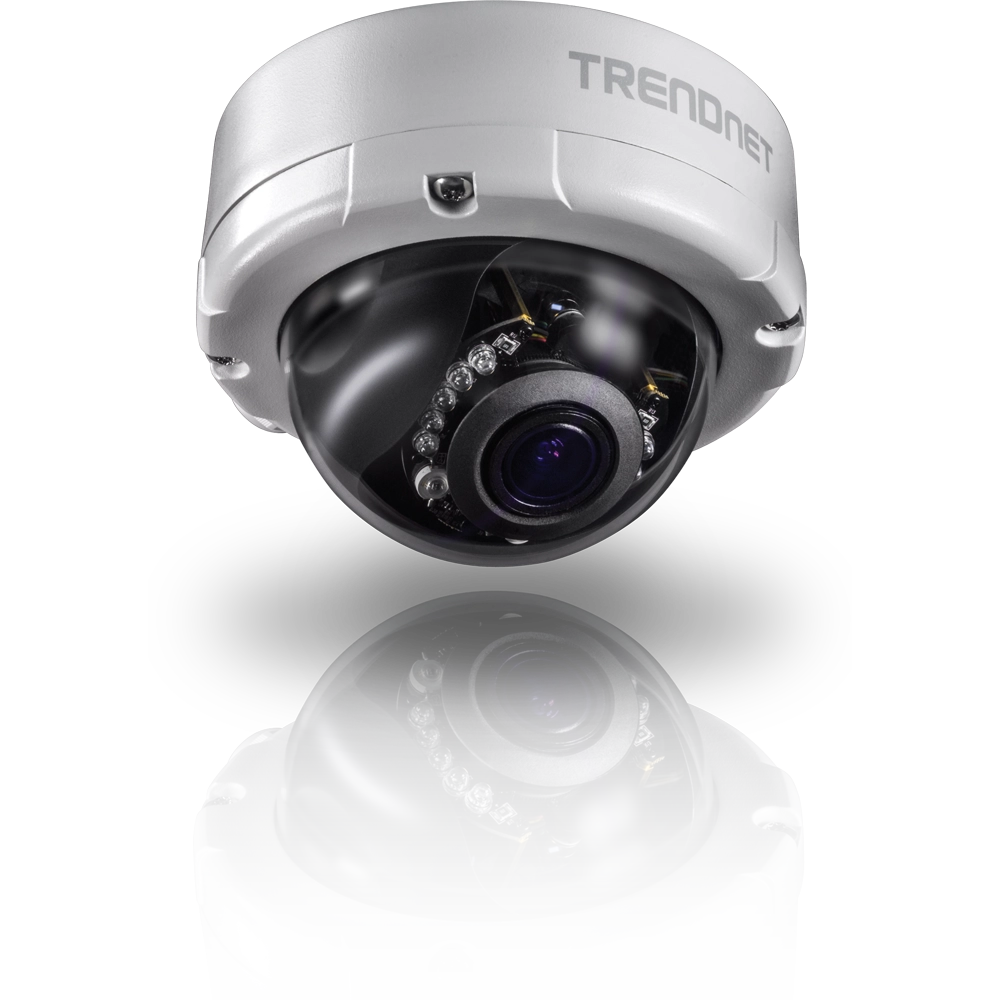

Indoor / Outdoor 4 MP Varifocal PoE IR Dome Network Camera

TV-IP345PI (Version v1.0R)

Fixed dome PoE network camera
4 MP resolution at 30 fps
Auto-focus / optical zoom and manual pan / tilt
Night vision up to 20m (66 ft.)

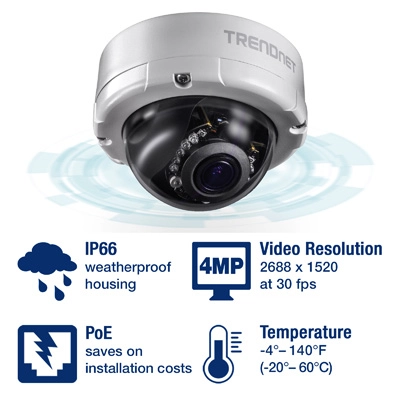

Outdoor IP66 weather rating
Program motion detection recording and email alerts
Digital Wide Dynamic Range image balancing
ONVIF and IPv6 support

DISCONTINUED PRODUCT

The TV-IP345PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP345PI (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's Indoor / Outdoor 4 MP Varifocal PoE IR Dome Network Camera, model TV-IP345PI, provides powerful 4 MP HD night vision at 30 fps in complete darkness for up to 20 m (66 ft.). This IP66 weather rated camera features manual pan / tilt and auto- focus / optical zoom which provide installation flexibility and time savings. Use the included pro-grade software to manage up to 32 TRENDnet cameras or download the free iOS^® or Android^™ mobile app.

A graphic illustrating a building divided into two sections: daytime on the left with a sun icon and white background, and nighttime on the right with a crescent moon and dark blue background. The building shows blue-outlined windows during the day and white-filled windows at night, emphasizing 24-hour surveillance capabilities with HD video streaming and night vision features.

4 MP HD Surveillance

4 MP H.264 HD Video @ 30 fps and 20 m (66 ft.) night vision provides high-resolution 24-hour surveillance.

A magnifying glass is focusing on the rear of a car, specifically highlighting the license plate which reads ABC1234. In the background, a computer monitor displays the same image of the car with the license plate, suggesting the concept of zooming in or enhancing the view of the license plate for better detail and clarity.

Enhanced Viewing

Manual pan / tilt allows users to capture the precise viewing field and 4.2x optical zoom with auto-focus enhances the image to provide better detail and clarity.

A sun, a cloud with raindrops, and a security camera indicate that the camera is suitable for various weather conditions, including sunny and rainy environments. The security camera is depicted in a simple line drawing, suggesting its use in outdoor settings.

Outdoor Ready

Built for extreme environments with an IP66 weather rating and an operating temperature range of -20 to 60 °C (-4 to 140 °F).

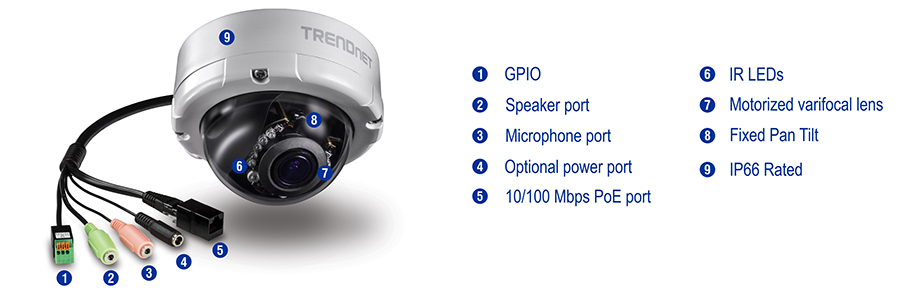

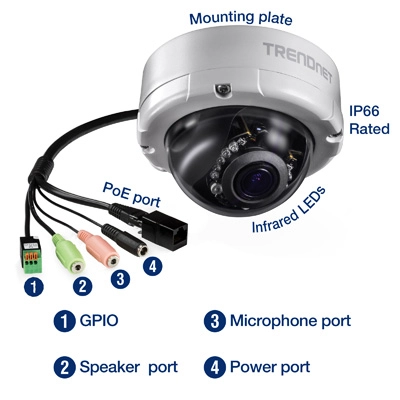

A security camera is shown with various ports and features, including GPIO, speaker, microphone, optional power, and 10/100 Mbps PoE ports. The camera also has IR LEDs, a motorized varifocal lens, a fixed pan tilt, and an IP66 rating. The camera is branded with TRENDnet, and each port and feature is numbered and described.

4 Megapixel

Record 2688 x 1520 pixel resolution at a 30 fps in the space saving H.264 compression format

Auto-Focus / Optical Zoom

Auto-focus saves installation and troubleshooting time and remote optical zoom allows users to capture the precise desired viewing field

Night Vision

Night vision up to 20 m (66 ft.) in complete darkness

PoE

Save installation costs with Power over Ethernet (IEEE 802.3af)

Outdoor Ready

Outdoor IP66 weather rated with an operating temperature range of -20 to 60 °C (-4 to 140 °F)

GPIO Ports and Alerts

Network an alarm system to Input/Output ports

Audio Support

Audio in and out ports for third party microphone and speaker (sold separately)

MicroSD Card Slot

Add up to 64 GB memory for on-board video storage

D-WDR

Digital Wide Dynamic Range improves video quality in high contrast lighting environments

Motion Detection

Create motion detection windows with separate sensitivity settings and event triggers

IPv6 / ONVIF

IPv6 supported and ONVIF compliant

Varifocal

Optical zoom by a factor of 4.2x with auto-focus to a final fixed position for installation flexibility

Multi-Language Interface

Support for English, French, Spanish, German, and Russian

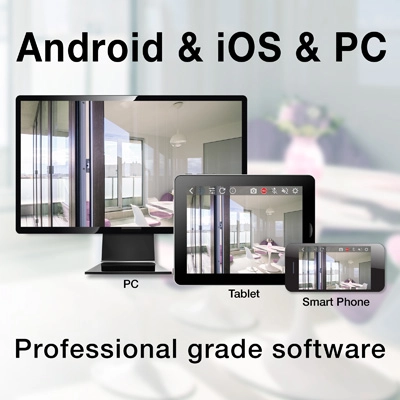

Complimentary App

Live video to a mobile device with a free iOS® and Android™ apps

Complimentary Software

Complimentary pro-grade software to manage up to TRENDnet 32 cameras

Lens	Focal Length: 2.8 - 12 mm @ F1.4 Focal depth: 30 cm to infinity Motorized varifocal lens Sensor: 1/3” 2 Megapixel CMOS sensor Zoom: optical 4.2x, digital 4x
Viewing Angle	Diagonal: 45 - 117 ° Horizontal: 36 - 103 ˚ Vertical : 19 - 56 ˚
Minimum Illumination	IR off: 0.031 lux IR on: 0.08 lux 20m IR illumination distance IR wavelength : 850nm
Video Codec / Resolution (16:9)	H.264: 2688 x 1520 up to 30 fps MJPEG: 2688 x 1520 up to 30 fps H.264: 640 x 480 up to 15 fps (3GPP only)
Audio	3.5 mm microphone jack 3.5 mm speaker jack
Hardware Standard	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af

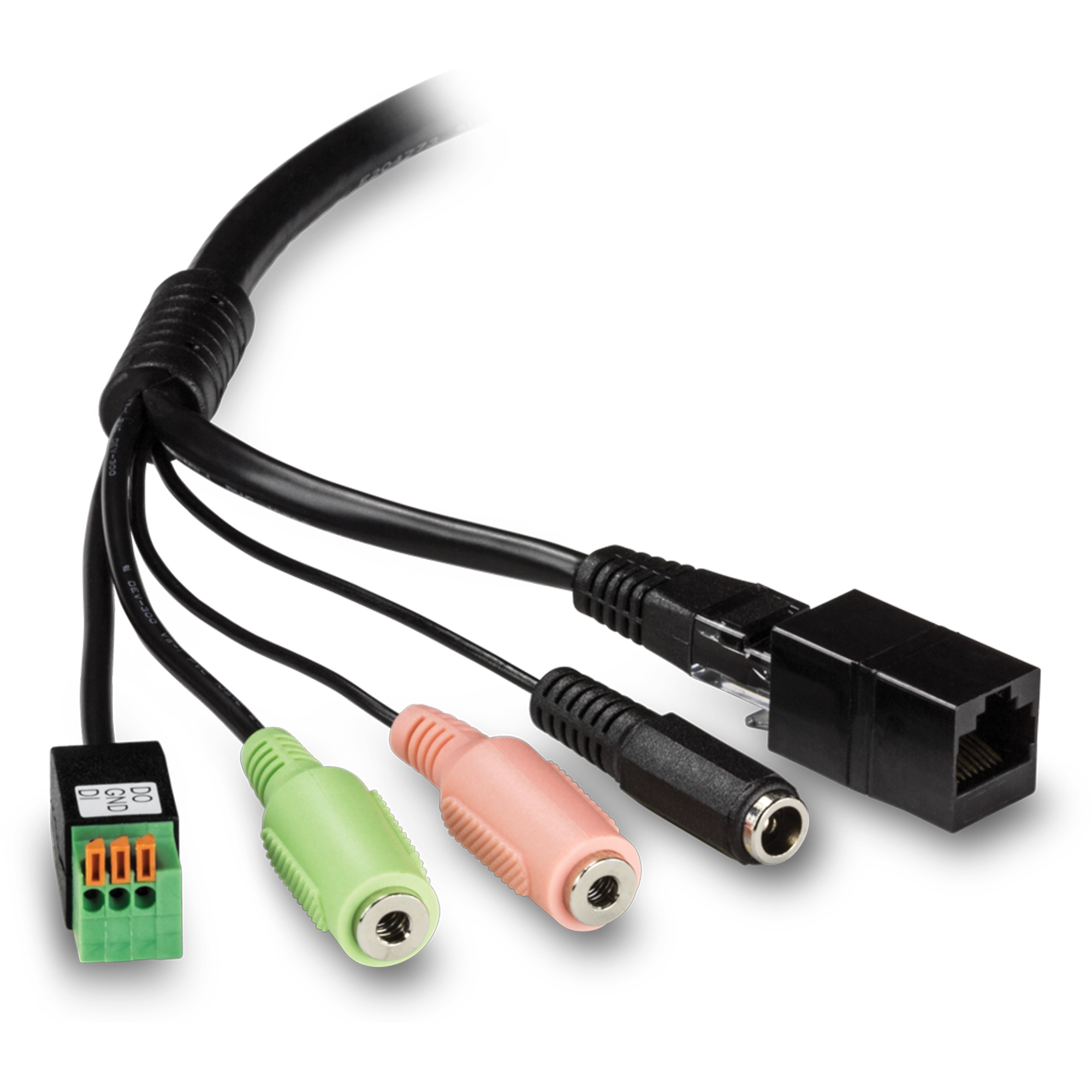

Device Interface	10/100 Mbps PoE port Micro SD card slot IR LEDs 3.5 mm microphone jack 3.5 mm speaker jack GPIO terminal Power jack
Housing	IP66 rated IK10 rated Direct cabling through the bottom or side of housing
Network Protocol	IPv4, IPv6, UDP, TCP / IP, ONVIF V2.4.2 DHCP, NTP, DDNS, SMTP, FTP, LLTD SNMP v1-v3, QoS / DSCP, IEEE 802.1X Samba, Bonjour HTTP, HTTPS PPPoE UPnP, RTSP, RTP, 3GPP
Dimension	137 x 137 x 102 mm (5.4 x 5.4 x 4 in.)
Weight	962 g (2.1 lbs.)
Operating Temperature	-20 – 50 °C (-4 – 122 °F)
Humidity	Max. 90% non-condensing
Power (Power adapter not included)	Input: 100 - 240 V AC , 50/60 Hz, 1 A Output: 12 V DC, 1 A external power adapter (for non-PoE installations) Max. consumption: 8.64 W
Management Interface	Multi-language support: English, French, German, Russian, and Spanish IP address filter QoS traffic prioritization Time, date, and text overlay Image settings: brightness, contrast, hue, sharpness, D-WDR, Denoise 2D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, mirror, 90 degree rotate, IR, day / night mode, white balance D-WDR enhances video quality in high contrast daytime lighting 2D Digital Noise Reduction enhances night vision quality Recording: to computer, NAS, SAMBA, or through software Video Recording: scheduled, motion detection, sound detection, and tamper detection Motion detection: define up to three motion detection areas and motion sensitivity Sound detection: requires installation of third party microphone Privacy masks: define custom privacy mask up to 3 areas Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken Snapshot: real time snapshot, sound detection, and motion detection Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com Management setting: maximum 21 user accounts Supports remote management Compatibility (PC based): Internet Explorer^® 8.0 or higher
TRENDnetVIEW Pro Software	Supports up to 32 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Advanced search and playback tools Custom viewing modes and options Compatibility: Windows^® 10, 8.1, 8, 7, Vista, XP, Windows Server^® 2003, 2008
TRENDnetVIEW App	Free iOS^™ and Android^™ app View the camera on a mobile device Take snapshots Zoom
Certifications	CE FCC IK10
Warranty	3 year limited

PACKAGE CONTENTS

TV-IP345PI
Quick Installation Guide
CD-ROM (Utility, Software, & User's Guide)
Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
