Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
The 2.5G switches feature metal housing with a convenient wall mountable design for greater installation flexibility.
The fanless design of the 2.5G switches lowers energy consumption costs and eliminates operating noise.
No configuration needed, simply connect network devices to the 2.5G Ethernet switch
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Fanless design lowers energy consumption and eliminates operating noise
Sturdy metal housing
Features a convenient wall mountable design for greater installation flexibility
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

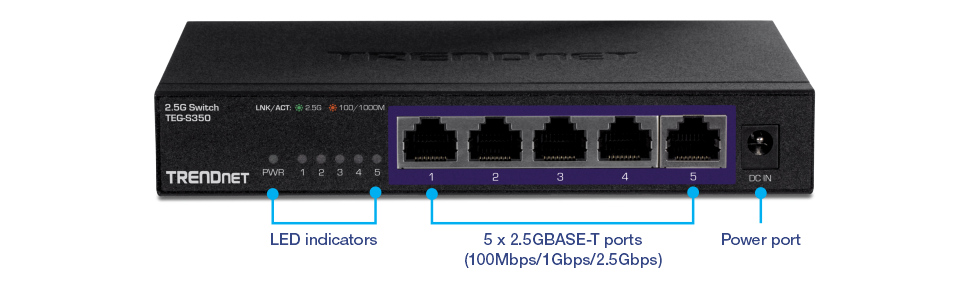

LED indicators on this 2.5G switch conveys port status
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
2.5 Gigabit: 5Gbps (full duplex)
Switching Capacity: 25Gbps
RAM Buffer: 1.5MB
MAC Address Table: 16K entries
Forwarding Rate: 18.6Mpps (64-byte packet size)
Jumbo Frames: 12KB
Input: 100 – 240V AC, 50/60 Hz, 0.5A
Output: 12V DC, 1A external power adapter
Max. Consumption: 9.5
0° – 40° C (32° – 104° F)
Max. 90% non-condensing
Dimensions (L x W x H)
160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.)
414g (14.6 oz.)
Quick Installation Guide
Power adapter (12V DC, 1.5A)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
