6-Port Multi-Gig Switch

TEG-S562 (Version V2)

  • 4 x 2.5GBASE-T ports
  • 2 x 10G SFP+ ports
  • 60Gbps switching capacity
  • Compatible with existing Cat5e or better cabling
  • Backward compatible SFP speeds of 1000Mbps
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Coming Soon

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Multi-Gig Switch, model TEG-S562. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. This reliable multi-gigabit switch is cost-effective solutions to increase your network’s throughput.

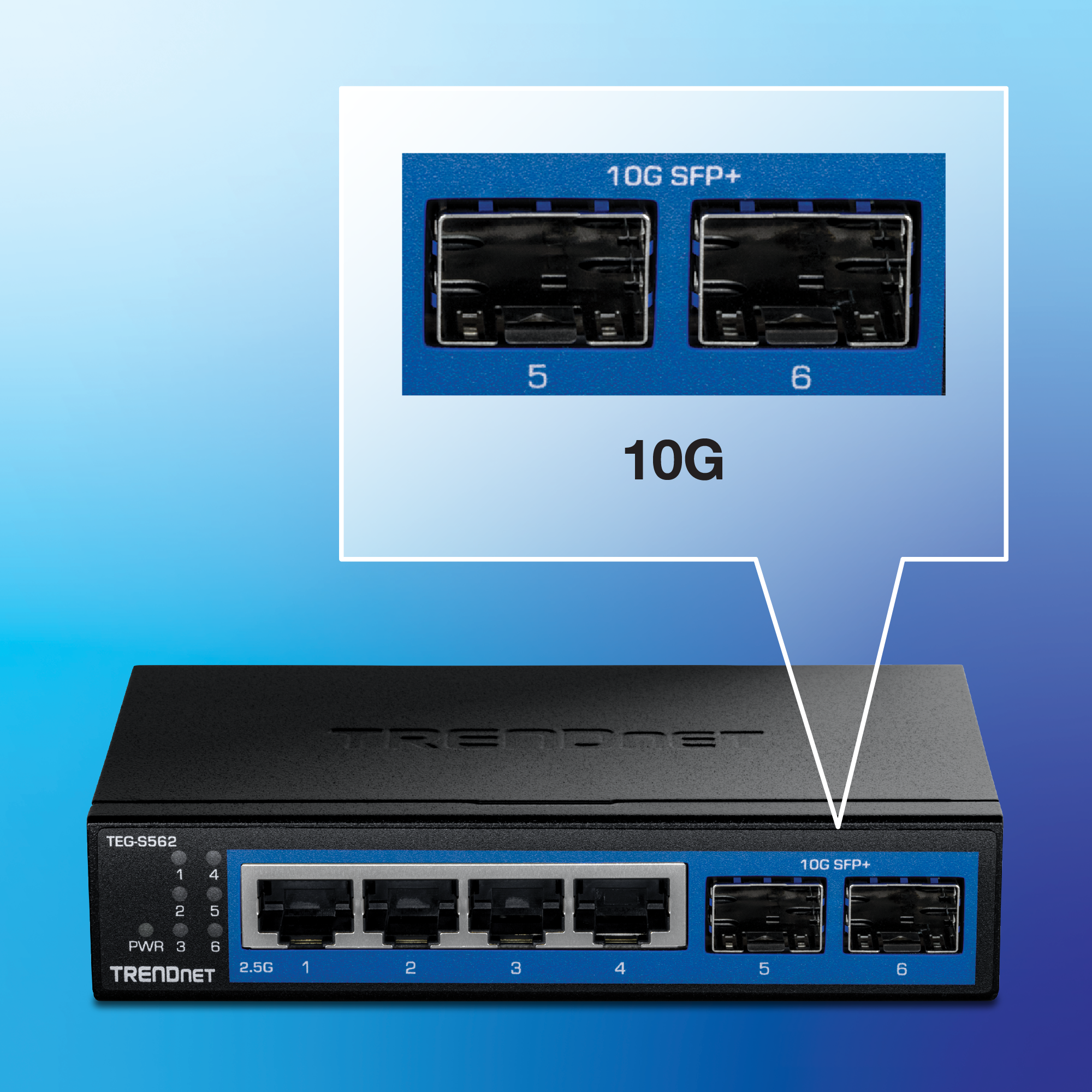

10G SFP+ Ports

Offers two 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.

2.5G Ports

Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

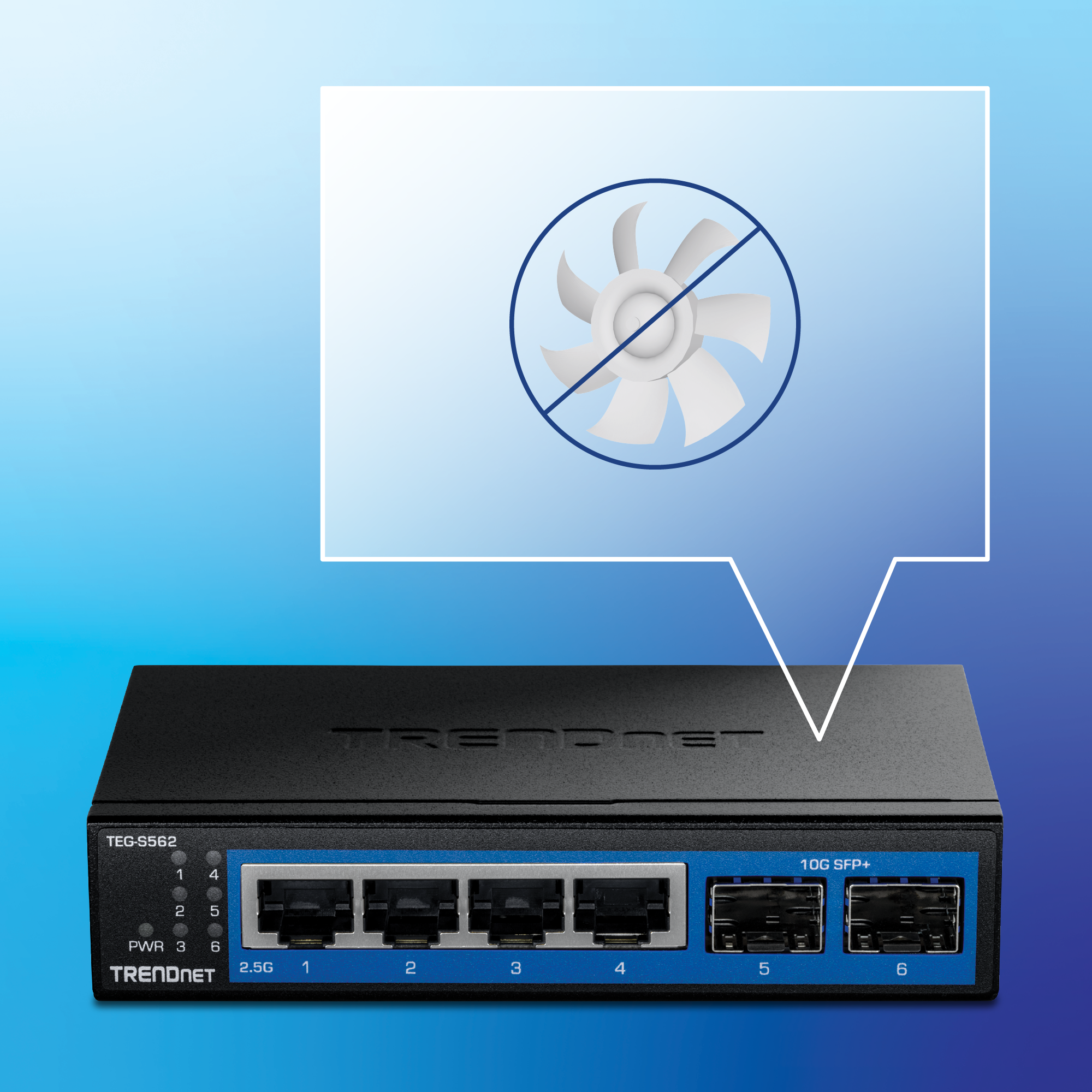

Fanless

The compact fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G SFP+ Ports

The 2.5G switch with SFP+ ports features 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability

Fanless

Compact fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall-mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB) for increased performance

LED Indicators

LED indicators on this 2.5G switch with SFP+ ports conveys port status

Standards
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3x
Device Interface
  • 4 x 2.5G ports (100Mbps/1Gbps/2.5Gbps)
  • 2 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 1MB
  • MAC address table: 16K entries
  • Jumbo frames: 10KB
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V, 1A
  • Max. consumption: 5.86W
MTBF
  • 1,079,150 hours @25°
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 120 x 75 x 26mm (4.7 x 2.95 x 1 in.)
Weight
  • 258g (9.1 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TEG-S562
  • Power adapter (12V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
