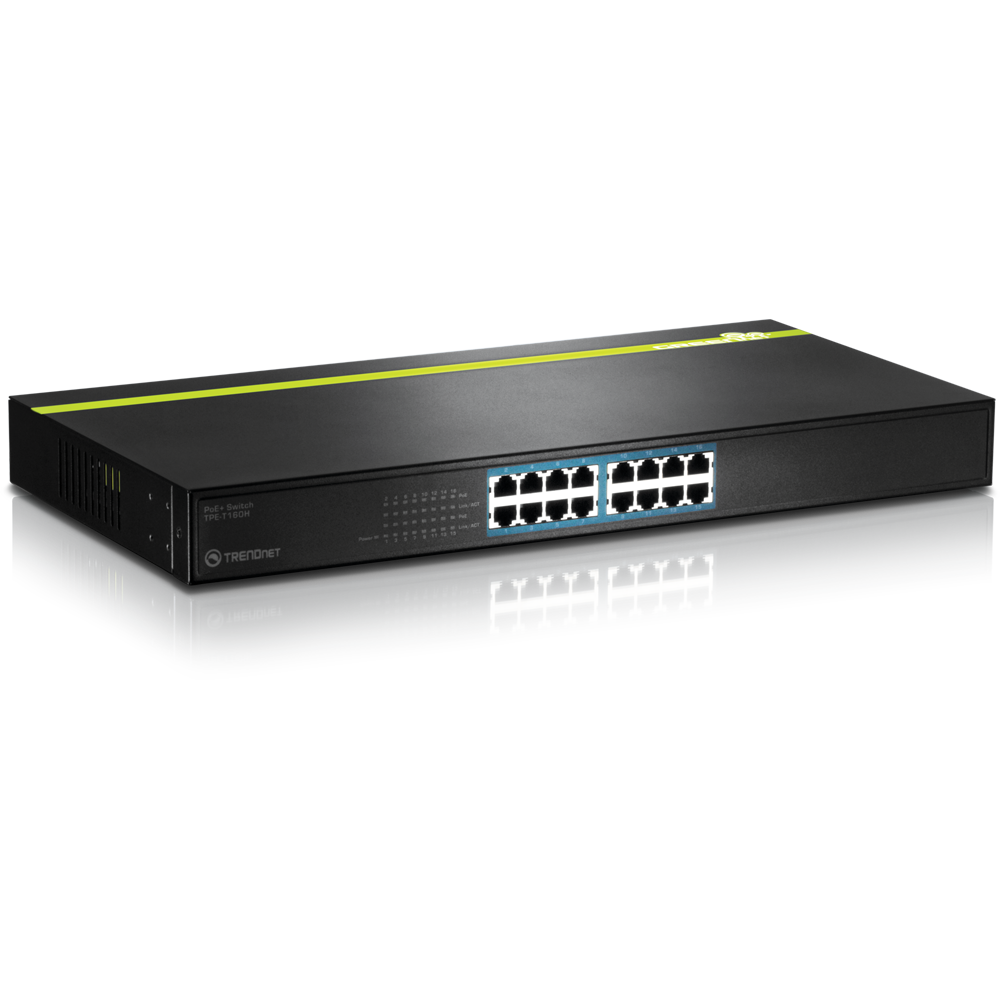

16-Port 10/100 Mbps PoE+ Switch

TPE-T160H (Version v1.0R)

  • 16 x 10/100 Mbps PoE+ ports
  • Up to 30 Watts per port with a 250 Watt total power budget
  • 3.2 Gbps switching capacity
  • Rack mount kit included
  • Use with TRENDnet's PoE Splitter to network and power non-PoE devices
  • Lifetime Warranty*

The 16-Port 10/100 Mbps PoE+ Switch, model TPE-T160H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 250 Watt power budget. A convenient on/off button is located on the back of the switch and a rack mount kit is included.

Hardware

PoE+

Supplies up to 30 Watts of PoE power per port with a 250 Watt power budget

Ports

16 x 10/100 Mbps PoE+ ports

Switching Capacity

3.2 Gbps switching capacity

Rack Mountable

Rack mountable metal enclosure with included mounting kit

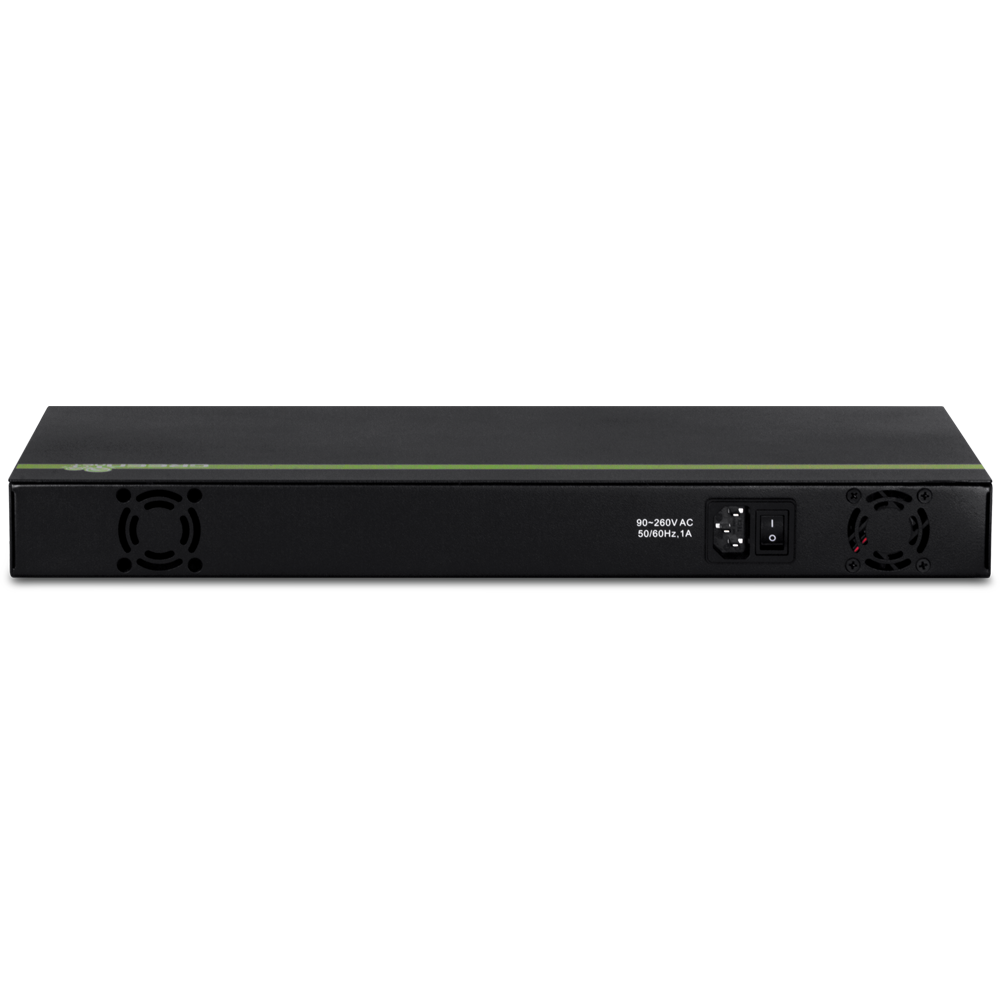

On/Off

Convenient on/off switch

LED Indicators

LED indicators convey port status

Standards
IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af (15.4 Watts/port)
  • IEEE 802.3at (30 Watts/port)
  • IEEE 802.3az
Device Interface

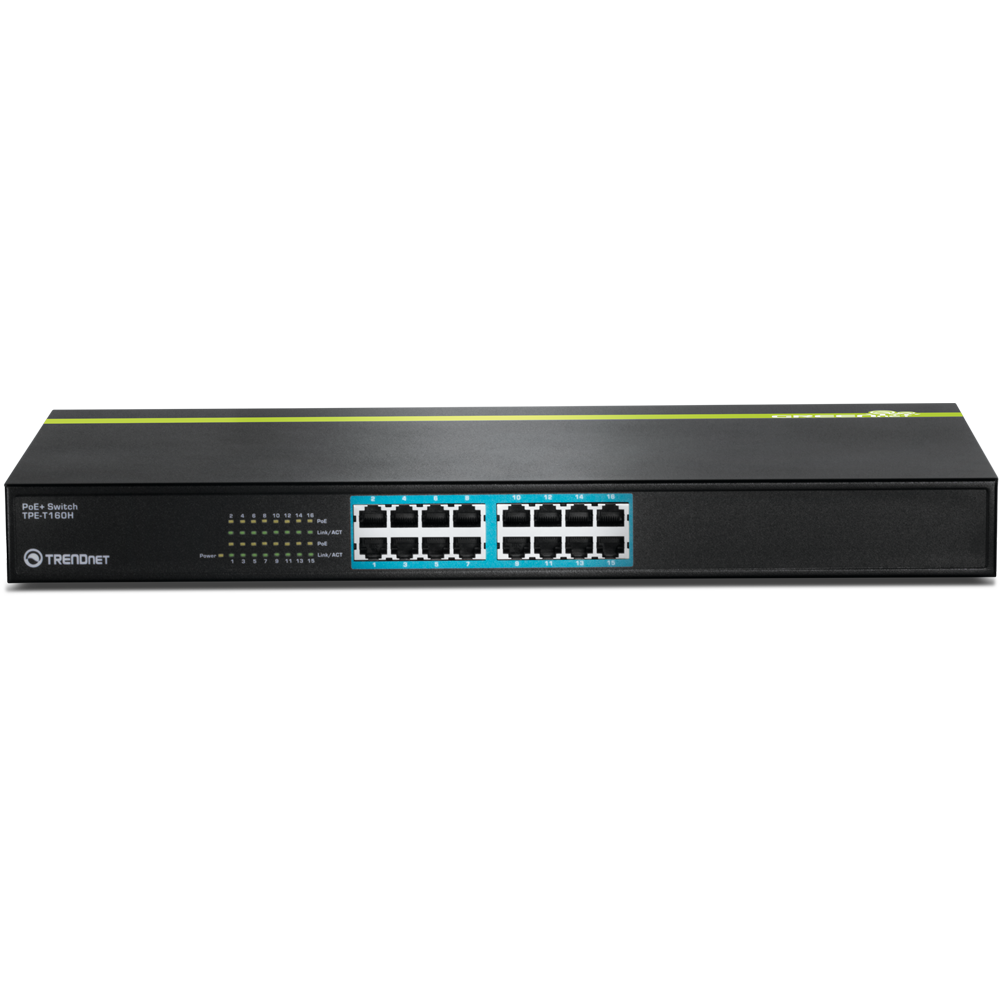

  • 16 x 10/100 Mbps PoE/PoE+ Ports
LED indicators
  • Power switch
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Performance
  • Data Ram Buffer: 1.25 MB
  • Switch Fabric: 3.2 Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 2.38 Mpps (64-byte packet size)
Special Features
  • Rack mount kit included
  • GREENnet energy saving technology
Power
  • Internal Power Supply
  • Input: 90-260 V AC, 50/60 Hz, 1 A
  • Output: 48 V DC, 50/60 Hz, 0.6 A
  • Consumption
  • Max.: 260 Watts
  • PoE budget: 250 Watts
  • PoE+
  • pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 220 x 44 mm (17.32 x 8.66 x 1.73 in.)
Weight
  • 3.0 kg (6.6 lbs.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-T160H
  • Quick Installation Guide
  • Power cord
  • Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
