16-Port 2.5G Desktop Switch

TEG-S3160 (Version V2)

16 x 2.5G RJ45 ports
Compatible with existing Cat5e or better cabling
Fanless design eliminates noise
Wall mountable for installation flexibility
80Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

Coming Soon

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing is well-suited for wall mount installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

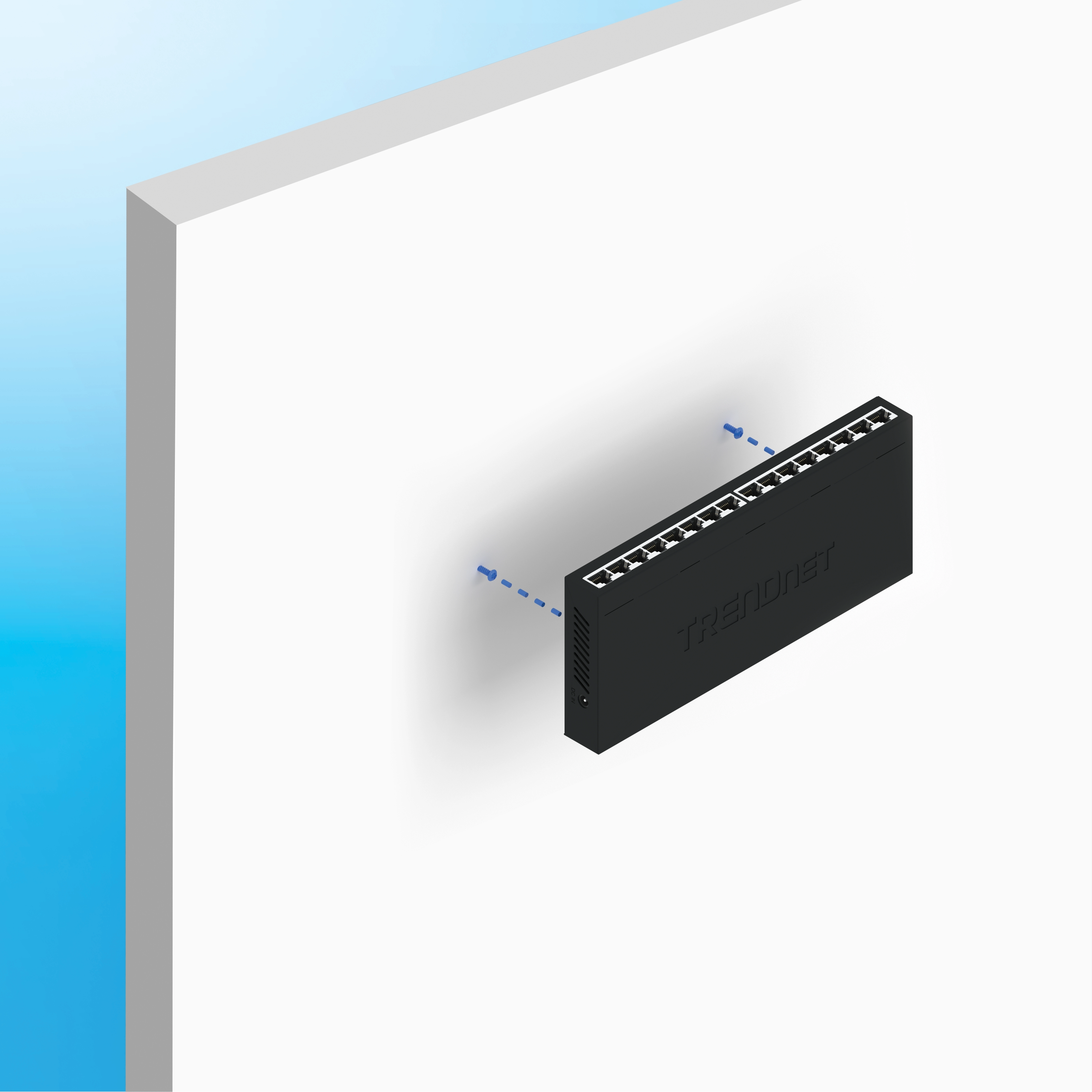

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

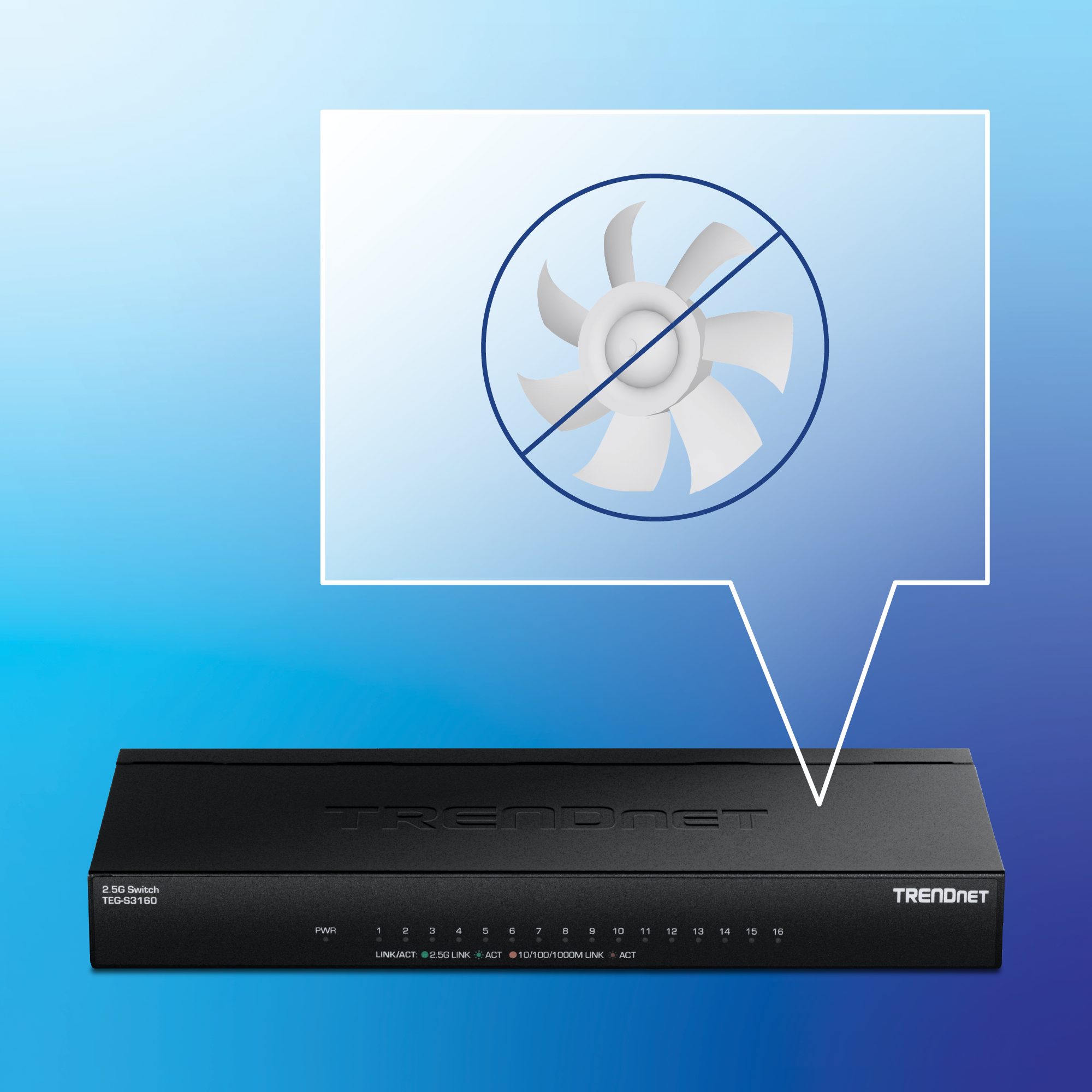

Fanless

The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.

Easy Installation

No configuration needed, simply connect network devices to the 16-port multi-gig switch

2.5G Ports

This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Switching Capacity

80Gbps switching capacity

Fanless

Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise

Housing Design

Sturdy desktop metal housing

Rear Facing Ports

Hide cable clutter with rear facing ports on your desktop

Wall Mountable

The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

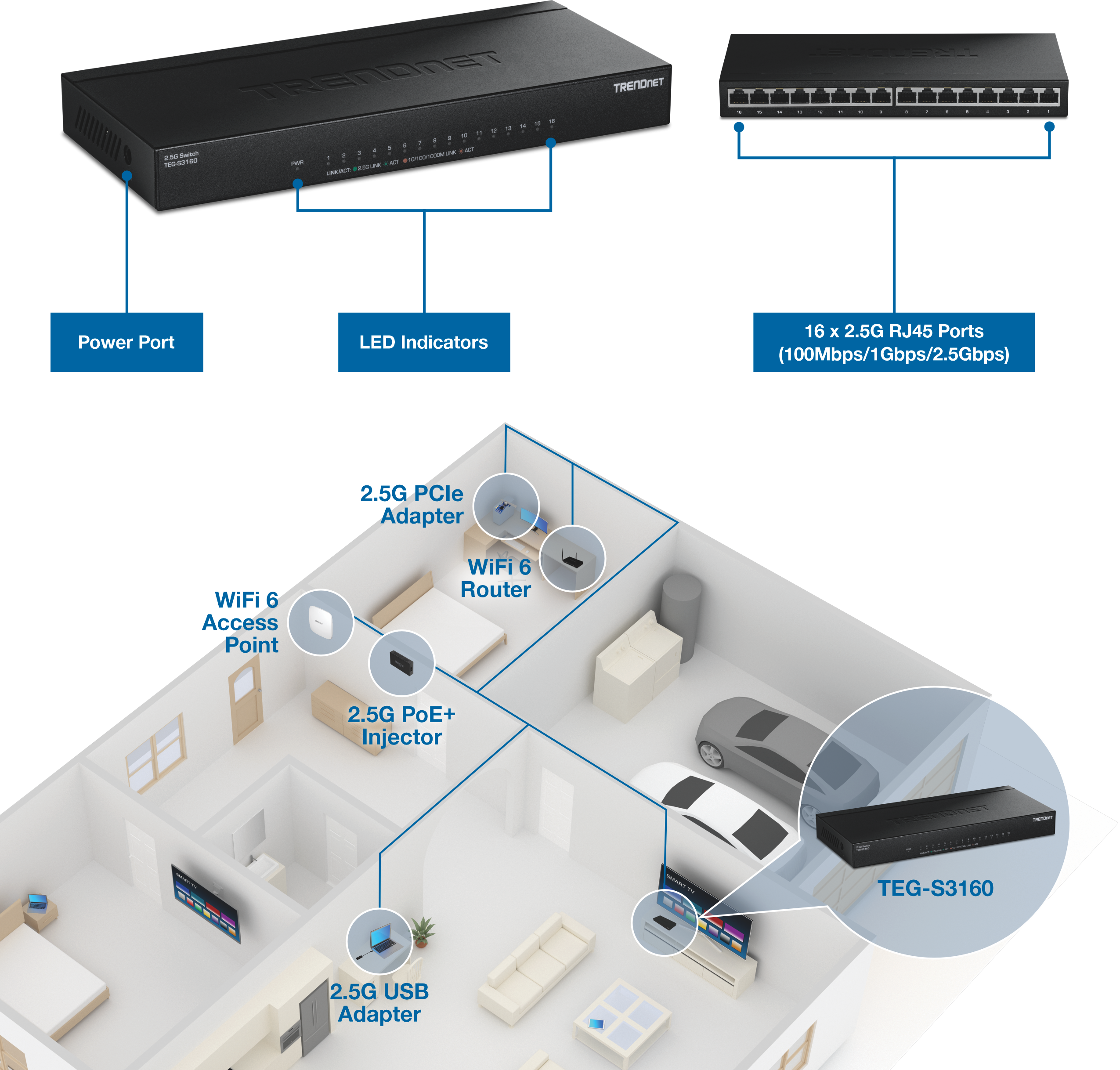

LED Indicators

LED indicators on this 16-port 2.5G switch conveniently convey port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3az IEEE 802.3bz
Device Interface	16 x 2.5G RJ-45 ports (100Mbps/1Gbps/2.5Gbps) LED indicators
Performance	Switching Capacity: 80Gbps RAM Buffer: 1MB Jumbo Frames: 10KB MAC Address Table: 16K entries Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features	Wall mountable VLAN Passthrough
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V DC, 2A Max. Consumption: 12W
Fan/Acoustics	Fanless design
MTBF	223,000 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	240 x 105 x 27mm (9.44 x 4.13 x 1.06 in.)
Weight	694.56g (1.53 oz.)
Certifications	FCC CE
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S3160
Rackmount kit
Power adapter (12V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
