Products  »  Wired » Fiber » TFC-10GSFP

10GBASE-T to SFP+  Fiber Media Converter

TFC-10GSFP (Version v1.0R)

  • 1 x 10G RJ-45 port
  • 1 x 10G SFP+ Slot
  • LFPT support (Link Fault Pass Through)
  • SFP slot accommodates multimode or single-mode modules
  • RJ-45 port supports full-duplex mode
  • Functions as a standalone converter
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

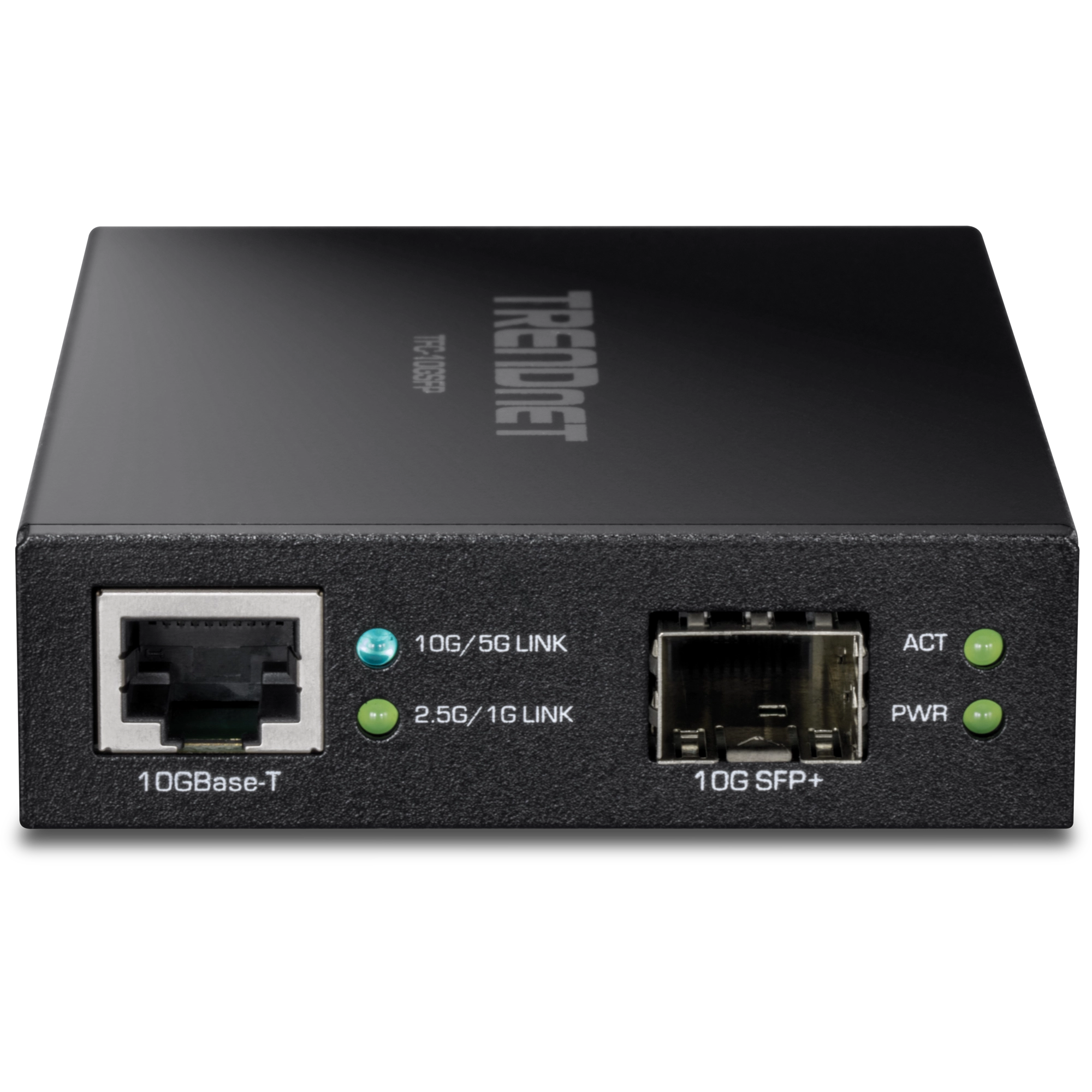

10GBASE-T to SFP+ Fiber Media Converter with network icons.

Multi-Gig Slot

The SFP and RJ-45 ports support 10G, and 1G speeds.

10GBASE-T to SFP+ Fiber Media Converter with power cable.

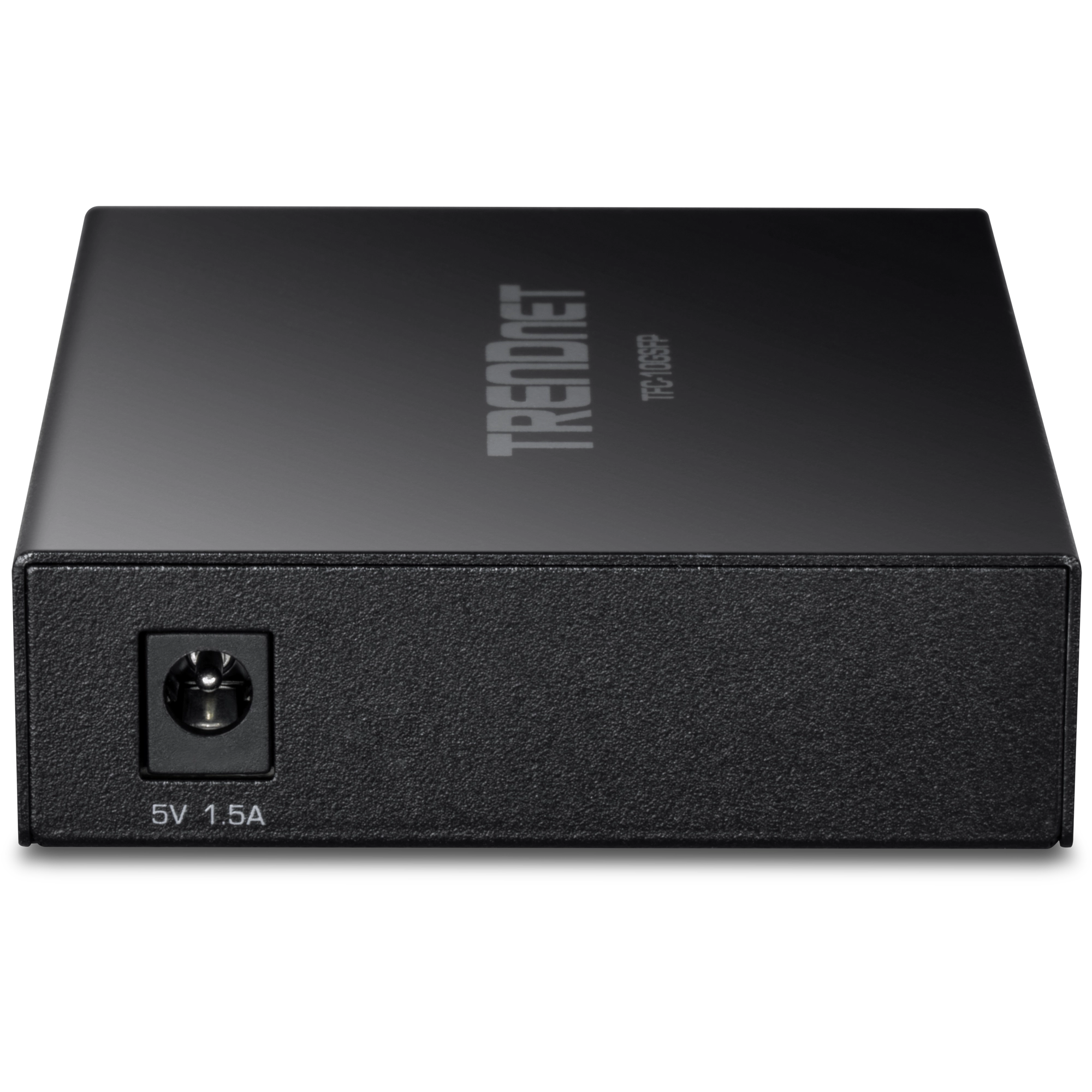

Power Adapter

A power adapter is included with the 10G SFP+ transceiver for standalone use.

A central square with lines extending inward from each corner, emphasizing its compactness.

Compact

Compact and lightweight metal housing design provides greater installation flexibility.

Multi-Gig Ethernet

1 x 10G/1G Ethernet port

Multi-Gig SFP

1 x 10G/1G SFP+ slot

Fanless

Fanless design on the 10G SFP+ media converter lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing of the 10GbE SFP+ transceiver provides greater installation flexibility

LED Indicators

LED indicators convey port status

Fiber Wavelength

The 10G SFP+ transceiver is compatible with multi-mode and single mode transmissions

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3z

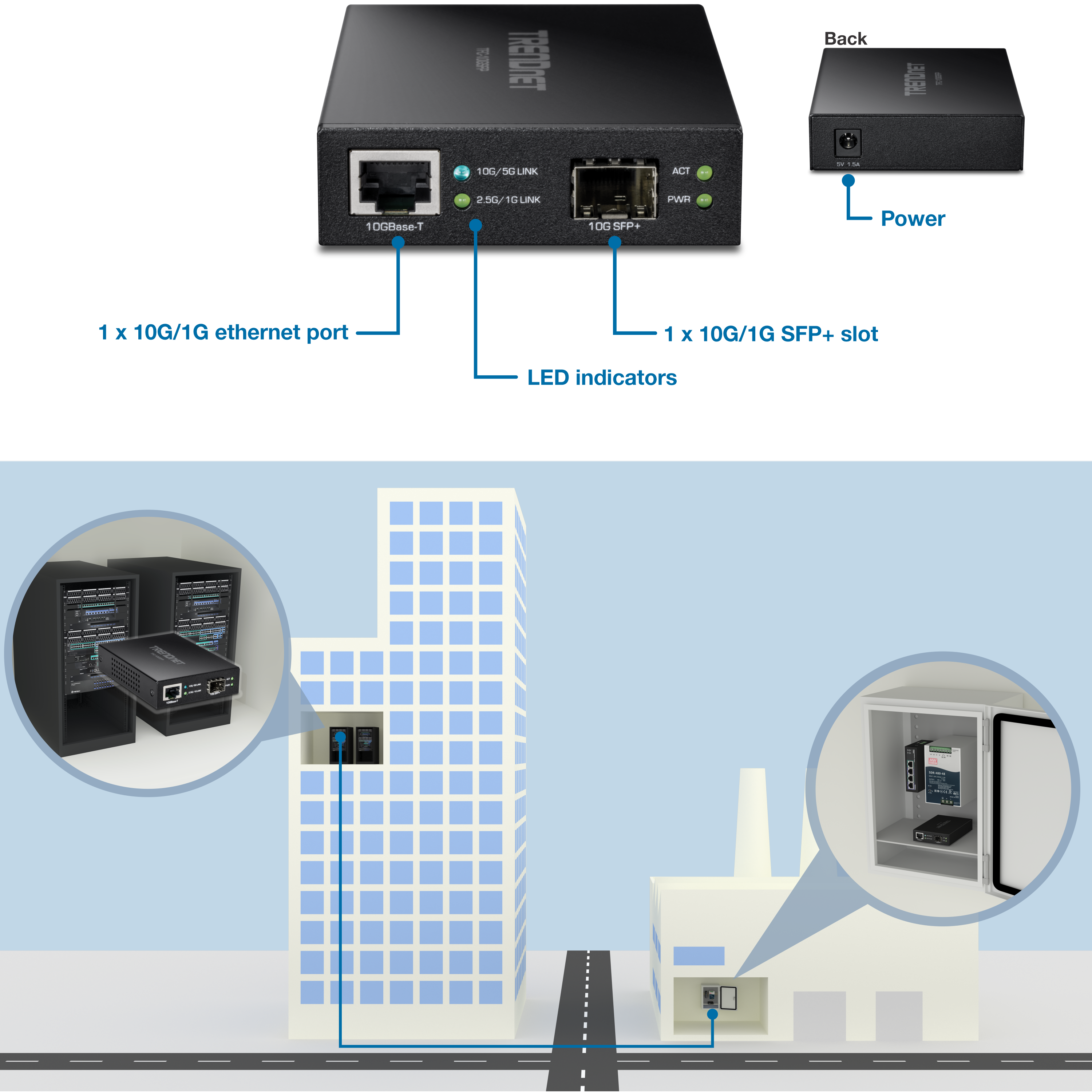

Device Interface
  • 1 x 10G/1G ethernet port
  • 1 x 10G/1G SFP+ slot
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 10G: 20Gbps (full duplex)
Special Features
  • Supports Link Fault Pass-Through (LFPT)
  • SFP slot supports Multimode and Single mode Modules
Power
  • Input: 110 – 240 V AC, 50/60 Hz 0.5A
  • Output: 5V DC, 1.5A
  • Max. consumption: 4W
Operating Temperature
  • 0° C – 50° C (32° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 105 x 75 x 22 mm (4.13 x 2.95 x 0.86 in.)
Weight
  • 188 g (6.63 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
PACKAGE CONTENTS
  • TFC-10GSFP
  • Quick Installation Guide
  • Power Adapter (5V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
