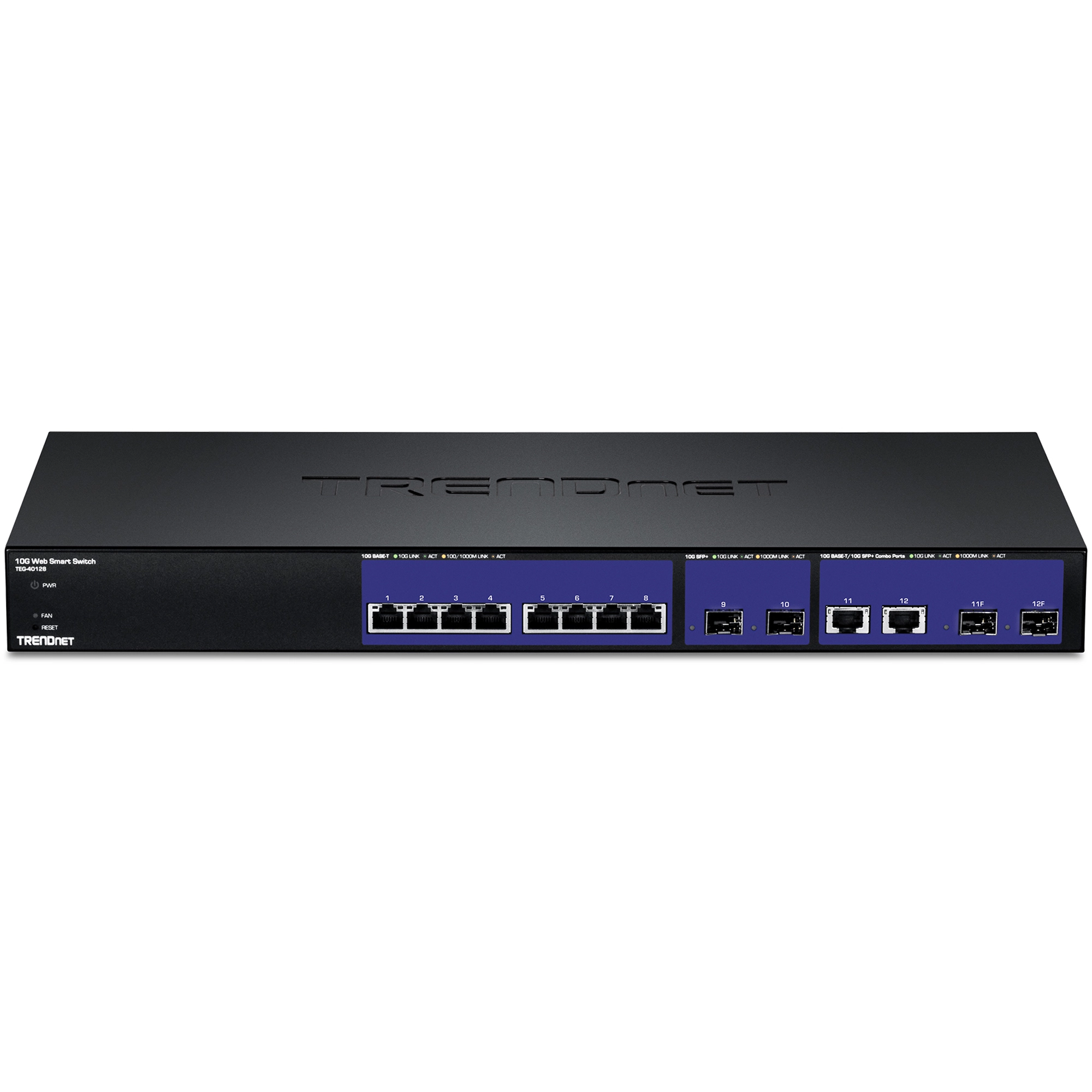

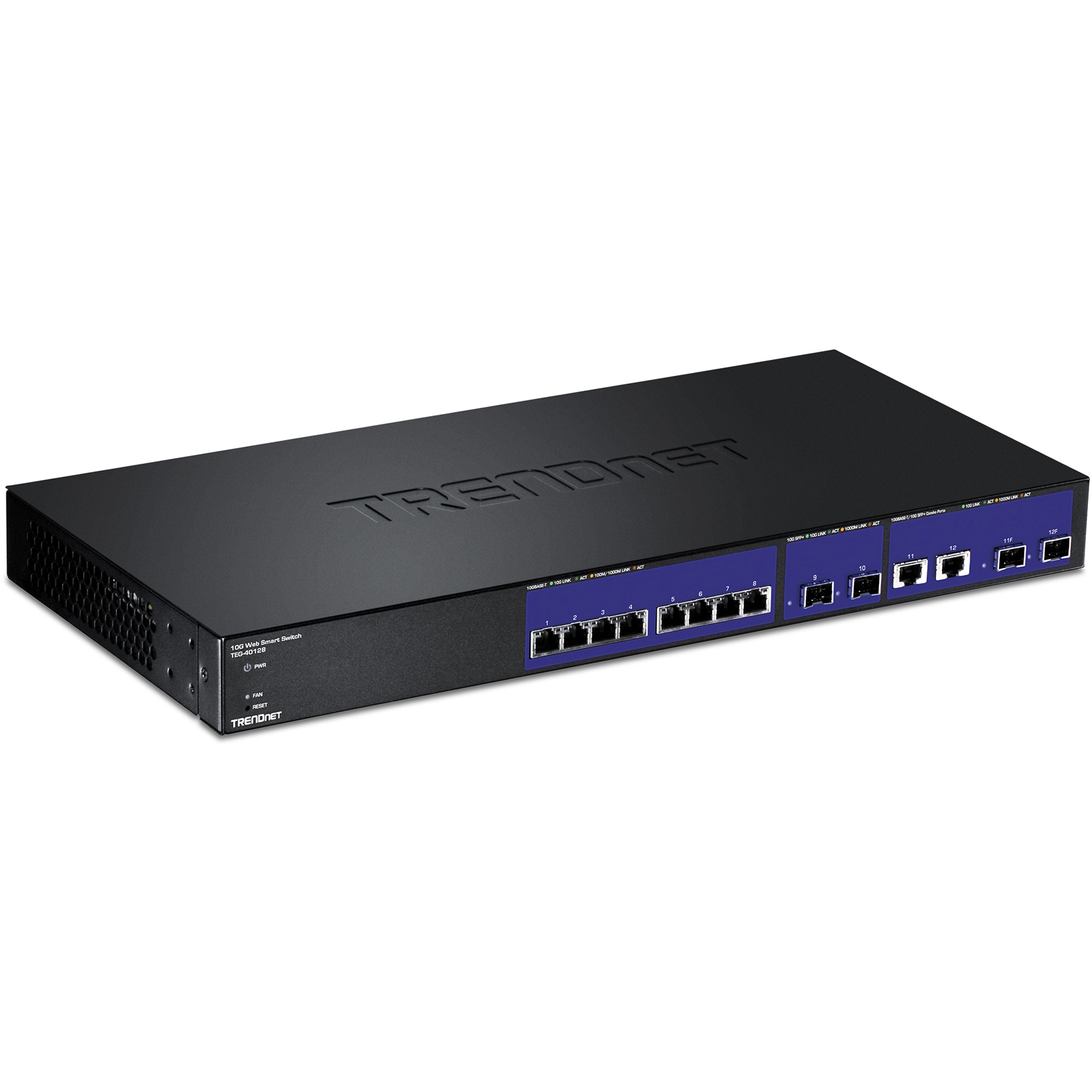

TRENDnet's 12-Port 10G Web Smart Switch with 8 x 10GBASE-T ports including 2 x 10G SFP+ slots and 2 x shared 10GBASE-T / 10G SFP+ slots, model TEG-40128, is a cost-effective switch for high-speed network uplinks or downlink server connections. A convenient web-based management interface offers features for traffic control, troubleshooting, access control, and monitoring allowing for network integration flexibility into an SMB network.
Web Smart Management
Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.
High-Speed 10GBASE-T and 10G SFP+
Offers eight 10GBASE-T Ethernet ports, two 10G SFP+ slots, and two 10GBASE-T / 10G SFP+ shared ports for high-speed network uplinks or downlink NAS / access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.
Provides 8 x 10GBASE-T ports, 2 x 10G SFP+ slots, and 2 x 10GBASE-T / 10G SFP+ shared ports for high-speed network uplinks or downlink server connections, and 1U rack mountable.
Smart fans saves energy by auto-adjusting the fan speed and use based on cooling needs.
This switch supports IPv6 configuration and IPv6 neighbor discovery.
A broad range of network configurations are supported by: 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, bandwidth controls, GVRP, IGMP, 802.1p class of service (CoS), spanning tree (STP, RSTP, and MSTP), and QoS queue scheduling.
Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.
Features such as ACL, SSL, MAC / port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls.
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.

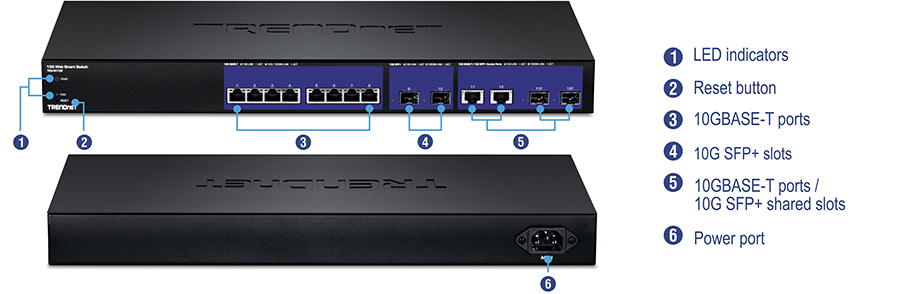

8 x 10GBASE-T ports
2 x 10G SFP+ slots
2 x 10GBASE-T ports / 10G SFP+ shared slots
Data Transfer Rate
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
10 Gigabit Ethernet: 20 Gbps (full duplex)
Switch fabric: 240 Gbps
RAM buffer: 2 MB
MAC Address Table: 16K entries
Jumbo Frames: 10 KB
HOL Blocking Prevention
Forwarding rate: 178.6 Mpps (64-byte packet size)
Dual Image Configuration
HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI
SNMP v1, v2c, v3
Static Unicast MAC Address
Enable / disable 802.3az Power Saving
Virtual Cable Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB II RFC 1213
Bridge MIB RFC 1493
Bridge MIB Extension RFC 2674
SNMPv2 MIB RFC 1907
Ethernet Interface MIB RFC 1643
Ethernet –like MIB RFC 2863
Interface Group MIB RFC 2233
MIB Traps Convention RFC 1215
RMON MIB RFC 1757, RFC 2819
802.1p MIB RFC 2674
RADIUS Client Authentication MIB RFC 2618
LLDP-MIB IEEE 802.1ab
Ping MIB RFC 2925, RFC 4560
IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

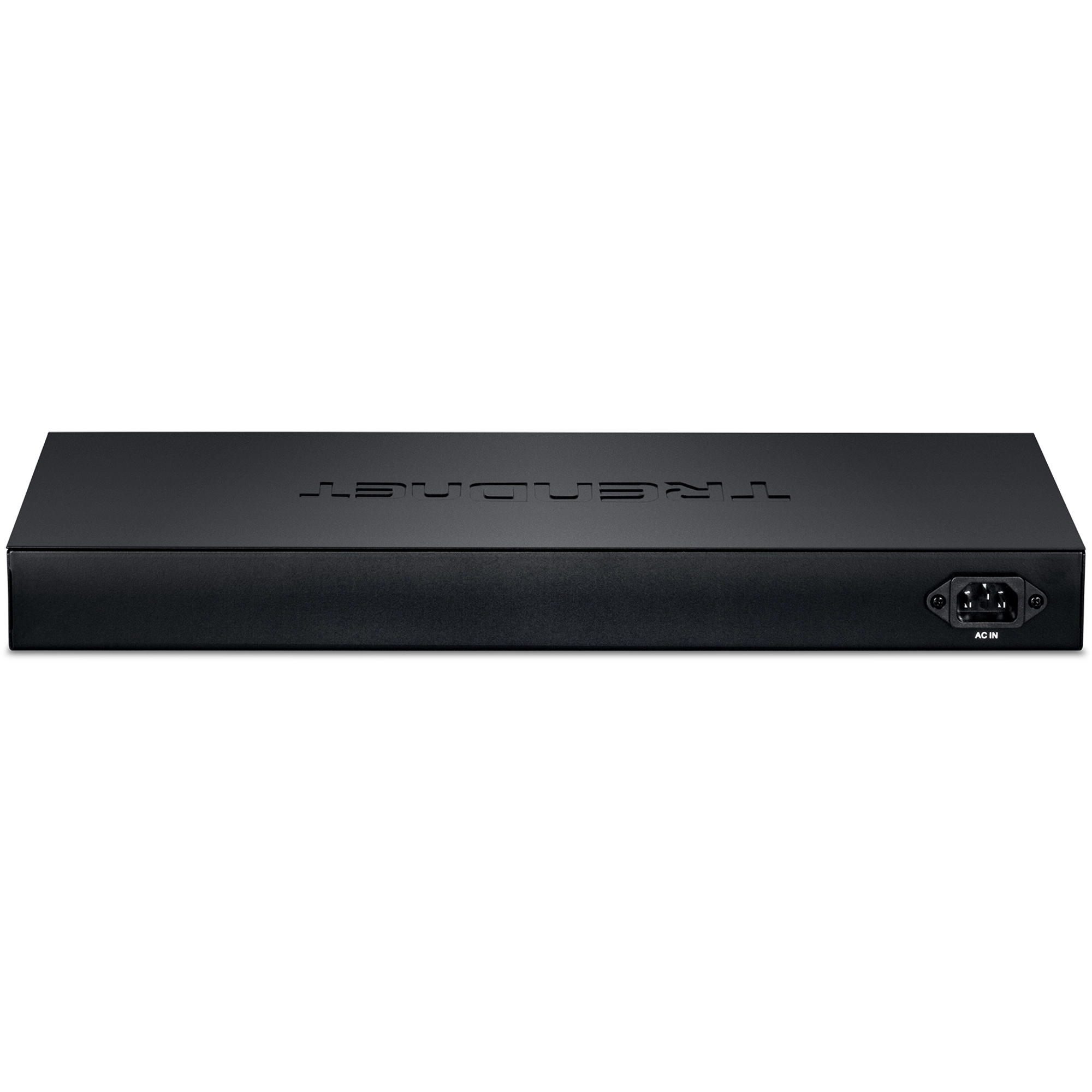

Input: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 90.81 Watts (max.)
Fan / Acoustics
Noise Level: 53 dB(A) (max.)
0 – 50 °C (32 - 122 °F)
Max. 90% non-condensing
440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
Rack mountable 1U height
3.18 kg (7.01 lbs.)
3 year limited
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
