14-Outlet Managed 2U Rackmount Switched Power Distribution Unit

TPI-L14 (Version V1)

  • 14 x NEMA 5-15R managed power outlets
  • 2 x Gigabit ports
  • Supports STP/RSTP for network redundancy
  • Individual controllable outlets
  • Automate outlet reboot settings in case of connection loss
  • Port power on/off delay for custom applications
  • Manage outlet control and monitor power consumption
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • Protects connected equipment from power surges & dangerous voltage conditions
  • Filters AC for best electronics performance
  • LED indicators conveniently convey AC ground status, and outlet status
  • LCD screen conveniently displays power consumption, network information, and outlet controls
  • View per outlet energy usage via dashboard
  • Reduces excess energy consumption by creating power schedules
  • Event email notifications
  • 2U 19” Rack mountable
  • Input Voltage 100-120VAC
  • Certifications: UL 62368-1, IEC 61000-4-5 Class 3, and IEC 61000-4-2 Level 2
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 14-Outlet Managed 2U Rackmount Switched Power Distribution Unit, model TPI-L14, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.

The 14-Outlet Managed Rackmount Power Distribution Unit features 14 NEMA 5-15R managed power outlets, two gigabit ports, and an LCD screen. Each managed power outlet is controllable individually. The two gigabit ports ensure network redundancy in the event of a network failure from one of the network ports. The TPI-L14 switched PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling. The LCD screen displays vital information, such as power usage and network information, all while allowing the ability to easily manage each individual power outlet.

Easily manage and configure the switched PDU remotely with TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet’s reliable cloud service.

Networked power distribution unit from TRENDnet featuring multiple power outlets and network ports, connected to a desktop computer setup. Below the unit, a graphic shows the computer linked to the PDU alongside a performance chart with a bar graph and time values, including a stopwatch icon, indicating time-based monitoring and scheduling for IT infrastructure.

Ports

14 x NEMA 5-15R power outlets, and 2 x Gigabit RJ45 ports for network redundancy

TRENDnet-branded power distribution unit designed for server rack environments features twelve three-prong AC outlets arranged in two horizontal rows. On the left side, two Ethernet ports, a reset button, and a power switch are visible. Below the unit, three black power cords with grounded plugs are positioned side by side. The background consists of a smooth gradient of blue tones, contributing to a clean and modern tech-focused presentation.

Managed PDU

Supports individual control of power outlets, and to assign a power schedule to automate the process.

TRENDnet-branded power distribution unit with multiple front-facing power outlets, network ports, and a power switch. A speech bubble above the unit contains a fan icon crossed out, indicating fanless operation suitable for quiet or energy-efficient environments. Various indicators are visible on the front panel, highlighting connectivity and functionality.

Fanless

Fanless design eliminates operating noise.

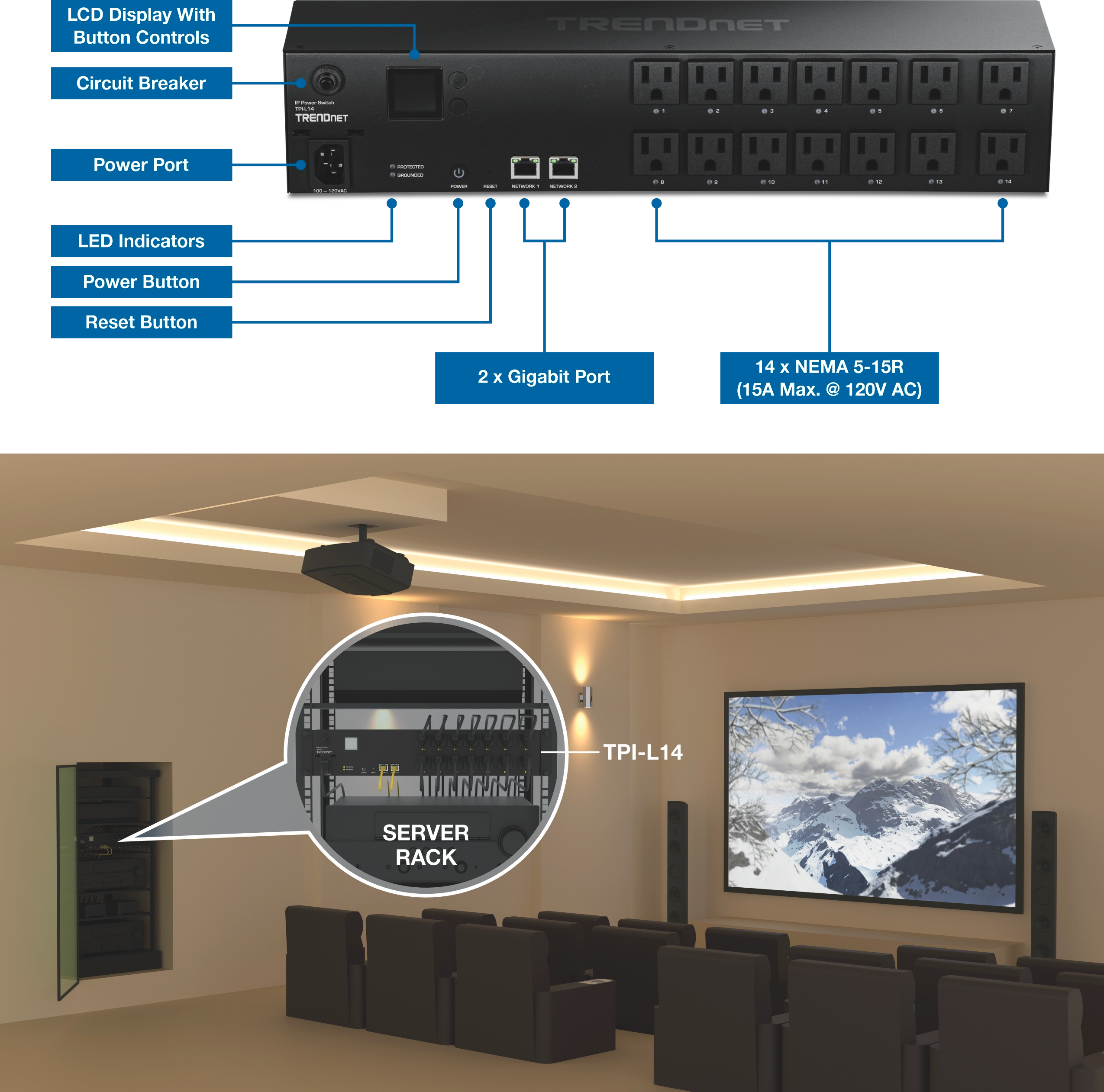

Composite visual featuring a close-up of a TRENDnet power distribution unit model TPI-L14 in the top section, displaying labeled components including LCD display with button controls, circuit breaker, power port, LED indicators, power button, reset button, two gigabit ports, and fourteen NEMA 5-15R outlets. The bottom section shows a home theater setup with multiple seats facing a large screen, and a server rack positioned to the left containing the TRENDnet PDU. The rack is highlighted with a zoomed-in overlay labeled SERVER RACK and TPI-L14, illustrating the device’s integration into the entertainment system.

Switched PDU

Supports individual control of power outlets, and to assign a power schedule to automate the process

Ports

14 x NEMA 5-15R managed power outlets and 2 x Gigabit RJ45 ports for network redundancy

Hive Enabled

Remotely manage, configure, and diagnose this IP power strip via TRENDnet’s cloud service (Additional fee applies)

LCD Screen

Easily manage individual outlets, display energy usage, and network information on the switched PDU

Fanless

Fanless design of the switched PDU eliminates operating noise

Email Notifications

Email notifications for safe voltage, overload break, and host timeout events

2U 19” Adjustable Rack Mountable

Sturdy rack mountable metal housing with mounting kit included

Wall Mountable

Wall mountable PDU with wall mounting kit included

LED Indicators

LED indicators on this switched PDU conveniently convey AC ground status

Device Interface
  • 14 x NEMA 5-15R (15A max. @ 120V AC)
  • 2 x Gigabit port
  • LED indicators
  • LCD display with button controls
  • Reset button
Power Output
  • 100 – 120V, 50/60Hz
  • Max. 15A per outlet
  • 15A breaker overload protection
Power Input
  • 100 – 120V, 50/60Hz, internal power supply
  • Max. consumption: 14.11W (no PD load)
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC, Mac web browser or through an Android or iOS mobile device
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple PDUs
  • Event/hardware network monitoring (CPU/memory utilization)
  • Enable & disable power, set auto reboot check, configure power scheduling, and monitor power usage
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
Special Features
  • Fanless
  • Wall mountable
  • Adjustable depth rack mount
  • Cable retention clip
Operating Temperature
  • 0° - 40° C (23° - 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 440 x 88 x 88mm (17.32 x 3.46 x 3.46 in.)
Weight
  • 2.43kg (5.35 lbs.)
Warranty
  • 3-Year limited
Certifications
  • FCC
  • UL
  • Surge protection (IEC 61000-4-5 Class 3)
  • ESD Protection (IEC 61000-4-2 Level 2)

Содержимое упаковки
  • TPI-L14
  • Power cord (1.8m / 6 ft.)
  • Rackmount kit
  • Wall-mount kit

*Disclaimer: Max rated total output current is 15A. This device is meant to add additional outlets. It does not change the amount of power being received from the main outlet.
