Indoor HD WiFi Light Bulb Surveillance Camera

TWC-L10   (Version v1.0R)

  • 720p HD resolution
  • 185° wide viewing angle
  • Provides a 360° fisheye overview of the environment

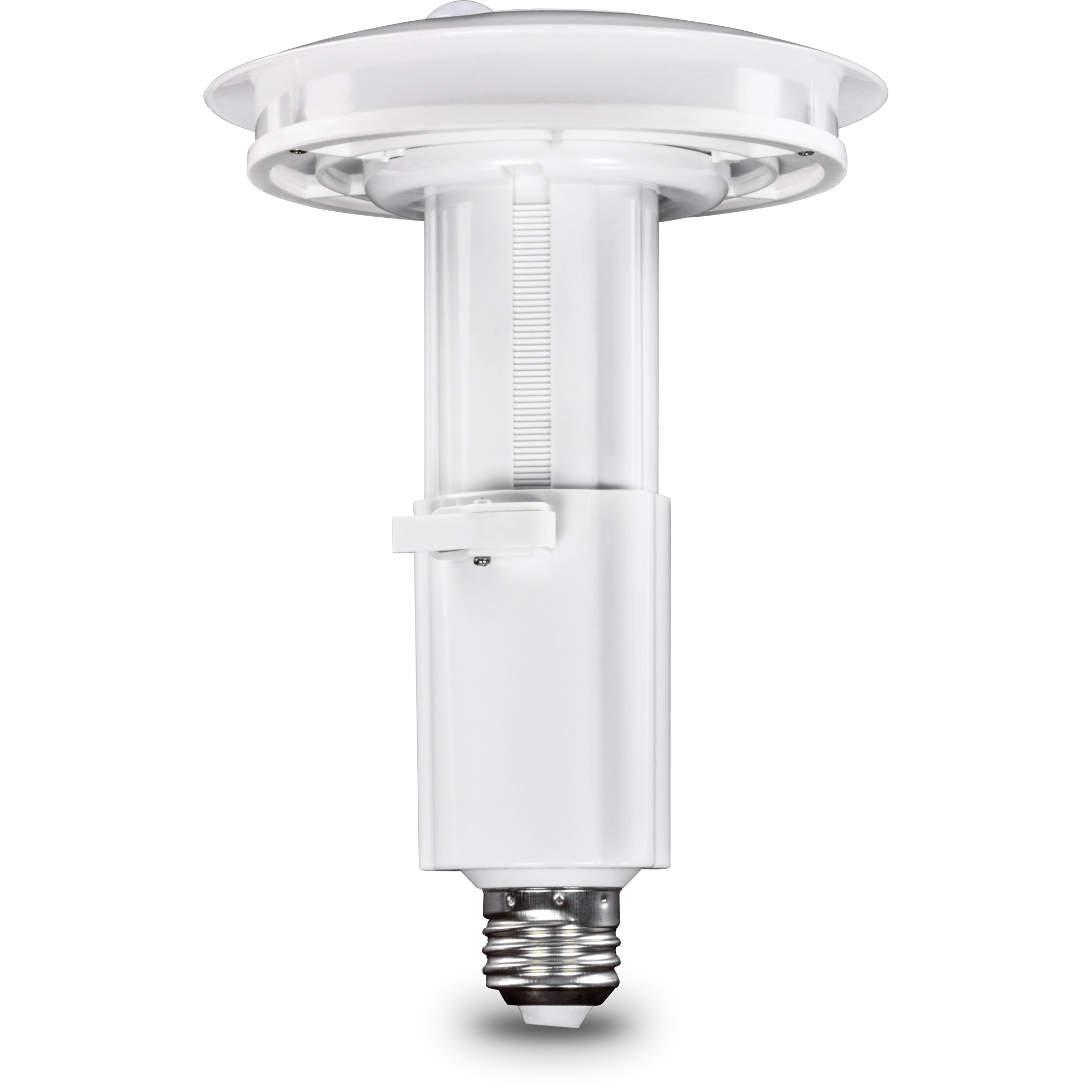

  • Telescopic arm extends from 10 - 15cm (4 - 6.25 in.)
  • PIR motion detection with app notifications
  • Built-in microphone and speaker for two-way audio support
  • Fits into most standard light bulb sockets
  • App-controlled smart LED light can be turned on and off remotely
  • Simple hardware installation – No special tools required
  • Free mobile apps available on Google Play™ and the App Store®

DISCONTINUED PRODUCT

The TWC-L10 (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1314PI (Version v1.0R). For a list of discontinued products, click here.

Datenblätter

Datasheet (English)
Dateiname: EN_datasheet_TWC-L10_(v1.0R).pdf
Datum: 2/1/2018
Dateigröße: 4.86 MB
Download Email

Kurzanleitung zur Installation

Kurzanleitung zur Installation (English)
Dateiname: Web_TWC-L10(V1.0R)_120318_OUTLINE.pdf
Datum: 12/3/2018
Dateigröße: 2.53 MB
Download

Produktbild(er)

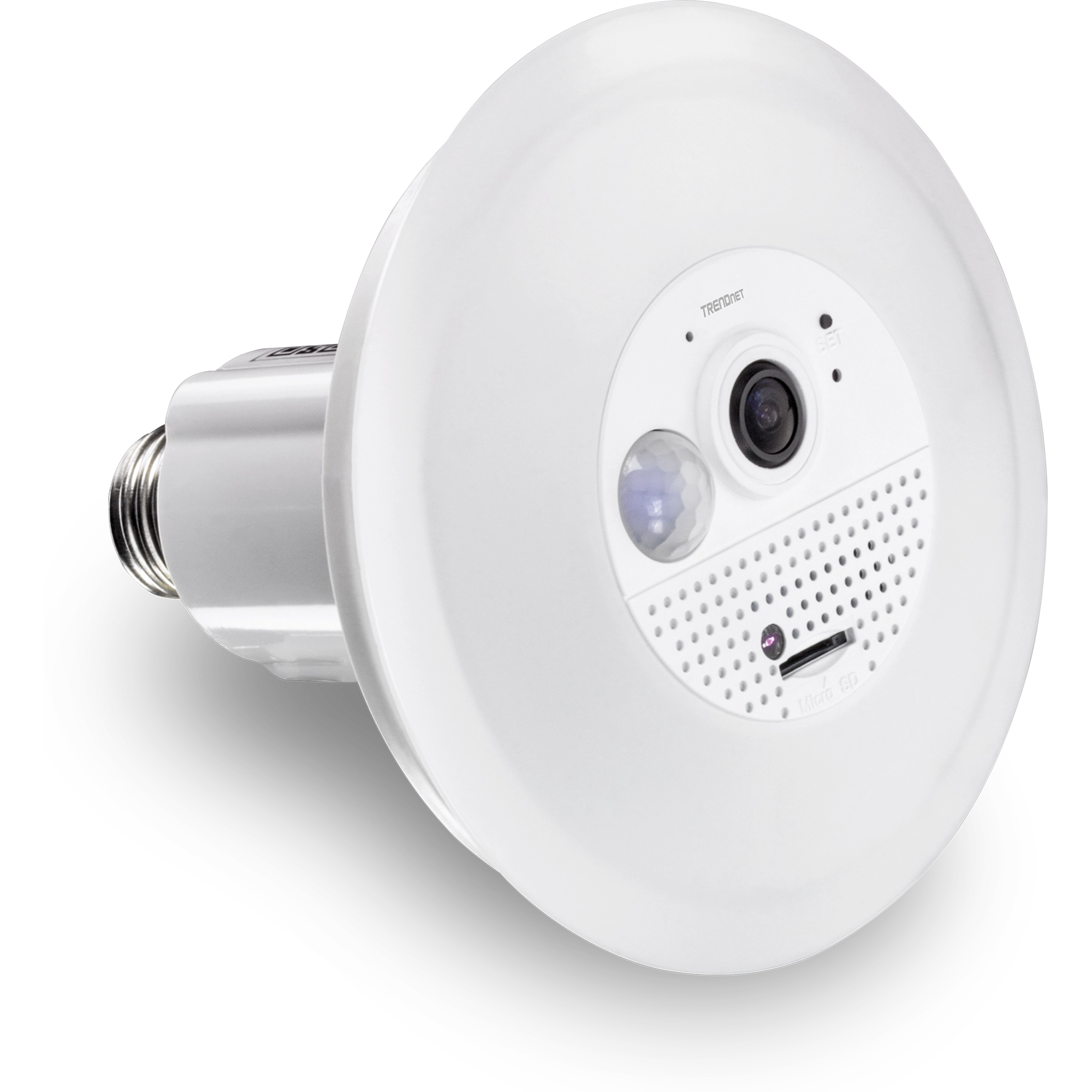

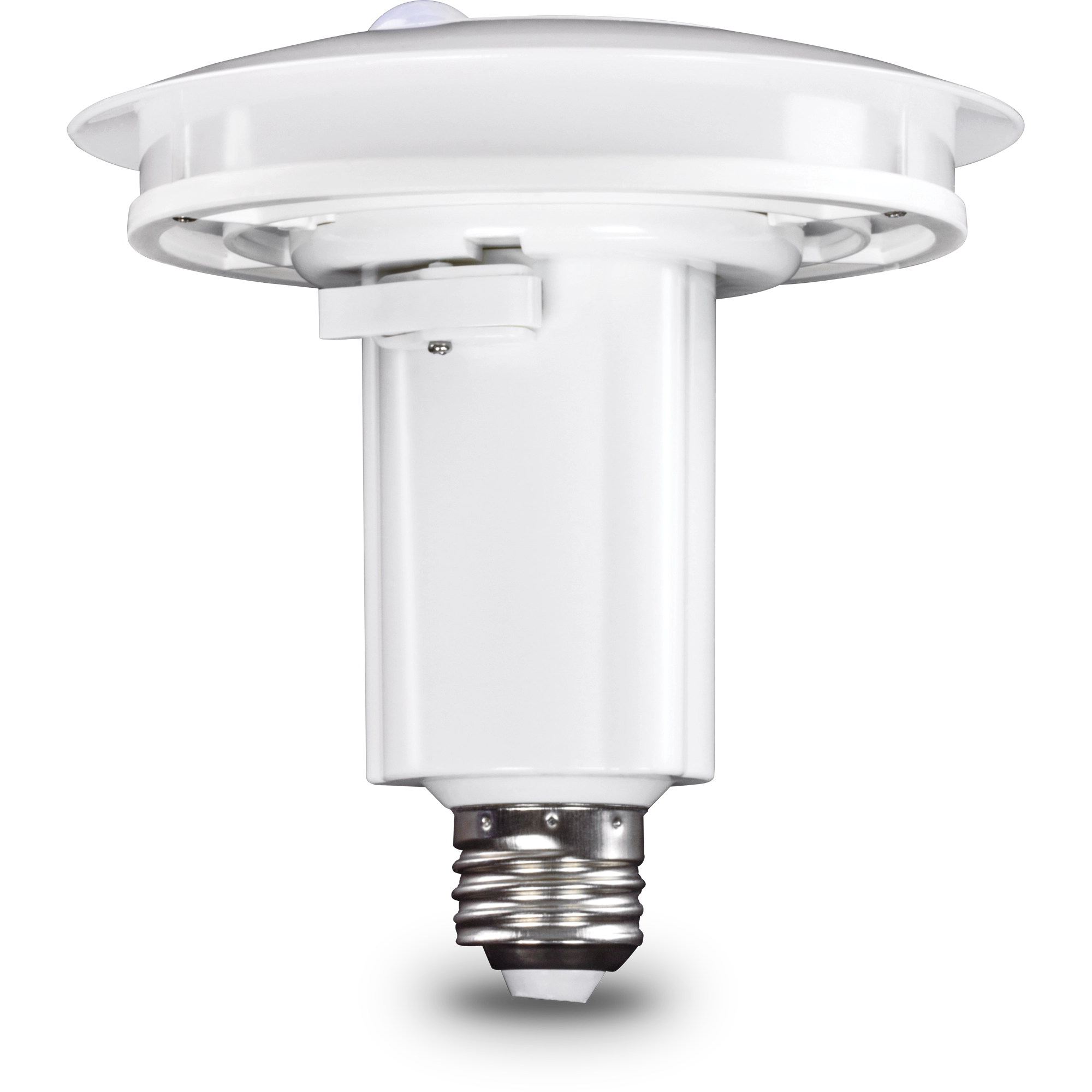

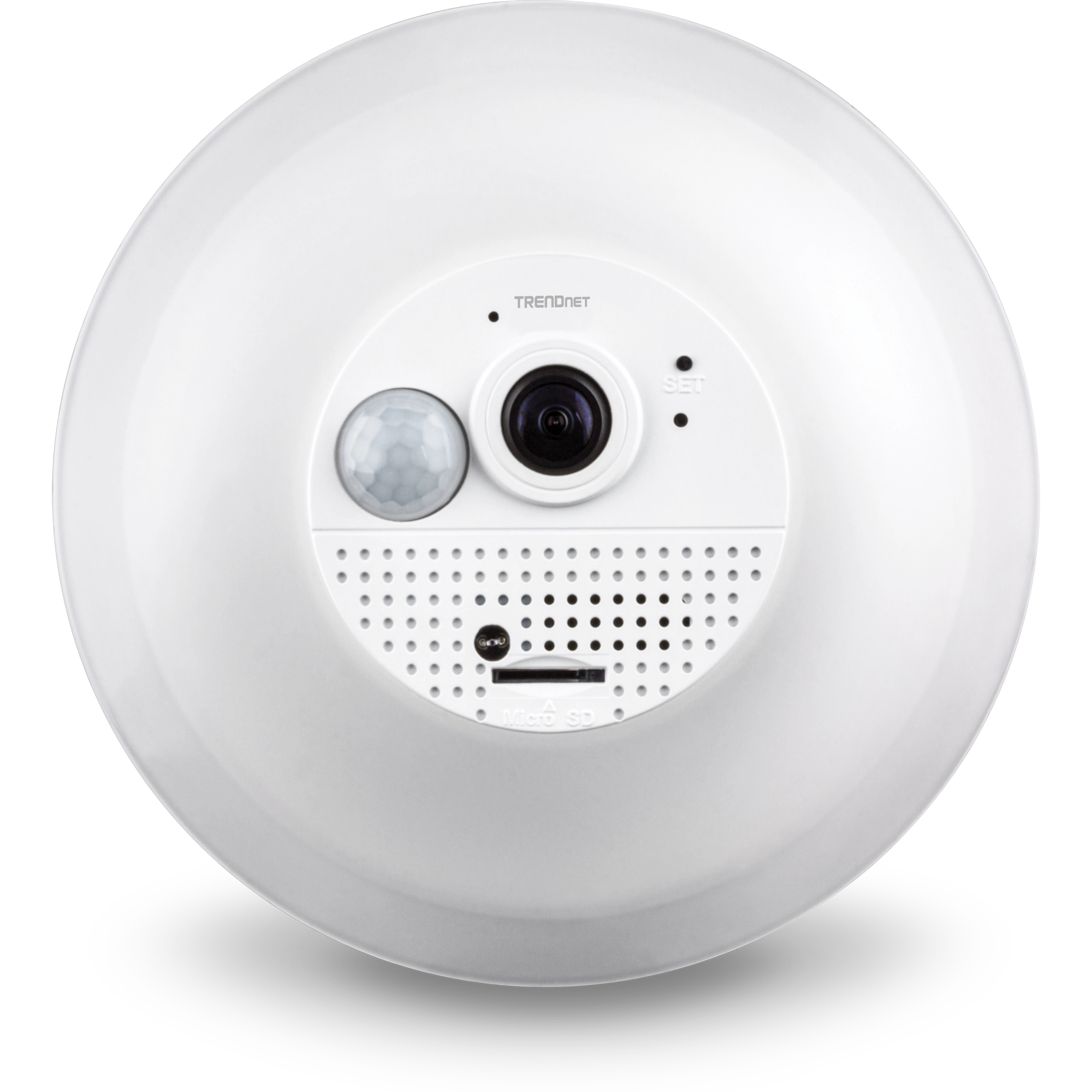

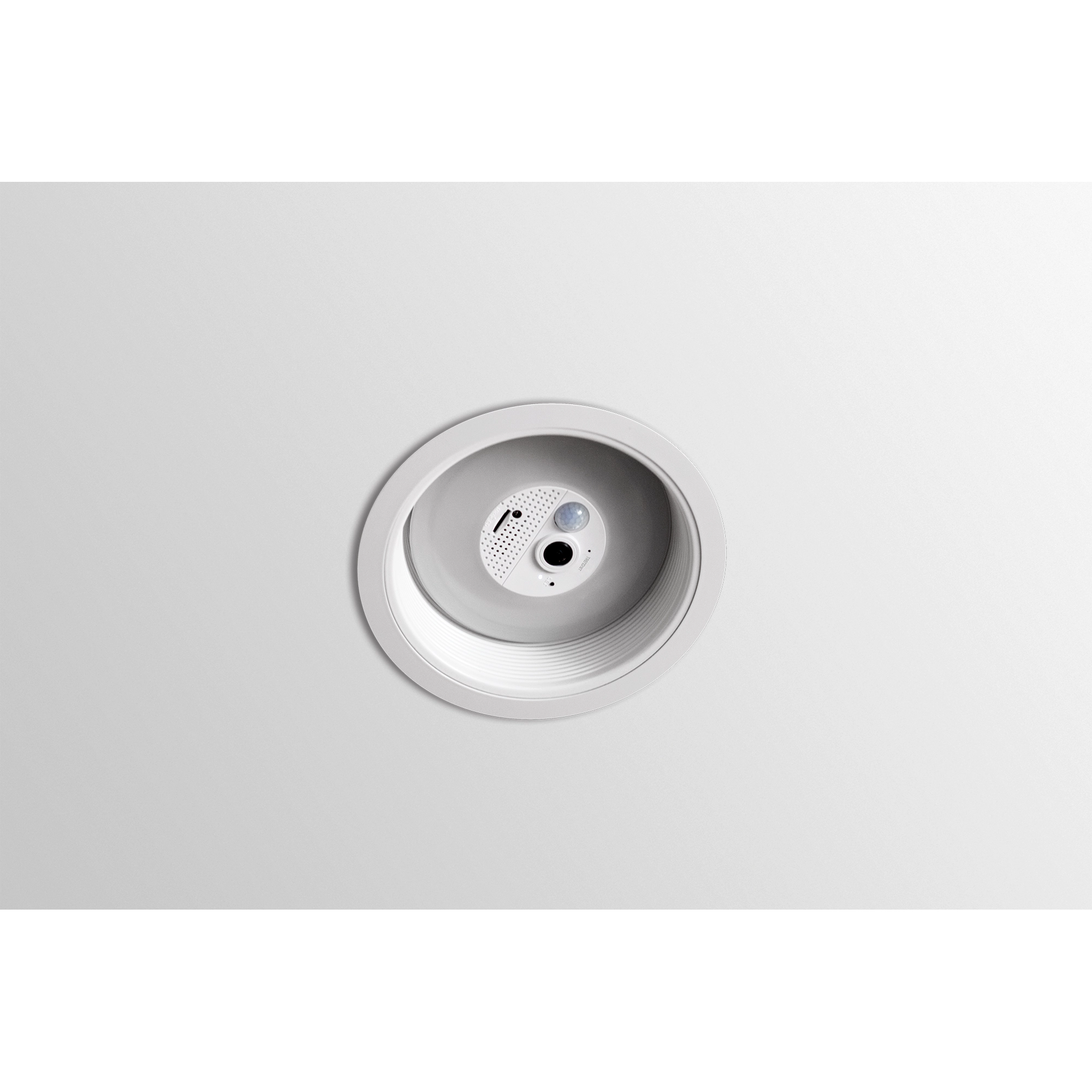

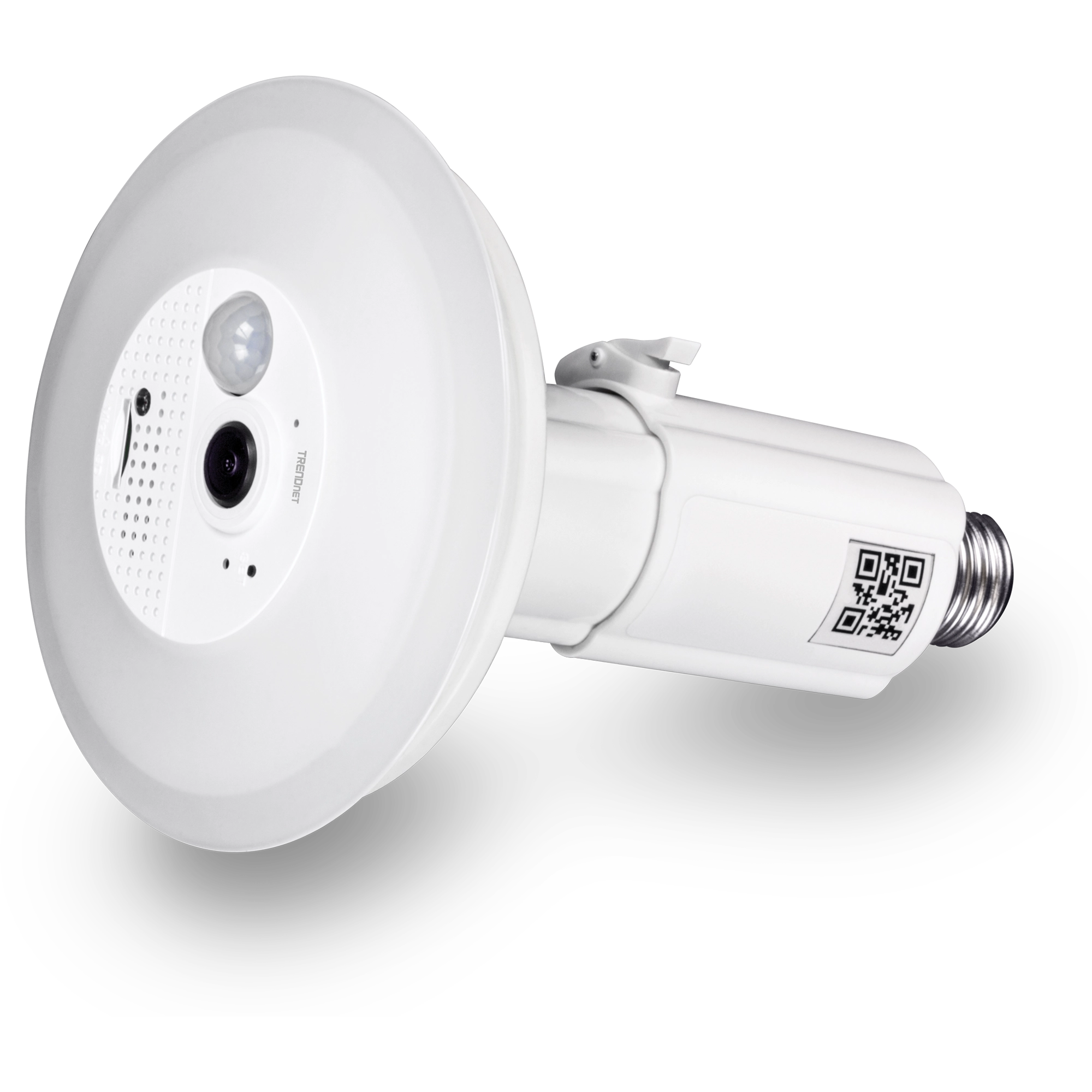

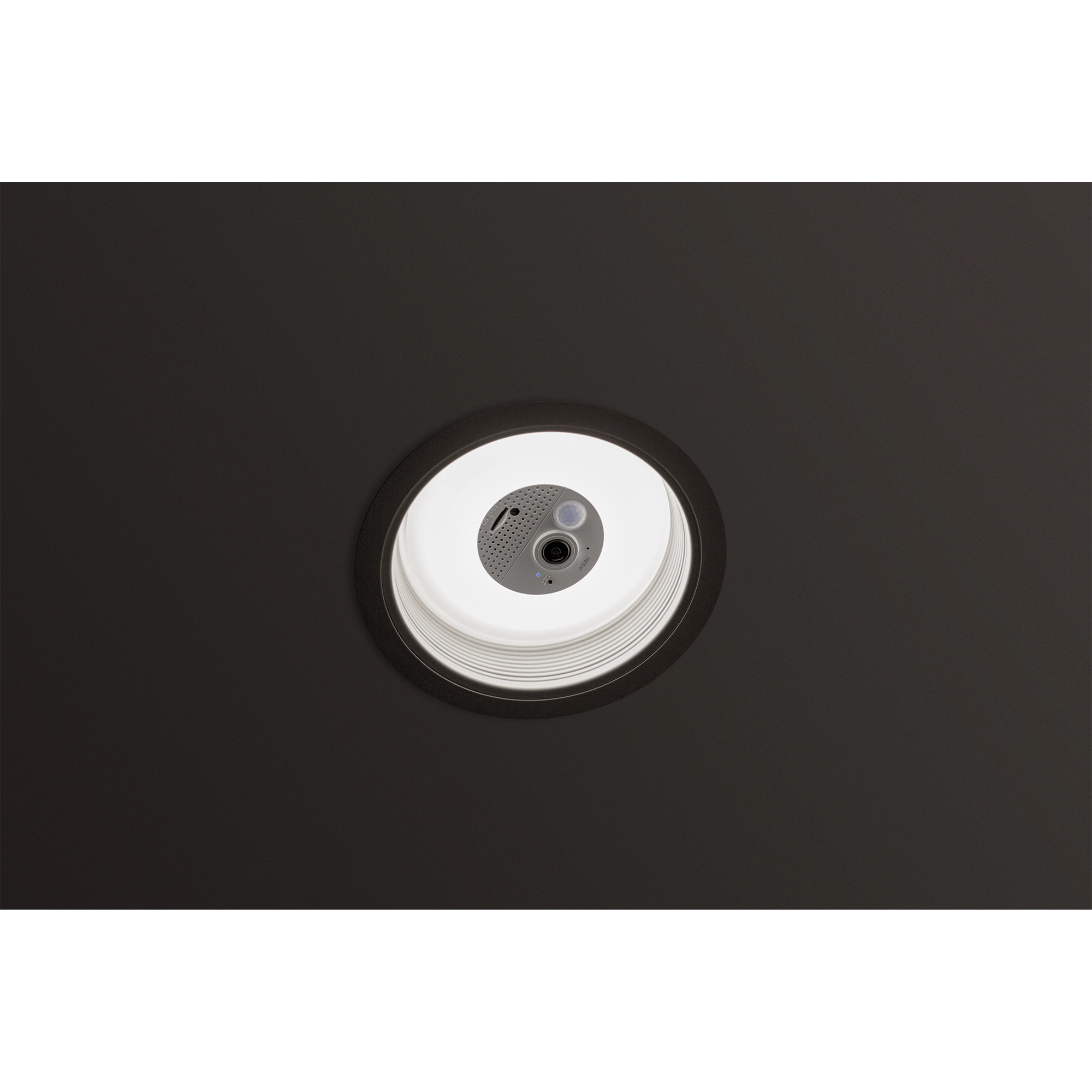

TWC-L10 Product Photo (PNG Image 1)
PNG Image
Dateigröße: : 2.39 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 2)
PNG Image
Dateigröße: : 2.87 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 3)
PNG Image
Dateigröße: : 1.83 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 4)
PNG Image
Dateigröße: : 1.19 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 5)
PNG Image
Dateigröße: : 1.72 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 6)
PNG Image
Dateigröße: : 2.69 MB
Datum: : 10/26/2017
Download
TWC-L10 Product Photo (PNG Image 7)
PNG Image
Dateigröße: : 3.10 MB
Datum: : 10/26/2017
Download
ROHS compliant Non-Disposable
Lens
  • Focal Length: 0.95mm, F2.0
  • Sensor:1/4” CMOS sensor
  • Zoom: 1.8x Digital
Viewing Angle
  • Diagonal: 185˚
Resolution
  • H.264: 1280 x 720 up to 30 fps
Audio
  • Built-in speaker
Standard
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Device Interface
  • Micro SD slot (up to 64 GB)
  • Reset button
  • LED indicator
LED
  • 6W
  • Lumen : 360lm
  • Incandescent : 40W
PIR
  • 4m range
  • Motion notification
Network Protocol
  • IPv4, UDP, TCP
Dimension
  • 130 x 130 X 139mm (5.1 x 5.1 x 5.5 in.)
Weight
  • 200g (7 oz)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Humidity
  • Max. 90% non-condensing
Power
  • 100 - 220V
  • Max. consumption: 9W
Warranty
  • 2 year
ReadyView App
  • Free Apple® and Android™ apps
  • View your camera on your mobile device
  • Take snapshots / videos
  • Control LED on/off
  • Digital zoom
  • Audio support
  • PIR support

PACKUNGSINHALT
  • TWC-L10
  • Quick Installation Guide

Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
