2-Pack 10G SFP+ Single Mode LC Module (10km)

TEG-10GBS10/2 (Version v3.0R)

  • Transmission distance of up to 10km (6.21 mi.)
  • Duplex LC optical interface
  • Supports data rates of up to 10.31Gbps
  • Supports 1310nm single mode network transmissions
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3ae 10 Gigabit Ethernet
  • Digital Diagnostics Monitoring (DDM) support
  • Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 2-Pack 10G SFP+ Single Mode LC Modules are compatible with standard SFP+ ports found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface, and supports high-speed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support reliable connections for long-distance network applications.

Two identical factory buildings with multiple windows and three smokestacks each are connected by a dotted line, indicating a relationship between them. The background features a gradient transitioning from light blue at the top to dark blue at the bottom.

Fiber Applications

Long distance fiber networking for manufacturing, business parks, and school campus applications.

Two location markers are connected by a dotted line on a gradient blue background with a labeled distance of 10km 6.21 mi between them.

Distance

10G SFP+ transceivers span distances up to 10km (6.21 mi.) at 10G speeds.

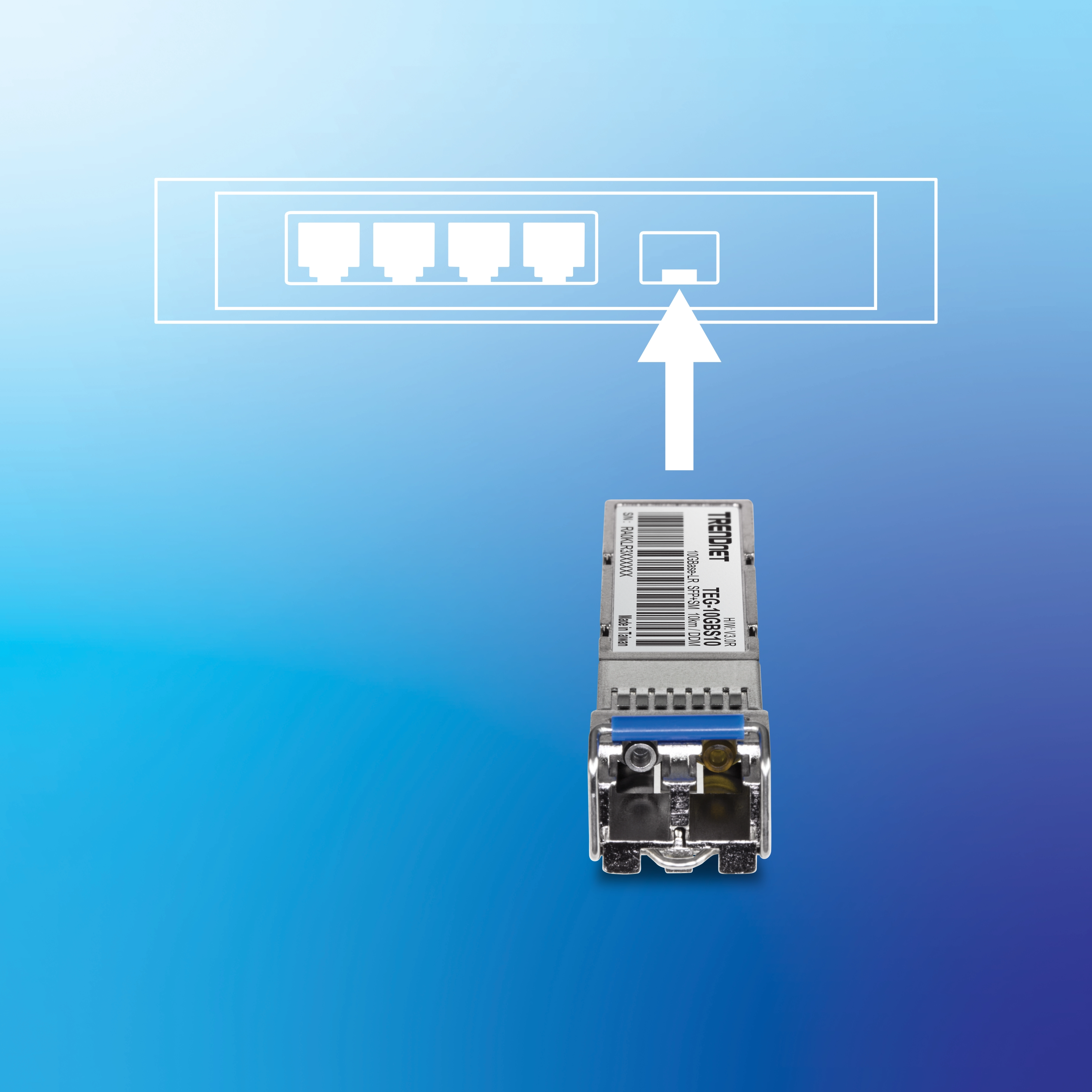

A TRENDnet TEG-10GBS10 SFP+ Single Mode LC Module is placed below a diagram of a network switch, with an arrow pointing to the SFP+ port where the module should be inserted. The background consists of blue gradient shades.

Compatibility

Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ port.

TRENDnet TEG-10GBS10 SFP+ transceiver module with labeled callouts highlighting its SFP+ MSA compliance and LC duplex connector; positioned above illustrations of horizontal and vertical switches to show insertion points and compatibility in network configurations.

Distance

Single mode 10G SFP+ transceivers span distances up to 10km (6.21 mi.)

Interface

These single mode fiber SFP+ transceivers support LC-type duplex connectors

Wavelength

Compatible with 1310nm transmissions

10G Speeds

These SFP+ modules supports up to 10Gbps speeds

Hot-Pluggable SFP+

Hot-pluggable 10G SFP+ modules compatible with an MSA compliant SFP+ port

Operating Temperature

Feature an operating temperature range of 0°– 70° C (32° – 158° F)

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.3ae
  • 10GBASE-LR
Device Interface
  • SFP+ MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • Up to 10.31Gbps
Wavelength
  • 1310nm
Optical Output Power
  • -6.2 ~ 0.5 dBm
Distance
  • 10km (6.2 mi.)
Special Features
  • Hot pluggable
  • Metal enclosure
  • DDM support
Sensitivity
  • -15 dBm
Power (per unit)
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (per unit)
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight (per unit)
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • 2 x TEG-10GBS10

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
