Filename: Utility_TEG-224WSplus.zip
SHA-1 Checksum: 808D3CC72349D530ACEC220CFDF51BD52CCC95B5
Date
7/25/2017
File Size
2.76 mb
Filename: EN_Spec_TEG-224WSplus.pdf
Date
12/19/2006
File Size
257.12 kb
Filename: FR_Spec_TEG-224WSplus.pdf
Date
12/19/2006
File Size
948.44 kb
Filename: GE_Spec_TEG-224WSplus.pdf
Date
12/19/2006
File Size
659.58 kb
Filename: SP_Spec_TEG-224WSplus.pdf
Date
4/22/2008
File Size
2.11 mb
Filename: RU_Spec_TEG-224WSplus.pdf
Date
4/22/2008
File Size
2.72 mb
Filename: EN_QIG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
995.72 kb
Filename: FR_QIG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
997.96 kb
Filename: GE_QIG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
998.12 kb
Filename: PO_QIG_TEG-224WSplus.pdf
Date
12/19/2006
File Size
992.52 kb
Filename: SP_QIG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
1,000.32 kb
Filename: RU_QIG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
1.06 mb
Filename: RO_QIG_TEG-224WSplus.pdf
Date
9/1/2006
File Size
2.92 mb
Filename: UG_TEG-224WSplus.pdf
Date
7/17/2006
File Size
999.46 kb
JPEG Image
File Size: 280.14 kb
Date: 7/17/2006
Download
TIFF Image
File Size: 2.12 mb
Date: 7/17/2006
Download
JPEG Image
File Size: 1.31 mb
Date: 8/9/2006
Download
TIFF Image
File Size: 4.00 mb
Date: 8/9/2006
Download
Hardware |
Standards | - IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-TIEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
- IEEE 802.3x Full Duplex Flow Control
|
Network Media | - Ethernet: UTP/STP Cat. 3, 4, 5
- Fast Ethernet: UTP/STP Cat. 5
- Gigabit: UTP/STP Cat. 5, 5E, 6
- Mini-GBIC: LC Type Fiber Optic
|
Protocol /Topology | |
Interface | - 24 x 10/100Mbps Auto-MDIX Fast Ethernet ports
- 2 pairs x 1000-Based RJ45 Port and Mini-GBIC Slot*
- * One RJ45 Port or Mini-GBIC Slot of each pair can be used at a time.
|
Data Transfer Rate | - Ethernet: 10Mbps/20Mbps (Half-Duplex/Full-Duplex)
- Fast Ethernet: 100Mbps/200Mbps (Half-Duplex/Full-Duplex)
- Gigabit Ethernet: 2000Mbps (Full-Duplex)
|
Address Table | |
Data RAM Buffer | |
Diagnostic LEDs | - Per Unit: Power, System
- Per Gigabit Ethernet: Link/ACT, Speed
- Per Cooper Gigabit Port: Link/ACT, Speed 100M, Speed 1000M, Mini-GBIC
|
Power/Consumption | - 100-240V AC, 50/60Hz Internal Power Supply / 11 Watts (max)
|
Dimensions (W x D x H) | - 440 x 140 x 44 mm (17.32 x 5.5 x 1.73 inches)
|
Weight | |
Temperature | - Operating : 0° C ~ 40° C (32° F ~ 104° F)
- Storage: -10° C ~ 70° C (14° F ~ 158° F)
|
Humidity | - Operating: 10% ~90% RH
- Storage: 5%~ 90% RH
|
Safety Emissions | |

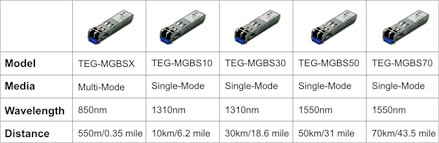

Optional Modules |
|
PACKAGE CONTENTS |
- TEG-224WSplus
- Quick Installation Guide
- Utility CD-ROM
- Power Cord
- Rack-Mount Kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
