Mini Wireless N Speed USB Adapter

TEW-649UB (Version v1.0R)

  • Ultra compact high speed wireless n adapter
  • Upgrade your laptop or desktop to wireless n
  • 8x the speed and 4x the coverage of wireless g technology
  • One-touch setup with Wi-Fi Protected Setup (WPS)
Watch product spotlight video:

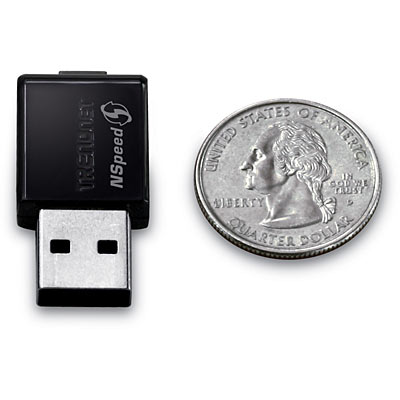

The Mini Wireless N Speed USB Adapter (model TEW-649UB) connects a laptop or desktop computer to a wireless n network at up to 8x the speed and 4x the coverage of a wireless g connection. Enjoy proven wireless n speed and reliability in an ultra compact design that is slightly larger than a US penny.

Setup is a breeze with one-touch Wi-Fi Protected Setup (WPS) technology. Advanced wireless encryption protects your valuable data. MIMO antenna technology delivers superior range and eliminates dead spots. Wi-Fi Multimedia (WMM) Quality of Service (QoS) prioritizes important video, audio and gaming traffic. Stream video, download files, play games and talk online with this ultra compact adapter.


  • Wi-Fi compliant with IEEE 802.11n standard
  • One-touch setup with Wi-Fi Protected Setup (WPS) support
  • High speed USB 2.0 interface
  • Supports Multiple Input Multiple Output (MIMO) antenna technology
  • Backwards compatible with IEEE 802.11g and IEEE 802.11b devices
  • Supports Ad-Hoc (Client-Client) and Infrastructure (AP-Client) Mode
  • Maximum reliability, throughput and connectivity with automatic data rate switching
  • Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
  • Low interference and high susceptibility provide reliable performance
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Compatible with Windows 7, Vista, XP, 2000 and Mac OS X operating systems
  • Easy user setup and intuitive diagnostic utility
  • Coverage of up to 50 meters indoor (160 feet) and 100 meters outdoor (320 feet) *
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Interface
  • USB 2.0
Standards
  • IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
LED Indicator
  • Activity, WPS
WPS Button
  • Enables WPS connection
Power Consumption
  • Receive mode: 290mA (max)
  • Transmit mode : 320mA (max)
Supported OS
  • Windows 7 (32/64-bit)/ Vista (32/64-bit)/ XP(32/64-bit)/ 2000
  • Mac OS 10.4 10.8
Dimensions (LxWxH)
  • 33.9 x 17 x 7mm (1.3 x 0.66 x 0.27in)
Weight
  • 3g (0.1oz)
Temperature
  • Operating: 0 ~ 40 C (32 ~ 104 F)
  • Storage: -10 ~ 70 C (14 ~ 158 F)
Humidity
  • 10% ~ 95% max (non-condensing)
Certifications
  • CE, FCC
Wireless
Modulation
  • OFDM, DSSS
Antenna
  • Built-in on board antennas
Frequency
  • 2.412 ~ 2.484 GHz
Data Rate (auto fallback)
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • 802.11n: 150Mbps (TX)/300Mbps (RX)
Output Power
  • 802.11b: 15dBm (typical)
  • 802.11g: 14dBm (typical)
  • 802.11n: 12dBm (typical)
Receiving Sensitivity
  • 802.11b: -76dBm (typical) at 11mpbs
  • 802.11g: -65dBm (typical) at 54Mbps
  • 802.11n: -61dBm at 150Mbps
Encryption
  • 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Channels
  • 1~11 (FCC), 1~13 (ETSI)
PACKAGE CONTENTS
  • TEW-649UB
  • CD-ROM (Utility and Driver)
  • Multi-Language Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
