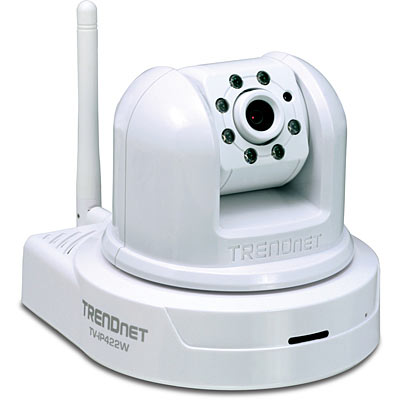

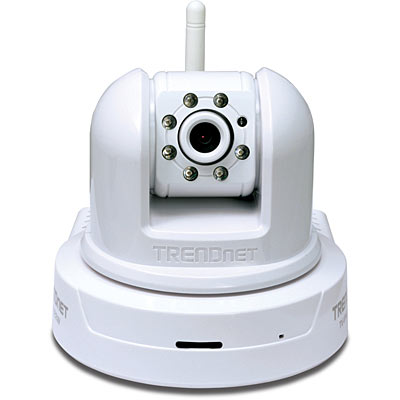

SecurView Wireless Day/Night Pan/Tilt/Zoom Network Camera
TV-IP422W (Version A1.0R)
  • No need for an Ethernet cable connection: video is transmitted over an encrypted wireless signal
  • Night visibility of up to 5m (16.4ft.)
  • Monitor a greater area with pan and tilt
  • Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
  • Program motion detection recording and email alerts with complimentary software
SecurView IP Camera Critical
Firmware Update Available


 DISCONTINUED PRODUCT
The TV-IP422W (Version A1.0R) has been discontinued.  It has been replaced by the TV-IP422WN (Version V1.0R). For a list of discontinued products, click here.

The Wireless Day/Night Pan/Tilt Network Camera Server with Audio (TV-IP422W) provides day and night video monitoring over a large area. See, hear and talk to people in your camera's viewing field day or night from any Internet connection.

Monitor a larger area with wireless pan and tilt Network Cameras­­. Pan the camera side-to-side a remarkable 330° and tilt up-and-down 105°.

The TV-IP422W provides high quality video streams over an encrypted wireless connection. Advanced intuitive software includes motion detection recording, email alerts* and scheduled recordings. This camera's brilliant image quality, pan/tilt functionality, day/night recording capabilities and built-in 2-way audio make it ideal for home, small office and business use.

Note: Does not work with TV-H400 dome camera enclosure

* Does not support SSL
** USB port supports up to 500mA power device with FAT16/32 format
*** The 3G service from a mobile phone provider is required
**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.



RoHS Compliant
  • Compatible with wireless g and b devices.
  • Advanced encryption modes include WEP, WPA-PSK and WPA2-PSK
  • Pan 330º side-to-side and tilt 105º up-and-down from any Internet connection
  • High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
  • Hear and talk to people in your camera's viewing area through your computer

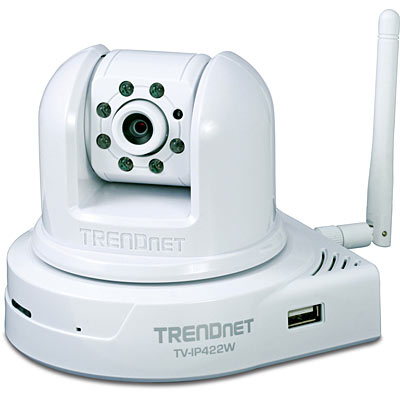

  • Built-in USB port allows you to store still images directly onto a USB flash or hard drive**
  • Infrared lens enables day and night vision (night visibility up to 5 m)
  • Supports 3GPP live video viewing via 3G mobile phone ***
  • Supports TCP/IP networking, SMTP Email*, HTTP, Samba and other Internet protocols
  • Record streaming video to your computer and network storage devices
  • Sends image snapshots to FTP, email* and flash drives
  • Motion detection email alerts*
  • Embedded Watchdog feature automatically reboots camera if an operational errors is detected
  • Two adjustable motion detection windows with just-in-time snapshot and time stamp overlay
  • Quick Universal Plug and Play (UPnP) installation
  • Complimentary SecurView™ software: view and record up to 16 cameras simultaneously ****
  • 3-year limited warranty


Note: When using the PoE splitter (TPE-102S/TPE-112GS) with the cameras, you need to have the additional accessory, TV-JC35.

* Does not support SSL
** USB port supports up to 500mA power device with FAT16/32 format
*** The 3G service from a mobile phone provider is required
**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.

SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.

  • Camera Specifications
  • Image Sensor
  • Sensor
  • 1/4" color CMOS sensor
  • Resolution
  • 640 x 480 pixel
  • Fixed Lens
  • f: 4.0mm, F: 1.8 (IR lens)
  • Viewing Angle
  • 64 degree
  • Minimum Illumination
  • 0 lux
  • Audio
  • Microphone Input
  • Internal omni-directional Sensitivity: -48dB + 3dB Response frequency: 50 ~ 16000Hz
  • Audio Output
  • 3.5mm speaker output jack
  • Format
  • PCM/AMR (mono)
  • Video/Image Setting
  • Video Format
  • MPEG-4 and MJPEG
  • Image Frame Rate
  • 30fps @VGA, QVGA, QQVGA
  • Frame Rate Setting
  • 1 ~ 30fps (frames per second)
  • Compression Ratio Setting
  • 5 levels
  • Resolution
  • 640 x 480, 320 x 240, 160 x 120
  • Digital Zoom
  • 3x
  • Exposure Control, White Balance, Gain Control
  • Automatic
  • Image Setting
  • Adjustable Brightness, Contrast, Saturation
  • Flip Images
  • Vertical / horizontal
  • Light Frequency
  • 50Hz, 60Hz or outdoor
  • Pan/Tilt
  • Pan Range
  • +165 ~ -165 degree
  • Tilt Range
  • +90 ~ -15 degree
  • Preset Positions
  • 8 positions
  • Control
  • Up, down, left, right, center
  • Communication
  • LAN
  • 10/100Mbps Auto-MDIX
  • Protocol
  • TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP
  • Hardware Specifications
  • System
  • CPU
  • ARM9 base
  • RAM
  • 32Mbyte SDRAM
  • ROM
  • 8Mbyte NOR Flash
  • OS
  • Linux
  • System Requirement (Web Configuration)
  • CPU
  • Pentium III 350MHz or above
  • Memory Size
  • 128MB or above
  • Resolution
  • 800 x 600 or above
  • Browser
  • Internet Explorer 6.0 or above
  • Supported OS
  • Windows 2000/XP/Vista/Windows 7
  • System Requirement (SecurView™ Software)
  • CPU
  • Pentium4 1GHz or above
  • Memory Size
  • 512MB or above
  • Resolution
  • 1024 X 768 or above
  • Supported OS
  • Windows 2000/XP/Vista/Windows 7
  • Physical /Environment
  • Dimension
  • 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in)
  • Weight
  • 355g (12.4 oz)
  • Power
  • 12VDC,1.5A external power adapter (3.5 mm)
  • Power Consumption
  • 10 watts (max)
  • LEDs
  • Power (orange), link (green) LED enable/disable support
  • IR Wavelength
  • 940nm
  • Temperature
  • Operation: 0°C ~ 45°C (32°F ~ 113°F) Storage : -10°C ~ 60°C (14°F ~ 140°F)
  • Wireless
  • Standard
  • IEEE 802.11b/g
  • Security
  • 64/128-bit WEP, WPA-PSK, WPA2-PSK (TKIP/AES)
  • Antenna
  • 2dBi detachable reverse SMA connector
  • Other
  • USB Port
  • USB 1.1 (type A) Up to 500mA power device with FAT16/32 format
  • GPIO
  • 1 input and 1 output
  • IR Sensor (minimum lux)
  • Normal mode: 2~2.5 lux Night mode on: 0.5 lux IR on: 0 lux Light sensor activates the IR LED on/off: 5~10 lux
  •

    Package Contents

    • TV-IP422W
    • Multi-Language Quick Installation Guide
    • CD-ROM
      (Utility and User’s Guide)
    • Cat. 5 Ethernet cable
      (1.8 m / 5.9 ft)
    • Power adapter
      (12VDC, 1.5A)
    • GPIO adapter
    • Mounting kit
