8-Port 10/100Mbps PoE Switch
TPE-S80 (Version v1.0R)
  • Reduces equipment cost by delivering data and power over existing network cables
  • 8 x 10/100Mbps Full Duplex PoE ports
  • 1.6Gbps switching capacity
  • Use with TRENDnet's PoE Splitter to network and power non-PoE devices
  • Up to 15 Watts per port with a 123 Watt total power budget


 DISCONTINUED PRODUCT
The TPE-S80 (Version v1.0R) has been discontinued.  For a list of discontinued products, click here.
Watch product spotlight video:

The 8-Port 10/100Mbps PoE Switch, model TPE-S80, reduces equipment and installation costs by delivering data and power over existing Ethernet cables to Power over Ethernet (PoE) enabled devices such as Access Points and IP Cameras.

Boost office efficiency and reduce network congestion with a total switching capacity of 1.6Gbps. LED indicators display device status for easy power management and troubleshooting. An internal power supply reduces clutter and delivers 15.4 Watts to each PoE port. A convenient on/off button is located on the back of the switch. Non-PoE devices can connect to the switch—auto-sensing PoE technology cuts power to non-PoE connected devices. Use TRENDnet's PoE Splitter with the TPE-S80 to install non-PoE devices in remote locations.


  • IEEE 802.3af Power over Ethernet (PoE) compliant
  • 8 x 10/100Mbps Auto-MDIX RJ-45 PoE ports
  • On/Off power switch
  • Provides 15.4 watts per PoE port
  • Supports PoE Powered Device (PD) classification
  • 1.6Gbps switching fabric
  • Full wire-speed non-blocking reception and transmission
  • Store-and-forward switching method
  • Back pressure Flow Control for half-duplex mode
  • IEEE 802.3x Flow Control for full-duplex mode
  • 512Kbits RAM Data Buffer and 1K MAC address entries

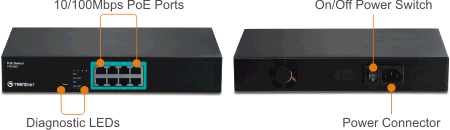

  • Diagnostic LEDs (Power, Link/Activity, PoE Act/Status)
  • Plug and Play
  • Sturdy metal enclosure
  • Mounting hardware included
  • 3-year limited warranty
  • Hardware
  • Standard
  • IEEE 802.3 10Base-T
  • IEEE802.3u 100Base-TX
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3x Flow Control
  • Ports
  • 8 x 10/100Mbps Auto-MDIX PoE ports
  • Power Switch
  • On/Off power switch
  • Data Transfer Rate
  • Ethernet: 10/20Mbps (half/full duplex)
  • Fast Ethernet: 100/200Mbps (half/full duplex)
  • Data RAM Buffer
  • 512Kbits
  • Address Table
  • 1K MAC entries
  • Switch Fabric
  • 1.6Gbps
  • Power
  • 100~240VAC 50/60Hz, internal universal switching power
  • Diagnostic LEDs
  • Power, Link/Activity, PoE Act/Status
  • Power Consumption
  • 6 Watts max. (no Power Device (PD) connected)
  • 132 Watts max. (8 x 15.4 watts PoE devices connected)
  • Temperature
  • Operating: 0° ~ 45°C (32° ~ 113°F)
  • Storage: -10° ~ 70°C (14° ~ 158°F)
  • Humidity
  • 10%- 95% (non-condensing)
  • Dimensions
  • 266 x 160 x 44 mm (10.5 x 6.3 x 1.73 in.)
  • Weight
  • 1.4 kg (3.1 lb)
  • Certifications
  • CE, FCC
  • PoE
  • Power over Ethernet
  • Up to 15.4 watts per port; PD classification
  • Polymer switch for short protection
  • PoE: pin 3,6 for power+ and pin 1,2 for power-


Package Contents

  • TPE-S80
  • Multi-Language Quick Installation Guide
  • Rack mounting kit
  • Power cord
