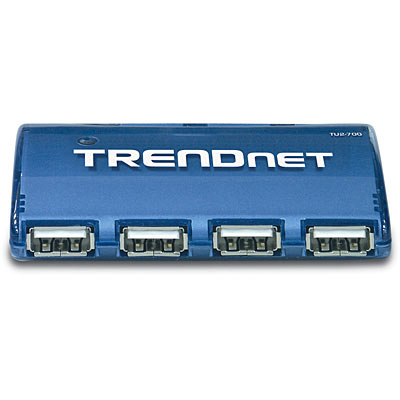

7-Port High Speed USB Hub w/ Power Adapter
TU2-700 (Version v2.1R)

Quickly connect 7 USB devices to your computer
Transfer data at speeds up to 480Mbps

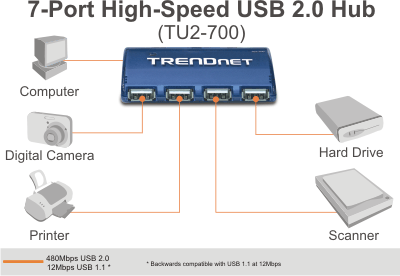

Connect cameras, MP3 players, storage devices, printers and more

Click on image to enlarge

The TU2-700 features 7 USB 2.0 ports and supports simultaneous 1.5/12/480 Mbps operations. It is compatible with USB 2.0/1.1 cameras, scanners, printers and other USB devices. The TU2-700 is the perfect solution for desktop and laptop devices.

Compliant with USB 2.0 and USB 1.1 Specifications
Fully Forward and Backward Compatible with USB 1.1 Devices
Supports all USB speeds: High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)
Switches to the Peripheral’s Highest Supported Speed Automatically
Supports up to 127 USB Devices
Supports Suspense and Resume Operations
Compatible with Windows 7/Vista/XP/2000/ME/98SE, Linux and Mac Operating Systems
USB 2.0 A-B cable included (60cm /2ft.)
Supports Plug & Play and Easy Installation
2-year limited warranty

Hardware
Standard:	USB 1.1 USB 2.0
USB Controller:	OHCI, EHCI
Ports:	1 x Upstream Port (Type B) 7 x Downstream Ports (Type A)
OS Compliant:	Windows 7/Vista/XP/2000/ME/98SE, Linux and Mac
Data Rate :	High-Speed: 480Mbps Full-Speed: 12Mbps Low-Speed: 1.5Mbps
Power Consumption:	500mA (max) per port

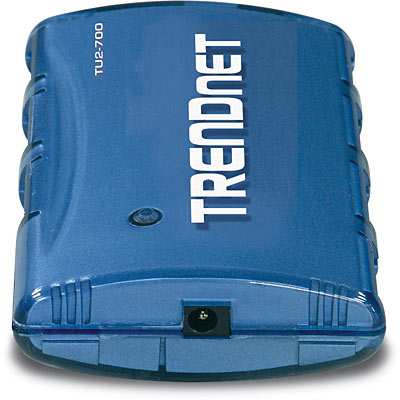

Power Adapter:	5V DC, 2A External Power Adapter
Max. Devices Supported:	127 (daisy-chaining with other USB hubs)
LED Indicators:	Power
Dimensions:	80 x 50 x 10 mm (3.14 x 1.95 x 0.4 inches)
Weight:	48g (1.7oz.)
Temperature:	Operating: 0° ~ 45° C (32° ~ 113° F) Storage: -20° to 70° C (-4° ~ 158° F)
Humidity:	Operating: 10% to 90% (Non-Condensing) Storage: 0% to 90% (Non-Condensing)
Certifications:	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Downloads

Package Contents

TU2-700
USB Cable (TypeA-to-MiniB, Male 60cm/2ft)
Quick Installation Guide
Power Adapter (5V DC, 2A)
