Product Families » Wireless Networking » N300 Wireless » TEW-731BR
N300 Wireless Home Router
TEW-731BR (Version v1.0R)
  • High performance 300Mbps wireless n router
  • Stream video, download files, talk online and play games wirelessly
  • Connect computers with one-touch Wi-Fi Protected Setup (WPS)
  • Up to 50% energy savings with GREENnet technology

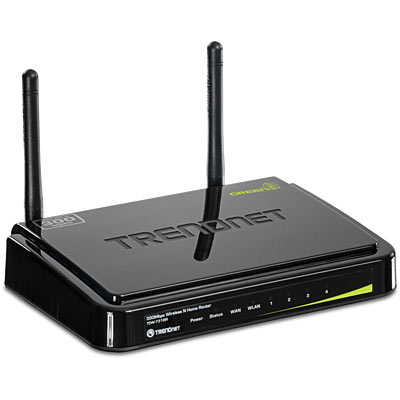

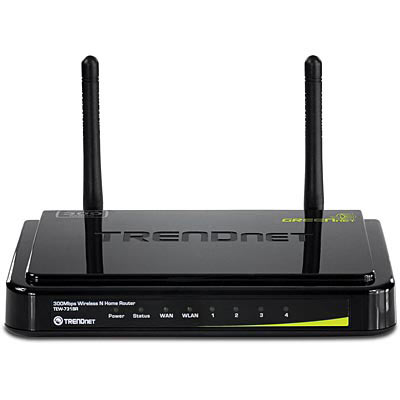

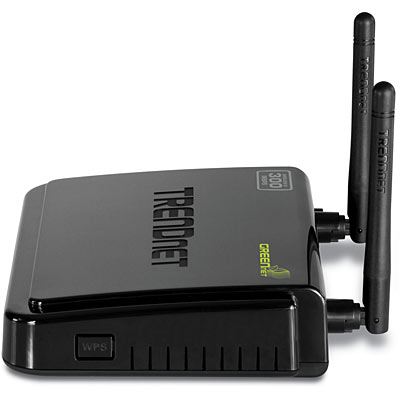

TEW-731BR
Click on image to enlarge

TRENDnet’s N300 Wireless Home Router, model TEW-731BR, provides enhanced 300Mbps wireless n speed and coverage to share files, play games, and stream video wirelessly.

Advanced encryption protects your wireless network, Access Control tools help block unwanted Websites and unknown users, and embedded GREENnet technology reduces power consumption by up to 50%.

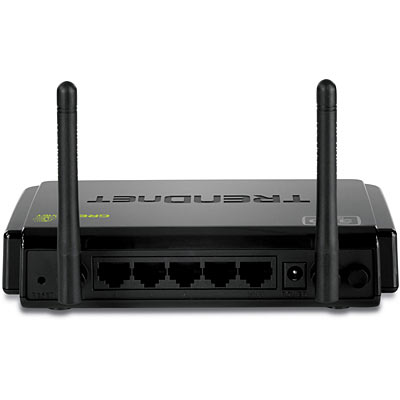

Advanced Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wi-Fi Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of a button. WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the router convey device status. Network wired devices to the four Fast Ethernet ports on the back of the router.


RoHS Compliant

  • 4 x 10/100Mbps Auto-MDIX LAN ports
  • 1 x 10/100Mbps Auto-MDIX WAN port (Internet)
  • One touch wireless connection to wireless clients using the WPS button
  • Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards
  • High-speed data rates of up to 300Mbps with IEEE 802.11n*
  • GREENnet technology reduces power consumption by up to 50%
  • Compatible with most popular cable/DSL Internet service providers using Dynamic/Static IP, PPPoE, PPTP and L2TP protocols
  • 2 fixed external antennas support high speed performance and great coverage with MIMO technology
  • Firewall features Network Address Translation (NAT)
  • Virtual server and Application Level Gateway (ALG) services for special Internet applications
  • Universal Plug and Play (UPnP) for auto discovery and support for device configuration of Internet applications
  • Dynamic DNS Client for dynamic Internet IP resolution
  • Provides additional security with  Internet Access Control (MAC Address, Domain, and  IP Filtering)
  • Static and Dynamic RIP V1/2 routing support
  • Easy setup via Web browser using  Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
  • Advanced wireless security of up to WPA2-RADIUS
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Indoor coverage up to 100 meters (330ft.)* depending on the environment
  • Outdoor coverage up to 300 meters (980ft.)* depending on the environment
  • 3- year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az
WAN 1 x 10/100Mbps Auto-MDIX port (Internet)
LAN 4 x 10/100Mbps Auto-MDIX ports
WPS Button Enables Wi-Fi Protected Setup (WPS) function (Hold for 3 seconds)
Power Switch On/Off power switch
Connection Type Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP
Supported Web Browsers Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari
Internet Access Control MAC Address Filter, Domain/URL Filter, Protocol/IP Filter, Virtual Server, DMZ host, UPnP, PPTP/L2TP/IPsec VPN pass through
Management/ Monitoring Local/remote configuration, upgrade firmware, Backup/Restore configuration via Web browser, Internal System Log, Syslog, E-Mail Logging, SNMPv1/v2c, Ping Test Tool, Dynamic DNS
Routing Static and Dynamic RIPv1/2
LED Indicators Power, Status, LAN1~LAN4, WAN, WLAN
Power
  • Input: 100~240V AC, 50~60Hz
  • Output: 5V DC, 1A
Power Consumption 3.0 Watts (max)
Dimension
(L x W x H)
158 x 109 x 34 mm (6.2 x 4.3 x 1.3 in)
Weight 210 g (7.4oz)
Temperature
  • Operation: 0°~ 40°C (32°F~ 104°F)
  • Storage: -10°~ 70°C (14°F~158 °F)
Humidity Max. 90% (non-condensing)
Certifications CE, FCC
Wireless
Frequency 2.412~2.484GHz band
Antenna 2 x 2dBi fixed dipole antennas
Modulation 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
Media Access Protocol CSMA/CA with ACK
Data Rate
  • 802.11b: Up to 11Mbps
  • 802.11g: Up to 54Mbps
  • 802.11n: Up to 300Mbps
Security 64/128-bit WEP (HEX/ASCII), WPA/WPA2-RADIUS, WPA/WPA2-PSK
Output Power
  • 802.11b: 15dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) @ 54Mbps
  • 802.11n: 13dBm (typical) @ 300Mbps
Receiving Sensitivity
  • 802.11b: -85dBm (typical) @ 11Mbps
  • 802.11g: -68dBm (typical) @ 54Mbps
  • 802.11n: -62dBm (typical) @ 300Mbps
Channels 1~ 11 (FCC), 1~13 (ETSI)

TEW-731BR

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info
Email a Friend
Datasheet
Quick Installation Guide
Downloads
View Knowledgebase
View Emulator
Register Your Product
Package Contents
  • TEW-731BR
  • Multi-Language Quick Installation Guide
  • CD-ROM (User’s Guide)
  • Power adapter (5V DC, 1A)
  • Network cable (1.5 m / 5 ft.)
