How do I forward ports in my router?

Well Known Ports

1) Log into the Router by opening a web browser and entering http://192.168.0.1 in the address line.
2) Click on “Cancel” if the Setup Wizard comes up.
3) Click on Advanced on the left hand side.

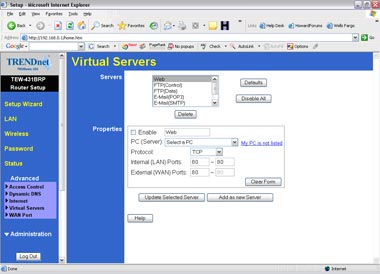

4) Click on Virtual Server.


5) If it is a “well known” port click on the Service under the Servers section. 6) Click Enable in the properties section. 7) Choose the computer that you want the port forwarded to in the PC (Server) section. Note: If the computer is not listed here because it has been assigned a static IP address make sure you add it to the PC Database under Administration>PC Database. 8) Click “Add as a New Server”.

Custom Ports

1) Log into the Router by opening a web browser and entering http://192.168.0.1 in the address line
2) Click on “Cancel” if the Setup Wizard comes up.
3) Click on Advanced on the left hand side.
4) Click on Virtual Servers.



5) For Custom ports click Enable under the properties section.
6) Choose the computer that you want the port forwarded to in the PC (Server) section. Note: If the computer is not listed here because it has been assigned a static IP address make sure you add it to the PC Database under Administration>PC Database.
7) Choose the protocol(s).
8) Enter in the port(s).
9) Click “Add as a New Server”.
