How do I install my printer on Windows 2000/XP?
FAQ ID: 988   Updated: 4/9/2007 10:17:54 PM

Step 1 Go to Start>Settings>Printers>Add New Printer (WinXP - Start>Printers and Faxes>Add a Printer).

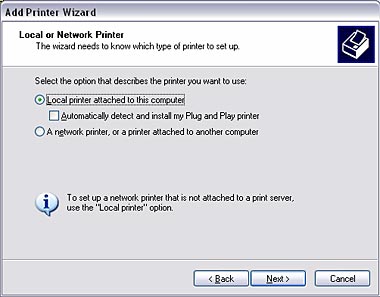

Step 2 Select Local Printer. Make sure to uncheck Automatically detect and install my plug and play printer. Click Next.

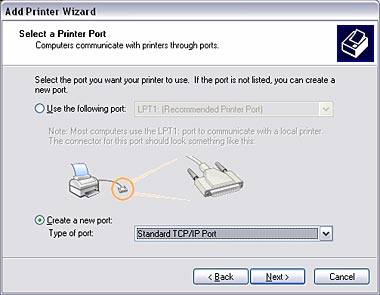

Step 3 Select Create a New Port and select Standard TCP/IP port. Click Next.

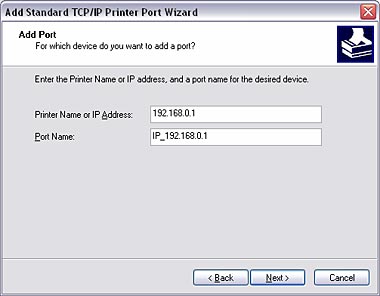

Step 4 Enter the IP address of the print server (192.168.0.1). Leave the port name with the default name. Click Next.

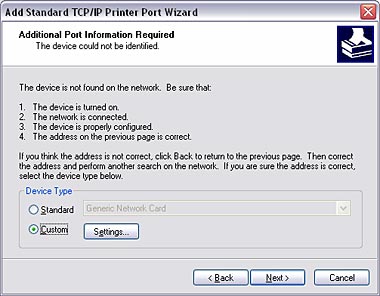

Step 5 You will get a message saying that additional port information required.

Step 6 Select Custom and then click Settings.

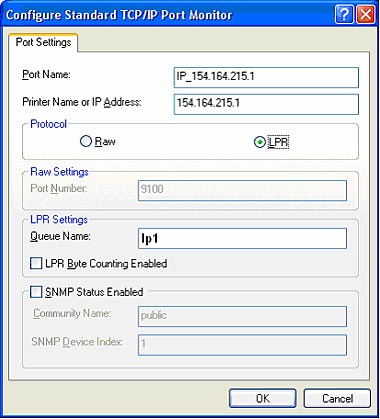

Step 7 Change the Protocol to LPR.

Step 8 For the LPR Settings for the TEW-P1P the Queue Name will be lp1. It is case sensitive! In most cases, check LPR Byte Counting Enabled. If you cannot print, then try unchecking this.

Step 9 Select OK > Finish.

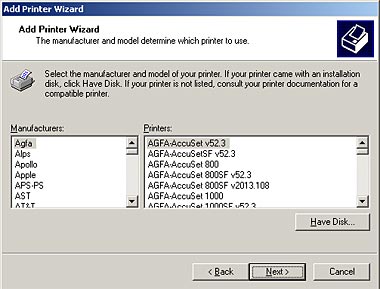

Step 10 Continue with the Add Printer Wizard. Choose your printer from the list or click Have Disk and point to your printer driver disk.
