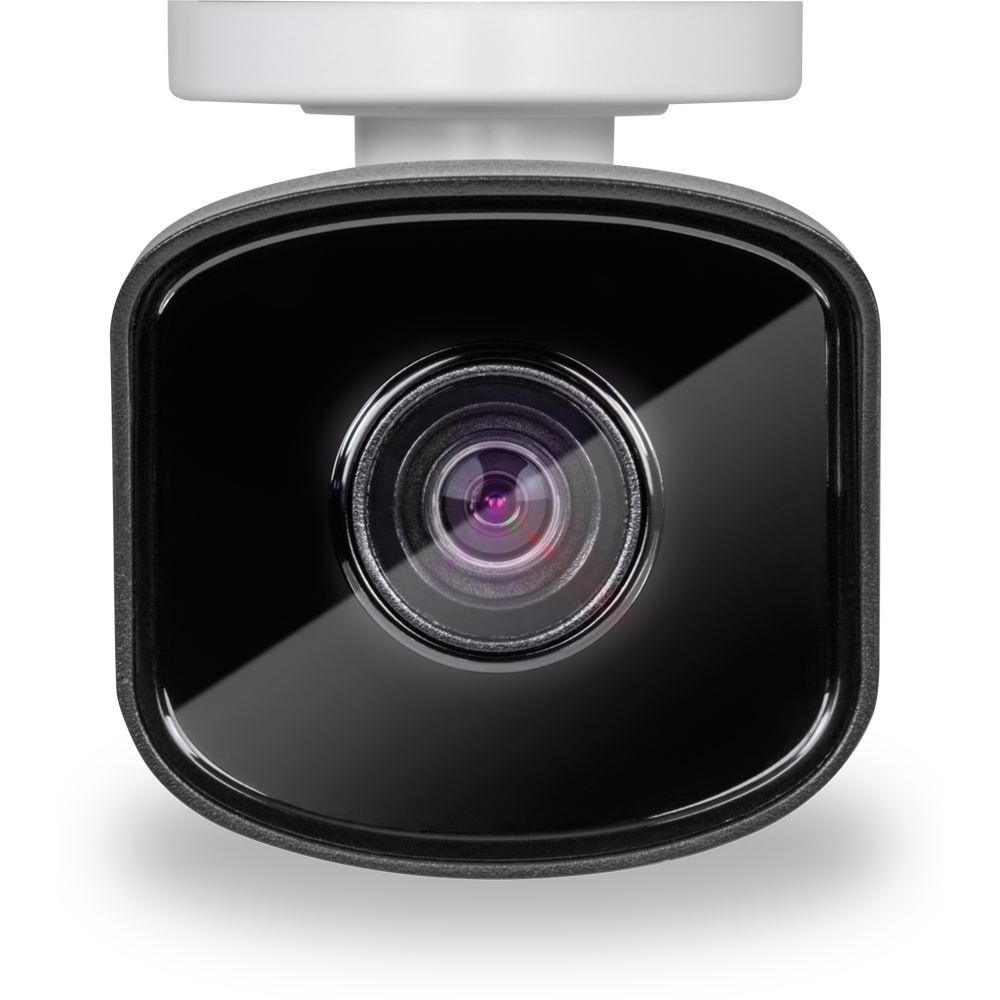

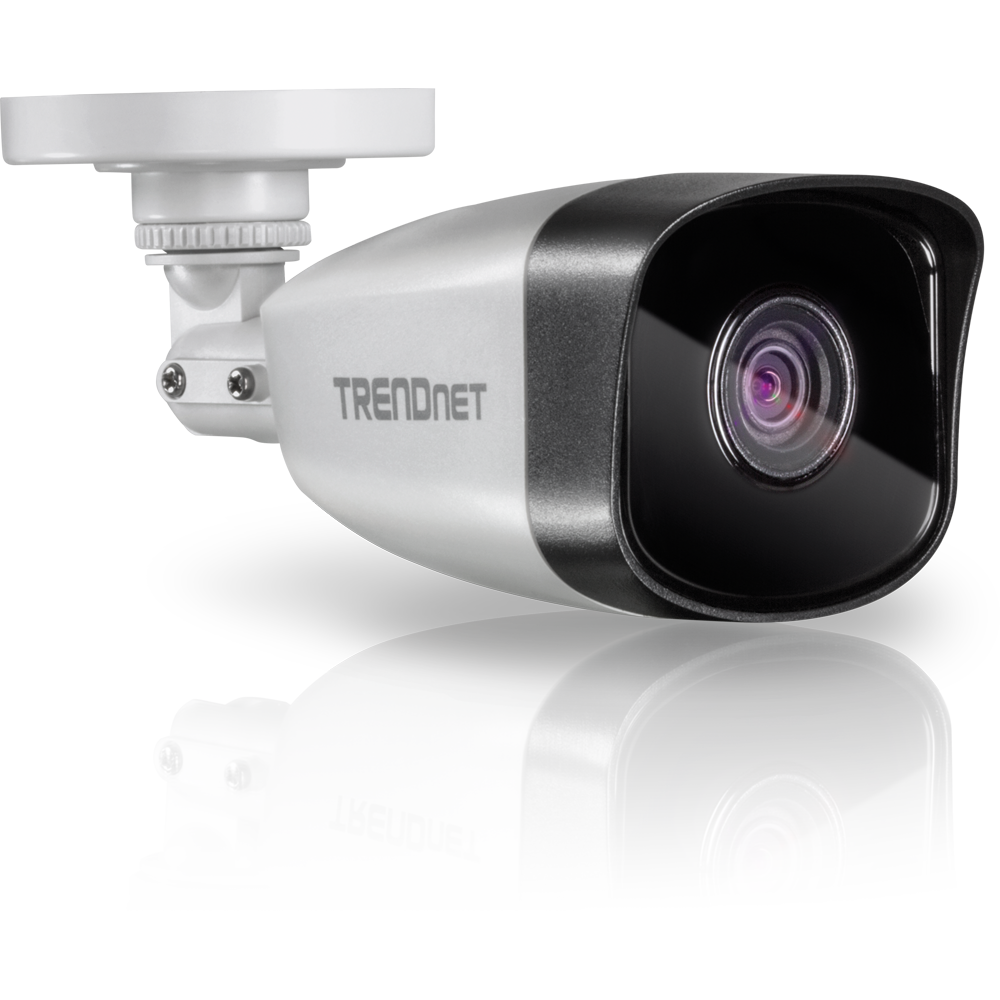

TRENDnet's Indoor/Outdoor 1MP H.264 PoE IR Bullet Network Camera, model TV-IP324PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This IR bullet network camera delivers year-round surveillance with an IP67 weather rated housing designed for outdoor environments. View 1MP video (1280 x 720) at 30 fps in a bandwidth saving H.264 compression format with included complimentary software and mobile apps.
Day/Night HD Surveillance
View 1MP 720p HD video in H.264 compression and 30m night vision provides 24-hour surveillance.
Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 60° C (-22° – 140° F).
Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this outdoor IR bullet camera up to 100m (328 ft.) from the PoE source equipment.
View 1MP 720p HD video (1280 x 720) at 30 fps in the bandwidth saving H.264 compression format
IR Night Vision
Night vision up to 30 meters (98 ft.).
Save installation costs with Power over Ethernet (PoE)
Outdoor IP67 weather rated housing
Create custom motion detection zones to send email notifications when a zone is triggered.
Create custom tamper detection zones to send an email notification when the camera view has been obstructed.
Digital Wide Dynamic Range (D-WDR)
Adjustable D-WDR setting improves image quality and clarity when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.
ONVIF Profile S
Complimentary pro-grade software to manage TRENDnet cameras
Live video to a mobile device with free iOS®and Android™apps
Focal Length: 4mm @ F2.0
Focal depth: 30cm to infinity
Sensor: 1/4” CMOS sensor
Digital zoom: 4x
Horizontal angle : 83.6˚
Manual pan: 0° to 355°
Manual tilt: 0° to 75°
Lens rotation: 0° to 355°
IR off: 0.01 lux
IR on: 0 lux
IR distance: 30m (98 ft.)
IR wavelength: 850nm
Main stream: H.264: 1280 x 720 up to 30 fps
Sub stream: H.264/MJPEG: 640 x 360 up to 30 fps
10/100Mbps PoE port
IP67 weather rated
IPv4, IPv6, UDP, TCP/IP
DHCP, NTP, DDNS, SMTP, FTP, LLTD
QoS/DSCP, IEEE 802.1X
UPnP, RTSP, RTP
ONVIF (Profile S), PSIA, CGI, ISAPI
180 x 70 x 60mm (7.1 x 2.75 x 2.4 in.)
256g (0.56 lb.)
-30 – 60 °C (-22 – 140 °F)
Max. 95% non-condensing
Max. consumption: 5W
Power Adapter (optional model: 12VDC1A)
Input: 100 – 240V AC , 50/60Hz
Output: 12V DC, 1A external power adapter
Multi-language support: English, French, German, Spanish, and Portuguese
Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, Image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, D-WDR, White Balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard
D-WDR enhances video quality in high contrast daytime lighting
Digital Noise Reduction removes digital noise from the video signal
Time, date, and text overlay
Motion detection: define up to three motion detection areas and motion sensitivity
Video masks: define custom video masks
Tamper detection function: email notification
Snapshot: real time snapshot and motion triggered
Supported dynamic DNS services: dyn.com and no-ip.com
Supports remote management
Compatible browsers: Internet Explorer®, Chrome
TRENDnetVIEW EVO Software
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
Free iOS® and Android™ apps
View live camera video on a mobile device
Quick installation guide
Camera mounting hardware
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
