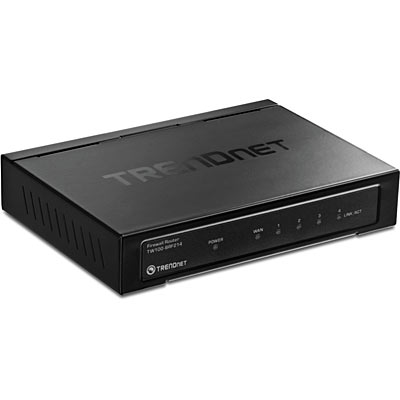

The 4-Port Fast Ethernet Firewall Router, model TW100-BRF214, is easy to setup and suitable for home office, small office, and medium sized business installations. It comes in a sturdy metal housing, offers four Fast Ethernet Ports, and features advanced QoS, Firewall, and event log functions.
Connection duration and type, firewall status, and system information event logs help with trouble shooting and network maintenance. This router supports dynamic IP, Static IP, PPPoE, PPTP, L2TP, DNS, and dynamic DNS connections. Access controls include URL, IP address, and MAC address filters. Advanced Denial of Service (DoS) capabilities include protection from IP Spoofing, Ping of Death, TCP Flooding and other attacks. Quality of Service (QoS) management functions set port-based bandwidth and DSCP queue priority controls.

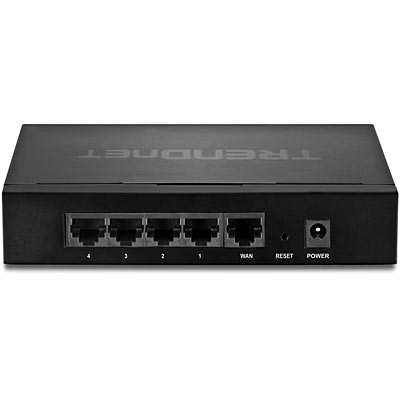

1 x 10/100Mbps Auto-MDIX port (WAN/Internet)
4 x 10/100Mbps Auto-MDIX ports (LAN)
Supports Cable/DSL Modems with Dynamic IP, Fixed IP, PPPoE, PPTP, and L2TP connection types
Supports Network Address Port Translation (NAPT)
Firewall features include NAT and Stateful Packet Inspection (SPI)
Advanced security features include Denial of Service (DoS) and ARP spoofing prevention
Website access restriction by URL/Keyword (32 entries)
MAC Address control to allow or deny access (32 entries)
Client Filtering by Date/Time using TCP/UDP ports (20 entries)
IPSec, L2TP, PPTP pass-through (Up to 100 VPN sessions)
Port-based bandwidth control (Kbps) and DSCP
Static Routes (20 entries) & Dynamic RIP v1/2
Web browser configuration, Firmware upgrade through web browser, Save/Restore configuration, Ping tool, Internal Log, DNS Lookup
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
Network cable (1.5 m / 5 ft.)
Power adapter (5V DC, 1A)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
