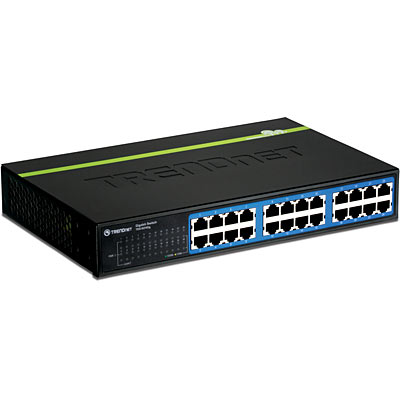

24-Port Gigabit GREENnet Switch

TEG-S24Dg (Version v1.0R)

GREENnet technology reduces power consumption by up to 70%*
24 x Gigabit Auto-MDIX RJ-45 ports
Sturdy metal desktop switch with built in power supply
48Gbps forwarding capacity

DISCONTINUED PRODUCT

The TEG-S24Dg (Version v1.0R) has been discontinued. It has been replaced by the TEG-S24Dg (Version v3.0R). For a list of discontinued products, click here.

The 24-Port Gigabit GREENnet Switch, model TEG-S24Dg, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

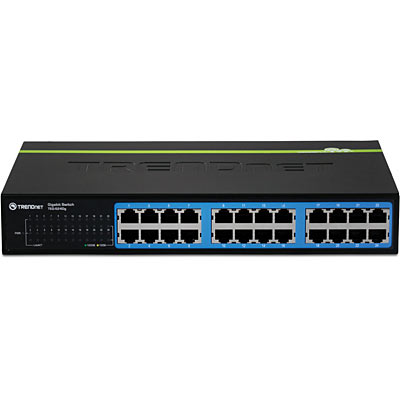

24 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
On / off power switch
Features a 48Gbps forwarding capacity
Internal power supply reduces clutter
GREENnet technology reduces electrical power consumption when:

Ethernet port is not in use
Connected device is turned off
Connected device is in power-saving mode
Based on Ethernet cable length

IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Store-and-Forward switching architecture with non-blocking wire-speed performance
Integrated address look-up engine with a 16 K MAC address table, and 3.5 MBits RAM data buffer
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9216 Bytes
Sturdy metal housing
Diagnostic LEDs and Plug & Play support
3-year limited warranty

*Max power savings compared with standard TRENDnet switches.

Hardware
Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet
Network Media	Ethernet: Cat. 5 up to 100 m Fast Ethernet: Cat. 5 and 5e up to 100 m Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate	Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex)
Protocol / Topology	CSMA/CD, Star
Power Consumption	13 Watts (max.)
Switch Fabric	48Gbps
Interface	24 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Power Button	On / off power button
Data RAM Buffer	3.5 MBits
Filtering Table	16 K entries
Jumbo Frame Support	Up to 9216Bytes
Diagnostic LED	Power, Link/ACT, 100Mbps, 1000Mbps

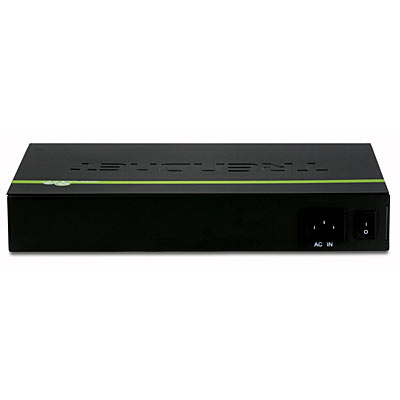

Power	100~240VAC, 50/60Hz Internal universal switching power
Dimension	280 x 180 x 44 mm (11 x 7 x 1.7 in.)
Weight	1.7 kg (3.8 lbs.)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC

PACKAGE CONTENTS

TEG-S24Dg
Multi-Language Quick Installation Guide
Power cord
(1.8m / 6ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
