Hardware |
Standards | - IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11s, IEEE 802.1d, HomePlug® AV, IEEE 1901
|
Interface | - 1 x 10/100Mbps Auto-MDIX RJ-45 Port,

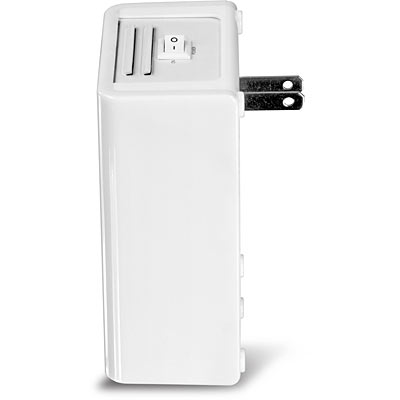

- Power prong:
- A: North America Type B (NEMA 5–15)
- EU: Euro Type C (CEE 7/16)
- FR: French Type E (CEE 7/5)
|
Powerline Frequency | |
Modulation | - OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
|
Protocols | |
Wired Speed | - Powerline: Up to 200Mbps**
- Ethernet: Up to 200Mbps (Full Duplex mode)
|
Utility OS Compatibility | - Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
|
Nodes | - Up to 64 (max.)
- Recommended: Up to 16* per powerline network
|
Overlapping Powerline Networks | - Up to 4 (per electrical system)
|
Powerline Coverage | |
Powerline Security | - 128-bit AES (Advanced Encryption Standard)
|
LED | - Power (PWR)
- Wireless (WLAN)
- WPS (Wi-Fi Protected Setup)
- Powerline (PL) Connection
- Best (Green)
- Better (Amber)
- Good (Red)
- No connection (Off)
- Ethernet (ETH) Connection
- Solid
- Blinking
- Off
|

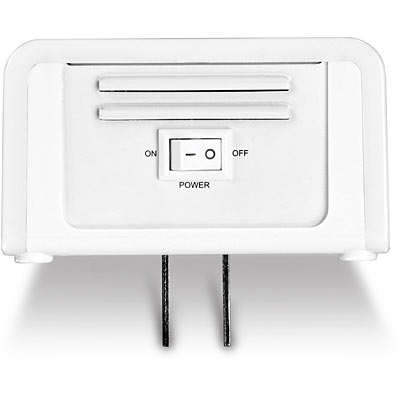

Power Switch | |
Buttons | |
Dimension (L x W X H) | - A: 103 x 81 x 66 mm (4.1 x 3.2 x 2.6 in.)
- EU/FR: 103 x 81 x 81 mm (4.1 x 3.2 x 3.2 in.)
|
Weight | - A: 266 g (9.4 oz)
- EU/FR: 272 g (9.6 oz)
|
Power Source | |
Consumption | |
Temperature | - Operating: 0° ~ 40°C (32° ~ 104°F)
- Storage: -10° ~ 70°C (14° ~ 158°F)
|
Humidity | - Max. 90% (non-condensing)
|
Certifications | |
Wireless |
Modulation | - OFDM with BPSK, QPSK, 16QAM, and 64QAM
|
Access Point Modes | - Access Point (AP)
- Access Point (AP) Client (wireless adapter)
- Wireless Distribution System (WDS)
- Wireless Distribution System (WDS) with Access Point (AP)
- Mesh
- Mesh with Access Point (AP)
- Repeater (using Client mode only)
|
Frequency Band | |
Data Rate*** | - 802.11b: 1,2,5.5, and 11Mbps
- 802.11g: 6,9,12,18,24,36,48 and 54Mbps
- 802.11n: up to 300 Mbps
|
Security | - 64/128-Bit WEP (HEX & ASCII), WPA/WPA2 RADIUS, WPA/WPA2-PSK
|
Antenna | - 2 x 2dBi internal printed dipole antennas
|
Channel | - 2.4GHz: 1~11 (FCC), 1~13 (ETSI)
|
Output Power | - 16dBm typically @ 802.11b
- 14dBm typically @ 802.11g
- 13dBm typically @ 802.11n
|
Receiver Sensitivity | - 802.11n Typical -68 dBm
- 802.11g Typical -73 dBm
- 802.11b Typical -84 dBm
|
