WiFi Everywhere™ Powerline 500 Kit

TPL-410APK (Version v2.0R)

  • Create or expand a wireless network with this Powerline adapter
  • 500 AV Powerline and N300 Wireless N
  • Easy installation
  • Two convenient Ethernet ports
  • Includes TPL-406E + TPL-410AP adapters
DISCONTINUED PRODUCT
The TPL-410APK (Version v2.0R) has been discontinued. It has been replaced by the TPL-430APK (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's WiFi Everywhere™ Powerline 500 Kit, model TPL-410APK, uses electrical outlets to create a hybrid Powerline-Wireless network. Easily install the included TRENDnet Powerline adapters (TPL-406E + TPL-410AP) to create a high-speed powerline network. Network the TPL-406E to a router and plug the TPL-410AP into an outlet on the electrical system to extend a high performance wireless network. Hardwire a smart TV, gaming console, or media player to the two Ethernet ports on the TPL-410AP.

A TRENDnet TPL-406E adapter is plugged into an electrical outlet and connected to a wireless router, which links to the internet. The router is shown with signal waves, indicating wireless connectivity, illustrating how the TRENDnet adapter uses the electrical system to extend the network connection.

Plug In Install

Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

The TPL-410AP Powerline adapter is connected to various household devices, including a game controller, laptop, lamp, TV, and another Powerline adapter. The central focus is on the TPL-410AP, depicted as a plug-in device with a Wi-Fi symbol, illustrating how it provides wireless connectivity to multiple devices using Powerline technology.

WiFi Everywhere™

By combining wireless and Powerline technology you can enjoy wireless connectivity from any power outlet in your household.

The WiFi Everywhere™ Powerline 500 device connects to two computers using Ethernet ports, extending high-performance wired connections. One computer is a desktop with a monitor, and the other is a laptop. This setup demonstrates the device's ability to provide wired internet access throughout the household.

Ethernet Port

Ethernet port extends high performance wired connections.

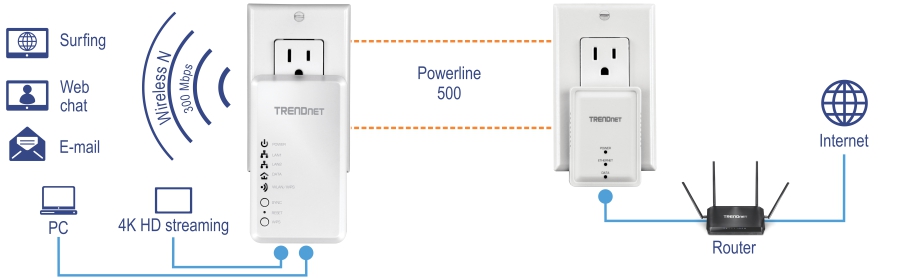

The setup illustrates a TRENDnet Powerline 500 adapter plugged into a wall outlet, with icons representing surfing, web chat, email, PC, and 4K HD streaming capabilities. The adapter provides Wireless N connectivity at 300 Mbps and connects to another TRENDnet adapter via an orange dashed line labeled Powerline 500. This second adapter, also plugged into a wall outlet, is connected to a router linked to the internet. Two Powerline devices are required to start a network.

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 500

High speed Powerline networking over existing electrical lines

Ethernet Ports

Two convenient Ethernet ports to hardwire computers, smart TVs, or other network enabled devices

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Quick Setup

Get up and running in minutes with the intuitive guided setup

N300 Wireless

Proven N300 Wireless N

Wireless Coverage

Expanded wireless coverage with MIMO antenna technology

Pre-Encrypted

For your convenience the wireless is pre-encrypted with a unique password

Push Button Connection

Connect wireless devices at the touch of the Wi-Fi Protected Setup (WPS) button

Compatibility

Compatible with legacy 2.4 GHz Wireless devices

TPL-410AP (v2.0R)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 1901
Device Interface
  • 2 x 10/100 Mbps ports
  • Sync button
  • Reset button
  • WPS button
  • Power switch
  • LED indicators
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK : United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines***
Encryption
  • Wireless: up to WPA2
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Utility OS Compatibility (optional)
  • Windows® 10, 8.1, 8, 7, Vista, XP
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernets port for wired connectivity
Antenna Gain
  • 2.4 GHz: 2 x 3 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11b: 17 dBm (typical) / -76 dBm (typical) @ 11 Mbps
  • 802.11g: 14.5 dBm (typical) / -66 dBm (typical) @ 54 Mbps
  • 802.11n: 14 dBm (typical) / -68 dBm (typical) @ 300 Mbps
Power
  • Input: 100 – 240 V AC, 50 – 60 Hz, 0.2 A
  • Active mode consumption: 6.5 Watts (max.)
Operating Temperature
  • 0 - 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • IC
Dimensions
  • 107 x 62 x 48.5 mm (4.2 x 2.44 x 1.9 in.)
Weight
  • A: 180 g (6.3 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
TPL-406E (v2.0R)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68MHz
Data PHY Rate
  • Ethernet: Up to 200 Mbps (full-duplex)
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 68 x 55 x 28 mm (2.7 x 2.2 x 1.1 in.)
Weight
  • A: 64 g (2.2 oz.)
  • EU: 68 g (2.4 oz.)
  • UK: 68 g (2.4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPL-410AP
  • TPL-406E
  • Quick Installation Guide
  • 2 x Network cable (1.5 m / 5 ft.)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.
*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
