Industrial SFP to Gigabit PoE+ Media Converter

TI-PF11SFP (Version v1.0R)

  • Hardened IP30 rated SFP to Gigabit PoE+ converter
  • SFP port accommodates Multi or Single Mode fiber
  • Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
  • Provides up to 30W for PoE and PoE+ compliant devices
  • Includes DIN-rail and wall mounts
  • Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
  • Dual redundant power inputs with overload current protection
DISCONTINUED PRODUCT
The TI-PF11SFP (Version v1.0R) has been discontinued. It has been replaced by the TI-PF11SFP (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's Industrial SFP to Gigabit PoE+ Media Converter, model TI-PF11SFP, converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points. The hardened IP30 rated housing is suitable for extreme industrial environments. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.

Line art of a tall industrial building with gear icons.

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

Line art showing an Industrial SFP to Gigabit PoE+ Media Converter connected to a bullet camera via Power over Ethernet (PoE).

PoE+ Output

Converts fiber to copper while providing power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.

Graphic with four icons: vibration, temperature, shock, and IP30 rating.

Extreme Environments

Hardened IP30 converter, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range.

Diagram showing the connection setup of a network system. Components include a TEG-S160WS switch, a PoE+ camera, a TI-PF11SFP device, and a TI-S12048 power supply. The TEG-S160WS switch connects to the TI-PF11SFP, which links to the PoE+ camera and the TI-S12048 power supply. This setup illustrates power and network connectivity for the camera.

Network Ports

1 x Gigabit PoE+ Ethernet port and 1 x SFP slot

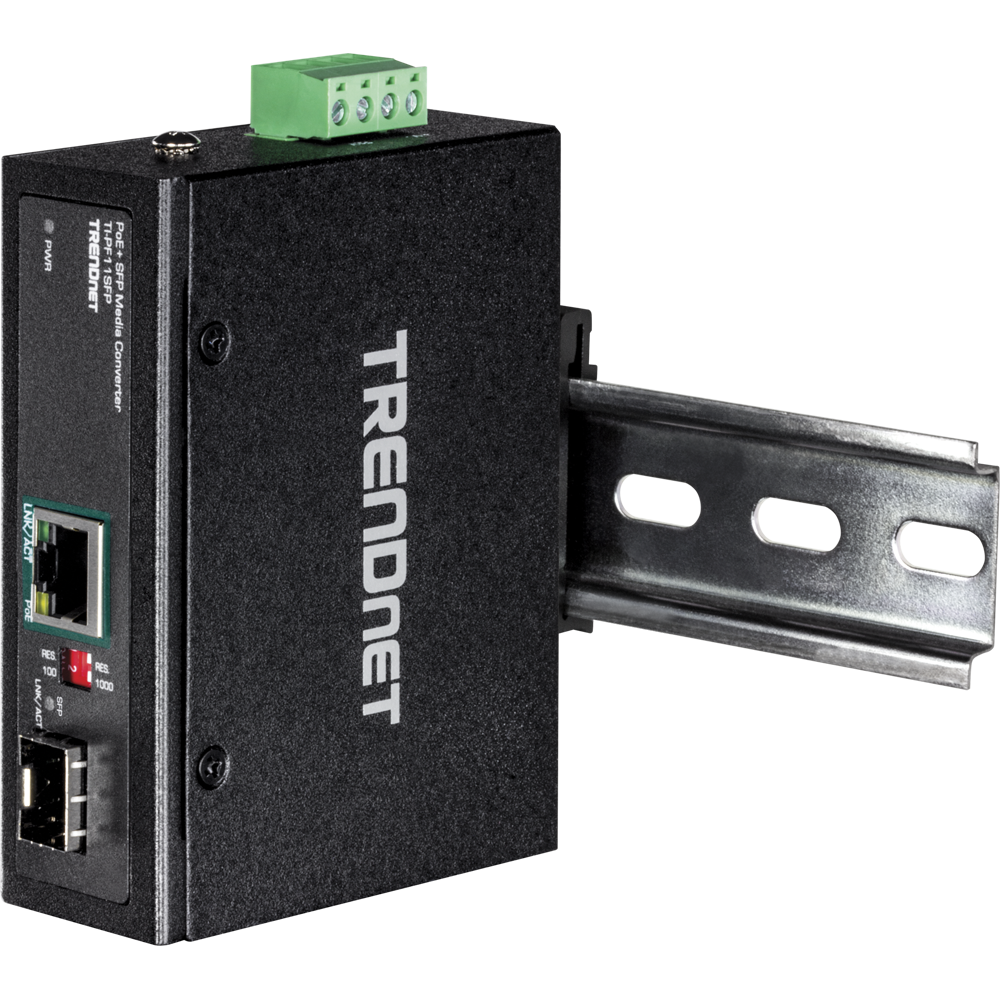

DIN-Rail/Wall Mounts

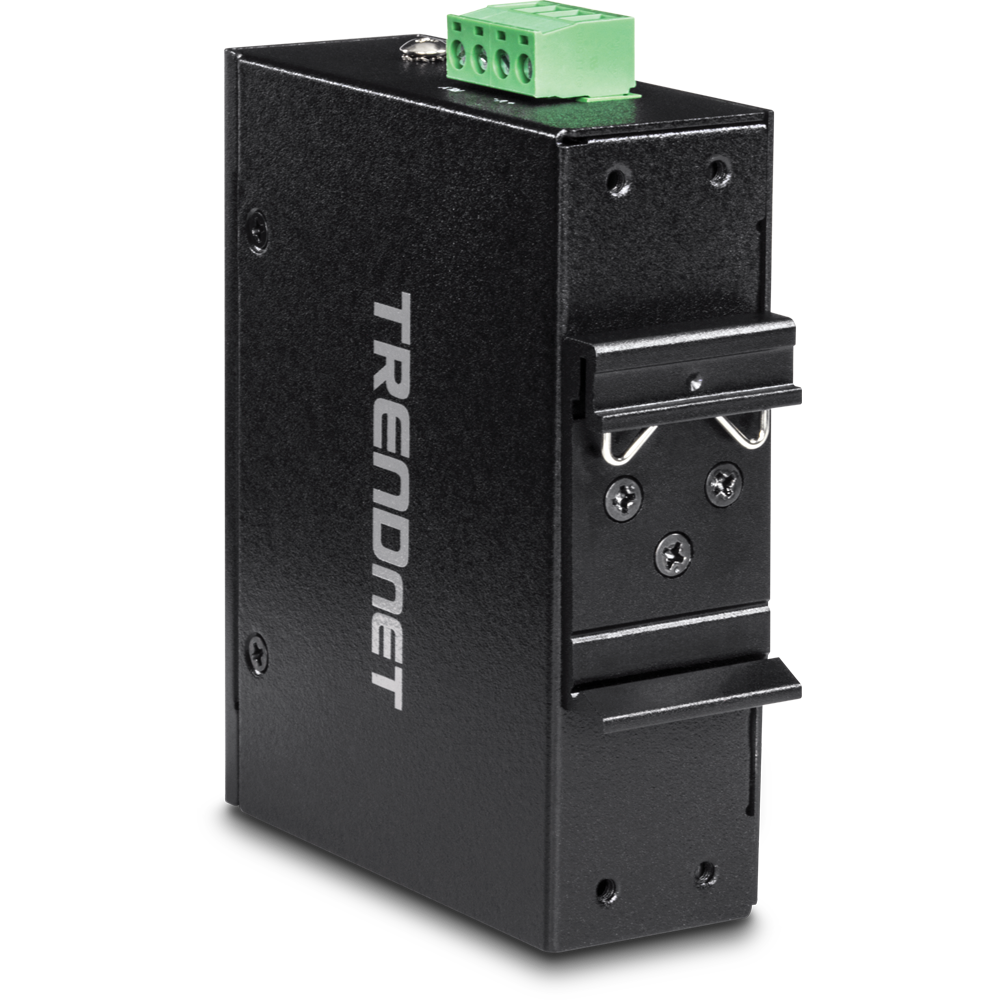

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

2Gbps switching capacity

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S12048)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures

Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)

Electromagnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit PoE+ port
  • 1 x 100/1000Mbps SFP slot
  • 4-pin removable terminal block
  • LED indicators
  • DIP Switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • Jumbo Frame: 9KB
  • Hardened components rated for extreme temperatures
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S12048 (sold separately)
  • Consumption: 2 watts (without PoE) with 48VDC input
PoE
  • Mode A (V+ 1, 2; V- 3,6)
  • Budget: 30 watts
  • Consumption: Max. 36 watts with 56VDC input

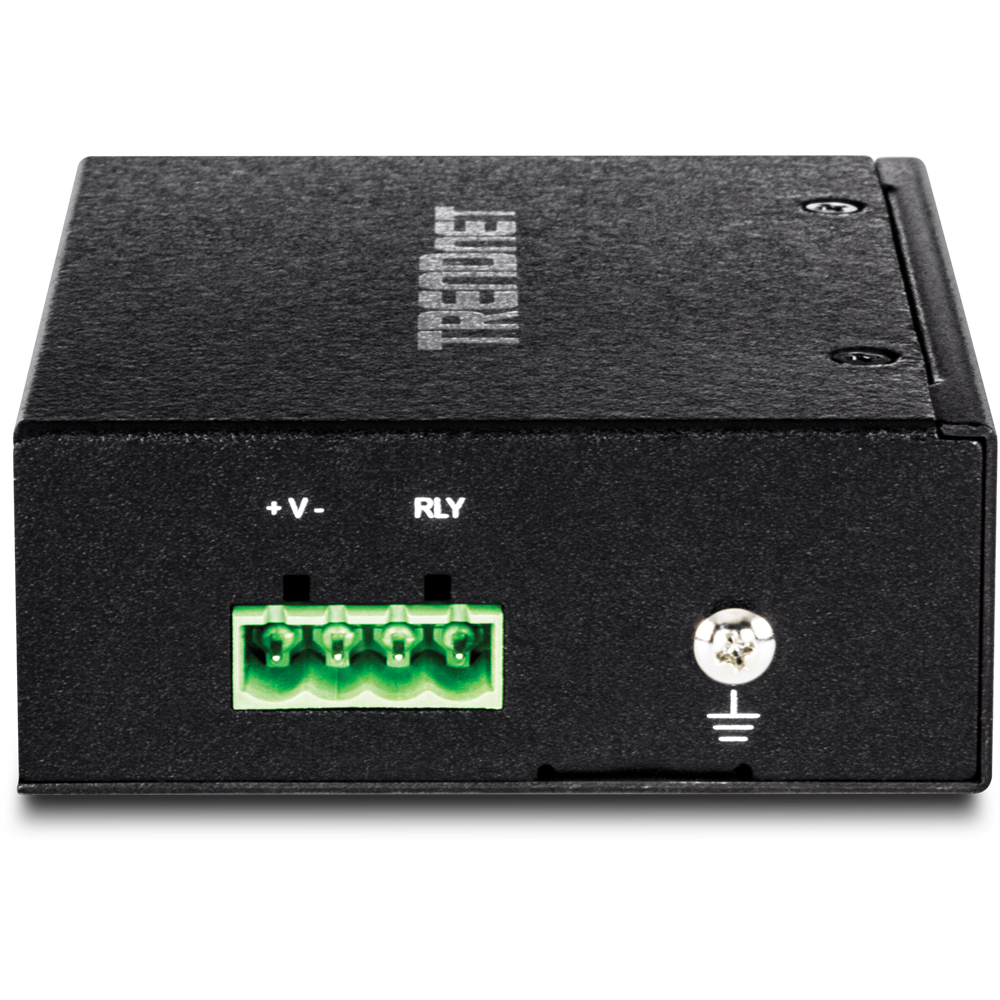

Terminal Block
  • Power and relay inputs, 4 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
DIP Switch
  • 1: reserved, no function
  • 2: set SFP speed to 100Mbps or 1000Mbps
MTBF
  • 500,000 hours
Housing
  • IP30 aluminum case
  • DIN-rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 81 x 32 mm (4 x 3.2 x 1.2 in.)
Weight
  • 154 g (5.4 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • EN60950-1 (LVD)
Warranty
  • 3 years

PACKAGE CONTENTS
  • TI-PF11SFP
  • Quick Installation Guide
  • Removable terminal block

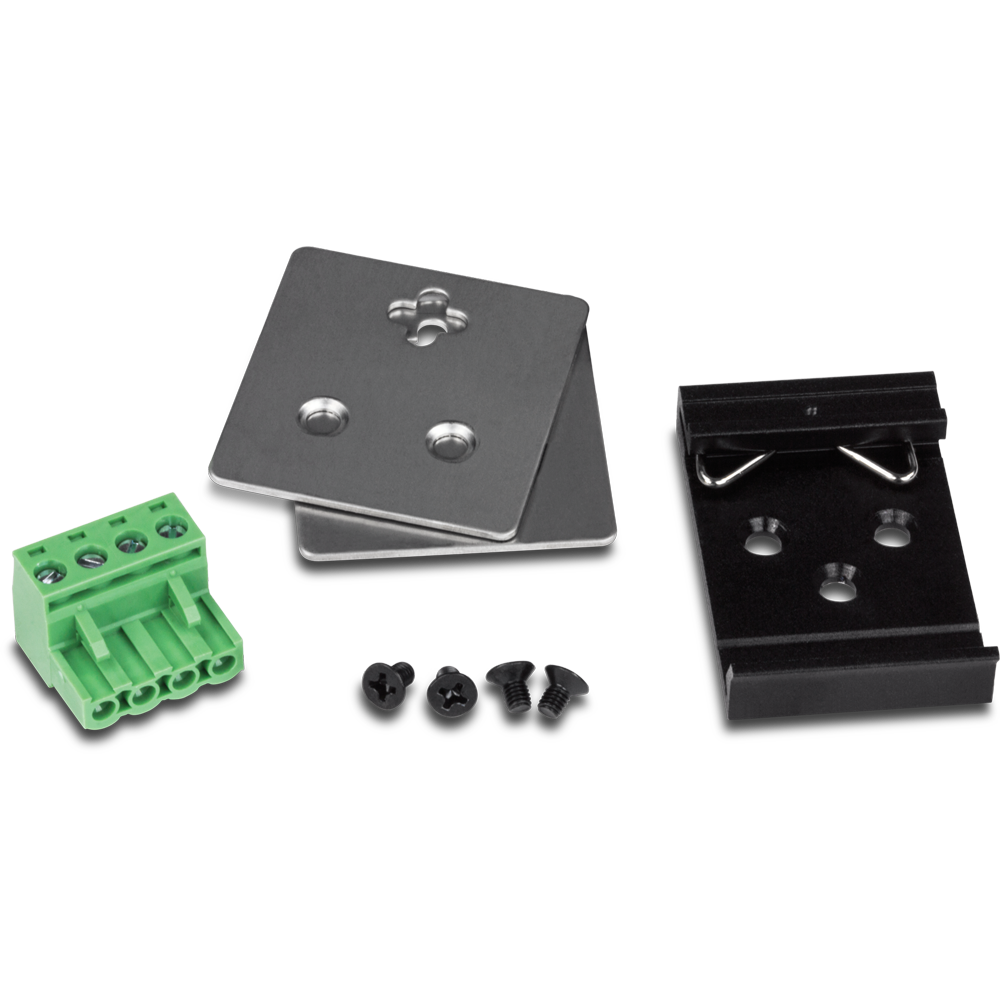

  • DIN-rail and wall mount kit
