USB-C to VGA HDTV Adapter

TUC-VGA (Version v1.0R)

  • Connect an additional high resolution monitor to a workstation in Extend Mode
  • Experience an HDTV display up to 1920 x 1200 resolution at 60 Hz
  • Flawless video with high speed USB TYPE-C to VGA connection
  • Powered by the connected computer
  • Supports Windows® and Mac® operating systems
DISCONTINUED PRODUCT
The TUC-VGA (Version v1.0R) has been discontinued. It has been replaced by the TUC-VGA2 (Version V1). For a list of discontinued products, click here.

TRENDnet's USB-C (TYPE-C) to VGA HDTV Adapter, model TUC-VGA, adds an HDTV monitor to a workstation in Extend Mode or displays a computer screen on an HDTV in Duplicate Mode. Experience flawless video with the USB TYPE-C to VGA connection. The adapter is powered by the connected computer and is compatible with Windows® and Mac® operating systems.

Multi-Display Workstation

Unlock workstation efficiency by adding multiple large screen HD displays to your workstation (one TUC-VGA per display).

Display Your Way

Combine multiple displays into one viewing field with Extend Mode or repeat a viewing field to another display with Mirror Mode

HD Video to a TV

Connect the high speed USB-C port to your computer, then connect the VGA cable to your TV to stream HD video.

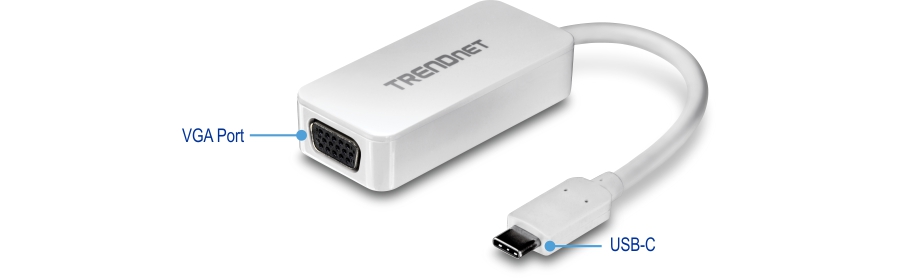

A white TRENDnet adapter with a VGA port on one end and a USB-C connector on the other end. The VGA port is labeled VGA Port, and the USB-C connector is labeled USB-C. This adapter is designed to connect devices with a USB-C port to a display with a VGA input.

HD Resolution

1920x1200 @ 60 Hz max. resolution

Extend Mode

Extend a monitor with an available VGA port to a workstation

Duplicate Mode

Duplicate a computer display to an HDTV

Video Refresh

Supports a 60 Hz video refresh rate

USB Port

Compatible with USB Type-C port

Power

Powered by computer's USB port

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows® and Mac® operating systems

Standards
  • VGA
  • USB Type-C
Interface
  • 1 x VGA 15-pin (Female) with Alt mode
  • 1 x USB Type-C port (Male)
Monitor
  • Full 1080p HD resolution support with a 60 Hz refresh rate
  • Max. 1920 x 1200 resolution at 60 Hz
Modes
  • Extend
  • Duplicate / Mirror
Display Controls
  • Define screen resolution
  • Rotate display left, right, upside down
  • Set as Main Monitor function transfers operating system controls to the display viewing field
  • Notebook Monitor Off function turns off the computer's primary display
Supported OS
  • Windows® 10
  • Mac OS® 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
Dimensions
  • 66 x 29 x 15 mm (2.6 x 1.1 x 0.6 in.)
  • 140 mm (5.5 in) cable length
Weight
  • 60 g (2.0 oz.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TUC-VGA
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
