Indoor/Outdoor 5MP H.265 WDR PoE IR Bullet Network Camera

TV-IP1514PI (Version v1.0R)

Easy Cloud P2P QR code installation
5MP HD video (2592 x 1920) at 20 fps
Night vision IR LEDs for night vision up to 30m (98 ft.)
Built-in microphone for one-way audio
Outdoor IP66 weather rating
Wide Dynamic Range image balancing
Save installation costs with Power over Ethernet (PoE)
Programmable motion detection recording and email alerts
Micro SD card slot (up to 256GB)
Free Sentinel iOS® and Android™ mobile apps
Complimentary View Manager PC software
Made in Taiwan
NDAA / TAA compliant

TRENDnet’s Indoor/Outdoor 5MP H.265 PoE IR Bullet Network Camera, model TV-IP1514PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This bullet network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP PoE camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

A monitor displaying a nighttime camera view of a parking lot.

Night Vision HD Surveillance

Night-time viewing up to 30 meters (98 ft.) away, with night vision infrared (IR) LEDs that dynamically adjusts as needed.

Power over Ethernet (PoE)

PoE offers cost savings and the flexibility to install this night vision 5MP PoE camera up to 100m (328 ft.) from the PoE source equipment.

An illustration of a bullet camera mounted on a wall, overlooking a parking lot.

Outdoor Ready

Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 50°C (-22° – 122°F).

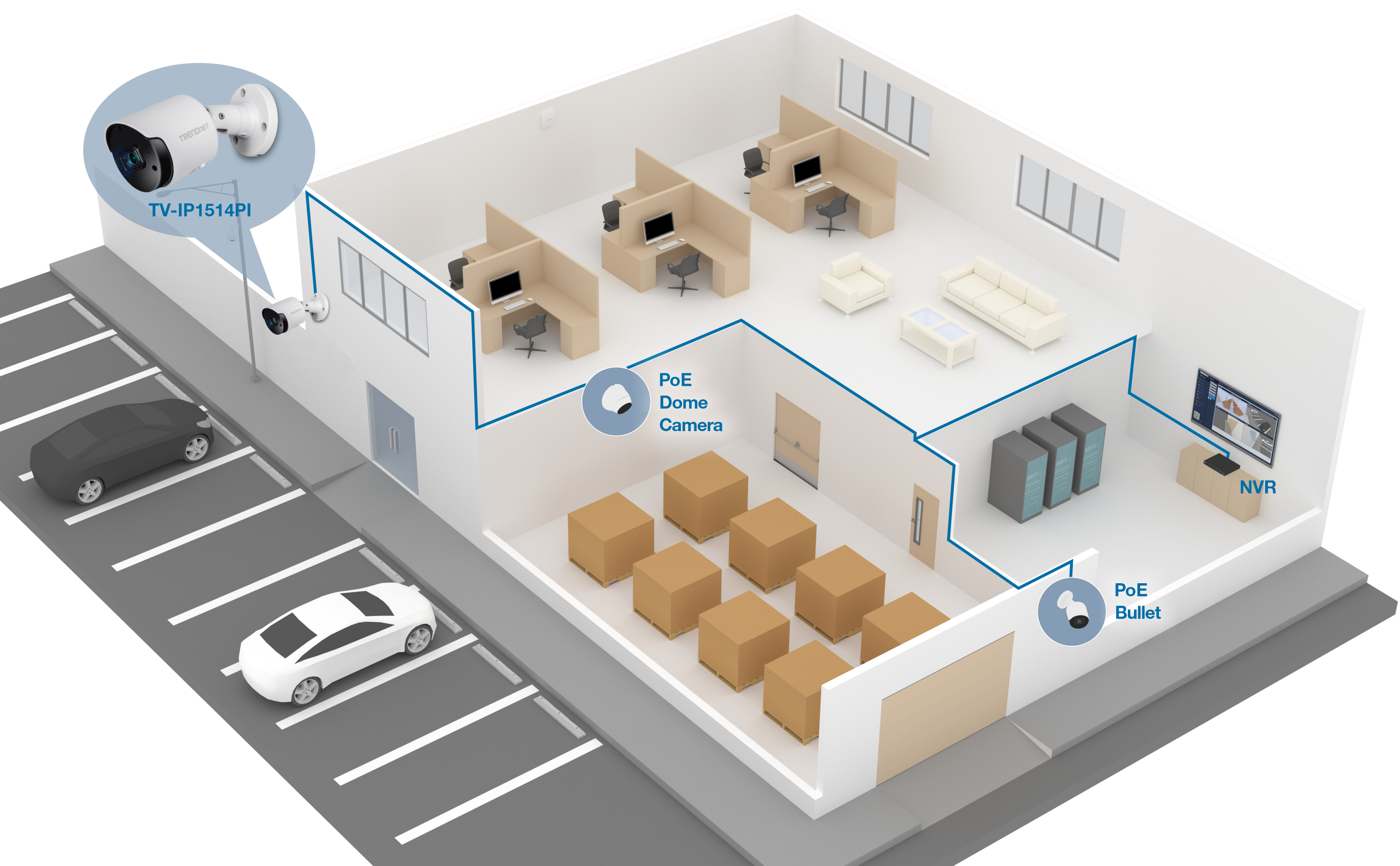

Diagram shows a building's surveillance system setup, featuring a PoE Bullet Camera outside covering the parking lot and entrance, and a PoE Dome Camera inside monitoring the office area, with all cameras connected to an NVR in the server room.

5 Megapixel

Record up to 5MP HD video at 20fps in the space saving H.265 compression format

Night Vision HD Surveillance

Night vision infrared LEDs on the 5MP PoE camera dynamically adjusts the infrared (IR) LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away. Night-time viewing up to 30 meters (98 ft.) away

PoE

Save installation costs with Power over Ethernet (PoE)

Outdoor Ready

This 5MP surveillance camera features an outdoor IP66 weather rated housing

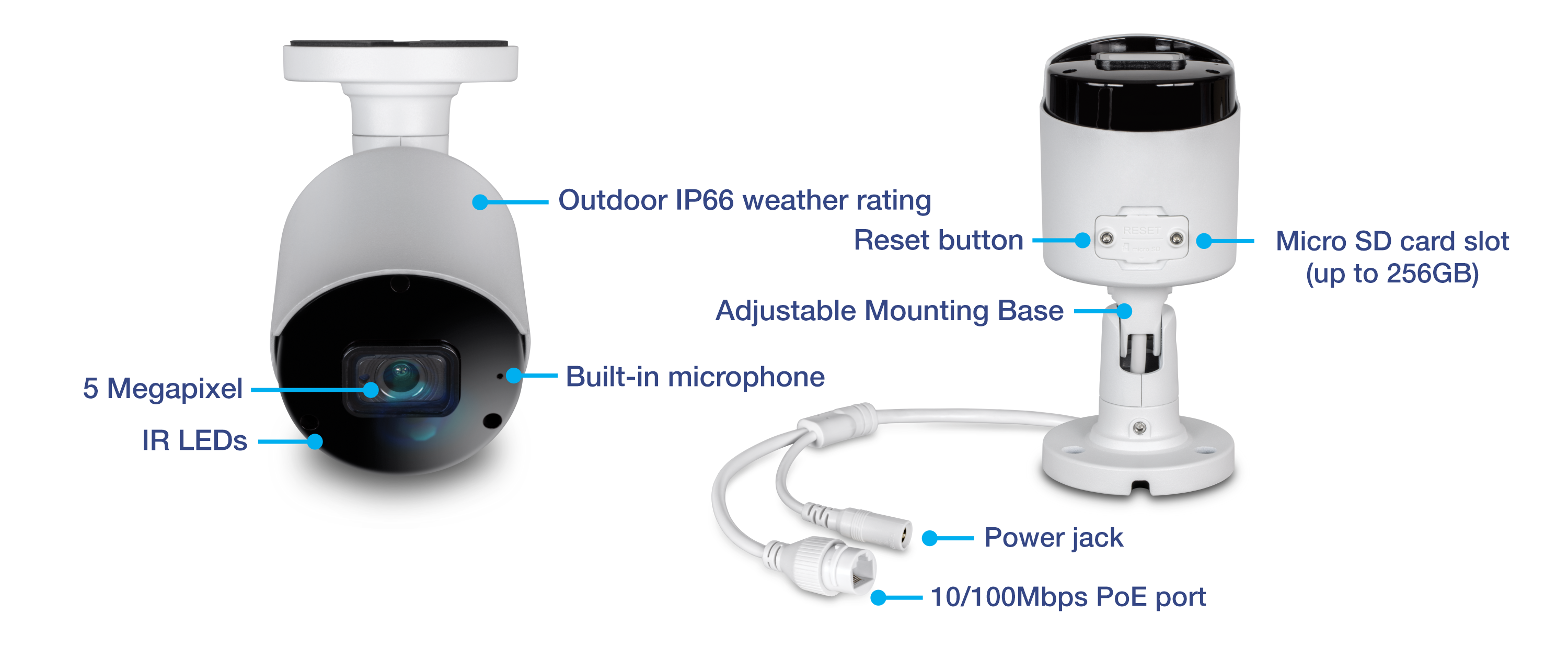

Adjustable Mounting Base

Fully adjustable integrated mounting base on the 5MP PoE camera provides installation flexibility

Storage

Record video from the 5-megapixel network camera to a network storage device or to a Micro SD card (up to 256GB, not included)

Advanced Playback

Advanced in-camera archived video playback functionality

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered

Wide Dynamic Range (WDR)

WDR setting improves image quality and focus when the camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible

Recording Flexibility

Define custom schedules using continuous (24/7) and event-based recording modes

ONVIF

ONVIF Profile S

Complimentary Software

Complimentary View Manager software to manage TRENDnet cameras

Complimentary Apps

View live video from the 5MP PoE camera to a mobile device with free Sentinel iOS® and Android™ apps

Lens	Focal length: 3.6mm @ F1.6 Sensor: 1/ 2.7” CMOS sensor DWDR 3D DNR
Viewing	Horizontal angle: 79˚ Vertical angle : 56˚ Diagonal angle : 106˚
Minimum Illumination	IR off: 0.02 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265 H.264 MJPEG
Resolution	Main stream: H.265/H.264: 2592 x 1920 up to 20fps Sub stream: H.265/H.264/MJPEG: 1280 x 720 up to 10fps Third stream: H.265/H.264/MJPEG: 720 x 480 up to 10fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Micro SD card slot Power jack Built-in microphone Reset button
Micro SD slot	Supports Micro SD/SDHC/SDXC (not included) Up to 256GB
Housing	IP66 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SMB HTTP, HTTPS RTSP, RTP
Compliant Standard	ONVIF (Profile S)
Dimension	150 x 70 x 70mm (6 x 2.75 x 2.75 in.)
Weight	389g (0.86 lb.)
Operating Temperature	-30° – 50° C (-22° – 122° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. consumption: 5.5W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support Image settings: 3D Noise Reduction, Brightness, Hue Contrast, Saturation, Sharpness, Exposure Value, image Auto Gain, Day/Night switch, WDR, white balance, Mirror, Flip, Color Mode WDR enhances video quality in high contrast daytime lighting 3D Noise Reduction removes digital noise from the video signal Audio: built-in microphone can be enabled and disabled Time and date overlay Video Recording: scheduled, motion detection, and tamper detection Motion detection: define motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supports remote management
View Manager	Supports TRENDnet cameras Recording playback Custom viewing modes and options Compatibility: Windows®
Sentinel App	Free iOS® and Android™ apps View live camera video Push notifications Take snapshots and videos Playback
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TV-IP1514PI
Weather seal
Quick installation guide
Camera mounting hardware
