2-Port USB KVM Switch Kit with Audio

TK-209K (Version V3)

2-Port KVM switch with VGA, USB mouse and keyboard connections
Control two computers with one set of console controls
Device monitoring with auto scan and audible feedback
High quality 2048 x 1536 resolution
Supports most operating systems and advanced mouse designs
Listen to music from one computer while working on another
USB powered – No external power adapter required
No CD installation required
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s 2-Port USB KVM Switch Kit with Audio, model TK-209K, allows you to control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard, and mouse, but you can also share a microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between two PCs. With its hot plug, auto scan, and hotkey operating features, the TK-209K KVM Switch is an ideal choice for managing two PCs.

Flat-screen monitor displaying the acronym VGA in large white letters centered on a dark gradient screen, set against a blue background that transitions from light to deep blue.

VGA

Designed for VGA systems with resolutions up to 2048 x 1536 with a 60Hz refresh rate.

Push Button Controls

Use the front panel push buttons to switch between computers.

TRENDnet audio switch device connected to a microphone via pink input jack and speakers via green output jack, with two USB ports also visible on the front panel.

Audio Support

Features 3.5mm speaker and microphone connections to switch between computers.

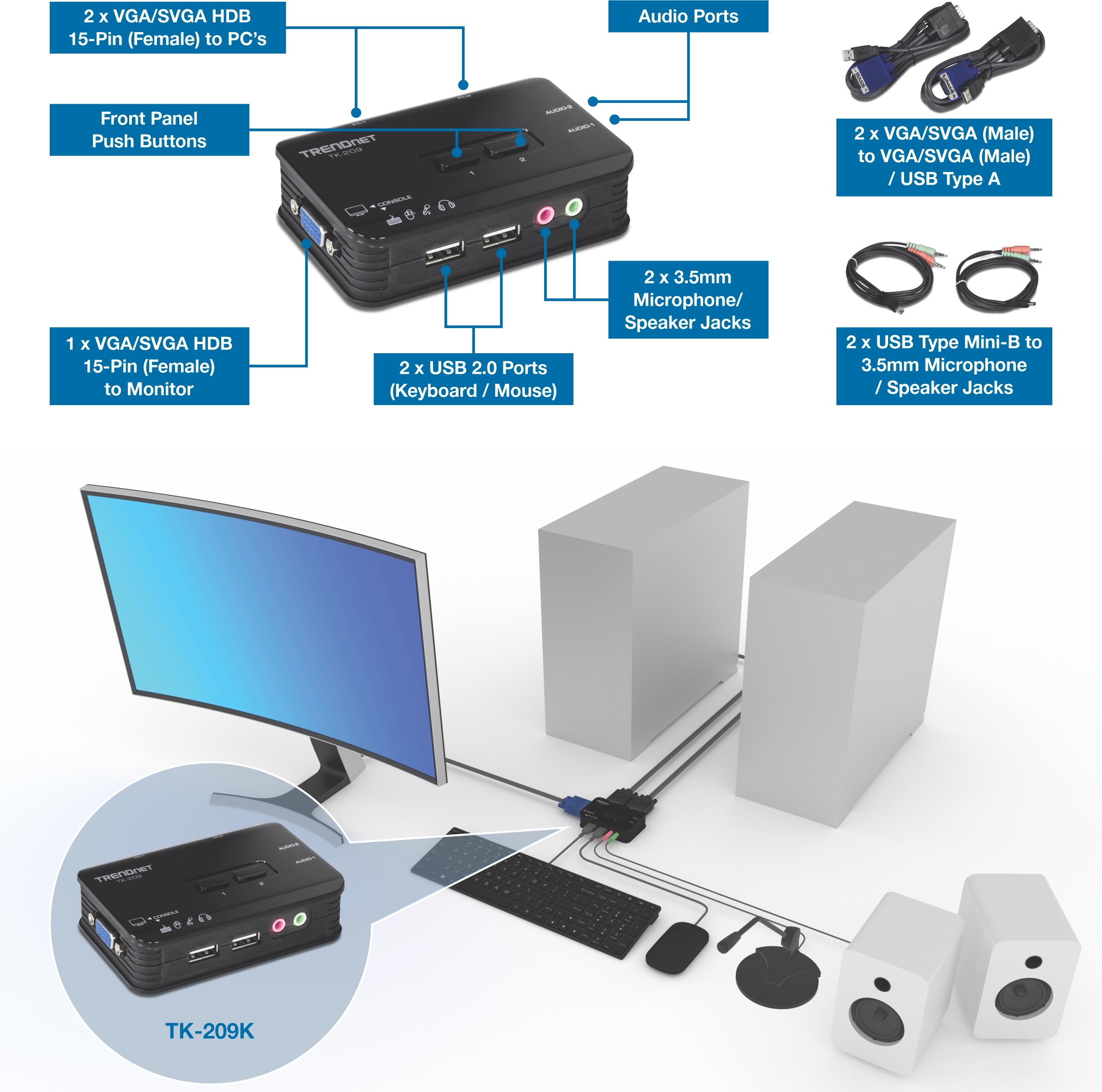

TRENDnet 2-Port VGA KVM Switch Kit model TK-209K is shown with a labeled diagram of its front and rear panels, featuring two VGA/SVGA HDB 15-pin female ports for PC connections, audio ports, front panel push buttons, one VGA/SVGA HDB 15-pin female port for monitor output, two USB 2.0 ports for keyboard and mouse, and two 3.5mm jacks for microphone and speaker. Below the diagram, a setup example illustrates the switch connecting two desktop computers to a single monitor, keyboard, mouse, and speaker system, demonstrating how the device consolidates control of multiple PCs through one interface.

Computers

Control up to 2 computers with one set of console devices

VGA

This VGA KVM switch supports resolutions up to 2048 x 1536 with a 60Hz refresh rate

Hot Keys

This VGA KVM switch features keyboard hot key commands for switching between computers

USB Mouse & Keyboard

Supports traditional USB mouse and keyboard devices

Audio Support

This VGA KVM switch features 3.5mm speaker and microphone connections to switch between computers

Included Cables

This KVM kit includes two sets of KVM cables

Computer Ports

Requires free USB and VGA ports from connected computers

Console Port Connectors	1 x VGA /SVGA HDB 15-pin (Female) 2 x USB ports (Keyboard / Mouse) 2 x 3.5mm microphone/speaker jacks
Computer Interface (up to 2)	1 x USB 2.0 Type A 1 x VGA /SVGA HDB 15-pin (Female) 2 x 3.5mm Audio jacks
Cables (2 sets)	Length: 1.2m (4 ft.) VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A 3.5mm Audio cables
Monitor Resolution	2048 x 1536 @ 60Hz
Switching Control	Front panel push buttons Keyboard hot key commands
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered Max. consumption: 0.7W
Dimensions	95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight	104g (3.6 oz.)
Warranty	2 year
Certifications	CE FCC

Содержимое упаковки

TK-209K
Quick Installation Guide
2 x KVM Cables (1.2m/4 ft.)
2 x Audio Cables (1.2m/4 ft.)

Все значения скорости приведены только в целях сравнения. Технические характеристики, размер и форма продукта могут быть изменены без предварительного уведомления, а фактический внешний вид продукта может отличаться от описанного в настоящем документе.
